Lian Li · VECTOR V100R
Four-fan airflow behind a panoramic glass view

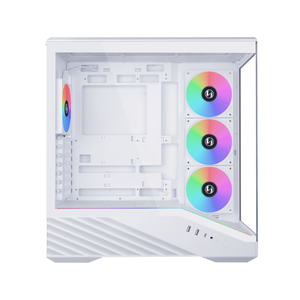

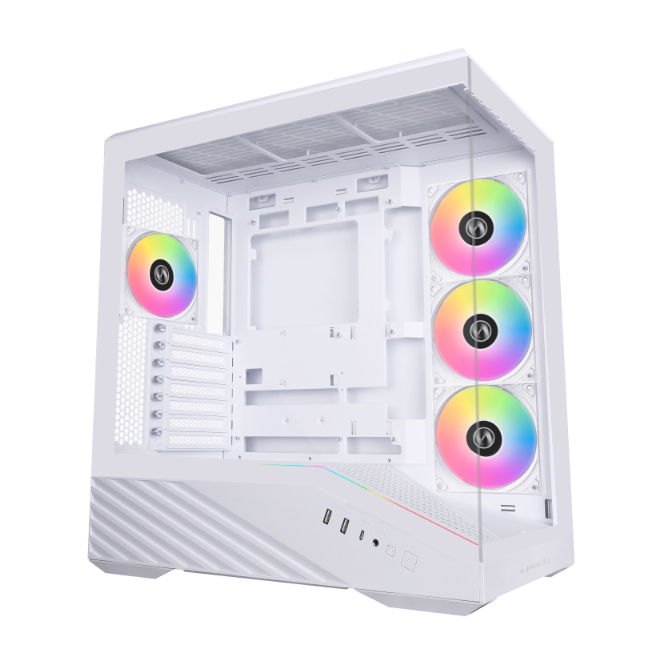

The VECTOR V100R is a mid-tower case with four pre-installed 120mm fans, a 270-degree tempered-glass showcase and support for both conventional and compatible back-connect ATX or Micro-ATX motherboards. Selected finish: White.
Choose V100R for the installed fans

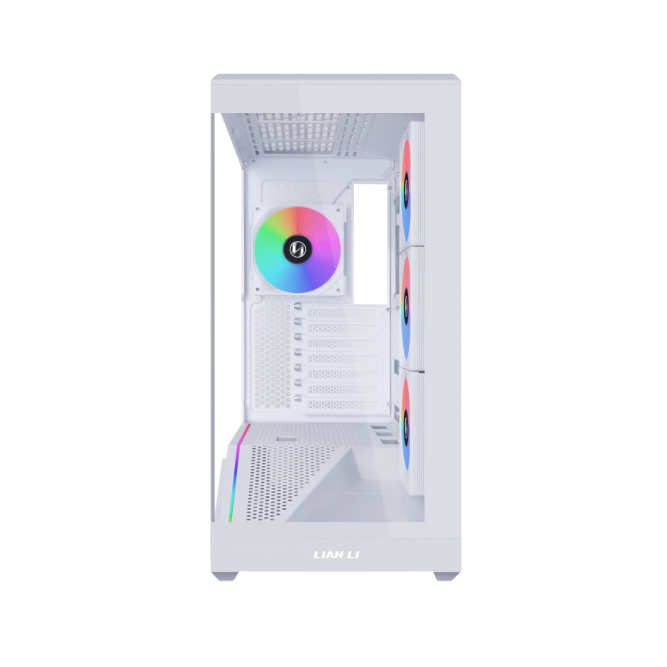

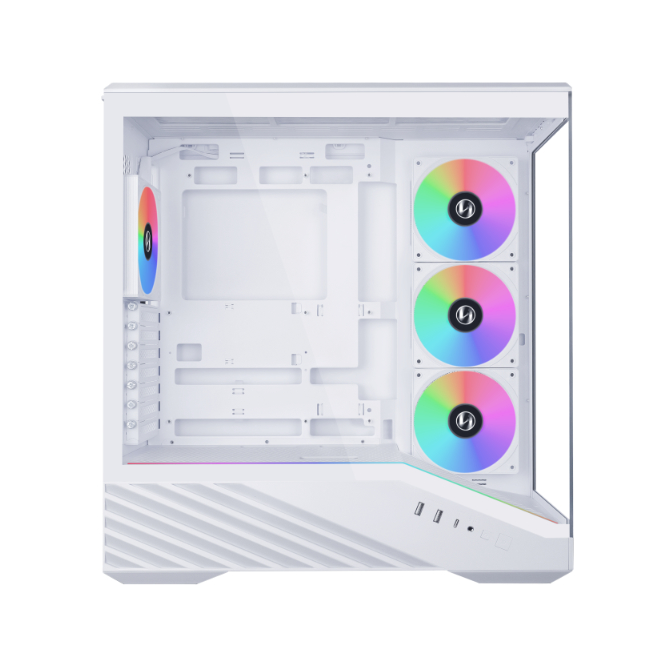

Lian Li distinguishes the V100R from the unpopulated V100 by its three side fans and one rear fan. The clear side/front showcase and the integrated 26-LED ARGB strip provide lighting without changing the verified case capacity.
A build layout with separate limits
The chassis supports a GPU up to 420mm long and an air cooler up to 178mm high. It also accepts a top radiator up to 360mm and an ATX PSU shorter than 220mm. Check the complete cooling and cable arrangement rather than treating any one maximum as a complete fit guarantee.
Concealed routing for compatible motherboards
Back-connect support covers ATX and Micro-ATX. Standard Mini-ITX boards are also supported. Cable-management space behind the motherboard tray and a removable bottom dust filter help with the build and subsequent cleaning.
VECTOR V100R specifications
- Dimensions (L × W × H)
- 446 × 235.5 × 484.65 mm
- Motherboards
- ATX / Micro-ATX / Mini-ITX
- Back-connect motherboards
- ATX / Micro-ATX
- Materials
- Steel, tempered glass and plastic
- GPU length
- Up to 420 mm
- CPU air-cooler height
- Up to 178 mm
- Power supply
- ATX shorter than 220 mm
- Expansion slots
- 7
- Top radiator
- Up to 360 mm; manufacturer specifies radiator height below 60 mm
- Included fan positions
- Three side 120mm fans; one rear 120mm fan
- Additional fan positions
- Top: three 120mm or two 140mm; bottom: two 120mm; rear may take one 140mm instead
- Storage
- One 2.5-inch SSD behind tray; one 3.5-inch HDD at bottom
- Front connections
- Two USB 3.0 Type-A, one USB Type-C, audio, power and reset
- Colour
- White
VECTOR V100R build questions
Is this the same case as VECTOR V100R MINI?
No. This is the larger 446 × 235.5 × 484.65mm mid-tower with ATX motherboard support. The MINI has different dimensions, clearances and motherboard limits.
Are the extra fans and liquid cooler in completed build pictures included?
The verified included configuration is the three side fans and one rear fan. Other build components in manufacturer demonstrations are illustrative.
Official Lian Li VECTOR V100R product information and manuals
Specifications and box contents may vary by region or manufacturer revision. Please check the linked manufacturer information and confirm any essential feature or included accessory with GameOn.pk before ordering.
| Brand | Lian Li |
|---|---|
| Color | White |
