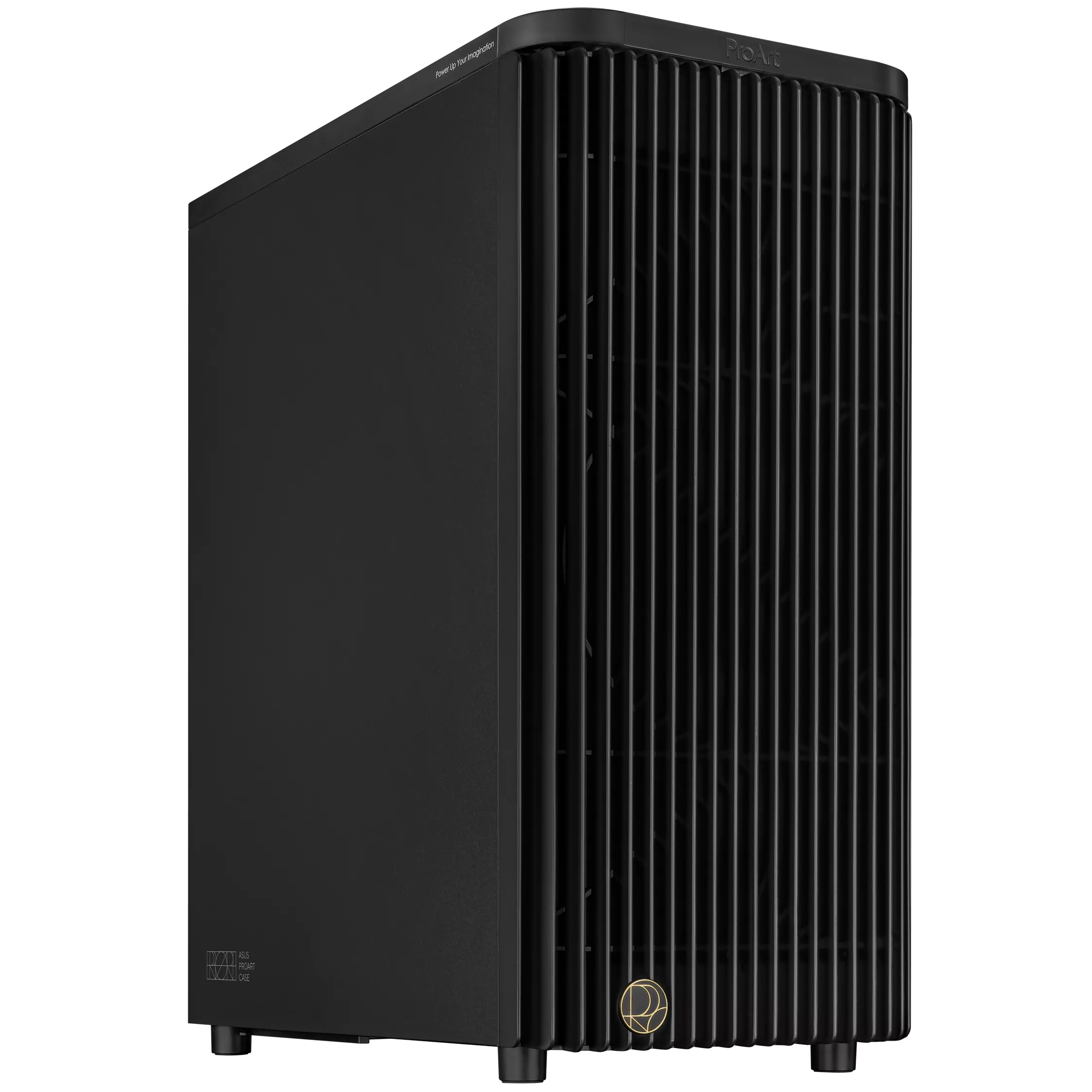

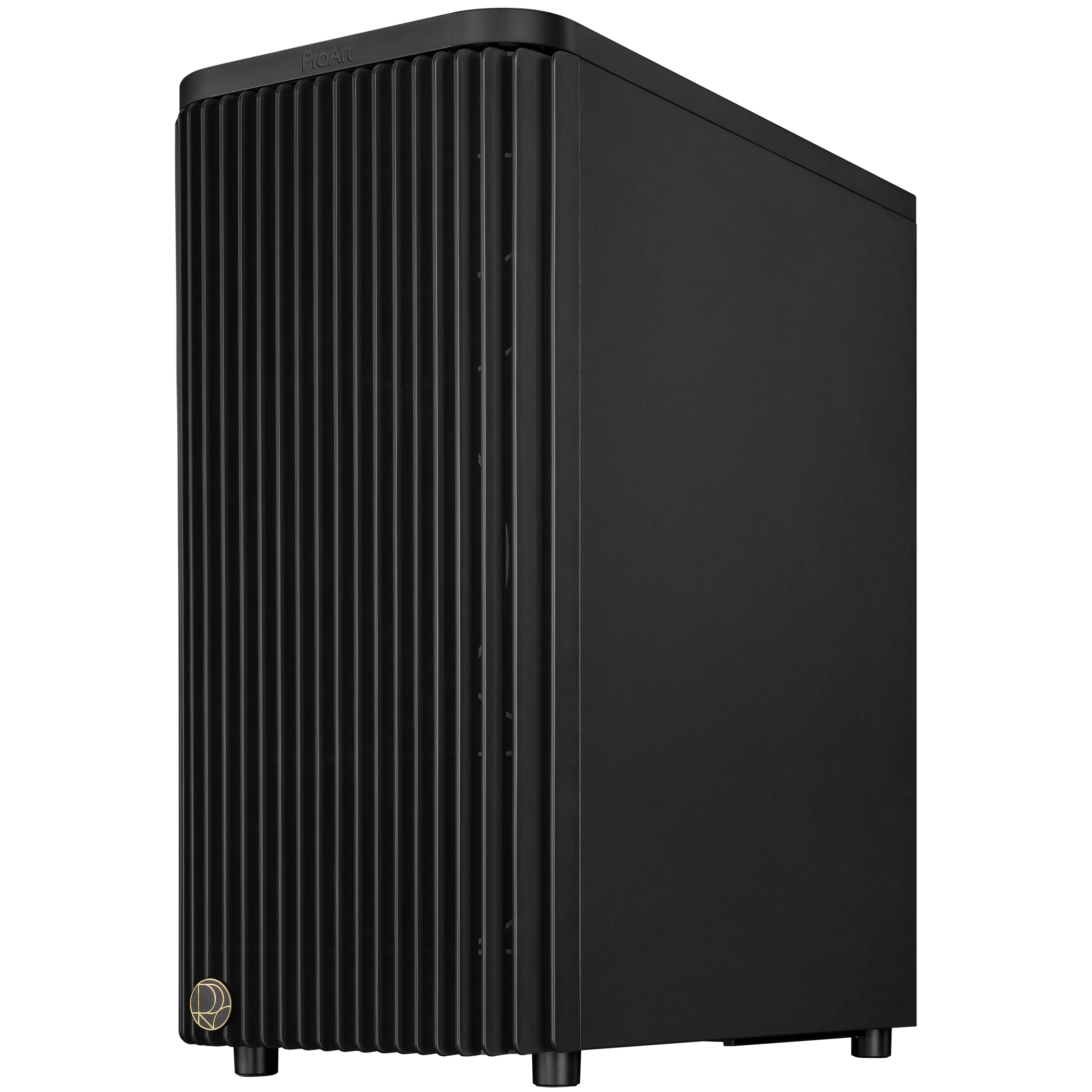

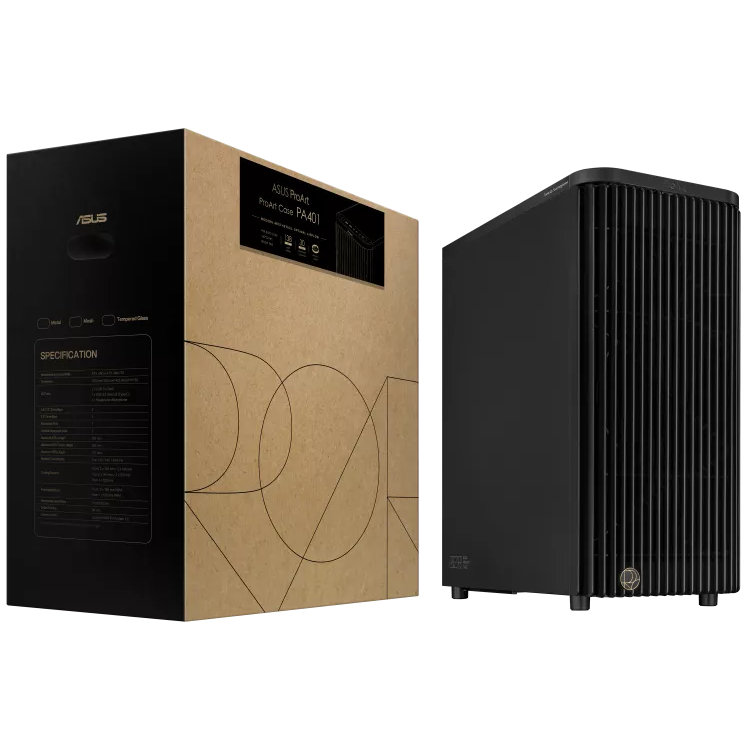

ASUS ProArt PA401 Wood MTL PWM Black

Modern Aesthetics, Optimal Airflow

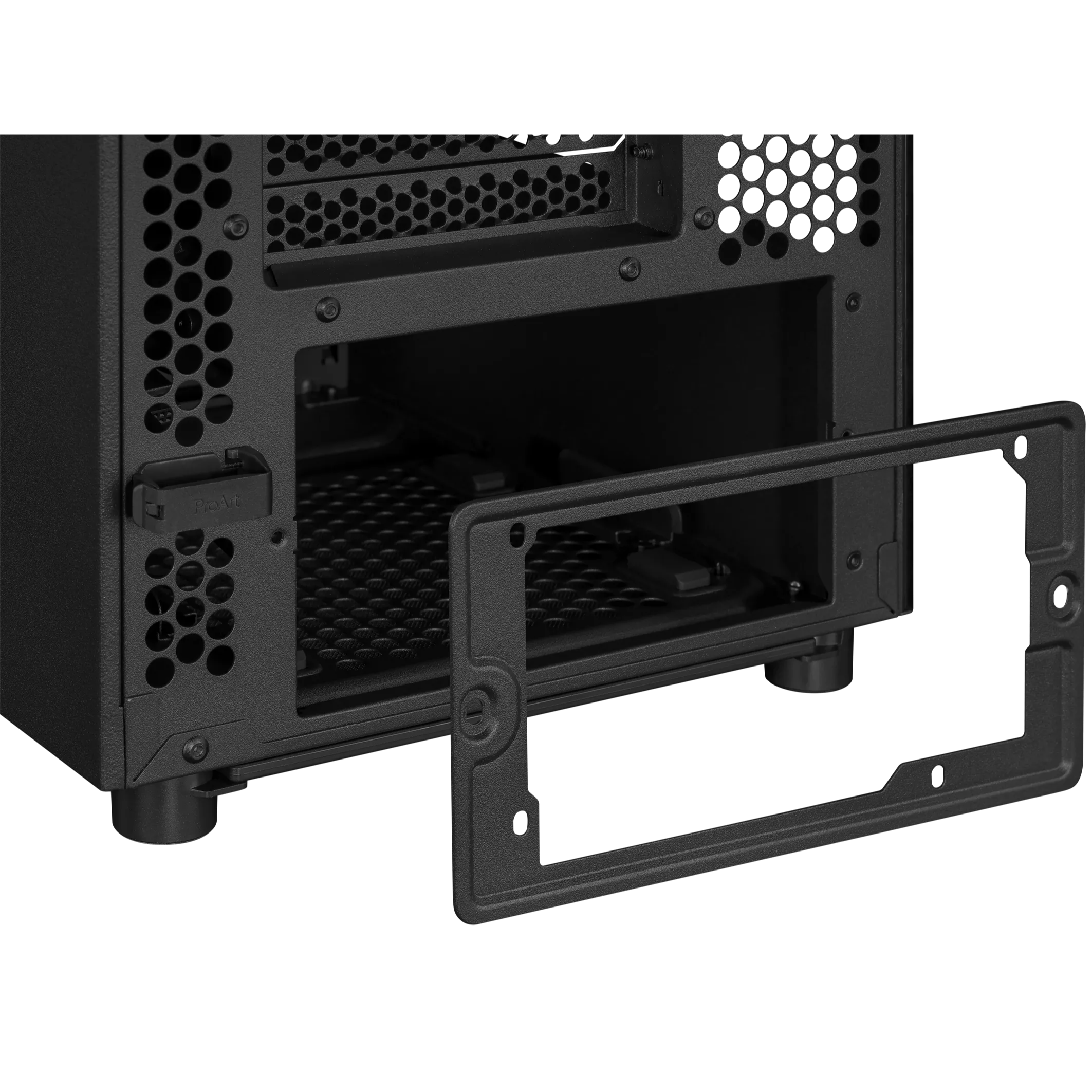

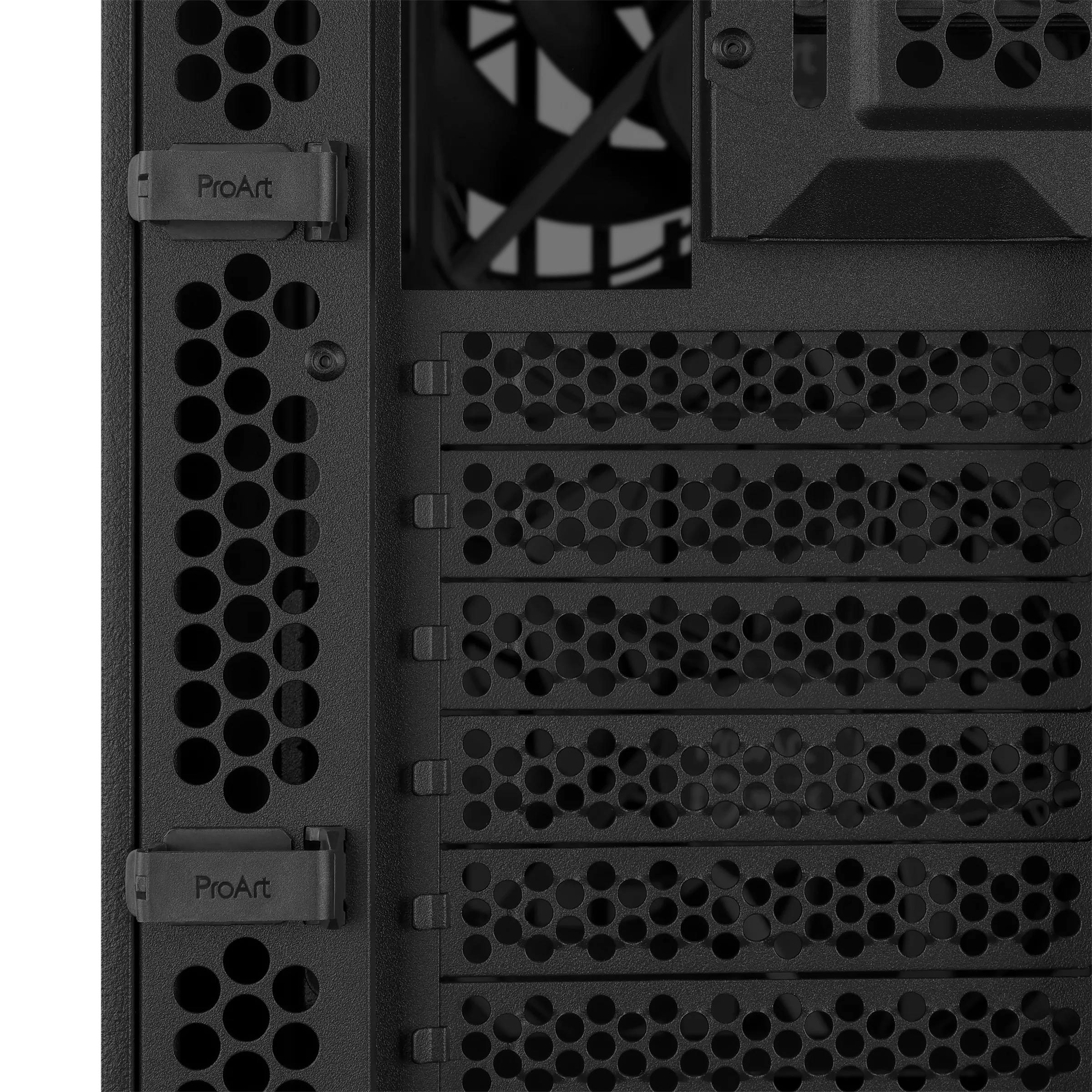

Engineered for optimal airflow and offering an organized and efficient design, the ProArt PA401 is ideal for home office setups. With two pre-installed 160mm front fans and one 120mm rear fan, it also delivers reliable thermal performance. And this case is constructed for easy PC building, including a left-side panel lock, detachable PSU bracket and integrated rear cable clips.

Cooling

Exceptional Cooling Performance

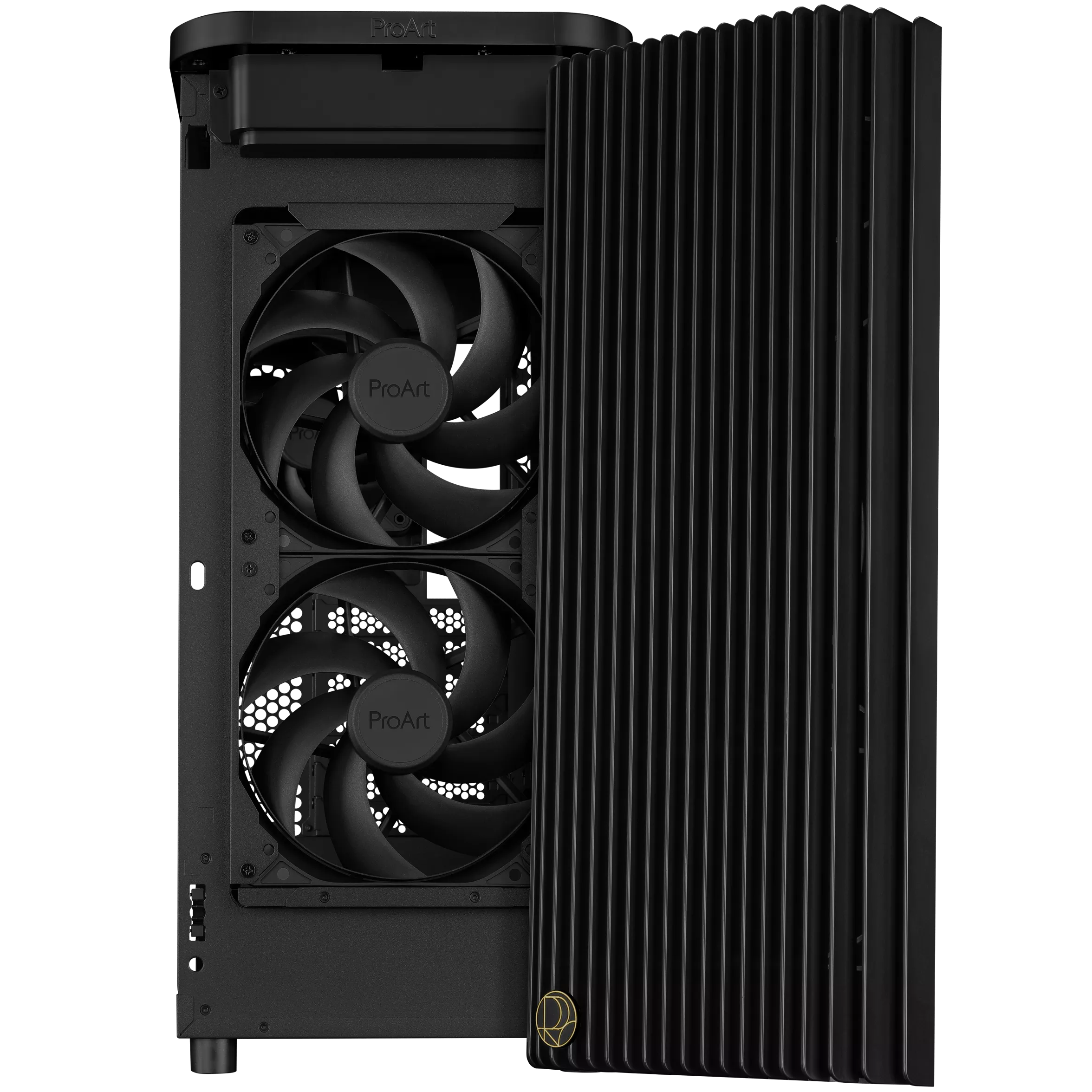

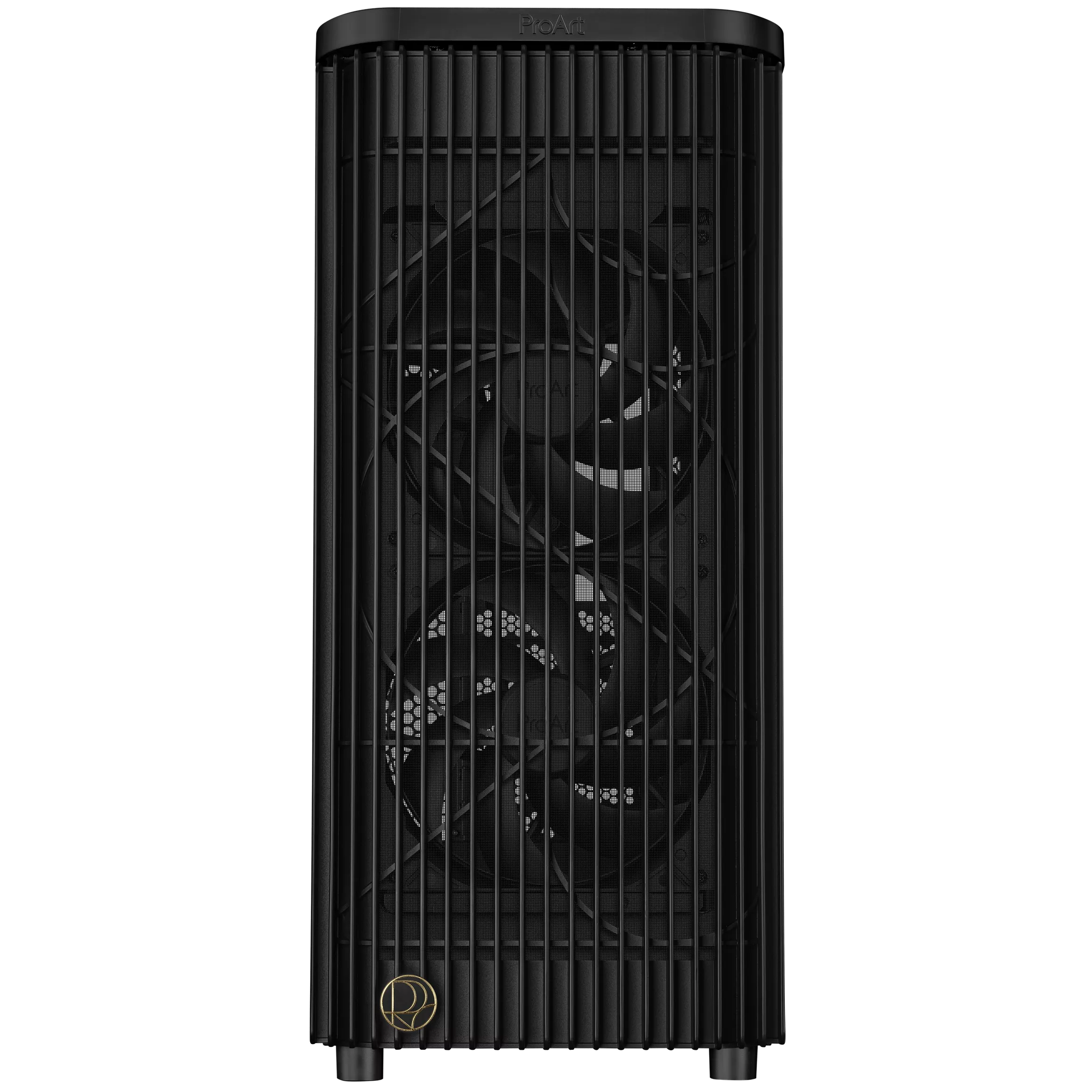

Built-in dual 160mm front fans efficiently deliver up to 138 CFM of airflow to graphics cards and CPU coolers, and the outer ring connecting these fan blades helps reduce initial vibration. The front fans and the 120mm rear fan with PWM control yield optimal airflow, low noise, low vibration and high reliability.

Connectivity

Flexible, Fast I/O

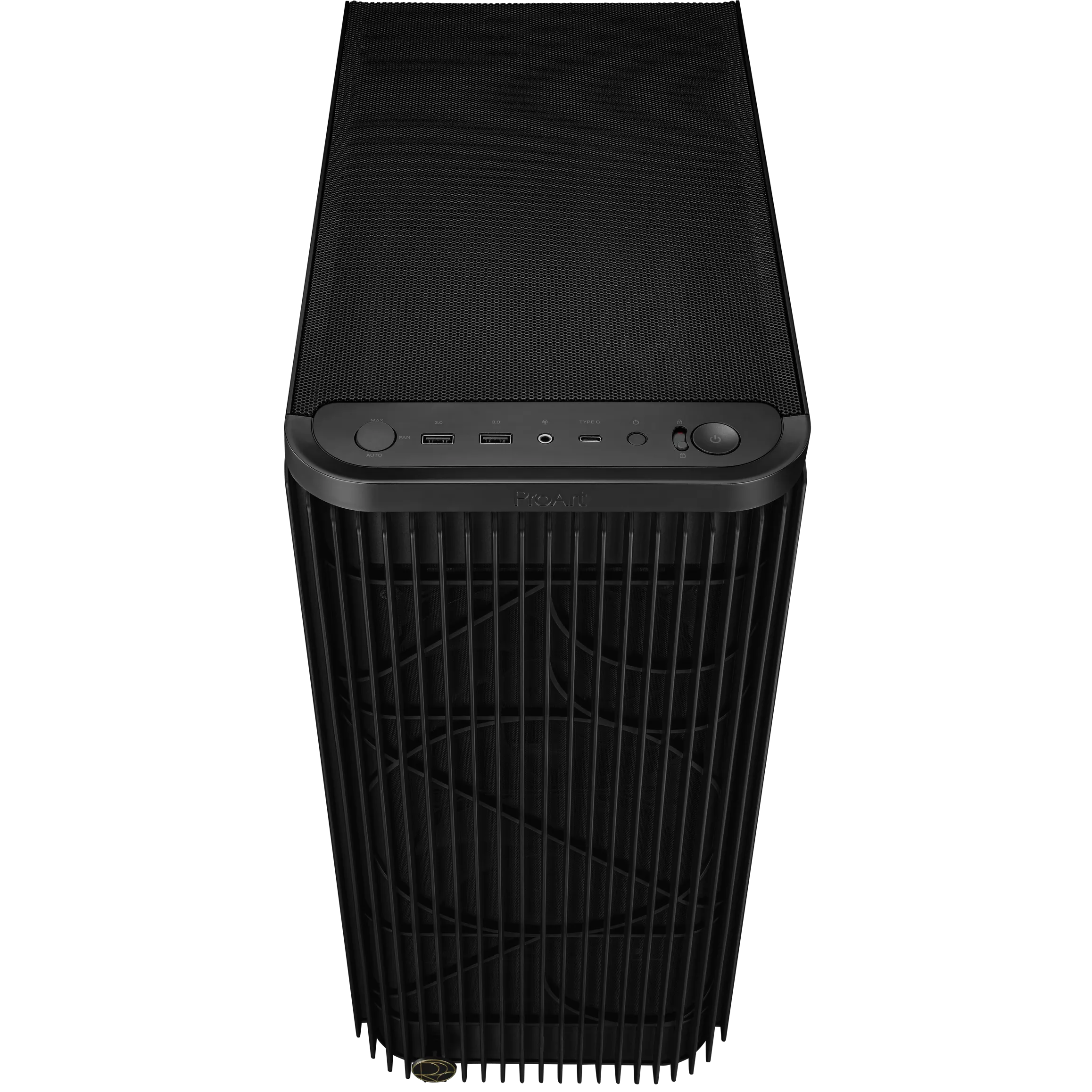

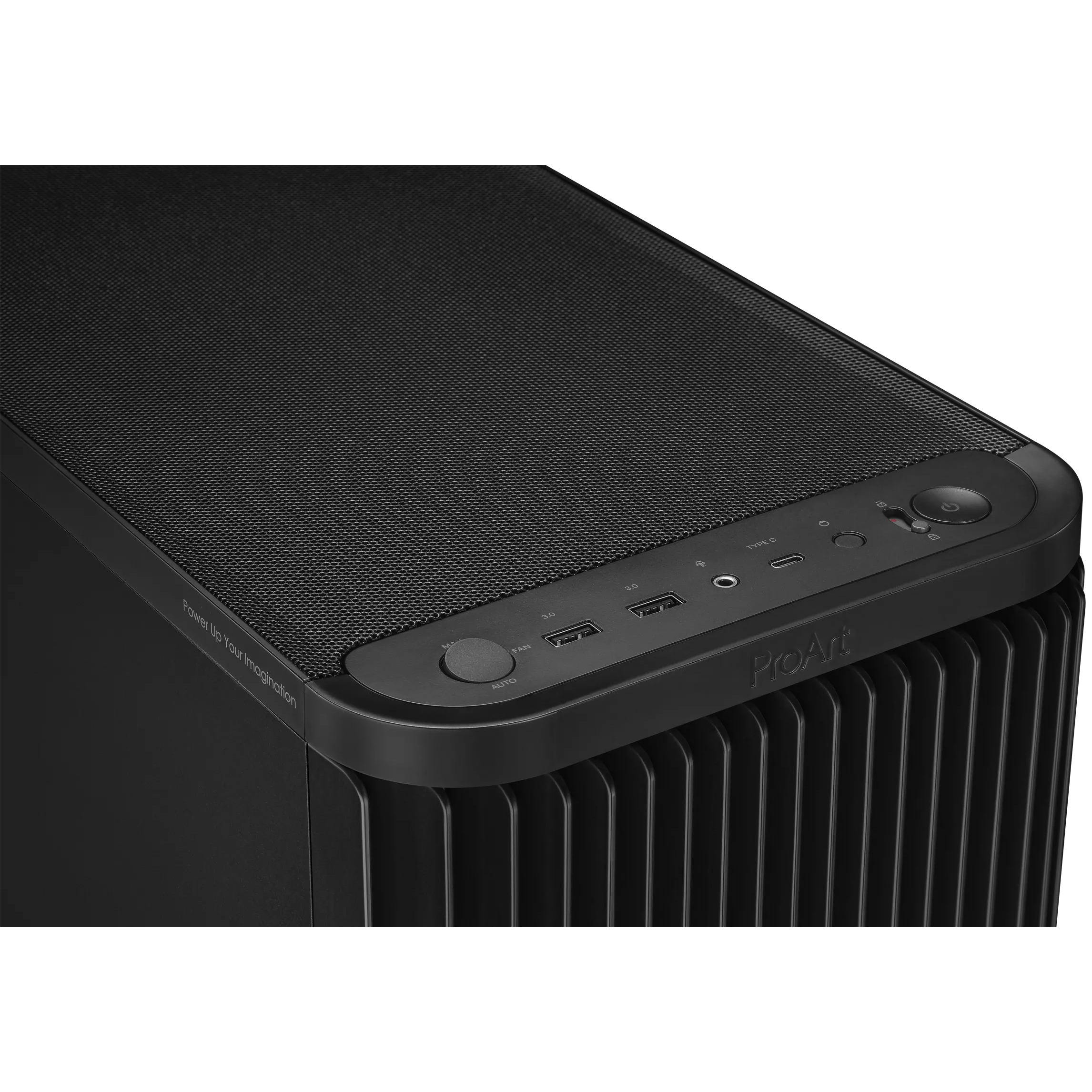

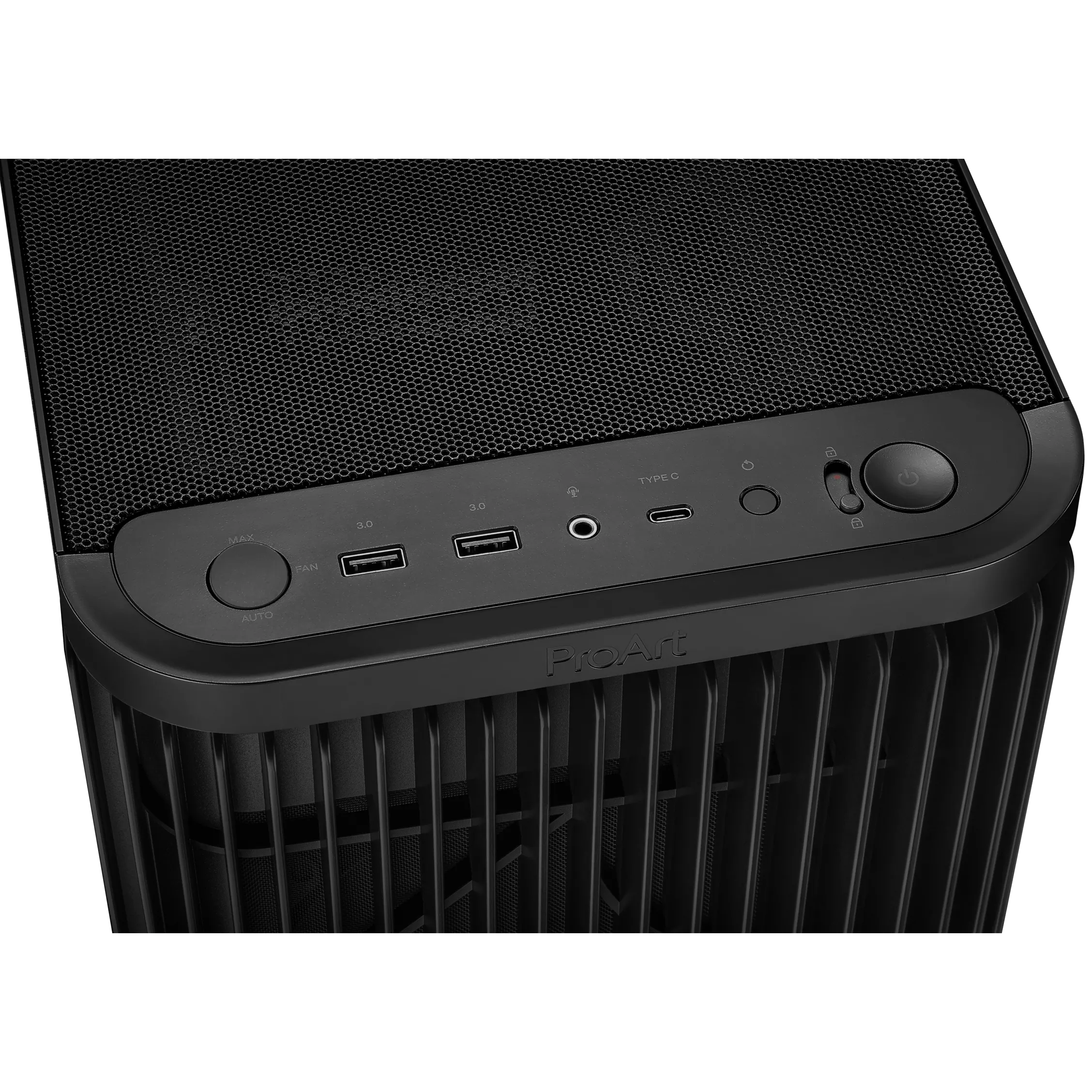

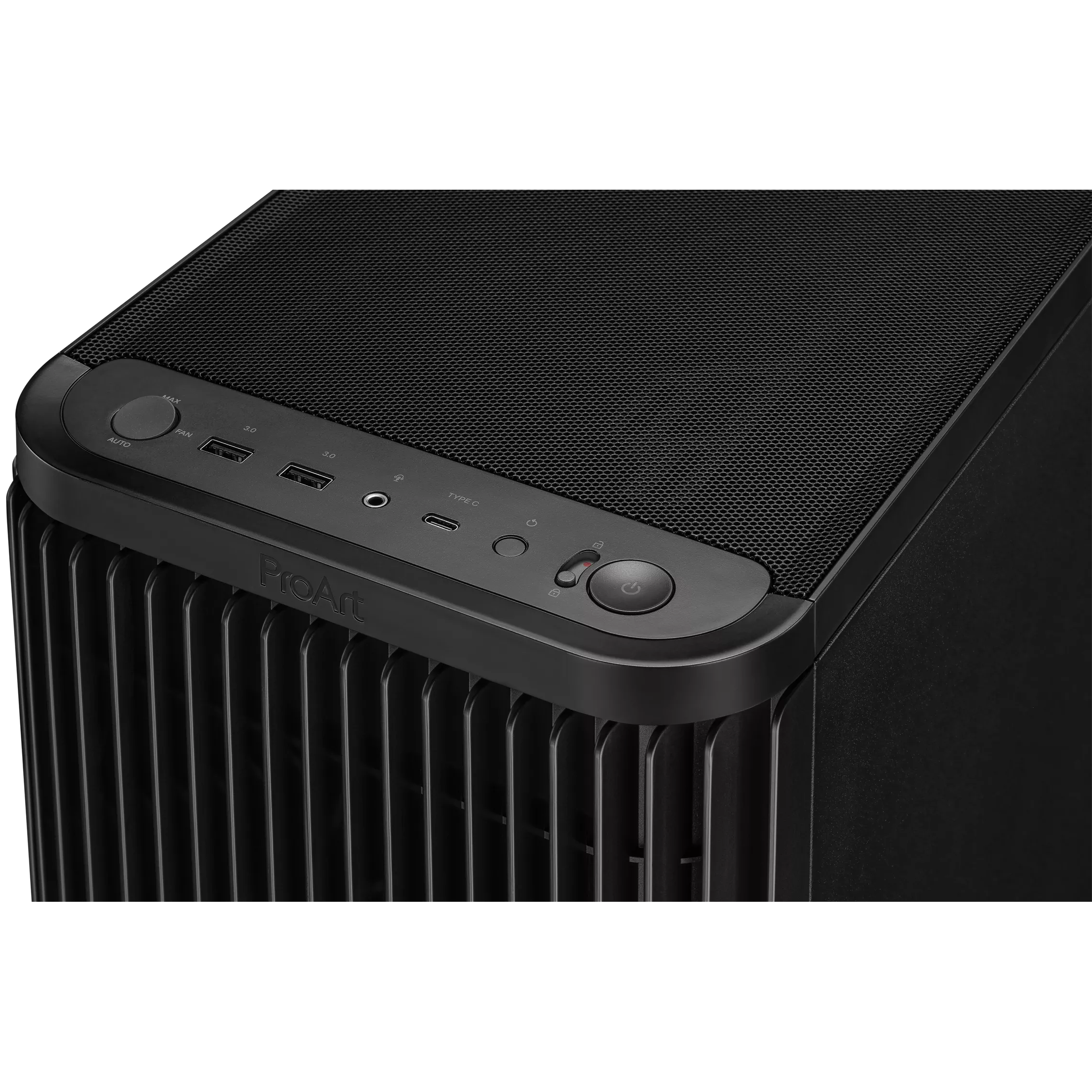

Connectivity options are easily accessible via the front I/O panel, including one two-section PWM control, one 20Gbps USB Type-C® port, two USB-A 3.0 ports, HD audio and a Power and Reset button lock.

Design

Builder-Friendly Installation
The ProArt PA401 optimizes the PC building experience, offering better functionality with user-focused features.

Compatibility

Compact Form, Ample Interior
The ProArt PA401 features two pre-installed 160mm front fans and accommodates both horizontal and vertical graphics card mounting.

Versatile Choices

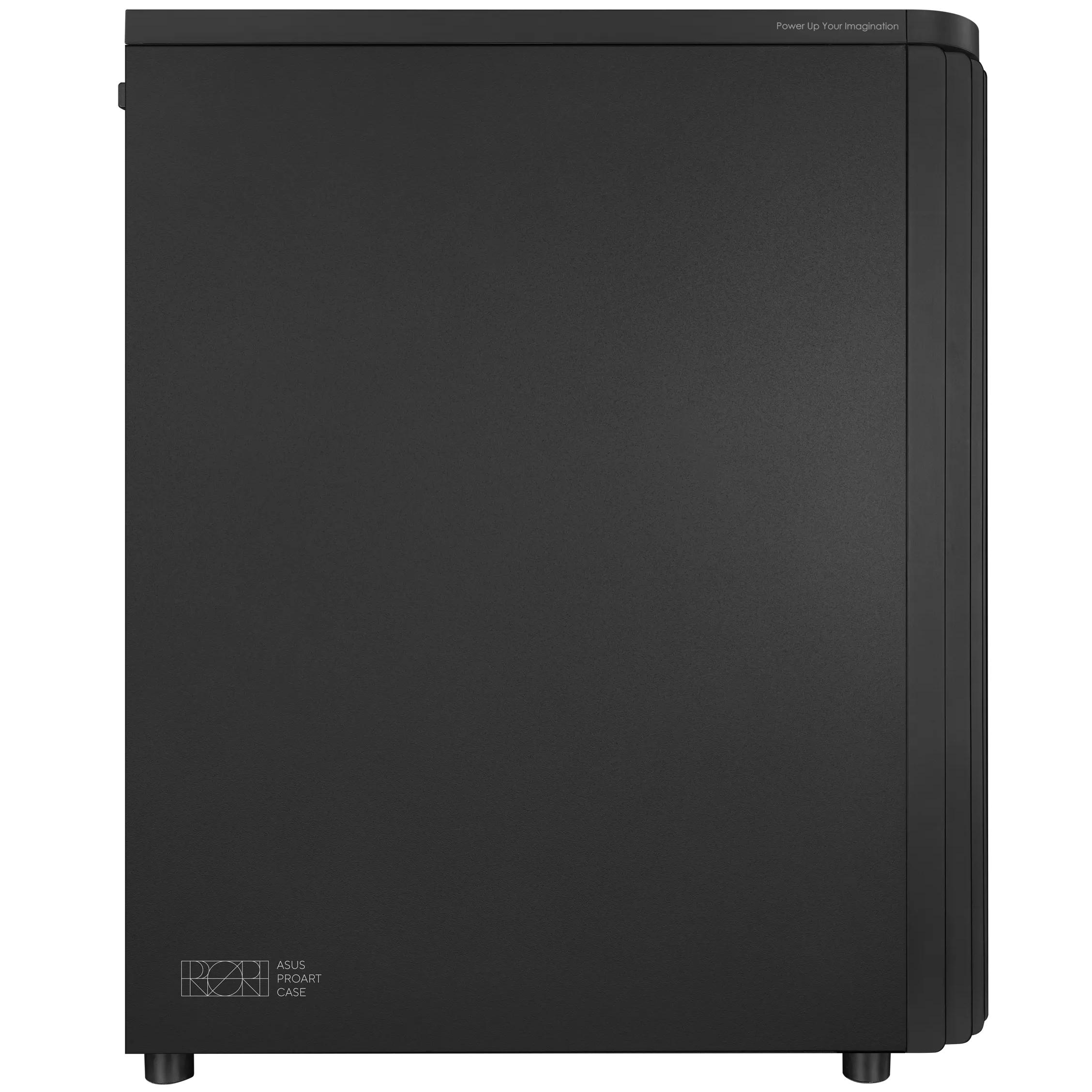

To accommodate the preferences of diverse builders, the PA401 offers more options for customization. The metal side panel version focuses on durability, whereas the tempered-glass version offers durability while providing a window for showing off internal aesthetics. Additionally, the mesh side panel enhances airflow efficiency and thermal performance. ​

Specifications

Model

• ProArt PA401 – Metal Panel

Motherboard Support

• ATX

Drive Bays

• 2 x 2.5″/3.5″ Combo Bay
• 2 x 2.5″ Bay

Expansion Slots

• 7

Front I/O Port

• 1 x USB 3.2 Gen 2×2 Type C
• 2 x USB 3.2 Gen1
• 1 x headphone / Microphone

Radiator Support (Top)

• 240 mm
• 140 mm
• 120 mm

Cooling Support (Front)

• 2 x 160 mm
• 2 x 140 mm

Cooling Support (Top)

• 2 x 140 mm
• 2 x 120 mm

Cooling Support (Rear)

• 1 x 120 mm

Pre-installed Fans (Front)

• 2 x 160 mm

Pre-installed Fans (Rear)

• 1 x 120 mm

Maximum CPU Cooler Height

• 160 mm

Maximum GPU Length

• 315 mm

Maximum PSU Length

• 170 mm

Removable Dust Filters

• Bottom
• Front

Dimensions

• 412 x 225 x 503 mm (D*W *H)

Weight

• 8.61 Kg

Accessory

• Pre-installed Fan Hub Support
• PWM Fan Output x 5
