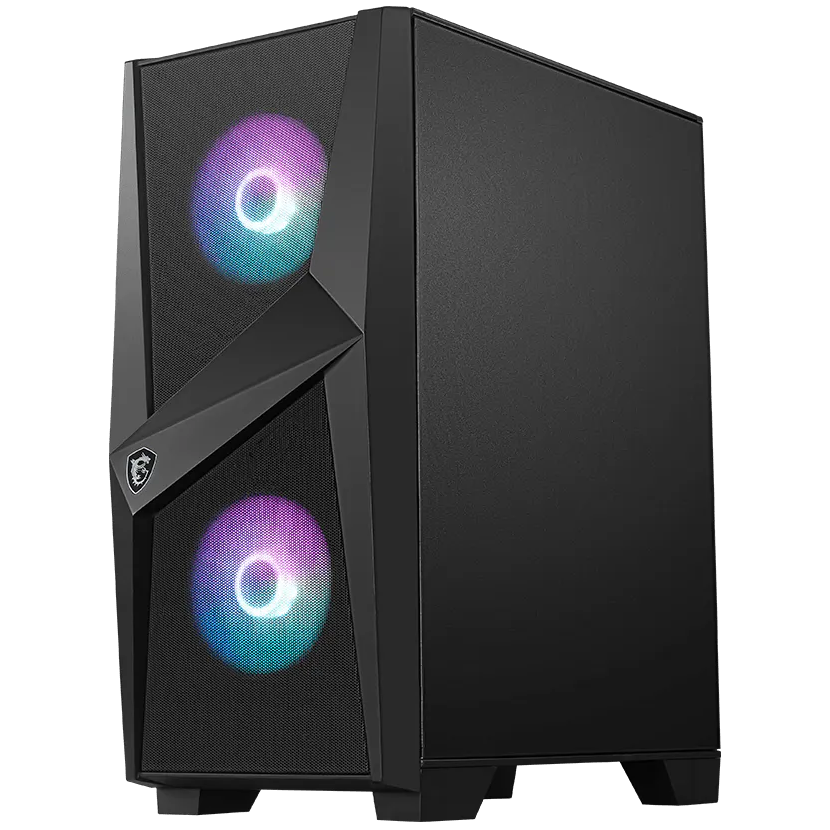

MSI MAG FORGE 100R ARGB GAMING CASE

OPTIMIZED AIR FLOW

Two 120mm fans aligned vertically on the front to draw in air evenly across the entire face of the enclosure. That will contribute to positive air pressure within the case, the rising warm air will always be exhausted with the rear and top airflow from the MAG Forge 100 Series.

* To guide the airflow from the radiator, please evaluate and adjust the airflow direction of the top fan when installing the radiator.

READY FOR OPTIMIZED MOTHERBOARD

Designed with multiple easy installation mechanisms and accommodated an up to ATX motherboard to provide an unhindered building experience.

Support
ATX / Micro ATX / Mini-ITX

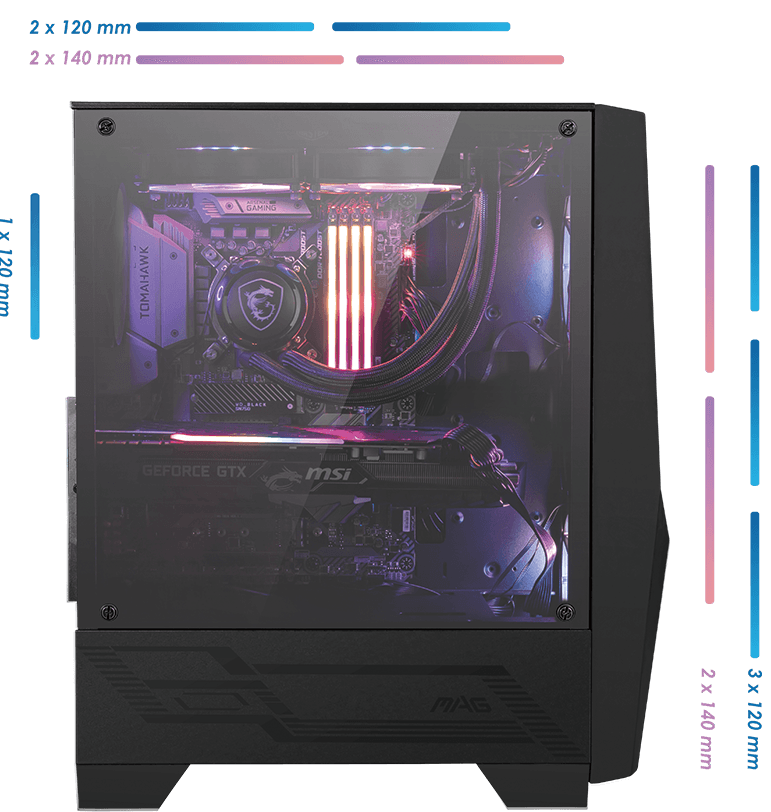

BUILT FOR A PRIME FAN AND RADIATOR CAPACITY

• COOLING LAYOUT
  Front: Up to 3 x 120 mm or 2 x 140 mm
  Top: Up to 2 x 120 mm or 2 x 140 mm
  Rear: 1 x 120 mm
  PRE-INSTALL FAN
  Front: 2 x 120 mm addressable RGB LED Fan included
  Rear: 1 x 120mm System Fan included
• RADIATOR LAYOUT
  Top – support 120 / 240 mm radiator
  Front – support 120 / 240 mm radiator
  Rear – support 120 radiator

BUILT FOR OPTIMIZED CASE STRUCTURE

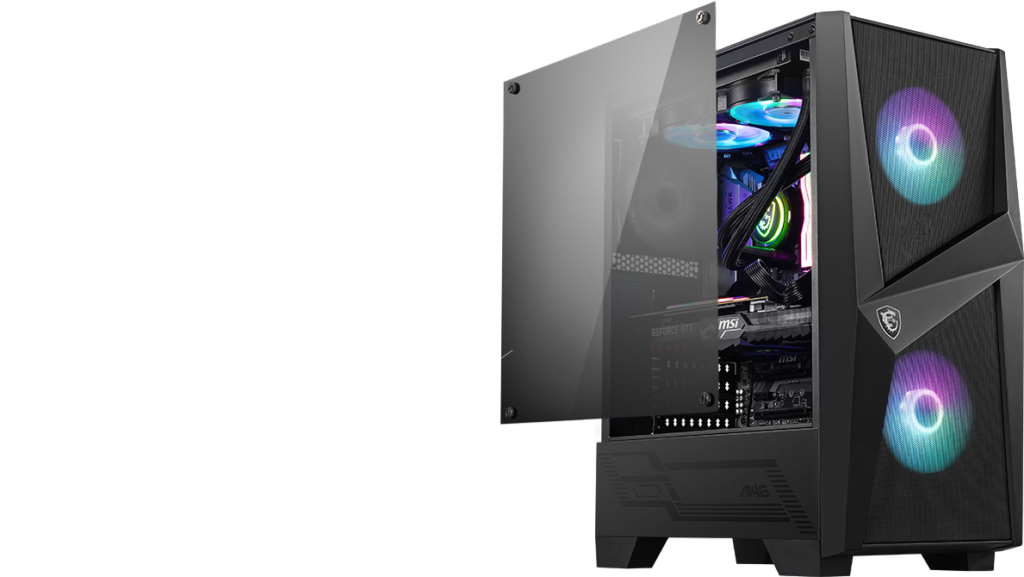

TOOL-LESS TEMPERED GLASS

The light gray tone of 4mm tempered glass side panel is ideal for displaying RGB lighting effects and provides clear internal component construction.

The Forge 100 Series’ thoughtful case design allows users to install/remove the tempered glass easily. Simply place the tempered glass on the stump of the case before installing it for a safe and simple process.

PERSONALIZE YOUR GAMING RIG

Customizing Addressable RGB LEDs integrated in the front, top & rear cover with a dedicated control button; or with MSI Mystic Light software, MAG Forge 100R can cast millions of colors and effects that can be synchronized with a vast ecosystem of components to augment your build.

*Some lighting effects require the MSI Mystic Light software and vary by model.
The Default lighting controls with control button: Static, Flashing, Rainbow, Breathing, Meteor, MB Sync and Close.

1 to 6 ARGB LED Control Board
User can intuitively control & switch 9 lighting effects through the LED switch button.

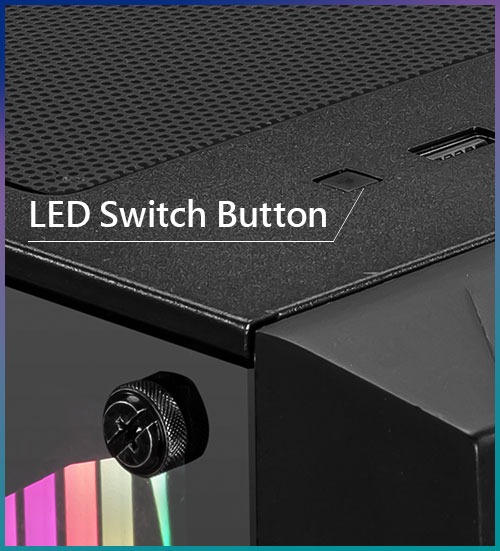

LED Switch Button
Keep pressing the LED button for three seconds, and then users can control the lighting effects via syncing with the motherboard by MSI mystic light app.

SPECIFICATIONS

• Product Name:   MAG FORGE 100R
• Case Form Factor:  Mid-Tower
• Motherboard Form Factor Support:   ATX / Micro-ATX / Mini-ITX
• I/O Ports:   2 x USB 3.2 Gen1 Type-A (5 Gbps),   1 x Audio-out,  1 x Mic-in
• Drive Mount Support:    3 x 2.5” / 2 x 3.5”
• Expansion Slots:   7
• Maximum GPU Length:   330 mm / 13 inches
• Maximum CPU Cooler Height:   160 mm / 6.3 inches
• Power Supply Support:   ATX
• Maximum PSU Length:    200 mm / 7.87 inches
• Fan Size Support:  Front: 3 x 120 mm / 2 x 140 mm Top: 2 x 120 mm / 2 x 140 mm Rear: 1 x 120 mm
• Pre-installed Fan Size:  Front: 2 x 120 mm ,  Rear: 1 x 120 mm
• Pre-installed Fan Type:    Front: 2 x ARGB Fan,   Rear: 1 x Non LED Fan
• Radiator Size Support:    Front: 120 / 140 / 240 mm,  Top: 120 / 240 mm,  Rear: 120 mm
• Dimensions (DxWxH):   421 x 210 x 499 mm / 17.05 x 8.27 x 19.65 inches
• Net Weight:    5.64 kg / 12.43 lbs
