MSI MAG FORGE M100A GAMING CASE

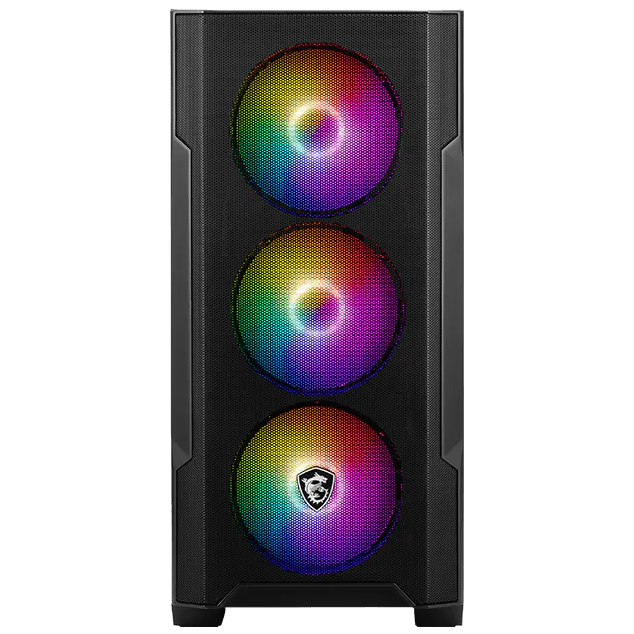

MESH CERTIFIED MAKES IT WORK

The front mesh panel allows air to flow into the case easily without obstruction, providing the best system cooling performance. The micro-atx chassis provide small footprint but big perfromance.

HEAT DISSIPATION

You don’t need to worry about system cooling with the help of the gaming cases.

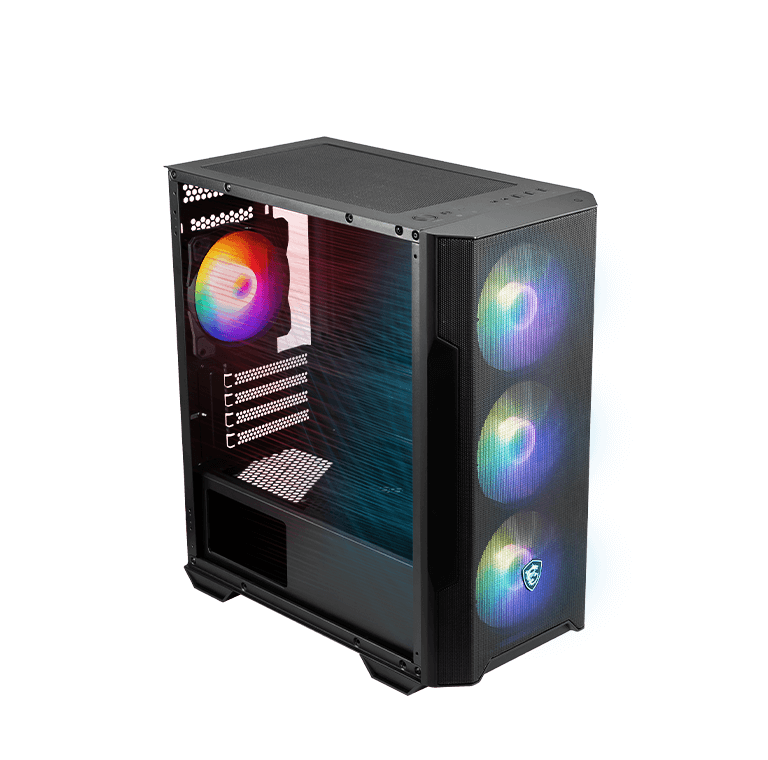

OPTIMIZED AIRFLOW

The MAG FORGE M100 Series is optimized to provide generous and effective airflow for system cooling. The MAG FORGE M100 Series can mount up to 6 fans

COMPONENTS CLEARANCE

FAN SUPPORT                                                                                                                                        RADIATOR SUPPORT

HARDWARE COMPATIBILITY
The gaming cases offers extensive support for the installation of your hardware components.

STORAGE YOU NEED

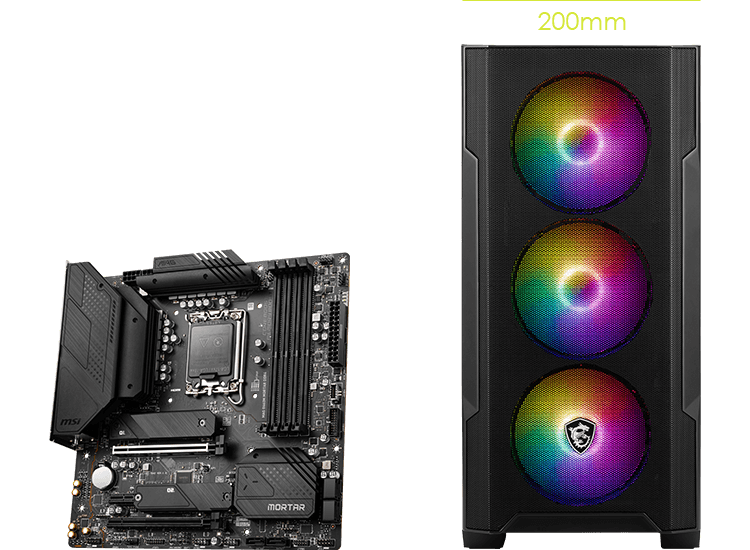

MOTHERBOARD SUPPORT

MAGNETIC DUST FILTER

A magnetic filter sits on the top vents keeping dust from falling inside while being easily removed for cleaning.

Auto-RGB SHOWROOM

Create your own Auto-RGB battle station with the MAG FORGE M100A.

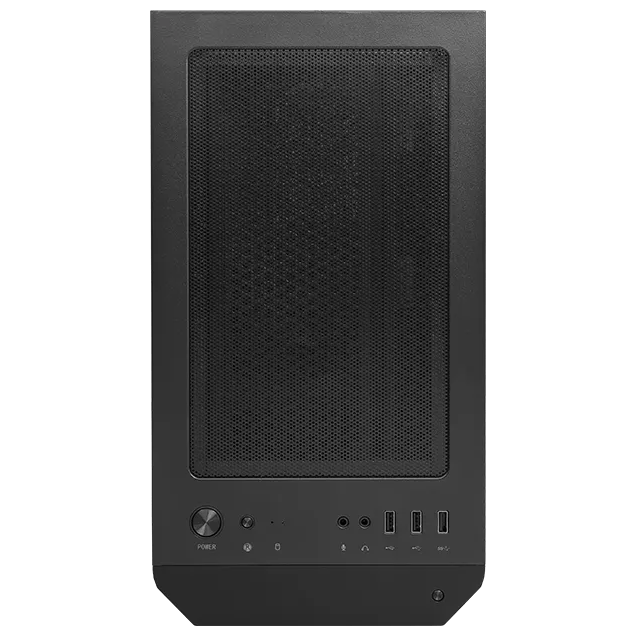

Connectable Front I/O

1. Power
2. Reset
3. Mic/Audio
4. USB 3.2 Gen1 Type-A
5. USB 2.0 Type-A

SPECIFICATIONS

• Product Name:   MAG FORGE M100A
• Case Form Factor:    Micro ATX Tower
• Motherboard Form Factor Support:   Micro-ATX / Mini-ITX
• I/O Ports:
  2x USB 2.0 Type-A
  1x USB 3.2 Gen 1 Type-A
  1x Audio
  1x Mic
• Drive Mount Support:
  2x 2.5”
  1x 2.5” / 3.5”
  1x 3.5”
• Expansion Slots:     4
• Maximum GPU Length:   300 mm / 11.81 inches
• Maximum CPU Cooler Height:     160 mm / 6.3 inches
• Power Supply Support:    ATX
• Fan Size Support:
  Front: 3 x 120 mm
  Top: 2 x 120 mm
  Rear:1 x 120 mm
• Pre-installed Fan Size:
  Front: 3 x 120mm
  Rear: 1 x 120mm
• Pre-installed Fan Type:
  Front: 3 x Auto-RGB Fan
  Rear: 1 x Auto-RGB Fan
• Radiator Size Support:
  Front: 120 / 240 mm
  Top: 120 / 240 mm
  Rear: 120 mm
• Dimensions (DxWxH):   388 x 200 x 423mm / 15.28 x 7.87 x 16.65 inches
• Net Weight:   3.36 kg / 7.41 lbs
• Gross Weight:   4.25 kg / 9.37 lbs
