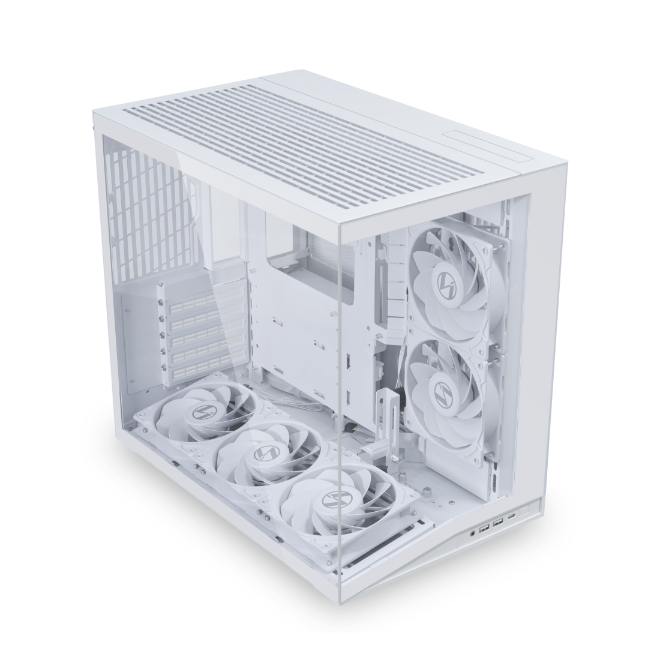

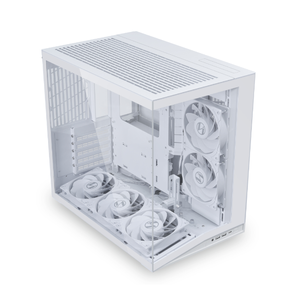

Lian Li O11D MINI V2 Flow PC Case with 5 PWM Fans – White
₨ 30,000
- Version: Flow — 5 Fans.
- Dimensions (D × W × H): 423.6 × 273.3 × 391.95 mm.
- Motherboards: ATX / Micro-ATX / Mini-ITX; back-connect support is ATX only.
- GPU length: Up to 400 mm.
Lian Li · O11D MINI V2
A compact showcase with room for an ATX power supply
The O11D MINI V2 combines pillarless front and side glass with a slanted bottom and support for standard ATX power supplies. Its five-slot layout and movable motherboard standoffs make motherboard PCIe position an important part of planning the build. This Flow package includes five reverse-blade PWM fans. Selected finish: White.
Check the motherboard’s first PCIe slot
This chassis has five expansion slots. If an ATX board’s primary PCIe slot sits immediately below the CPU, Lian Li instructs using the included vertical GPU mount and a separately sold 200mm riser cable. Micro-ATX and Mini-ITX standoffs can move down one PCIe slot. Check the official motherboard diagram before ordering.
A slanted base and configurable cooling
The bottom slopes by 10 degrees. The top supports radiators up to 360mm; 280mm top-radiator installation requires Micro-ATX or Mini-ITX mounted one slot lower. The side accepts a 240mm radiator. Clearance depends on the motherboard, radiator and fan combination.
ATX power without a wider chassis
The extended side mesh accommodates an ATX PSU shorter than 200mm. Lian Li also requires at least 12mm between the PSU socket and its edge for correct fit. The front I/O module can be positioned at the top or bottom to suit desk or floor placement.
O11D MINI V2 specifications
- Dimensions (D × W × H)
- 423.6 × 273.3 × 391.95 mm
- Motherboards
- ATX / Micro-ATX / Mini-ITX; back-connect support is ATX only
- GPU length
- Up to 400 mm
- CPU air-cooler height
- Up to 160 mm
- Power supply
- ATX shorter than 200 mm; check socket position
- Expansion slots
- 5
- Top radiator
- 240 / 280 / 360 mm, subject to motherboard mounting position
- Side radiator
- 240 mm
- Fan positions
- Top: three 120mm or two 140mm; side: two 120mm; bottom: three 120mm; rear: one 120mm
- Storage
- Drive cage: two 2.5-inch SSDs or two 3.5-inch HDDs; behind tray: two 2.5-inch SSDs
- Front connections
- Two USB 3.0 Type-A, one USB Type-C, audio and power button
- Colour
- White
- Included fans
- Five reverse-blade 120mm PWM fans: three bottom, two side
- Version
- Flow — 5 Fans
O11D MINI V2 build questions
Is a PCIe riser included with the vertical bracket?
No. Lian Li identifies the 200mm riser cable required for the relevant vertical installation as sold separately.
Can I use a back-connect Micro-ATX board?
The official back-connect support is ATX only. Standard Micro-ATX and Mini-ITX support does not establish back-connect compatibility for those smaller formats.
Official Lian Li O11D MINI V2 product information and manuals
Specifications and box contents may vary by region or manufacturer revision. Please check the linked manufacturer information and confirm any essential feature or included accessory with GameOn.pk before ordering.
| Brand | Lian Li |
|---|---|
| Color | White |
| Edition | Flow — 5 Fans |
