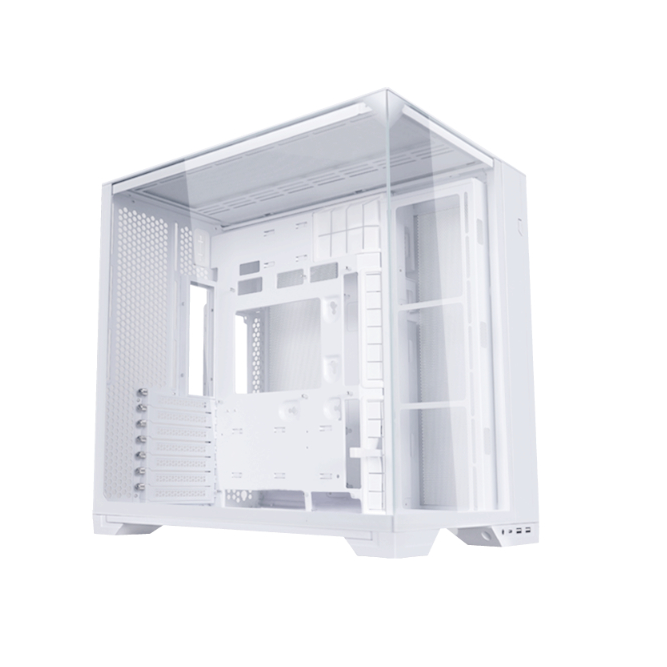

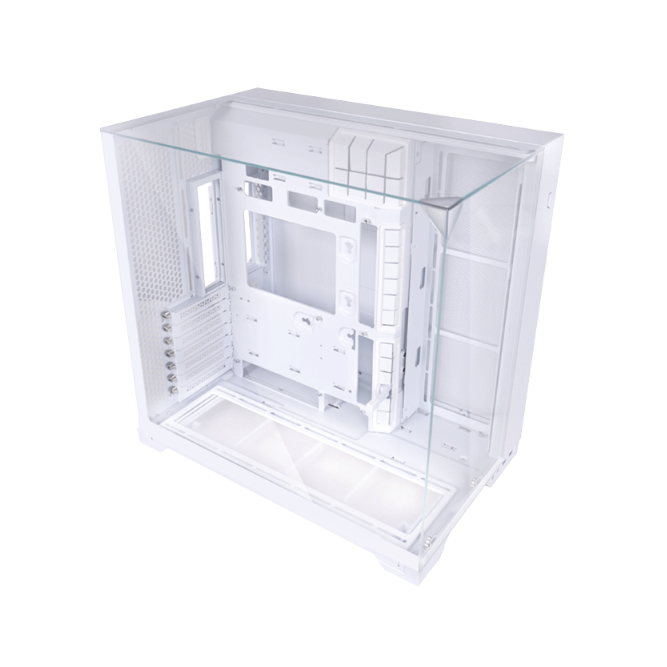

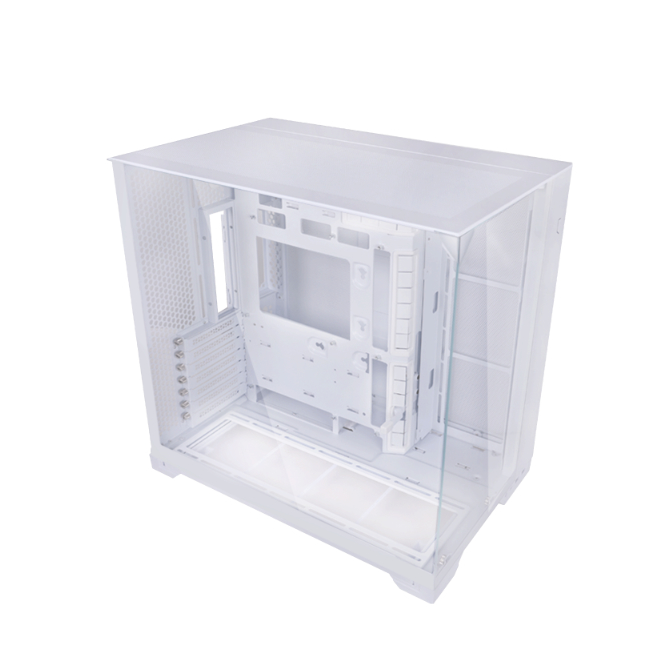

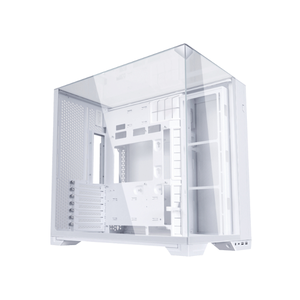

Lian Li · O11 VISION COMPACT
Switch between glass-top display and mesh-top cooling
Designed with PC Master Race, the O11 VISION COMPACT gives a dual-chamber build two distinct configurations: a glass top for an uninterrupted hardware view, or a mesh top with a bracket for additional cooling. It supports compatible back-connect ATX motherboards and concealed AIO-tube routing. Selected finish: White.
Two top panels, two cooling plans
Use the glass panel for the three-sided showcase or install the mesh panel and its fan bracket for top-mounted cooling. The maximum eleven-fan configuration refers to the specified mesh-mode push-pull arrangement. Glass mode supports up to eight fans.
Route the AIO tubes behind the showcase
A removable pump pass-through grommet and channels beside the cable cover allow compatible AIO tubing to travel through the second chamber. Protect any pre-applied thermal paste during installation. Lian Li explicitly excludes the wider Galahad II Trinity Performance from side-bracket compatibility.
Cable space and GPU support
The dual-chamber arrangement separates the PSU and cable-management area from the main hardware view. A removable GPU support bracket helps support the card. The side radiator bracket can be removed and reversed for installation access.
O11 VISION COMPACT specifications
- Dimensions (D × W × H)
- 447.5 × 287.5 × 446.4 mm
- Motherboards
- Back-connect ATX / E-ATX shorter than 280mm wide / ATX / Micro-ATX / Mini-ITX
- GPU length
- Up to 408 mm
- CPU air-cooler height
- Up to 167 mm
- Power supply
- ATX shorter than 220 mm
- Expansion slots
- 6 + 1
- Top radiator (mesh mode)
- 240 / 280 / 360 mm
- Side radiator
- 240 / 360 mm; check cooler width
- Bottom radiator
- 240 / 360 mm
- Fan capacity
- Up to eight in glass mode; up to eleven with the specified mesh-mode push-pull layout
- Storage
- Two 2.5-inch SSDs behind tray; two drive cages for 3.5-inch HDDs or 2.5-inch SSDs
- Front connections
- Two USB 3.0 Type-A, USB Type-C, audio and power
- Dust filter
- Bottom
- Colour
- White
O11 VISION COMPACT build questions
Is the small internal display included?
No. Lian Li provides a mounting space for a separately purchased internal display and explicitly states that an IPS monitor is not included.
Are both colours fitted with the same glass finish?
The Black version uses tinted front and side glass. The White version uses clear tempered glass with matching white brackets, grommets and screws.
Can I fit any 360mm AIO at the side?
No. Radiator length alone does not establish fit. Lian Li specifically identifies the Galahad II Trinity Performance as too wide for the side bracket; check the dimensions of another cooler before purchase.
Official Lian Li O11 VISION COMPACT product information and manuals
Specifications and box contents may vary by region or manufacturer revision. Please check the linked manufacturer information and confirm any essential feature or included accessory with GameOn.pk before ordering.
| Brand | Lian Li |
|---|---|
| Color | White |
