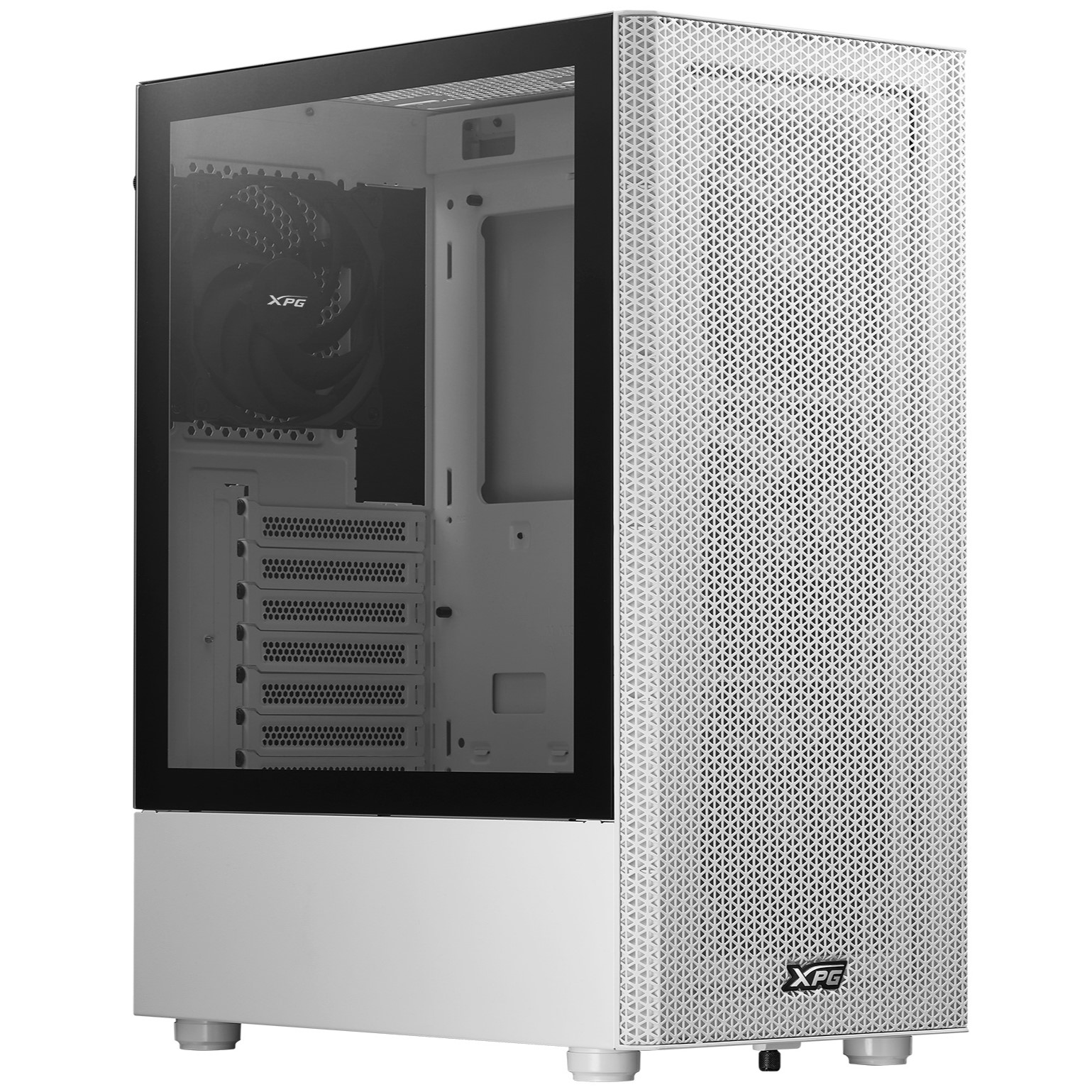

XPG VALOR MESH Compact Mid-Tower Chassis (WHITE)

VALOR MESH
SMALL SIZE, INFINITE OPTIONS

• Supports ATX, Micro-ATX, Mini-ITX Motherboards
• Versatile Selection of I/O Ports
• Removable Dust Filter

COMPACT DIMENSIONS with 4x 120mm PRE-INSTALLED FANS

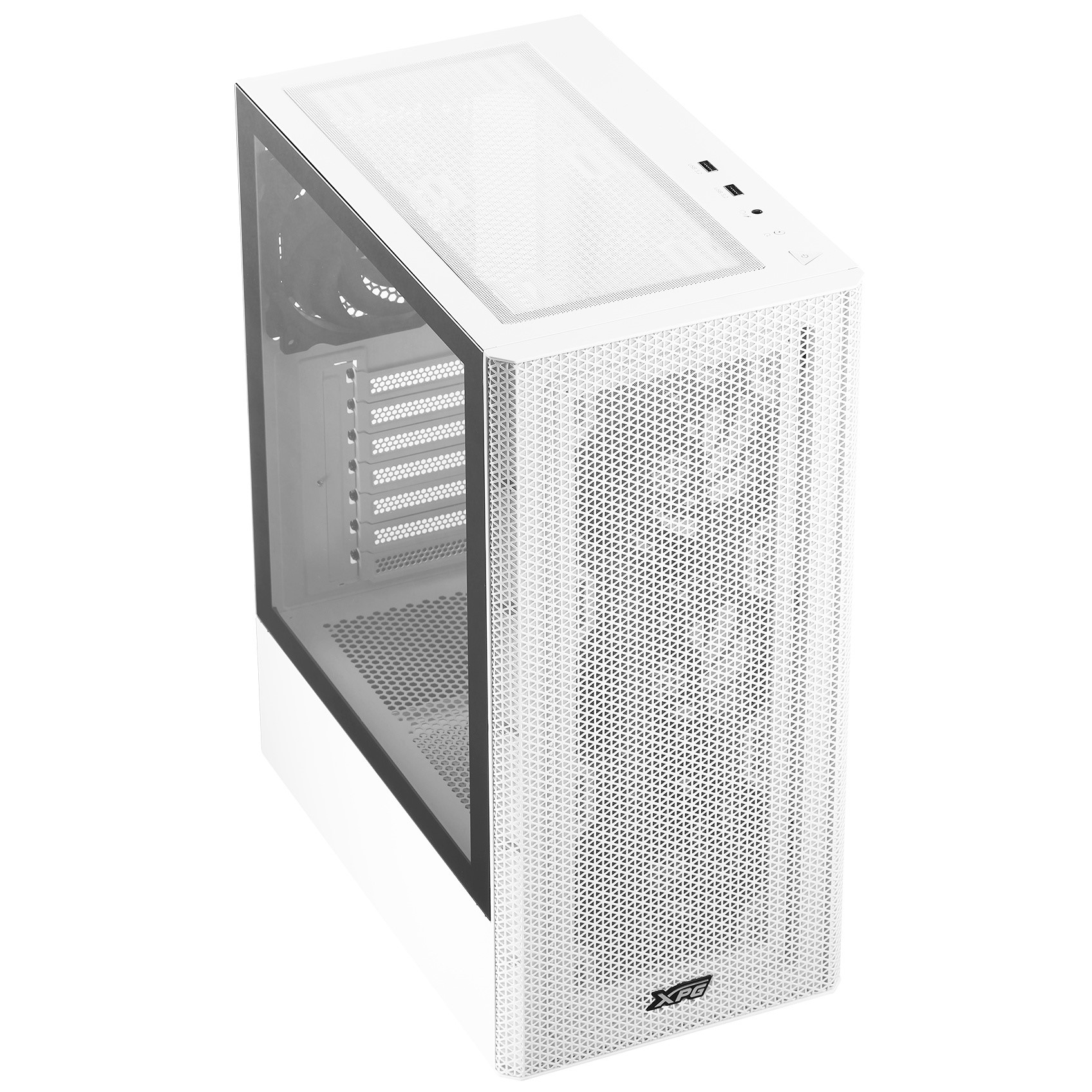

Detachable MESH magnetic front panel and filter for quick, convenient cleaning. 3mm tempered-glass side panel so you can admire your XPG componets at any time.

INCREDIBLE AIRFLOW

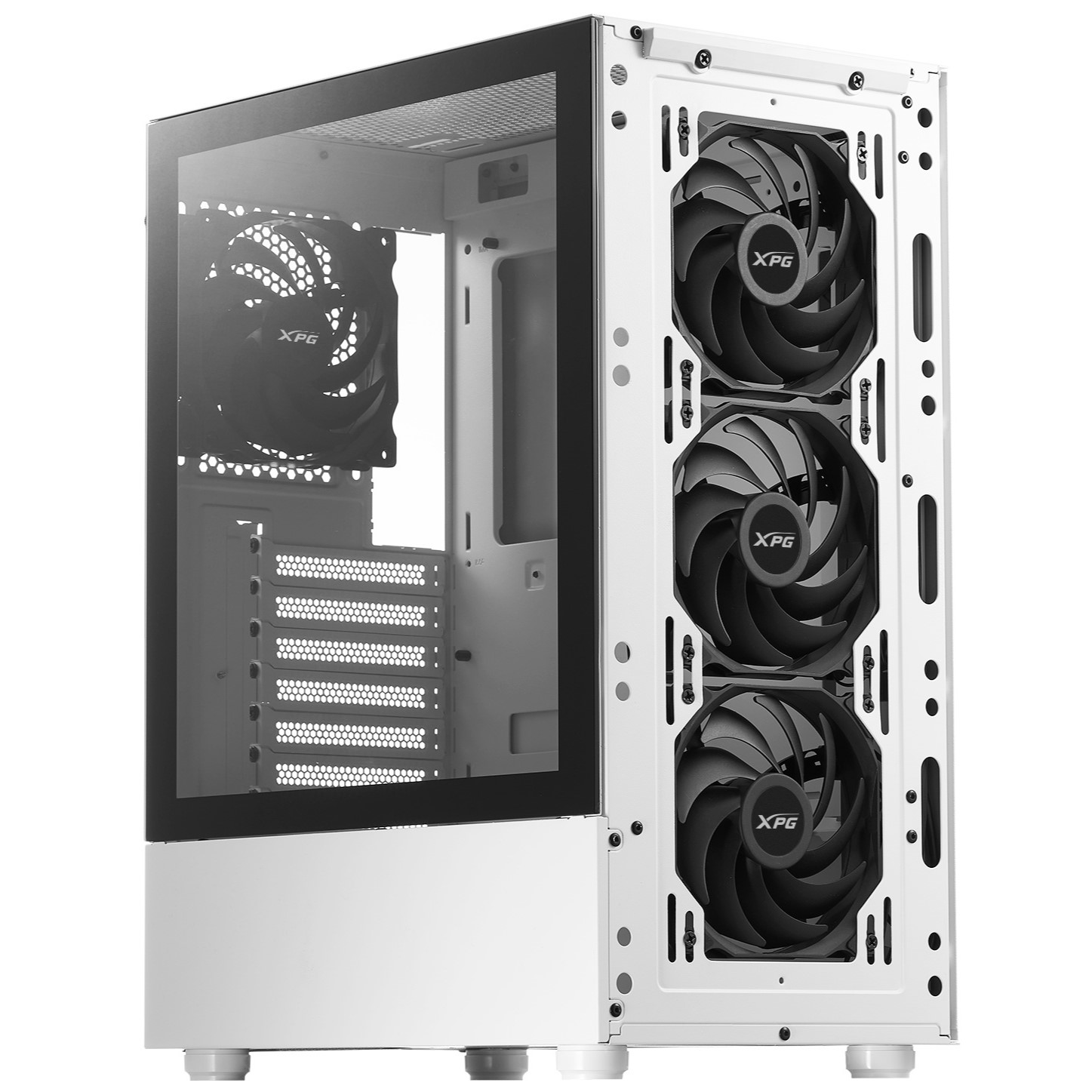

XPG VALOR MESH offers incredible airflow support, with a streamlined design that draws cool air from outside the chassis via 3 pre-installed 120mm fans at the front, with an additional pre-installed 120mm fan at the rear to exhaust heat.

FAN AND RADIATOR SUPPORT

OPTIONAL HDD/SSD STORAGE

Users can also install an HDD cage to add two additional storage drives underneath the PSU shroud. The cage is provided as an accessory out of the box with XPG VALOR MESH. The cage supports either 2x 3.5″ drives or 1x 2.5″ drive and 1x 3.5″ drive.

VERSATILE I/O PORTS

SPECIFICATIONS

Dimension:  460 x 210 x 371 mm (18.10 x 8.28 x 14.60 inch)
Color:  Black / White
Material:  SPCC
Side Panels:  3mm Tempered Glass x1 (Left side)
Motherboard Support:  Mini-ITX, Micro-ATX, ATX
Chassis Size:   Mid-Tower

I/O Port:
x2 USB 3.2 Gen 1
x1 3.5mm audio/mic combo jack
x1 Reset Button
x1 Power Button

Fan Included:
Front: 3 x 120mm Fans
Rear: 1 x 120mm Fan

Fan Support:
Front: 120mm x3, 140mm x2
Top: 120mm x2, 140mm x2
Rear: 120mm x1

Clearance:
Graphic Card Length Limitation: 335mm
305mm (with pre-installed fans)
CPU Cooler Height Limitation: 166mm
PSU Length Limitation: 160mm-180mm (with HDD/SSD tray)

Radiator Support:
Front: 360 / 280 / 240mm
Top: 240mm
Rear: 120mm

2.5″ HDD/SSD Tray:   2+1 (Combo 3.5” + 2.5”)
3.5″ HDD/HDD Tray:   2

Weight:
With Pre-installed Fans:
Product: 5.1kg
with Package : 6.1kg

Without Pre-installed Fans:
Product: 4.85kg
with Package : 5.85kg
