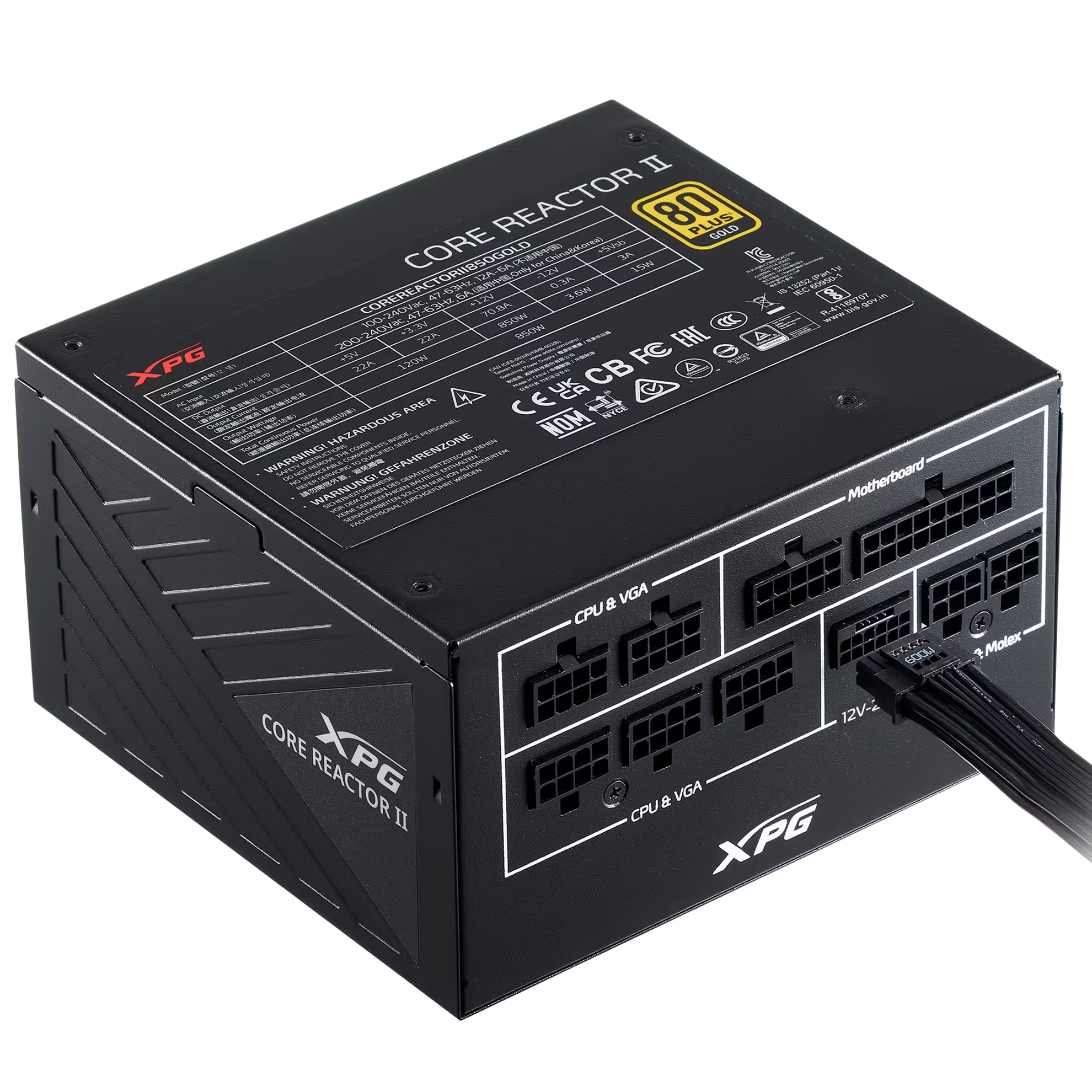

XPG 850W GOLD COREREACTOR II Gaming Power Supply MODULAR

CORE REACTOR II
IMPROVE YOUR CORE, ENHANCE YOUR PERFORMANCE

CORE REACTOR II is a top-performing power supply unit designed for ATX 3.1 compliance with a modular cable design and an 80 PLUS GOLD certification. These power supplies thrive in high-performance scenarios like servers or workstation setups, where a lot of power is needed.

Next-Gen Ready – ATX 3.1 COMPLIANT

CORE REACTOR II series power supply units meet Intel ATX 3.1 design guide specifications and feature a 12V-2×6 connector. By upgrading to an ATX 3.1-compliant power supply, you’ll be fully equipped for the upcoming wave of high-performance components. A must for the modern gamer, creator, or AI developer. Stay ahead of the curve by upgrading to an ATX 3.1 PSU, the new standard in PC hardware.

Certified GOLD Efficiency

CORE REACTOR II units recieved 80 PLUS GOLD certifications for efficiency, achieving up to 91.40% (115V) efficiency at 50% load. It comes in 1200W, 1000W, 850W, 750W, and 650W models for varying user needs and scenarios. It’s the perfect PSU for mid-to-high level components, including the latest CPUs and GPUs.

Intelligent Fan-Curve Design

The intelligent fan curve ensures quiet operation, even under full power load. By starting the fan at a low RPM, fan performance is both enhanced and extended, thereby increasing the power supply unit’s lifespan.

Premium all 105°C Japanese Capacitors

CORE REACTOR II features top-tier 105°C Japanese capacitors, ensuring exceptional stability and reliability of the PSU for many years of dependable performance.

8 Industrial Protections with 10-Year Warranty
CORE REACTOR II is protected by 8 industrial-level protection mechanisms and backed by a 10-Year Warranty, ensuring the safety and stability of both the unit and the system.

PEAK PERFORMANCE AND RELIABILITY
All XPG ATX 3.1 power supplies are designed to support up to 235% power excursion, enabling the system to handle sudden power spikes, ensuring stability, and preventing crashes during intense workloads like gaming, rendering, and data processing.

SPECIFICATIONS

Flash Type
650W-850W: 140 x 150 x 86mm
1000W-1200W: 160 x 150 x 86mm

Cybenetics Rating
1200W: PLATINUM
1000W: PLATINUM
850W: PLATINUM
750W: PLATINUM
650W: PLATINUM

80 Plus Rating:   GOLD
ATX Version:   ATX 3.1
Protections:   OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP
PFC:   > 0.99
Input Voltage:   100-240V

Input Current
1200W: 15A
1000W: 13A
850W: 12A
750W: 10A
650W: 10A

Input Frequency:   650/750/850/1000/1200W:47Hz-63Hz
DC Output Voltage:   +5V | +3.3V | +12V | -12V | +5Vsb

Total Output
1200W: +5V/+3.3V :22A, +12V:100A, -12V:0.3A, +5Vsb:3A
1000W: +5V/+3.3V :22A, +12V:83.5A, -12V:0.3A, +5Vsb:3A
850W: +5V/+3.3V :22A, +12V:70.8A, -12V:0.3A, +5Vsb:3A
750W: +5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A
650W: +5V/+3.3V :20A, +12V:54.1A, -12V:0.3A, +5Vsb:3A

Power Excursion
1200W: 2820W(*up to 235% of the PSU’s rated power for 100μs)
1000W: 2350W(*up to 235% of the PSU’s rated power for 100μs)
850W: 1997W (*up to 235% of the PSU’s rated power for 100μs)
750W: 1762W (*up to 235% of the PSU’s rated power for 100μs)
650W: 1527W(*up to 235% of the PSU’s rated power for 100μs)

Operating Temperature:   50°C

Fan Size
650W-850W: 120mm FDB Fan
1000W-1200W: 135mm FDB Fan

Fan Bearing:   FDB (Fluid Dynamic Bearing)
Fan Speed:   2400 RPM
MTBF:  100K hours at full load

ATX 24 Pin Connector
1200W/1000W:1
850W/750W/650W:1

EPS 8 Pin Connector
1200W/1000W:2
850W/750W/650W:2

PCI-E 6+2 Pin Connector
1200W/1000W:8
850W/750W:6
650W:4

Molex 4 Pin Connector
1200W/1000W:3
850W/750W/650W:4

12V-2×6 (12+4) Connector (600W):   1200W/1000W/850W/750W: 1
Certification:   CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM

Weight
1200W/1000W:
Product+cables：1.77kg+1.28kg
with Package:3.43kg
850W/750W:
Product+cables：1596g+1254g
with Package:3.1kg
650W:
Product+cables：1299g+1231g
with Package:2.78kg
