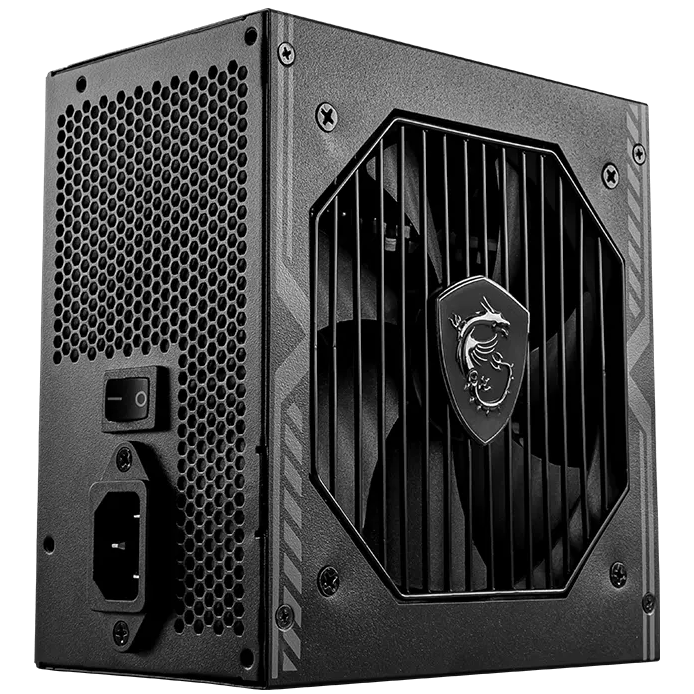

MSI MAG A750 BRONZE POWER SUPPLY

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

The MAG A750BN PCIE5’s distinctive design patterns symbolize unity and strength. It unites all the components by reliably and stably supplying power to the entire system. With the MAG A750BN PCIE5’s , any system has the power it needs to survive all challenges.

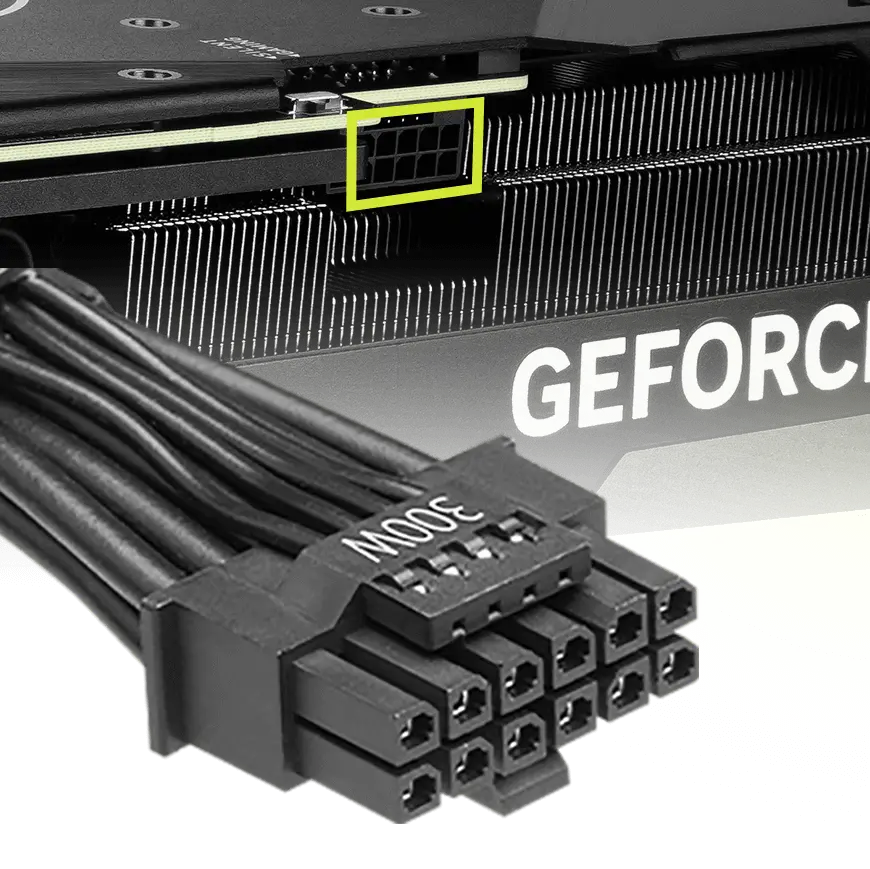

PCIE5.0 READY

It has an output port that is compliant with PCIe 5.0, enabling to support the RTX 4070* series graphics cards.

* RTX 5070Ti VANGUARD/ RTX 5070Ti GAMING TRIO/ RTX 4070Ti SUPRIM X 12 G is not compatible.

4070 Ti GAMING X TRIO                                                                                                                4070 VENTUS 3X

80 PLUS BRONZE CERTIFICATION
The efficiency of your power supply directly influences your system’s performance and power consumption. The 80 PLUS certification promises lower energy consumption and qualified efficiency level.

DC TO DC  CIRCUIT DESIGN

Adopted DC to DC Circuit Design reduces the instability of output voltage, and adds stability to the supply of power.

ACTIVE PFC DESIGN

The active PFC improves the efficiency of power output and provides a more stable environment for other PC components to operate in.

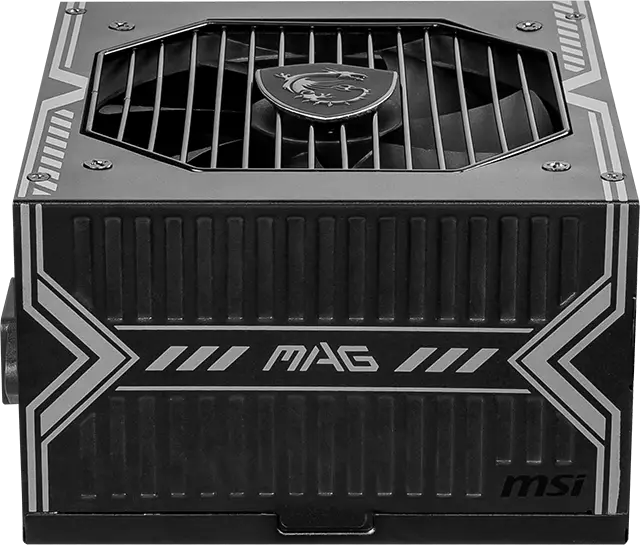

PROTECTION DESIGN
Protection is designed to protect the unit mechanisms and provides comprehensive protection.

TEMPERATURE ADAPTATION
Engineered for reliability, your system operates safely at peak performance even in high-temperature conditions. This rugged power supply ensures sustained operation regardless of your environment.

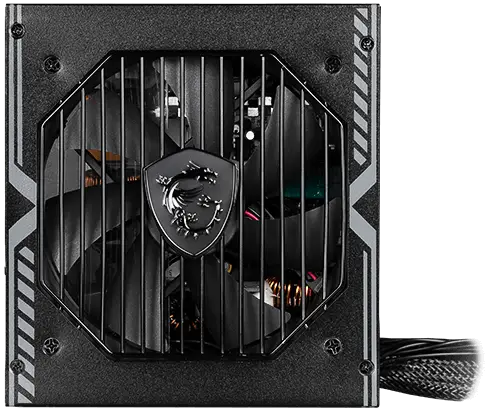

120mm LOW NOISE FAN
The 120mm fan reduces the noise generated while maintaining excellent heat dissipation.

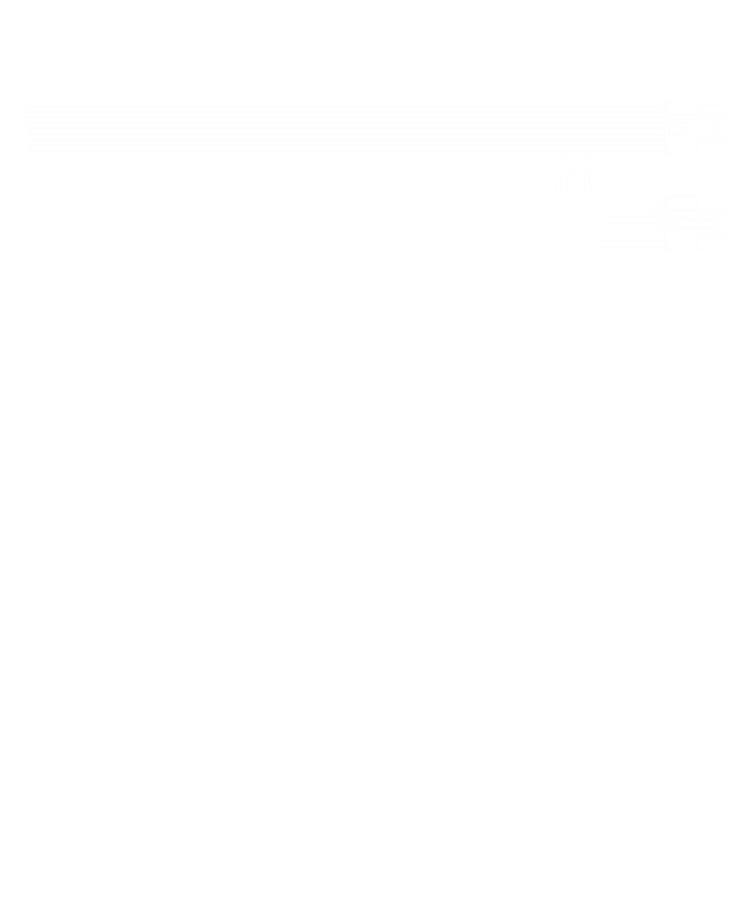

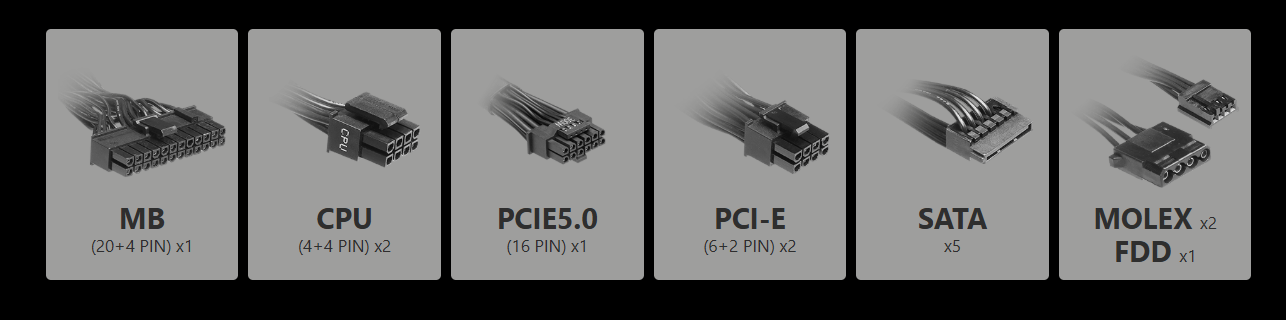

CONNECTORS

SPECIFICATIONS

• Efficiency Rating:   80 PLUS Bronze (up to 85%)
• Modular:   No
• Fan Size:   120 mm
• Fan Bearing:   Sleeve Bearing
• Dimensions (DxWxH):   140mm x 150mm x 86mm / 5.51 x 5.9 x 3.38 inches
• PFC Type:   Active PFC
• Input Voltage Range:  100-240~
• Power Watt:  750W
• Input Frequency Range:   50~60Hz
• Protection:   OCP, OVP, OPP, OTP, SCP
• ATX (24 pin):  1
• EPS (4+4 pin):   2
• PCI-E 5.0 (16 pin):   1(300W)
• PCI-E (6+2 pin):   2
• SATA (15 pin):   5
• PERIPHERAL (4 pin):   2
• FDD (4 pin):   1
