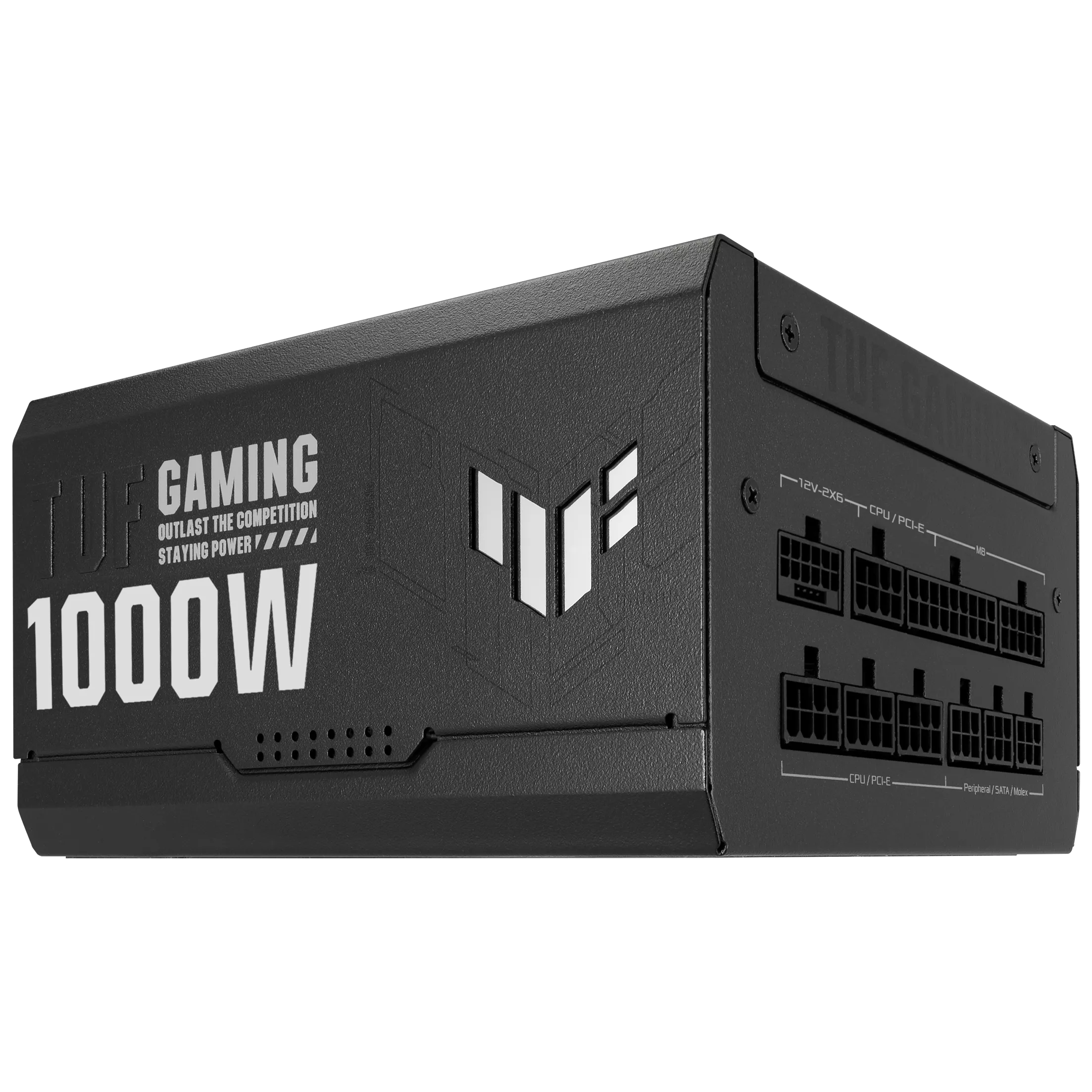

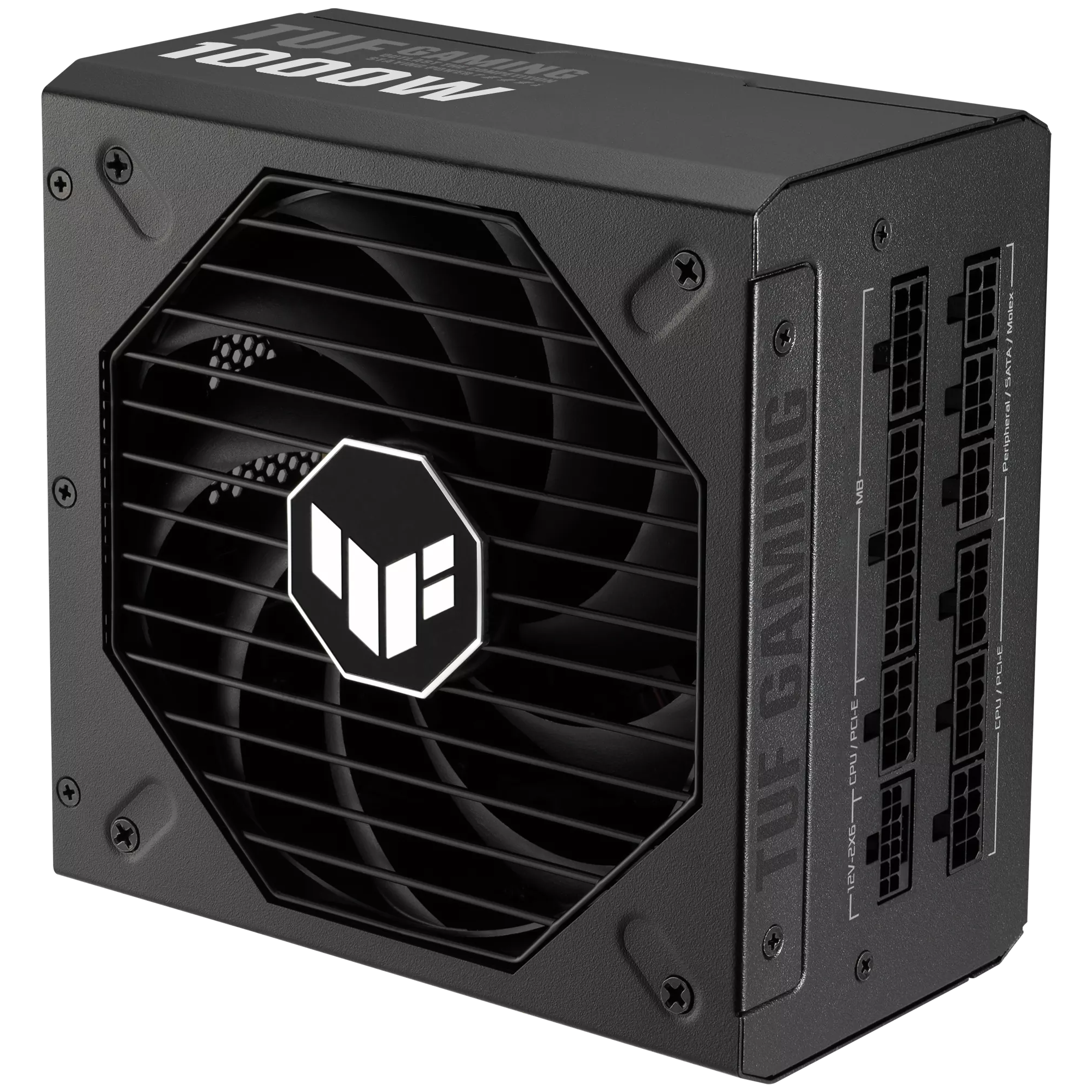

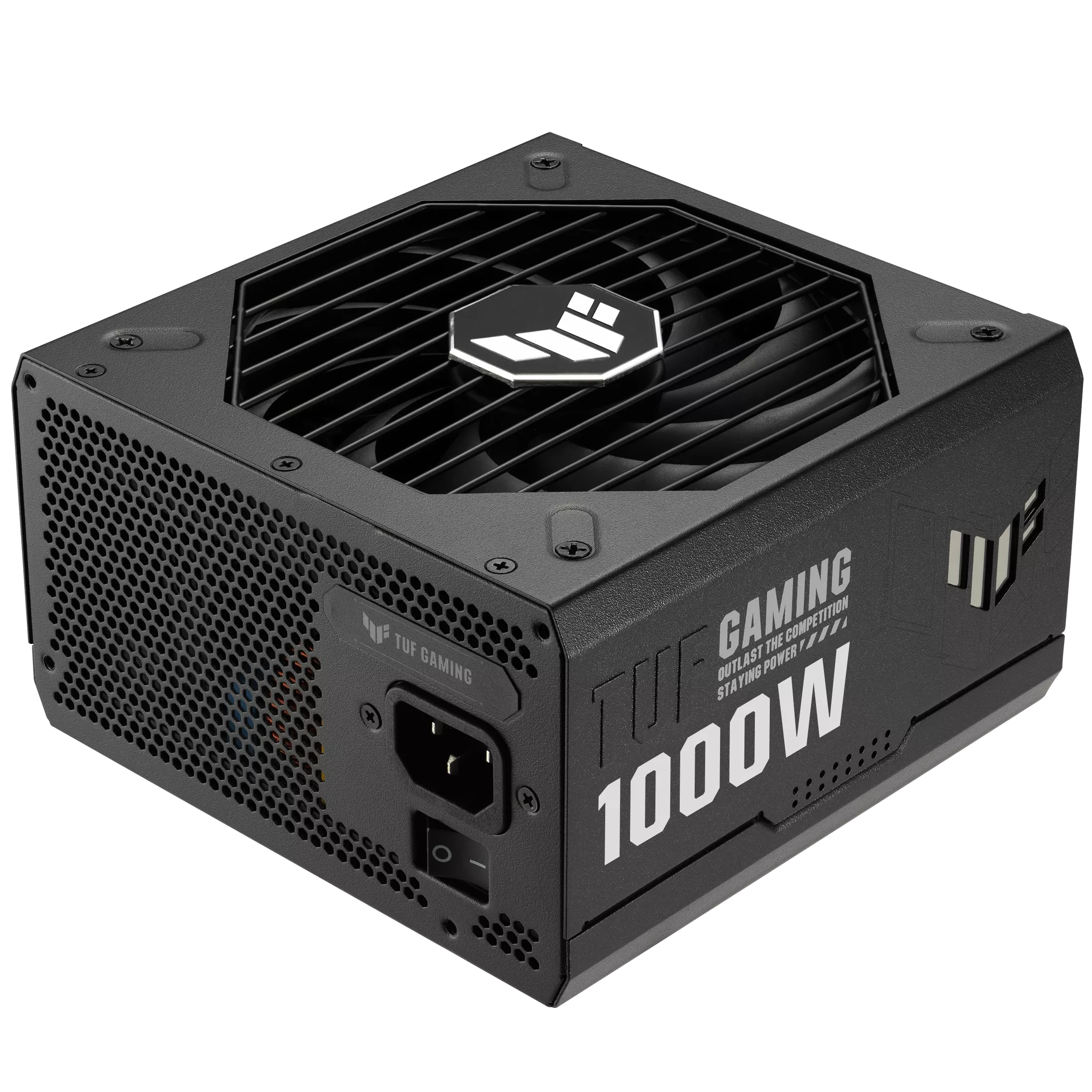

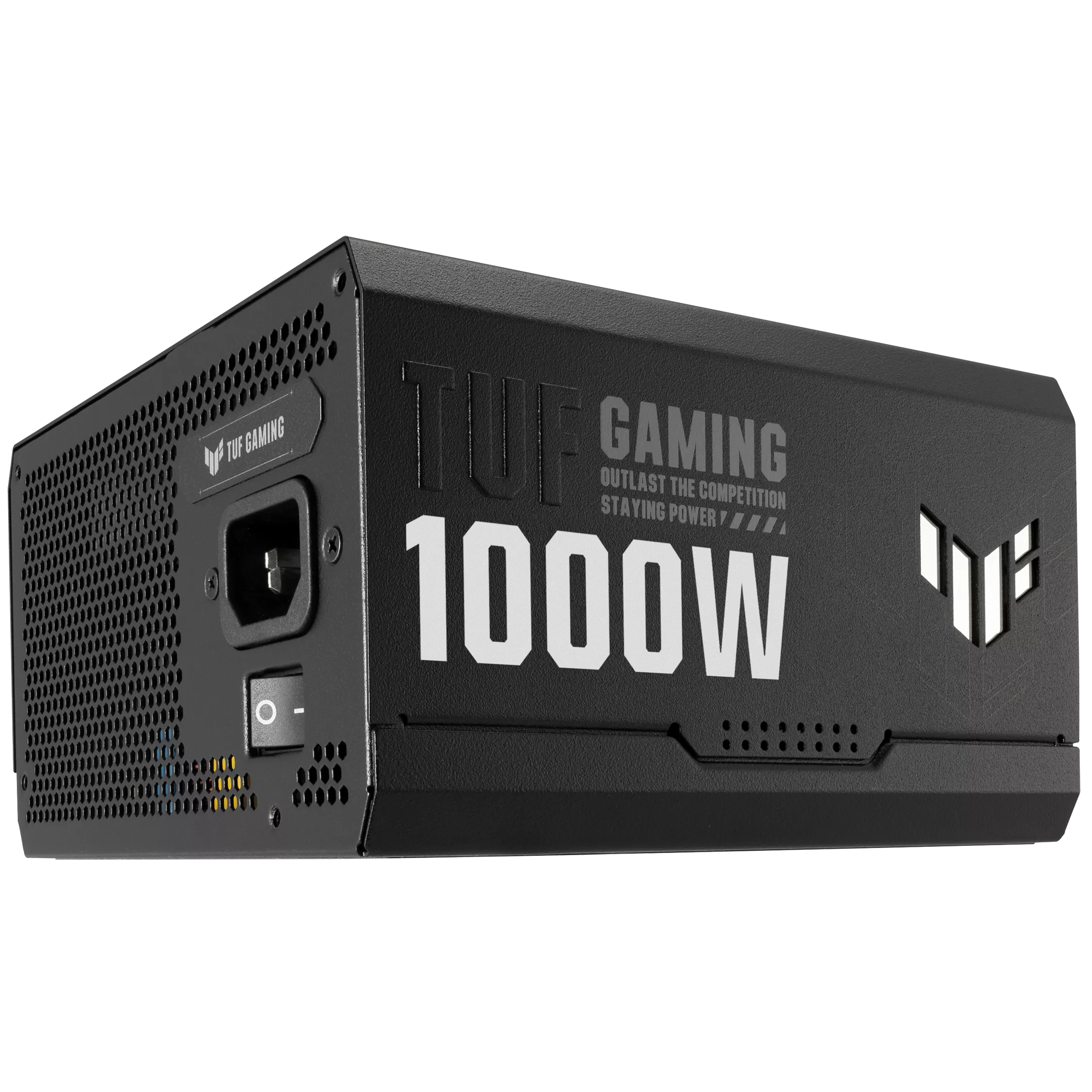

ASUS TUF Gaming 1000G Gold Power Supply

The TUF Gaming 1000W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul.

• Capacitors and chokes pass demanding tests to achieve Military-grade Certification.
• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
• A protective PCB coating protects against moisture, dust, and extreme temperatures.
• An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.
• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
• Fully modular etched cables keep your rig neat and tidy.

Built For The Long Haul

The ASUS TUF Gaming 1000W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.

DURABILITY

Longer Lifespan

MTBF

The ASUS TUF Gaming 1000W Gold, enhanced with military-grade components, passes a stricter MTBF (mean time between failures) test to deliver up to twice the lifespan of standard power supplies, empowering you build with confidence.

DROP TEST
Replicating real-world drops from 75 cm height on all sides, this test helps to ensure every TUF Gaming 1000W Gold can resist damage from unexpected falls, knocks and bumps during shipment and daily use.

VIBRATION TEST
Extensive vibration testing helps to ensure that every part of your TUF Gaming 1000W Gold can stay in place and maintain functionality.

EXTREME TEMPERATURE
TUF Gaming 1000W Gold is capable of handling drastic temperature changes from -40°C up to 85°C for 27 cycles and maintaining operation.

CORROSION RESISTANCE
TUF Gaming 1000W Gold is built with corrosion resistance. It can withstand up to 95% humidity with salt fog for up to 240 hours and come out the other side with full functionality. Even if you’re living in tropical climates with harsh and wet conditions, TUF Gaming 1000W Gold can weather the storm.

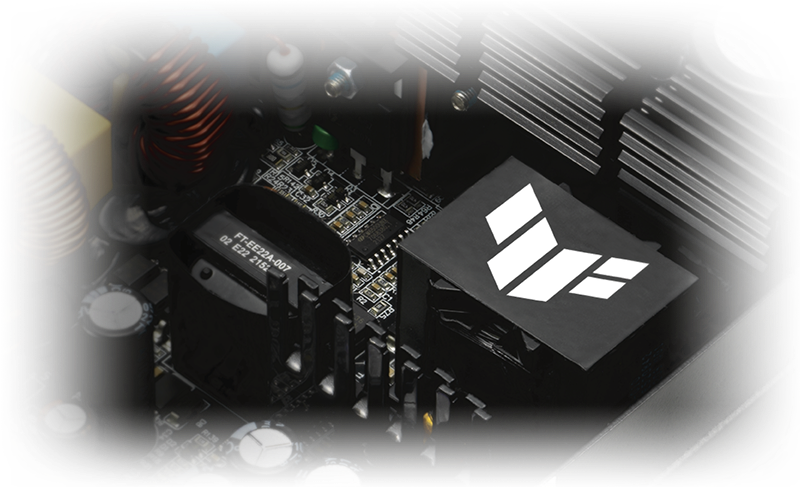

Military-Grade Components

TUF Components

TUF Chokes
Certified military-grade TUF chokes deliver rock-solid power to the CPU, which can help improve system stability.

TUF Capacitors
TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X longer lifespan than standard capacitors.

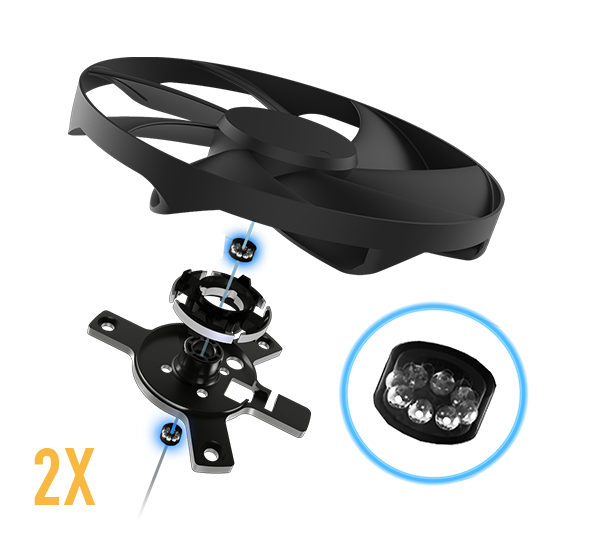

Dual Ball Fan Bearings

2X longer lifespan

Dual ball bearings boast an extensive lifespan of up to 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings. This means long-lasting, reliable cooling with minimal noise when you choose the ASUS TUF Gaming Gold series.

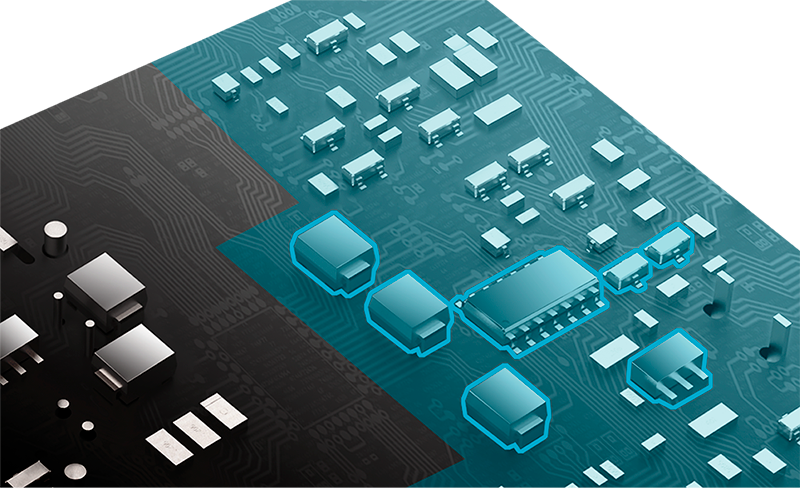

Protective PCB Coating

All wrapped up

A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.

ENGINEERING

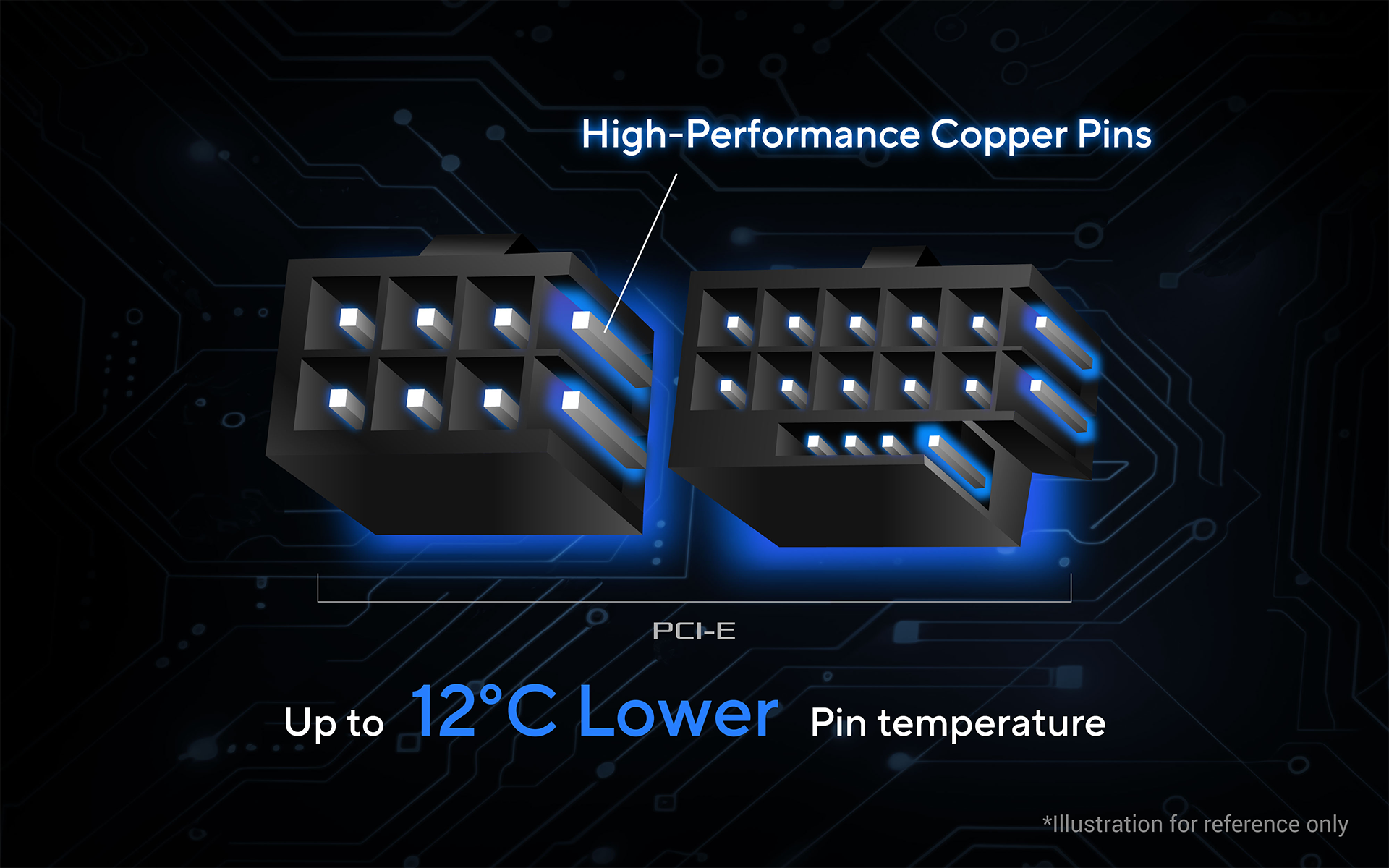

High-Performance Copper Pins

Upgraded PCIe® connectors featuring superior thermal conductivity ensure cooler operation and improved power delivery efficiency.
This translates to a significant 29% reduction in connector temperatures (up to 12.28°C), promoting optimal performance and stability for even the most demanding graphics cards.

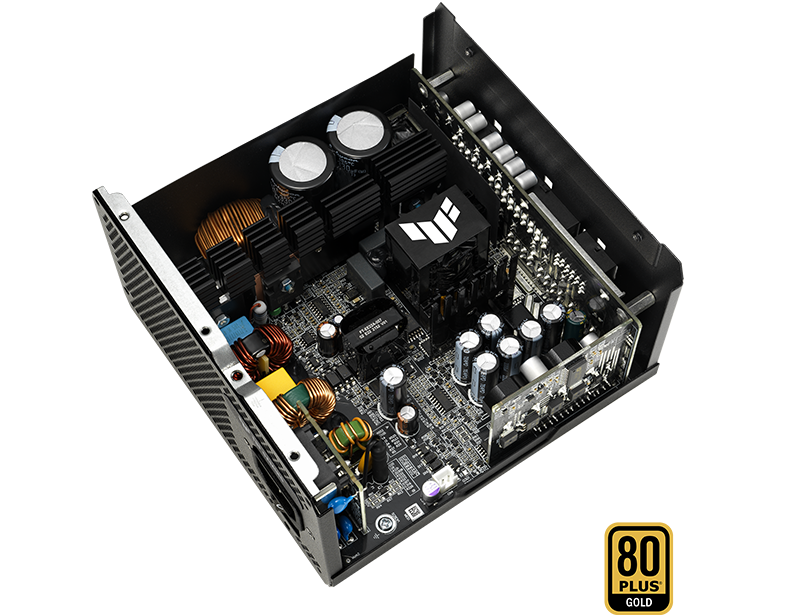

80 Plus Gold Certification

Heart of gold

The TUF Gaming 1000W Gold features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.

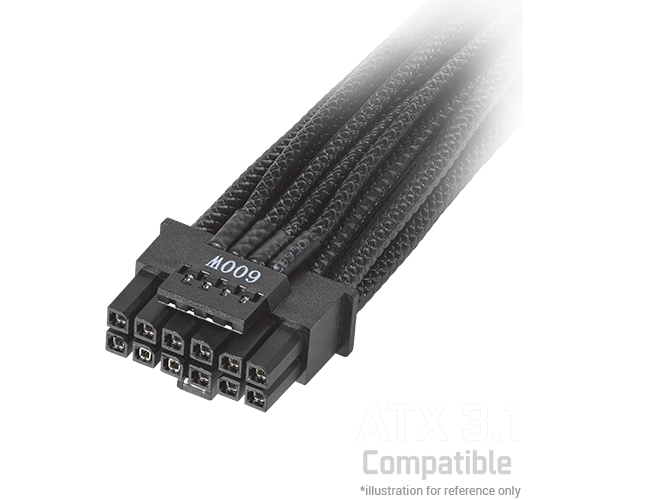

ATX 3.1 Compatible

Step into the future

The latest power specification updates have landed. ATX 3.1 ushers in tighter voltage and current regulation guidelines for next-gen hardware – and TUF Gaming 1000W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.1 graphics cards is bundled with the PSU, bringing large-scale capabilities.

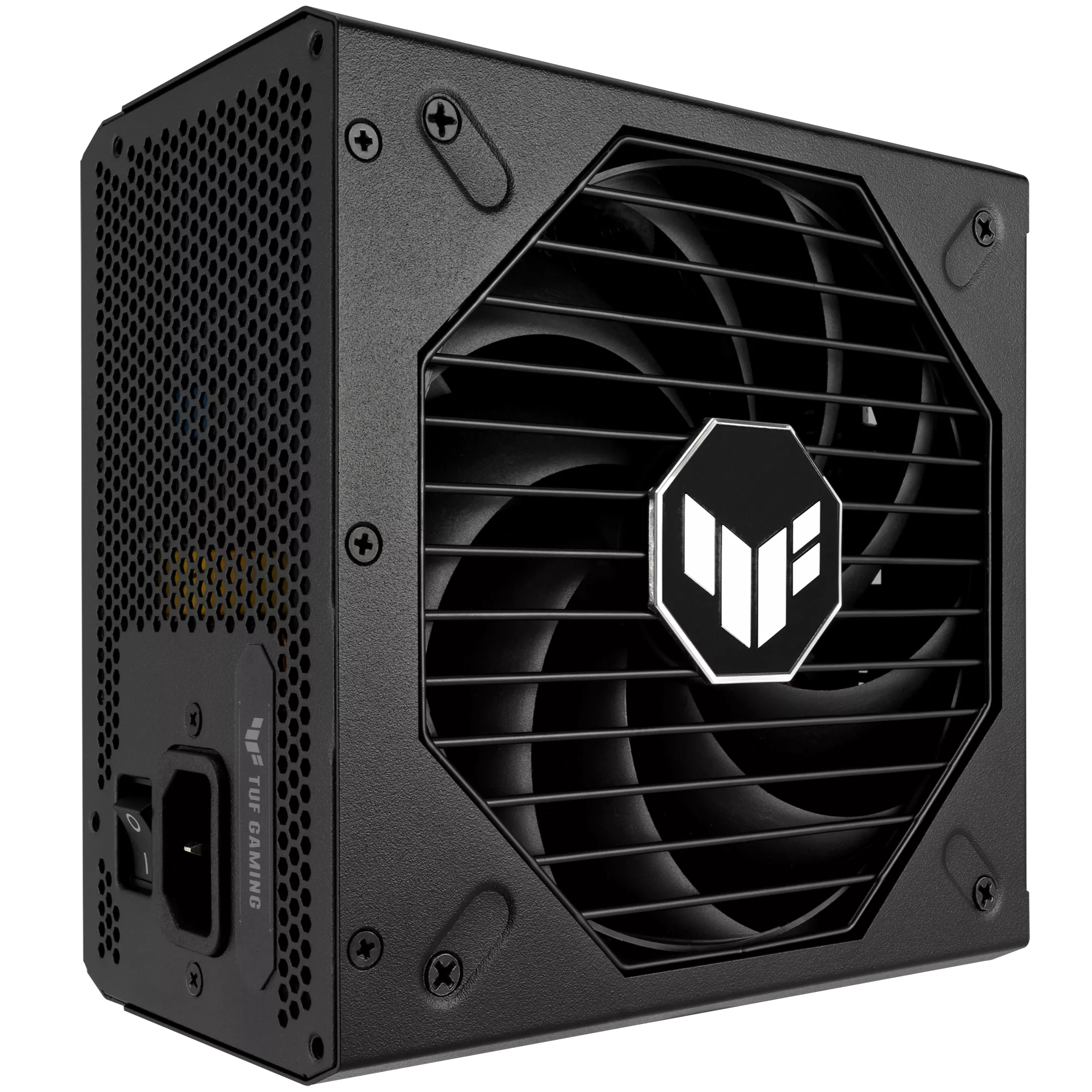

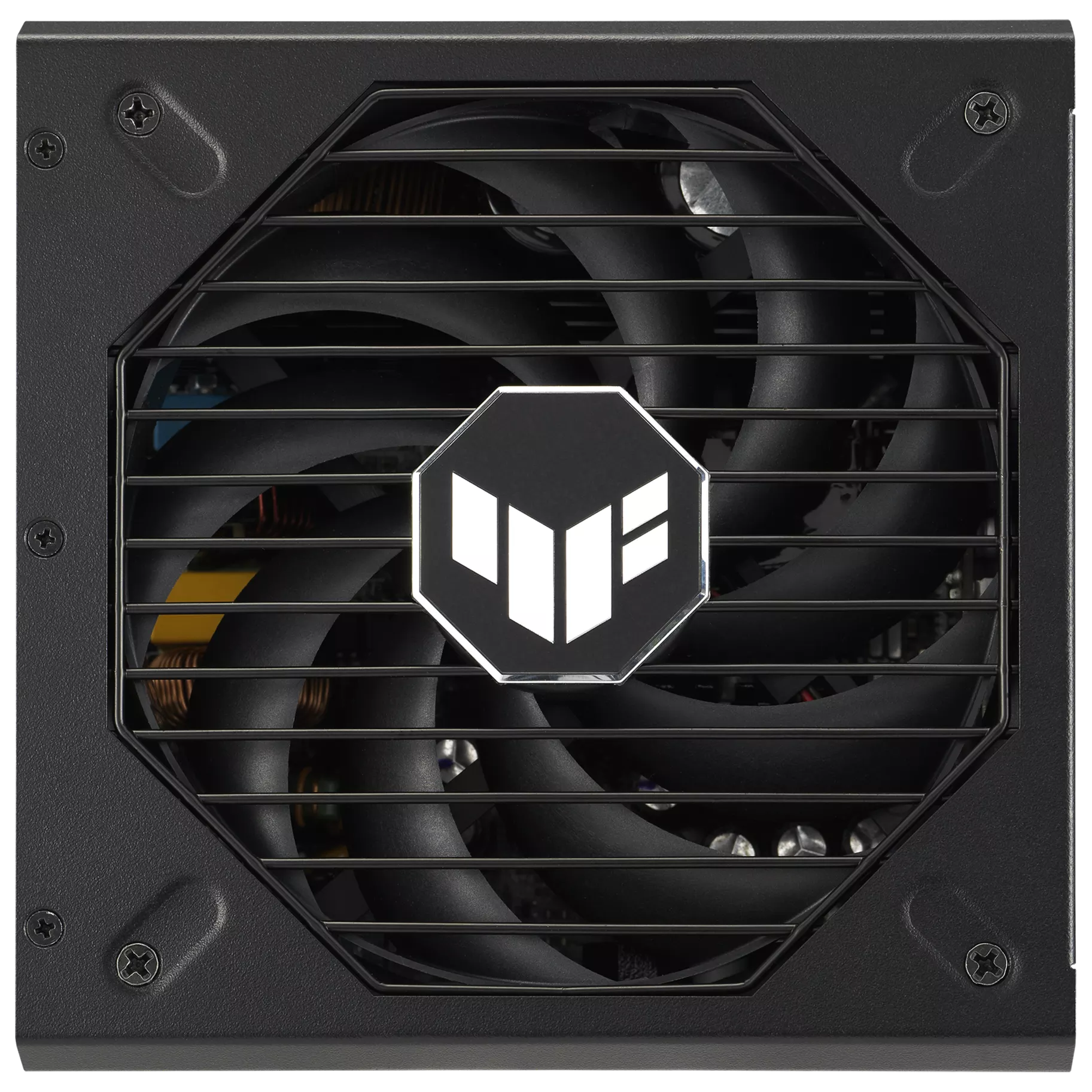

Axial-tech Fan Design

Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we’ve scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.

EXPERIENCE

Etched Cables
Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.

Tech Specs

Model

• TUF Gaming 1000W Gold

Intel Form Factor

• ATX12V

PFC Type

• Active PFC

ATX Standard

• ATX 3.1

80 PLUS Efficiency

• 80Plus Gold

Protection Features

• OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

• ROHS

AC Input Range

• 100-240Vac

DC Output Voltage

• +3.3V +5V +12V -12V +5Vsb

Maximum Load

• 25A25A83.3A 0.8A 3A

Combined Load

• 130W 130W 1000W 9.6W 15W

Total Output

• 1000W

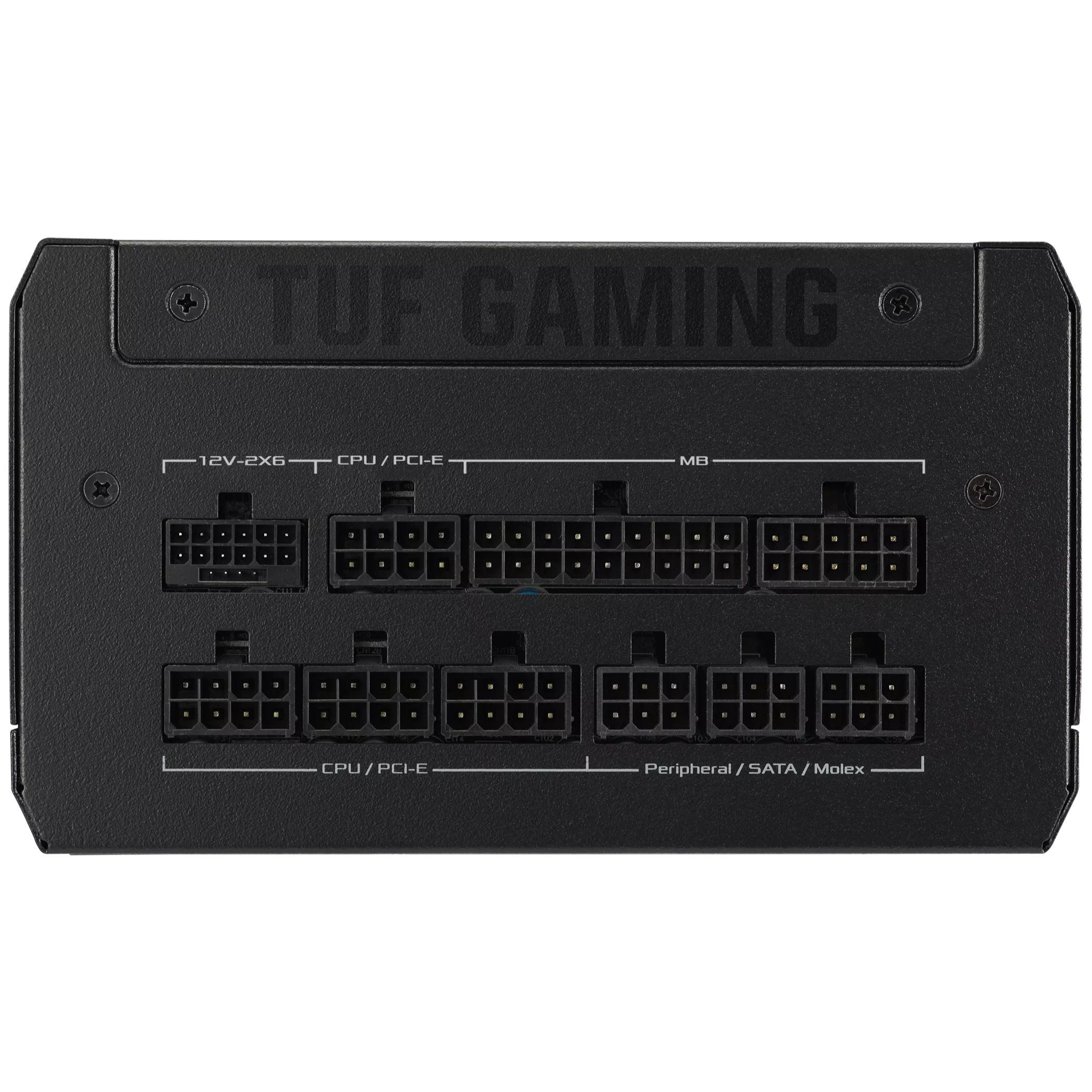

Cable Connectors

• MB 24/20-pin x 1
• CPU 4+4-pin x 2
• PCI-E 16-pin x 1 (both PSU & component side)
• PCI-E 8-pin x 4
• SATA x 5
• PERIPHERAL x 4

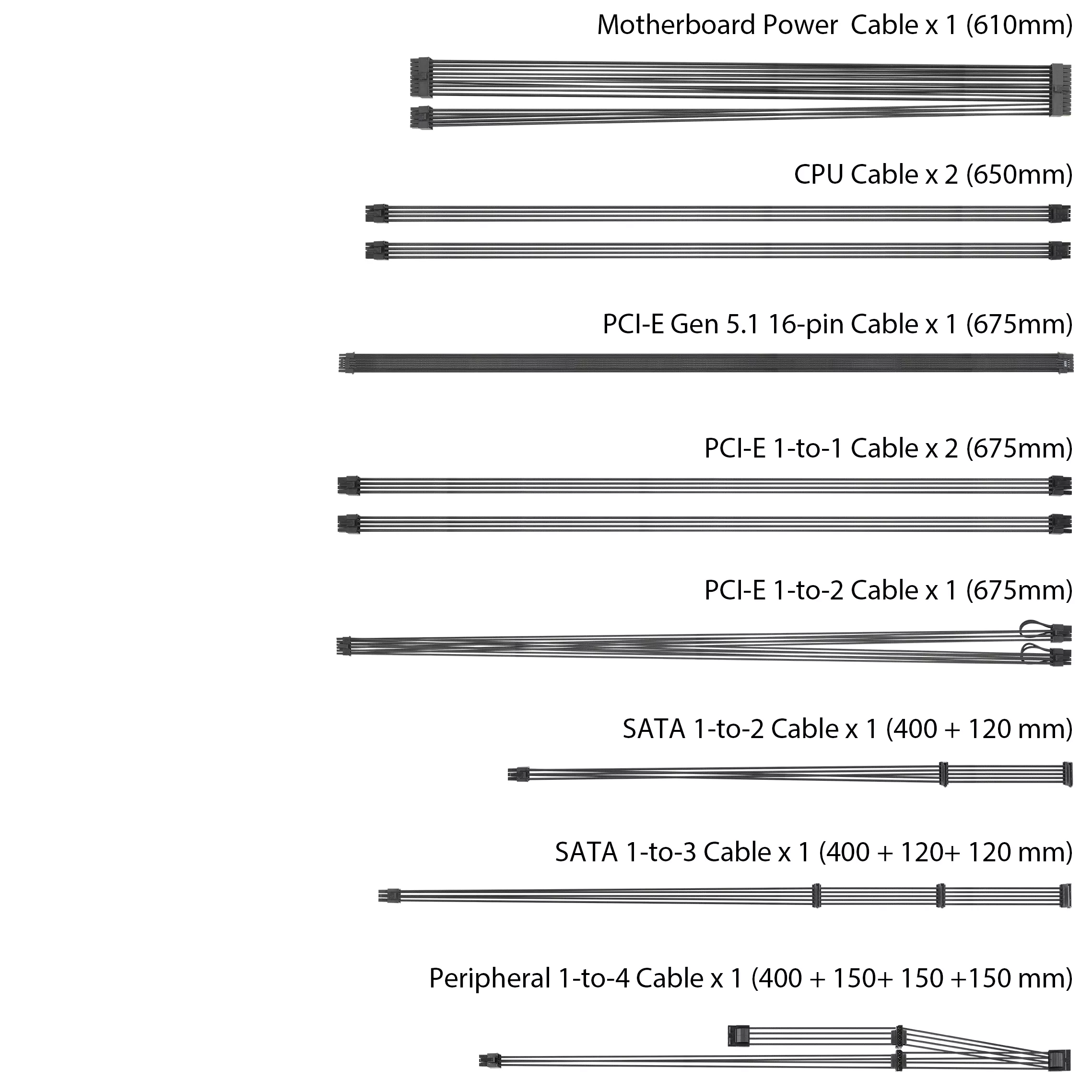

Package Contents

• Power Cord x 1
• Motherboard Power Cable x 1 (610mm)
• CPU Cable x 2 (650mm)
• PCI-E Gen 5.1 16-pin Cable x 1 (675mm)
• PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
• PCI-E 1-to-1 Cable x 2 (675mm)
• SATA 1-to-2 Cable x 1 (400+120mm)
• SATA 1-to-3 Cable x 1 (400+120+120mm)
• Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
• TUF Gaming Cable Tie x 3
• User Manual x 1

Dimensions

• 150 x 150 x 86 mm

Weight

• 2.48kg (single PSU)

AURA SYNC

• No

MTBF

• >120,000 hrs @ 40°C

0dB Fan Button

• No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.
