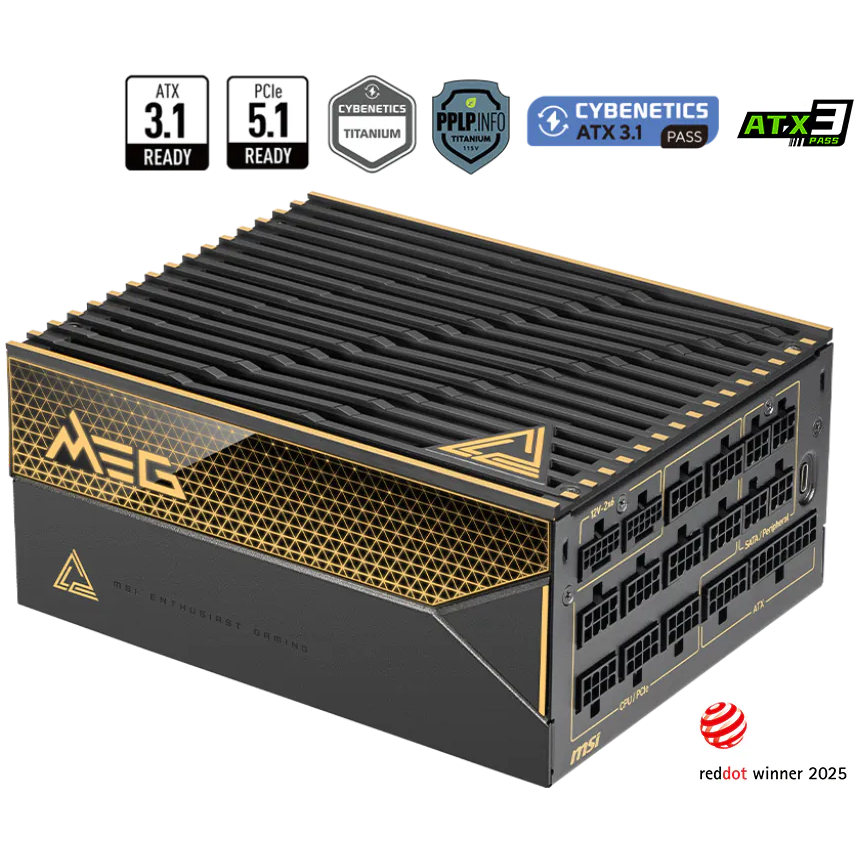

MSI MEG Ai1600T PCIE5 Power Supply

MEG Ai1600T PCIE5

MEG MSI ENTHUSIAST GAMING

MSI’s flagship MEG series exemplifies relentless innovation, continuously setting new benchmarks in the gaming hardware space. This trailblazing series employs pioneering technology to push the boundaries of gaming, consistently leading with innovations that redefine what gamers expect.

PERFORMANCE

2 x 12V-2×6

DUAL-NATIVE 12V-2X6 CONNECTOR

This power supply stands as a cornerstone for powering advanced computing environments. Whether you’re training machine learning models or image processing, this PSU ensures stability and performance without compromise.

2X

ATX 3.1

ULTIMATE PROOF PSU

It has an output port that is compliant with Intel PSDG ( Power Supply Design Guide) ATX 3.1, the power supply can hold up to 240% total power excursion and 3x GPU power excursion.

SiC MOSFET

The first of server-grade materials are used in the interleaved PFC MOSFETs to enhance stability, improve overall efficiency, reduce losses, and optimize heat dissipation.

EFFICIENCY

TITANIUM EFFICIENCY CERTIFICATION

The efficiency of your power supply significantly impacts overall power consumption. A Titanium certification serves as an outstanding benchmark for energy efficiency, ensuring lower power consumption while maintaining optimal performance at higher efficiency levels.

CAPACITOR

SERVER-GRADE ELECTROLYTIC 105 C CAPACITOR

Aiming for unwavering product quality and performance stability, The MEG gaming power supply comes with 100% Japanese 105C capacitors. It is designed for efficient power conversion and long-lasting, safe operation.

FULL DIGITAL DESIGN

This power supply comes with MCU to control PFC, LLC and protection significantly enhance accuracy. This architecture enables manage dynamic adjustments, delivering more stable and efficient power output.

THERMAL DESIGN

SERVER-GRADE TRANSFORMER

SERVER-GRADE CONSTRUCTURE

The flat spring coil design achieves a smaller volume while maintaining high efficiency, providing sufficient space for heat dissipation.

ENLARGED HEATSINK

To enhance heat dissipation and extend the capacitors lifespan, the heatsinks feature sloped cuts to guide airflow efficiently. They are larger than standard heatsinks and cover as many capacitors as possible within the limited space.

ZERO FAN MODE

The Zero fan mode ON, available to stop the fan’s operation when TDP is below 55% to help with energy saving and providing silence.

SOUND LEVEL

MIDNIGHT SOUND LEVEL

This power supply is designed for quiet operation, delivering low noise levels like in the midnight, ensuring a serene computing experience free from disturbances.

DURABILITY

FAN BEARING

DOUBLE-BALL BEARING

This power supply’s comes with 135 mm fan sports a Double-ball bearing, chosen to increase the life span of the fan while maintaining low noise level.

ALLOY COPPER

ALLOY COPPER CONNECTOR TERMINALS

The cable connectors are made of copper alloy terminals so that the power supply will be safer when there is a higher surge in current.

SAFETY CABLE

BUILT FOR MAXIMUM SAFETY

The power supply’s cables, from the internal copper wires to the external high density braided cover, are fully UL certified, ensuring superior safety and durability.

PROTECTION

PROTECTION MECHANISMS

To make sure the entire system can operate safely and stably at all times, here comes with a number of protection mechanisms to give you the best peace of mind.

• OCP
• OTP
• OPP
• SCP
• OVP
• UVP
• SIP
• NLO

SURGE PROTECTION

This power supply features external voltage spike protection, making it a reliable choice for use in small-scale centers where stability and safety are crucial.

EZ DIY

DUAL-COLOR CABLE

DUAL COLOR 12V-2×6 CABLE

The 12V-2X6 cable’s connector color has been changed to yellow so that users can easily see if the connector has been plugged in properly.

COMPACT SIZE

Compared with the general titanium power supply on the market.  The power supply’s dimensions ensure a comfortable and easy fit in most PC cases, effectively providing more space for cable management and airflow to the rest of the system.

BRAIDED CABLE

SOFT BRAIDED MODULAR CABLE

Thanks to the thicker individual braiding, the power supply cables offer enhanced durability, in addition the fully modular design further improves organization and extends the system’s lifespan.

CABLE ORGANIZER

Pre-install the cable organizer to make organizing cables more convenient. Additionally, the cable manager’s position can be adjusted freely as needed.

GAMING INTELLIGENCE

SOFTWARE SYNC

This power supply is fully supported by MSI Gaming Intelligence, which helps optimize user experience with adjustable settings. Please connect the Type-C cable to sync the power supply’s information.

REAL TIME MONITOR

Through the MSI Center, this power supply help monitors the real-time status of the percentage of power supply total system wattage used.

CONTROL FAN SPEED

Switch between fan modes through the MSI CENTER. Select Auto mode or adjust the fan speed according to your needs .

MIN (RPM)  >>> MAX (RPM)

MYSTIC LIGHT

Dive into a million colors and dynamic ARGB lightning effects with MSI Mystic Light. The MEG Ai1600T PCIE5 takes center stage, featuring its exclusive Rising Sun Effect, delivering a Stunning display of radiance and beauty that elevates your setup.

Quality Test Challenges
Each product undergoes hundreds of strict quality checks before leaving the factory to ensure it reaches consumers with assured quality. The MEG Ai1600T PCIE5 reveals the most important items result, users can witness each test, showcasing its quality.

CONNECTORS

SPECIFICATIONS

• Efficiency Rating:   80 PLUS Titanium (up to 94%)
• Modular:   Yes (Fully Modular)
• Fan Size:   135 mm
• Fan Bearing:   Double Ball Bearing
• Dimensions (DxWxH):   190 x 150 x 86 mm
• PFC Type:  Interleaved PFC
• Input Voltage Range:   100-240
• Power Watt:   1600W
• Input Frequency Range:   50~60 Hz
• Power Excursion:   3840W (*up to 240% of the PSU’s rated power for 100μs)
• ATX (24 pin):   1
• EPS (4+4 pin):   2
• PCI-E 5.1 (16 pin):   2 (600W)
• PCI-E (6+2 pin):   9
• SATA (15 pin):   8
• PERIPHERAL (4 pin):   8
• Protection:   OCP / OTP / OPP / SCP / OVP / UVP / SIP / NLO
