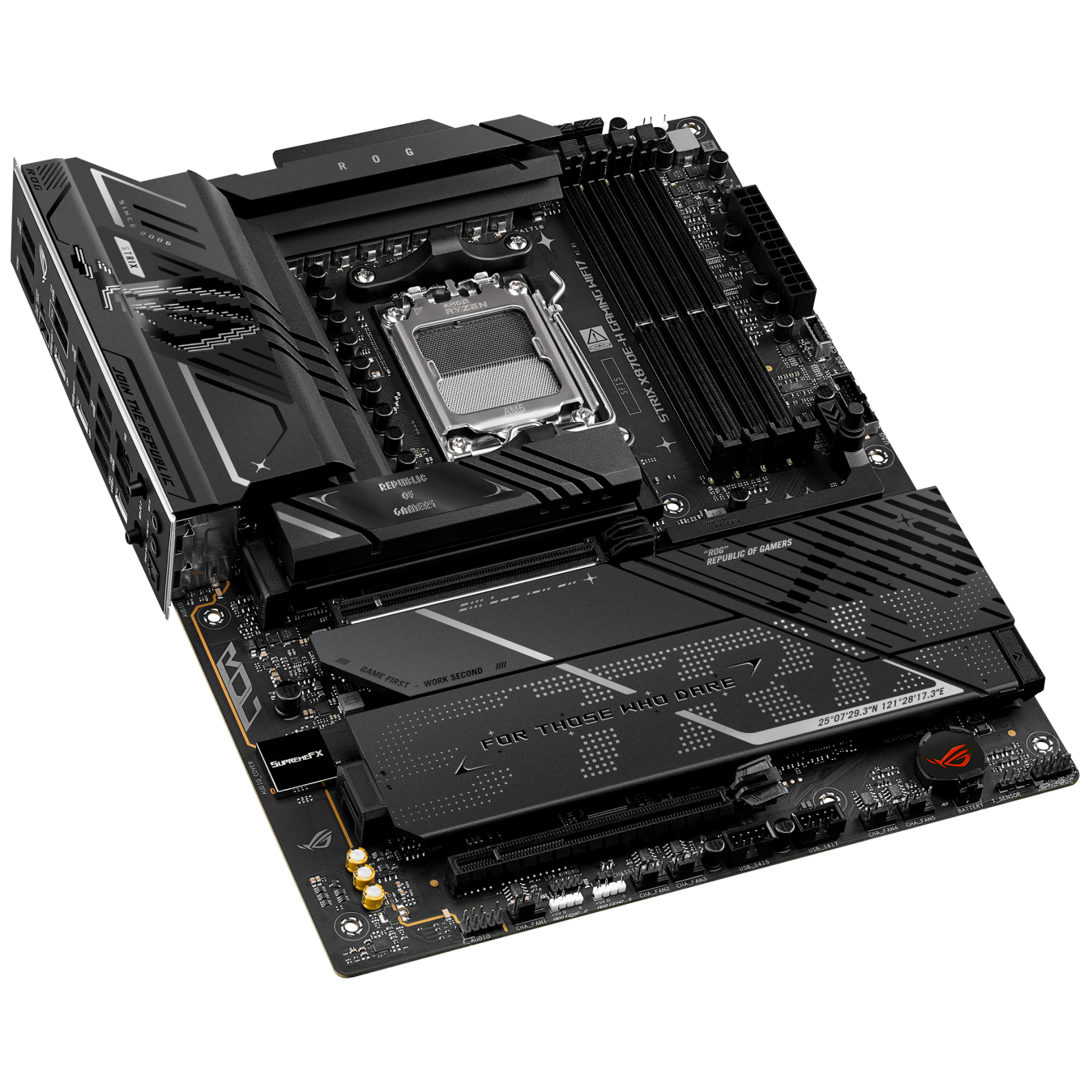

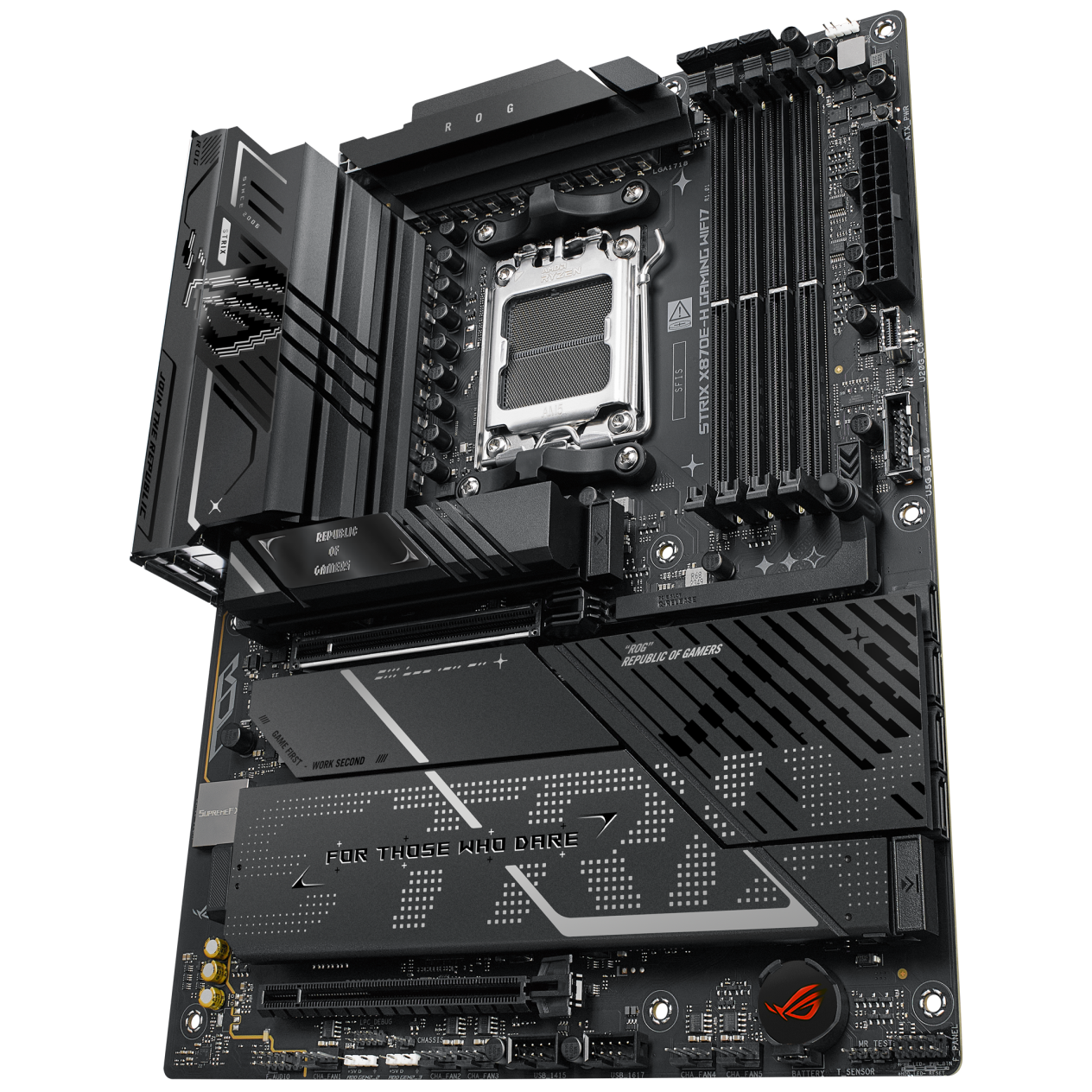

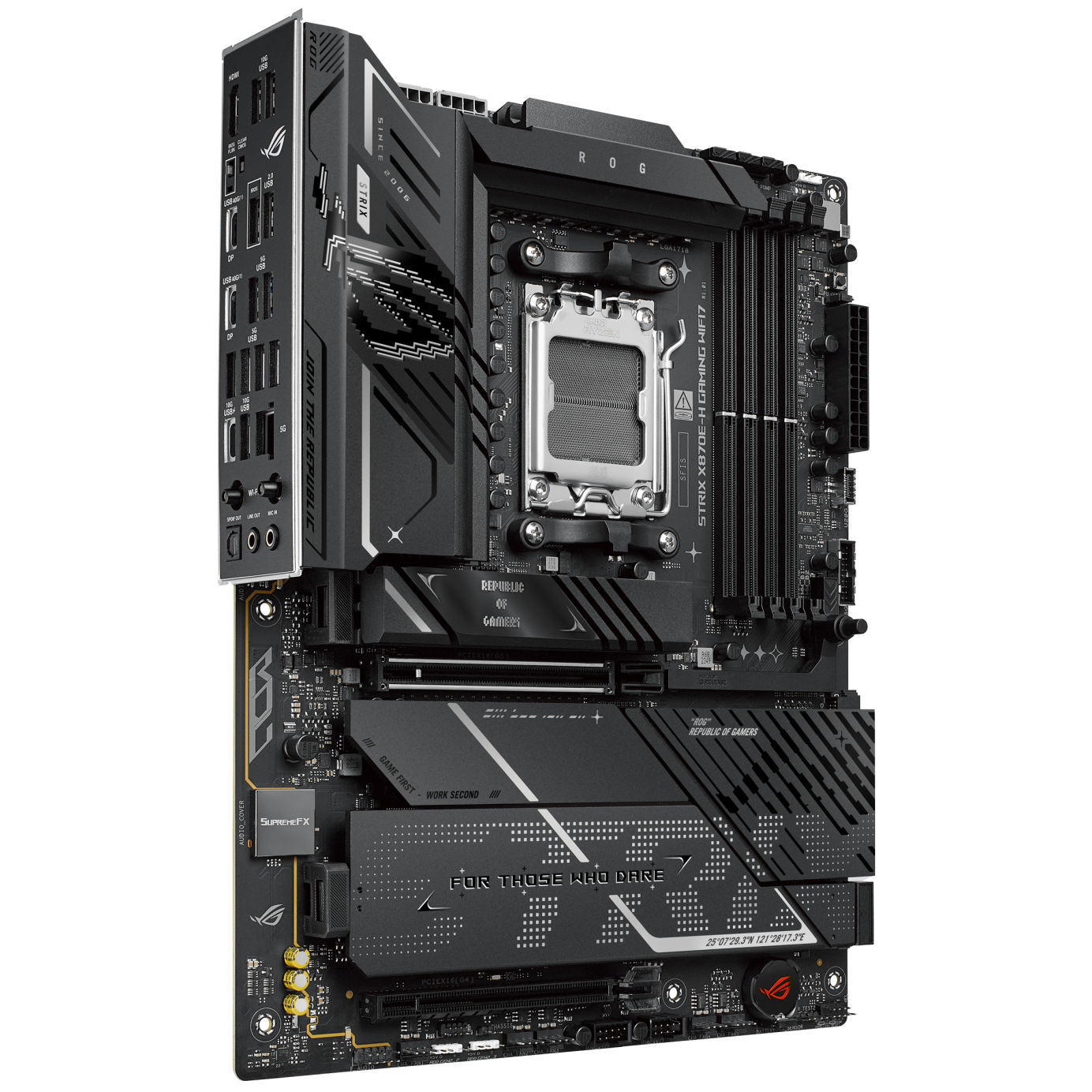

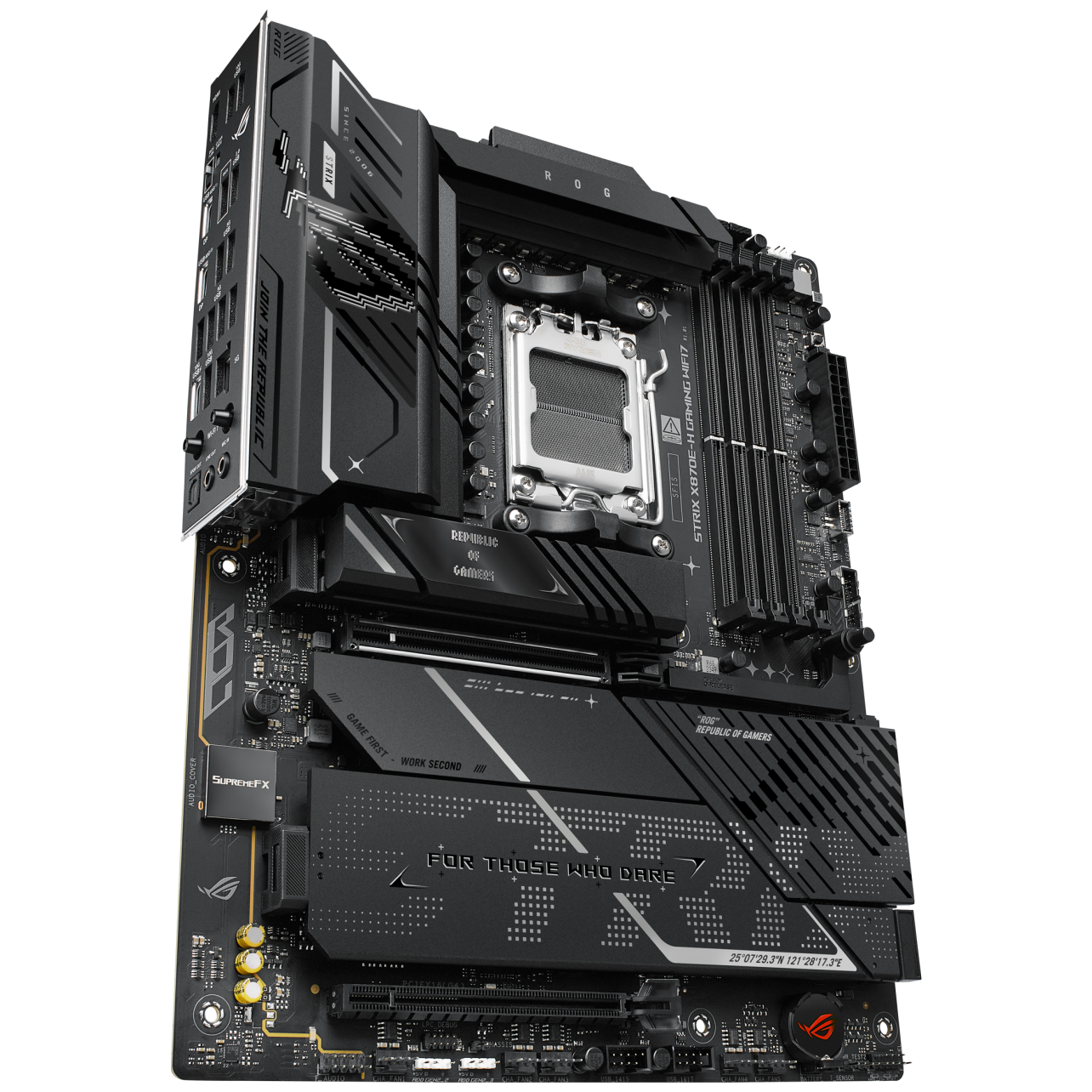

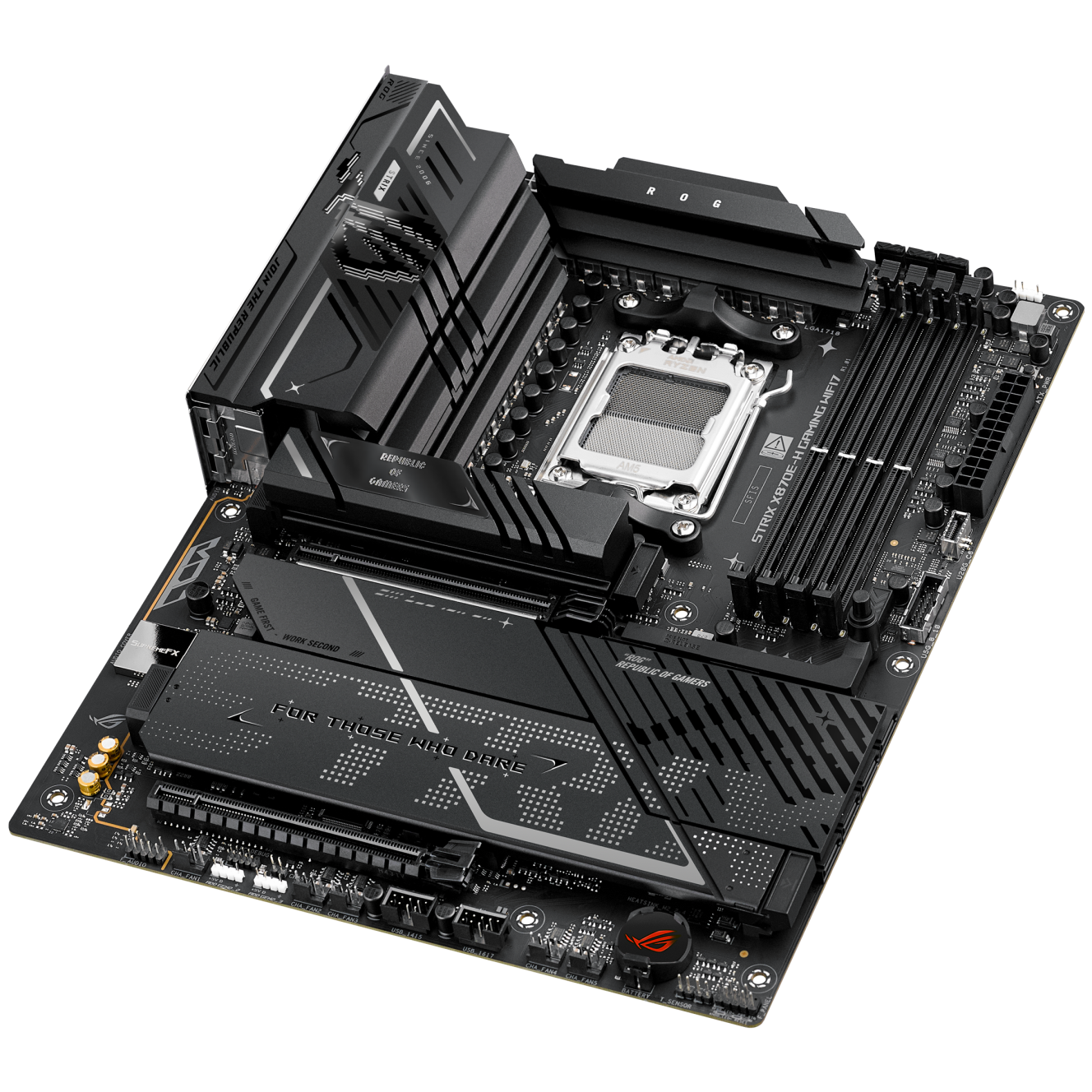

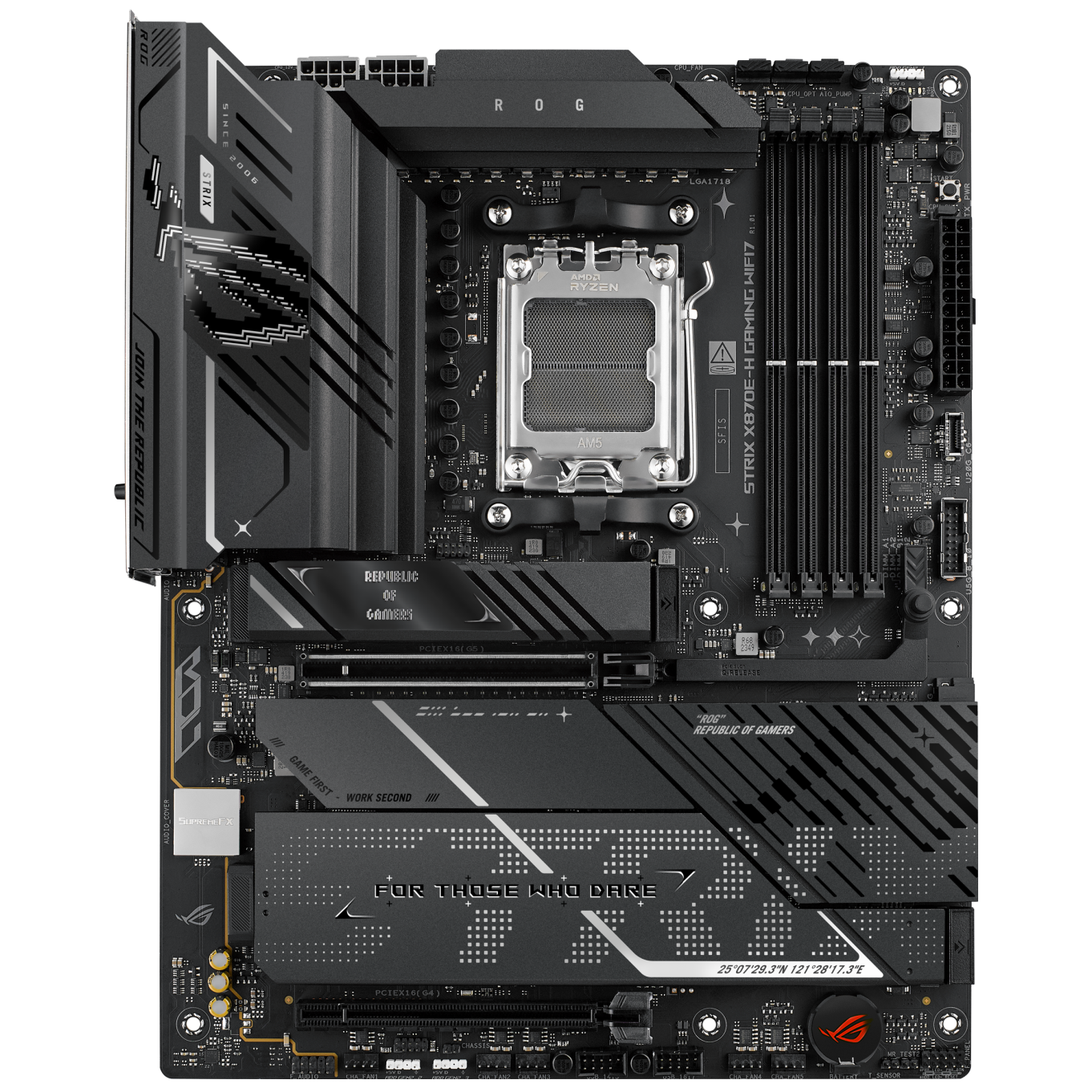

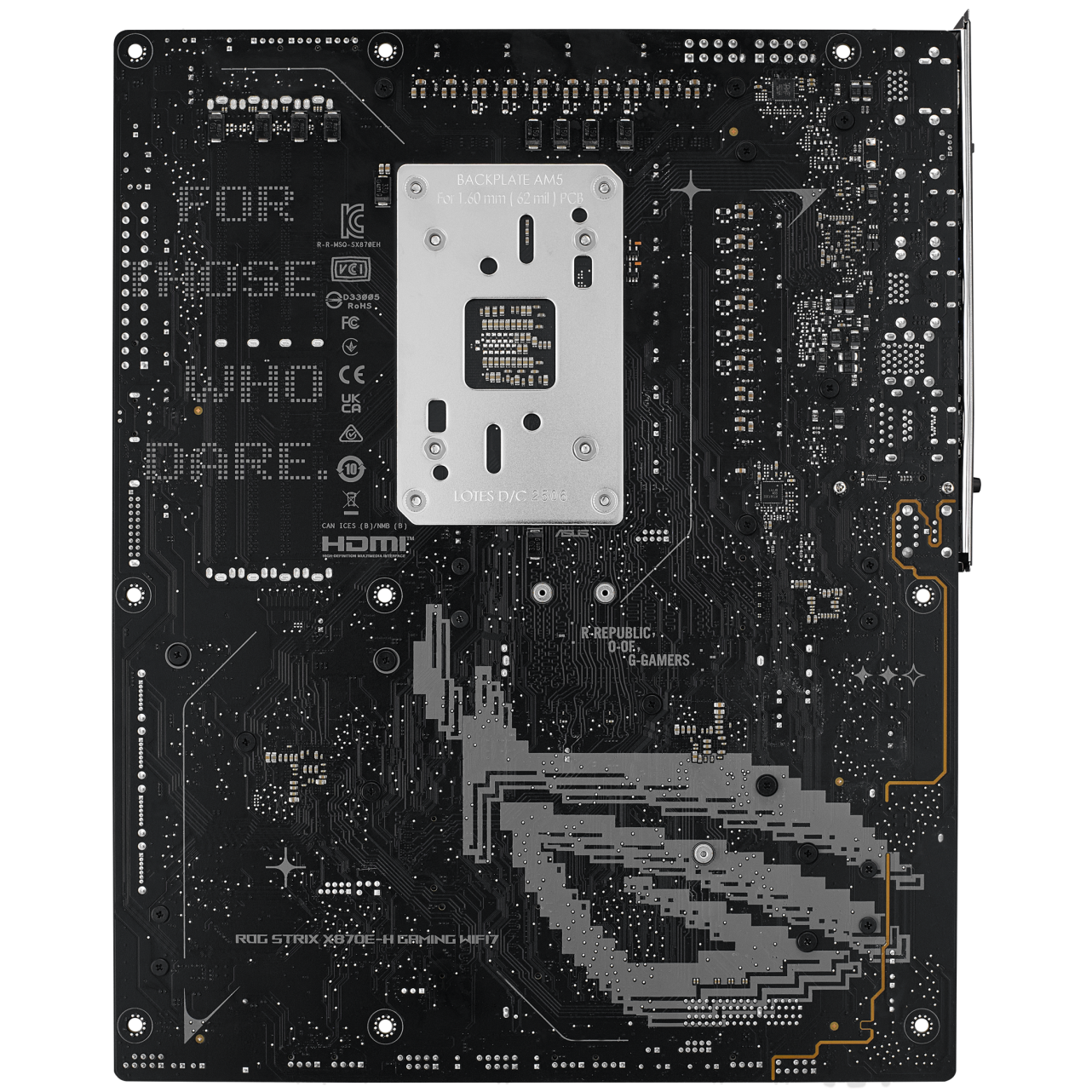

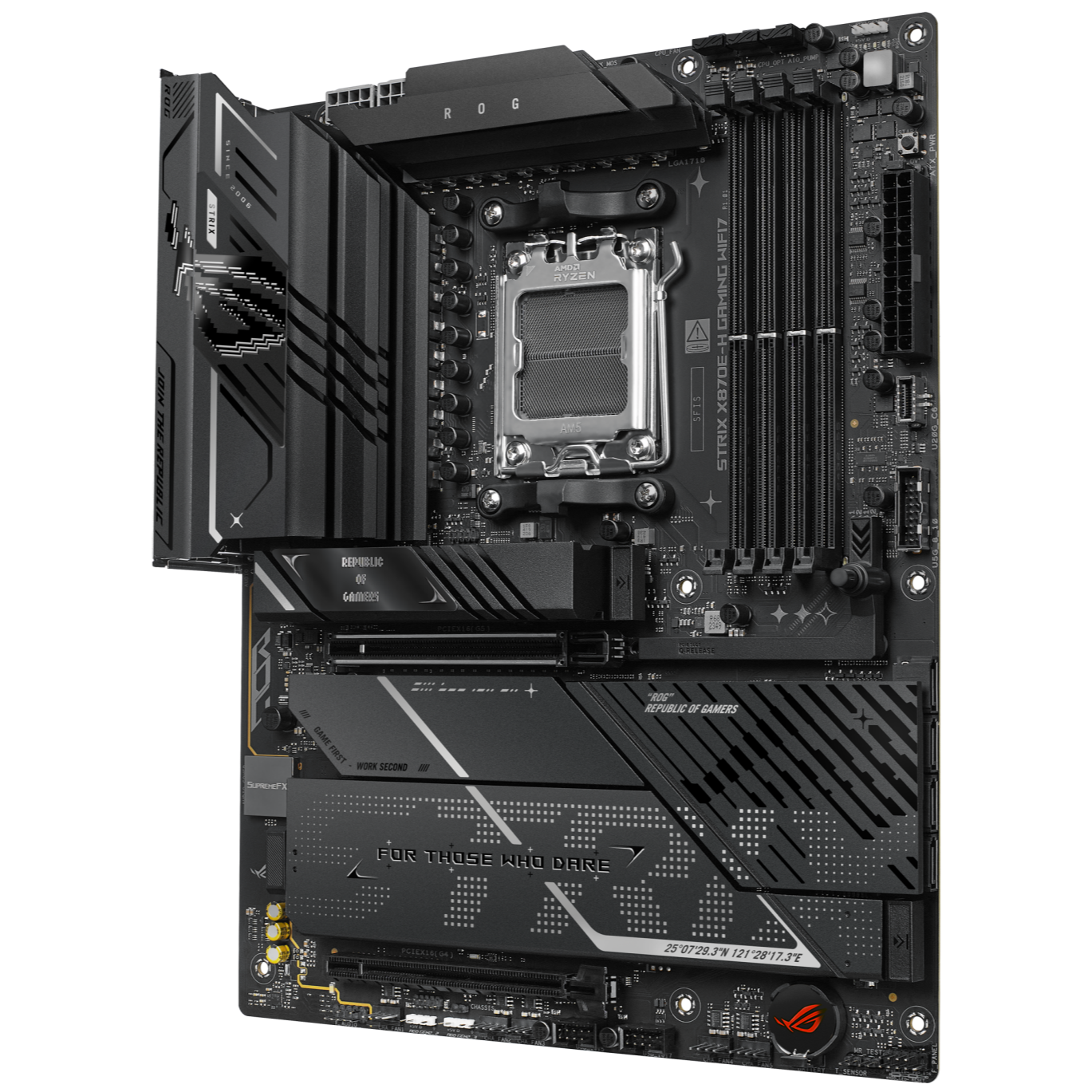

ASUS ROG Strix X870 E – H Gaming WIFI 7 Chipset

Transform your gaming experience with the ROG STRIX X870E-H GAMING WIFI7 motherboard. Engineered to dominate with AMD Ryzen™ 9000 Series Desktop Processors, this ATX powerhouse features cutting-edge power design and AI-enhanced solutions. With PCIe 5.0 x16 slots, dual USB4® Type-C ports, and WiFi 7, it delivers advanced connectivity. DIY-friendly features like M.2 Q-Release on all four M.2 slots and PCIe Slot Q-Release make building and upgrades effortless. Unleash your system’s full potential with the ROG STRIX X870E-H GAMING WIFI7.

Tech Specs

Model

• ROG STRIX X870E-H GAMING WIFI7

News & Updates

• Socket AM5

CPU

• AMD Socket AM5 for AMD Ryzen™ 9000 &
• 8000 & 7000 Series Desktop Processors*

Chipset

• AMD X870E

Memory

• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to 8000+MT/s(OC) with Ryzen™
  9000 & 8000 & 7000 Series Processors
• Dual channel memory architecture
• Supports AMD Extended Profiles for
• Overclocking (EXPO™)
• Supports DIMM Fit / DIMM Fit Pro
• ASUS Enhanced Memory Profile (AEMP)
  * Supported memory types, data rate
  (speed), and number of DRAM modules vary depending on the CPU and memory
  configurationAdjustments will be made based on the specifications of mass-produced memory
  products available on the market.
  ** Non-ECC, un-buffered DDR5 memory
  supports On-Die ECC function.

Graphics

• 1 x HDMI™ port**
• 2 x USB4® (40Gbps) ports support USB
• Type-C® display outputs***
  * Graphics specifications may vary between
  CPU types. Please refer to AMD CPU specifications.
  ** Supports 4K@60Hz as specified in HDMI
  2.1.
  *** Supports max. 4K@60Hz as specified in
  DisplayPort 1.4a
  **** VGA resolution support depends on
  processors’ or graphic cards’ resolution.

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop
Processors*

• 1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen™ 8000 Series Desktop Processors*

• 1 x PCIe 4.0 x16 slot (supports x8/x4
  mode)**

AMD X870E Chipset

• 1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage

Supports 4 x M.2 slots and 4 x SATA 6Gb/s
ports
AMD Ryzen™ 9000 & 7000 Series Desktop
Processors

• M.2_1 slot (Key M), type 2242/2260/2280
  (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2280/22110
  (supports PCIe 5.0 x4 mode)*

AMD Ryzen™ 8000 Series Desktop Processors*

• M.2_1 slot (Key M), type 2242/2260/2280
  (supports PCIe 4.0 x4/x2 mode)
• M.2_2 slot (Key M), type 2280/22110 (Not
  supports)**

AMD X870E Chipset

• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
  * M.2_2 shares bandwidth with PCIEX16(G5).
  When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.
  ** M.2_2 will be disabled when using AMD
• Ryzen™ 8000 Series Desktop Processors.

RAID Support

AMD RAIDXpert2 Technology*

• Ryzen™ 9000 Series Processors: RAID
  0/1/5/10
• Ryzen™ 8000 Series Processors: RAID 0/1
• Ryzen™ 7000 Series Processors: RAID 0/1/10
  * Specifications vary by CPU types.

Ethernet

• 1 x Realtek 5Gb Ethernet
• ASUS LANGuard

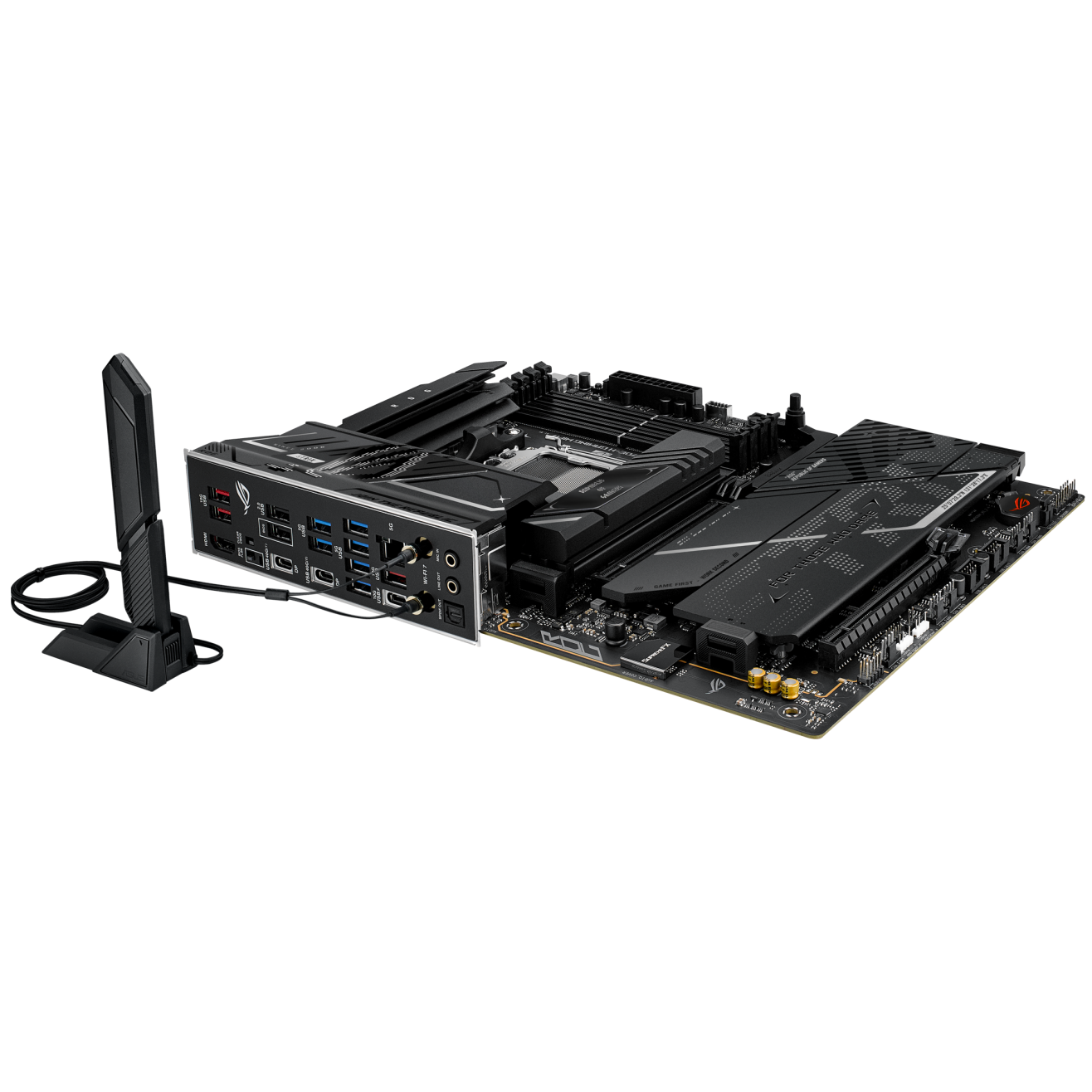

Wireless & Bluetooth

• Wi-Fi 7 (Realtek® RTL8922AE)
  2×2 Wi-Fi 7* (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 160MHz bandwidth
• Bluetooth® v5.4***
  *Wi-Fi features may vary depending on the

operating system

For

• Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions,
• Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.

For

• Windows 10, only Wi-Fi 6 is supported.
  ** Wi-Fi 6GHz frequency band and bandwidth
  regulatory may vary between countries.
  *** The Bluetooth® version may vary, please
  refer to the Wi-Fi module manufacturer’s website for the latest specifications.

USB

Rear USB (Total 14 ports)

• 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
• 4 x USB 10Gbps ports (3 x Type-A + 1 x USB
• Type-C® with up to 30W PD/PPS Fast-charge)**
• 6 x USB 5Gbps ports (6 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

• 1 x USB 20Gbps connector (supports USB
  Type-C®)
• 1 x USB 5Gbps header supports 2 additional
  USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional
  USB 2.0 ports
  * USB Type-C® power delivery output: max.
  5V/3A
  ** USB Type-C® power delivery output: 5V/9V
  max. 3A, 12V max 2.5A, 15V max. 2.0A

Audio

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*

• Impedance sense for front and rear
  headphone outputs
• Internal audio Amplifier to enhance the
  highest quality sound for headphone and speakers
• Supports: Jack-detection,
  Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback
  output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz
  playback*

Audio Features

• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Rear optical S/PDIF out port
• Premium audio capacitors
• Audio cover
  * The LINE OUT port on the rear panel does
  not support spatial audio. If you wish to use spatial audio, make sure to
  connect your audio output device to the audio jack on the front panel of your
  chassis or use a USB interface audio device.

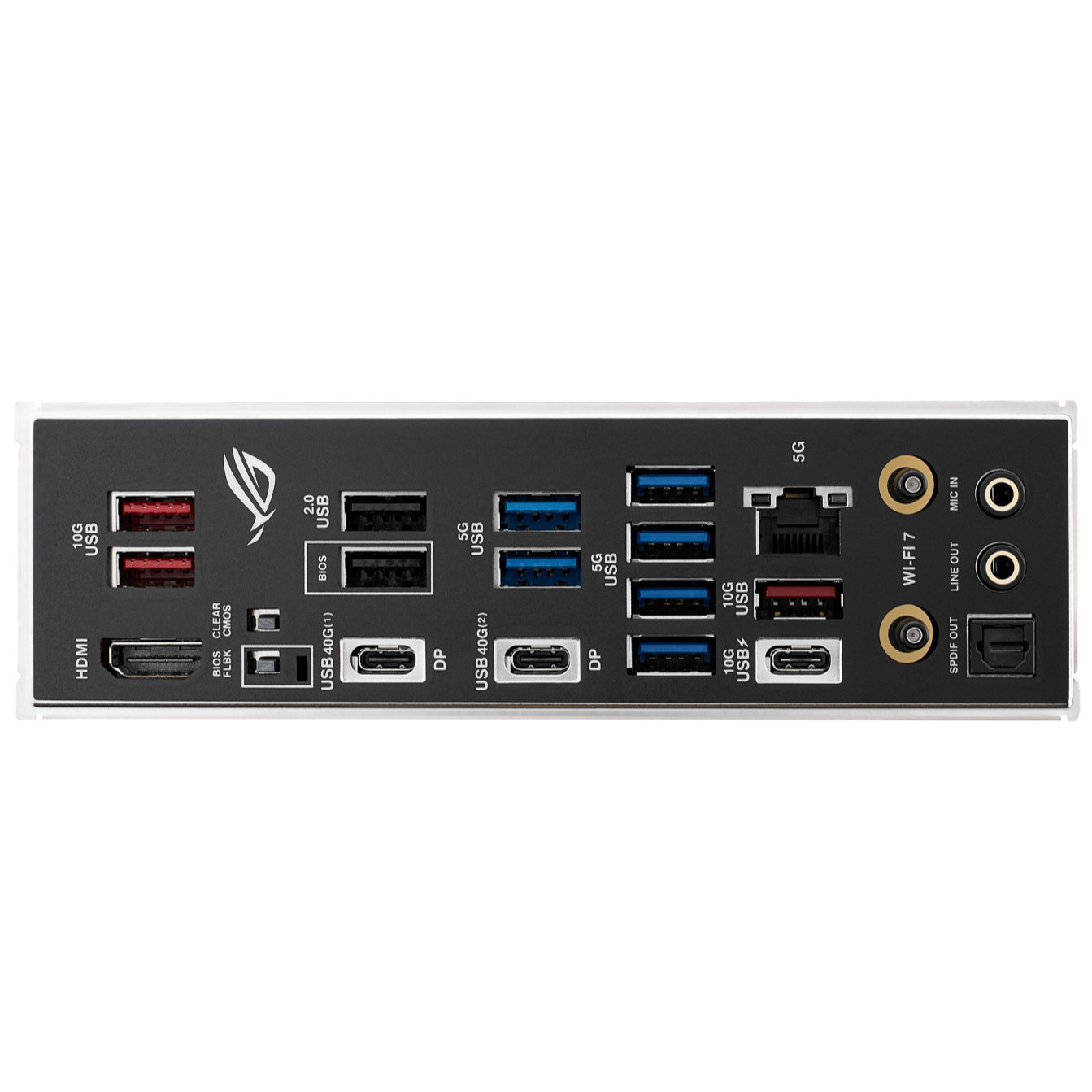

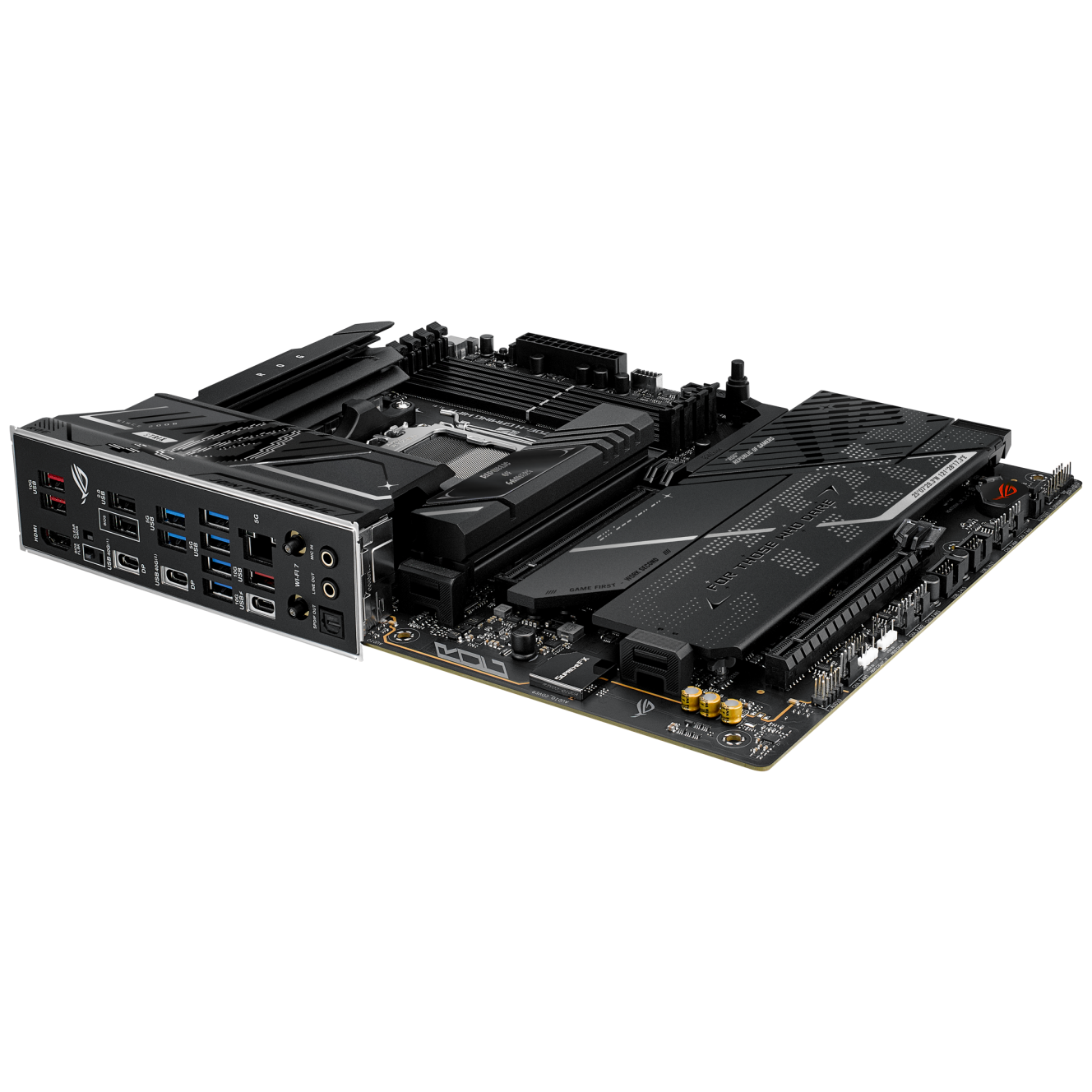

Back Panel I/O Ports

• 2 x USB4® (40Gbps) ports(2 x USB Type-C®)
• 4 x USB 10Gbps ports (3 x Type-A + 1 x USB
• Type-C® with up to 30W PD/PPS Fast-charge)**
• 6 x USB 5Gbps ports (6 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Realtek 5Gb Ethernet
• 2 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling Related

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 5 x 4-pin Chassis Fan headers

Power Related

• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connector

Storage Related

• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
  USB
• 1 x USB 20Gbps connector (supports USB
  Type-C®)
• 1 x USB 5Gbps header supports 2 additional
  USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional
  USB 2.0 ports

Miscellaneous

• 3 x Addressable RGB Gen 2 headers
• 1 x Chassis Intrusion header
• 1 x CPU Over voltage jumper
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x Start button
• 1 x 10-1 pin Front Panel System header
• 1 x Thermal Sensor header

Special Features

Extreme Engine Digi+

• 5K Black metallic capacitors

ASUS Q-Design

• M.2 Q-Latch
• M.2 Q-Release
• PCIe Slot Q-Release
• Q-Antenna
• Q-Dashboard
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA
  [white], Boot Device [yellow green])
• Q-Slot

ASUS Thermal Solution

• M.2 heatsink

VRM heatsink design

ASUS EZ DIY

• BIOS FlashBack™ button
• BIOS FlashBack™ LED
• Clear CMOS button
• ProCool II
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMM

Aura Sync

• Addressable RGB Gen 2 headers

Software Features

ROG Exclusive Software

• ROG CPU-Z
• Dolby Atmos

ASUS Exclusive Software
Armoury Crate

• Aura Creator
• Aura Sync
• Fan Xpert 4 (with AI Cooling II)
• GameFirst

ASUS AI Advisor
ASUS DriverHub

• AIDA64 Extreme (60 days free trial)
• HWiNFO

ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)**
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

Cables

• 2 x SATA 6Gb/s cables

Miscellaneous

• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 4 x M.2 rubber

Documentation

• 1 x Quick start guide

Operating System

• Windows 11

Form Factor

ATX Form Factor

• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
