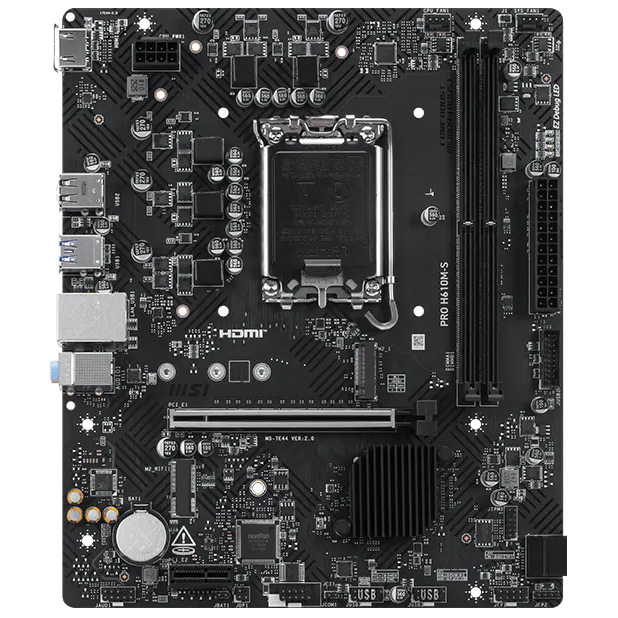

MSI PRO H610M – S D4 INTEL CHIPSET

PRO H610M-S

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

PRO H610M-S DDR4

BUISNESS ELEGANCE

USER FRIENDLY DESIGN

MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.

COOLING

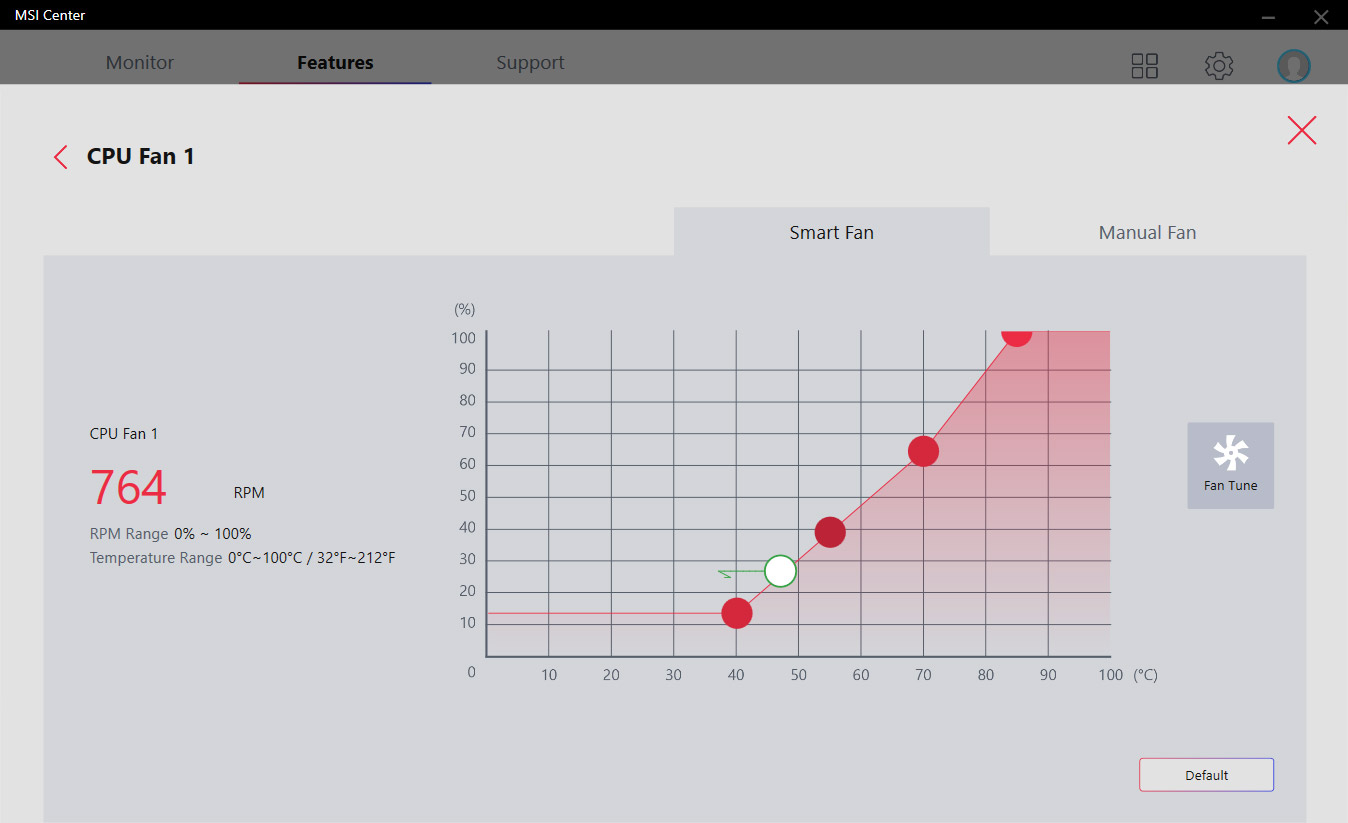

FULLY FAN CONTROL

FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

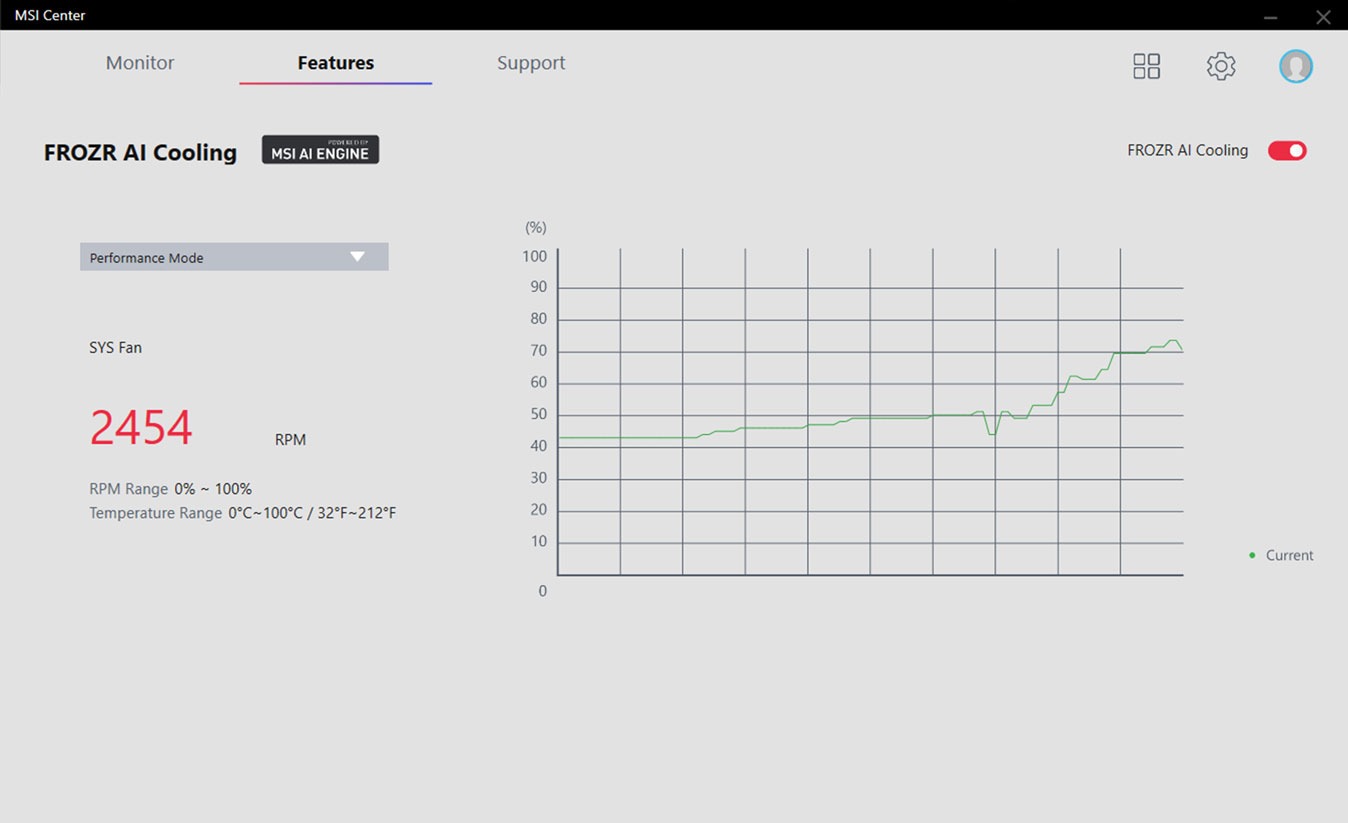

Performance mode:

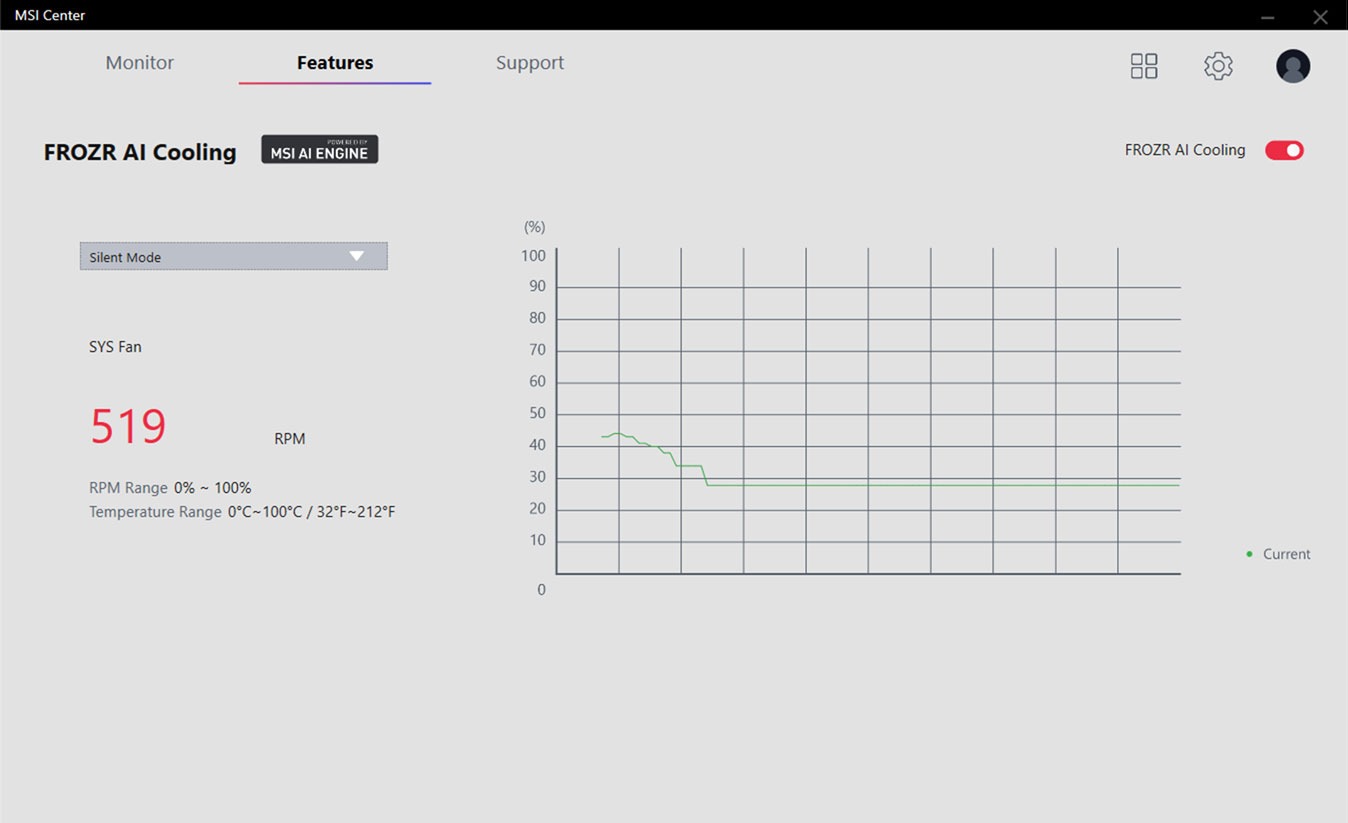

Silent mode

Manual mode

DESIGN

EZ DEBUG LED

Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.

COMBATIBILITY

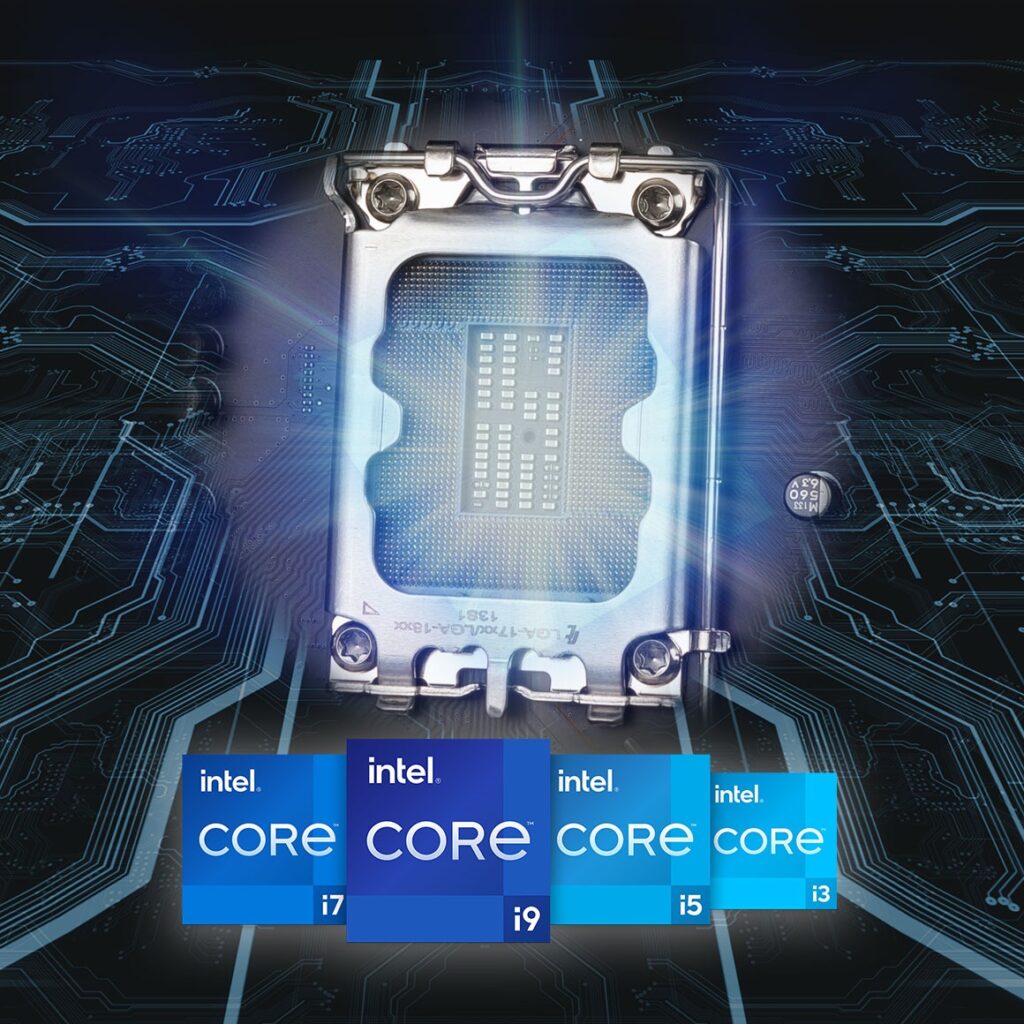

• 14th / 13th / 12th PROCESSORS SUPPORT
• EXTREME STABILITY & COMPATIBILITY TESTING FOR MEMORY
• WINDOWS 11 CERTIFIED

RELIABLE COMPONENTS

STEEL ARMOR

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.

Double ESD Protection

ULTIMATE MOTHERBOARD PROTECTION
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard.

CONNECTIVITY

The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.

STORAGE

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

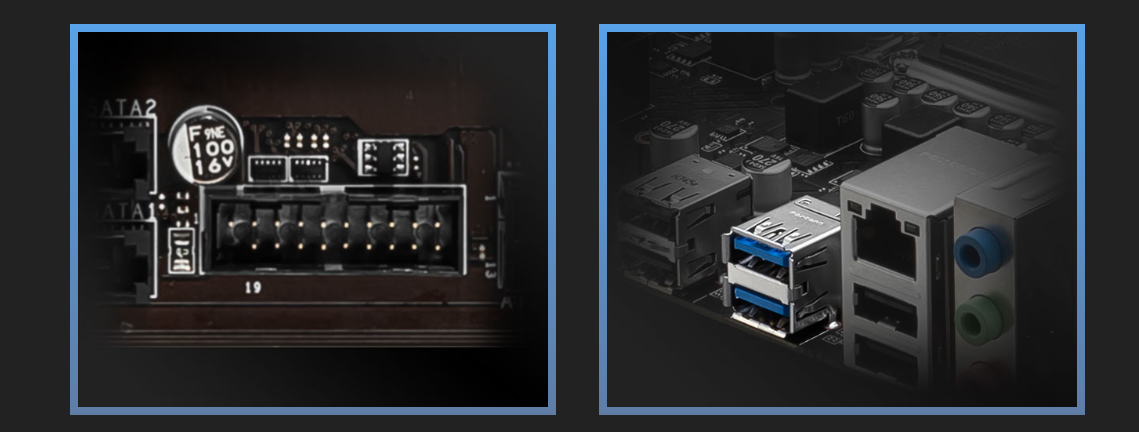

USB 3.2 GEN 1

Transfer lots of data, music and movies over USB easier. USB 3.2 Gen 1 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 Gen 1 devices.

EXPERIENCE MORE

MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.

PERFORMANCE

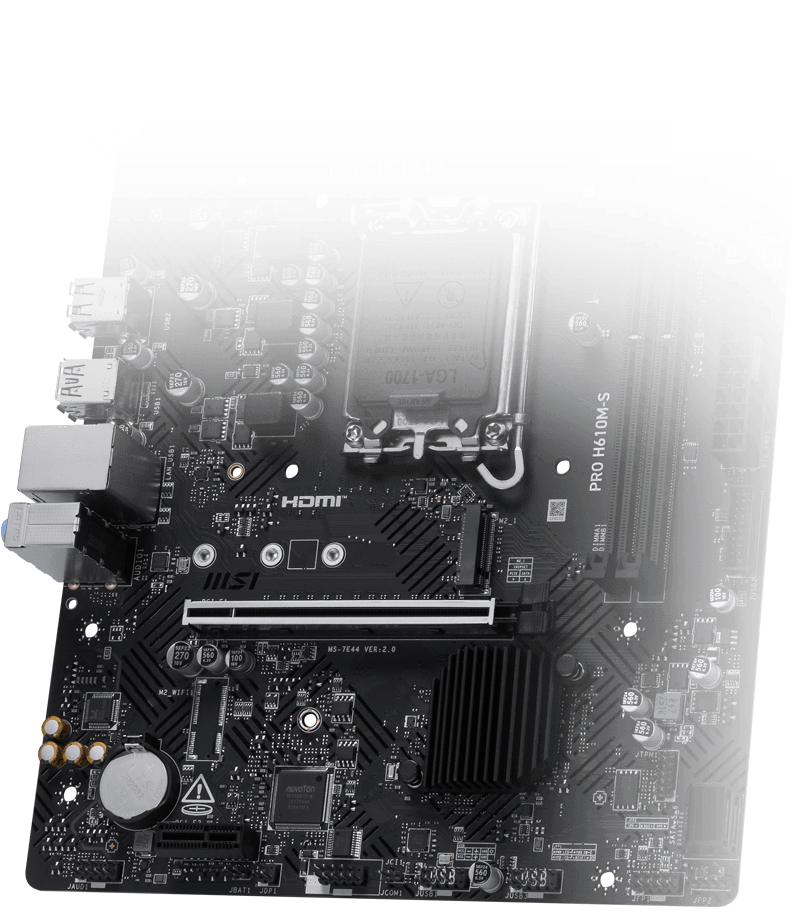

LIGHTNING GEN 4 PCI-E

MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

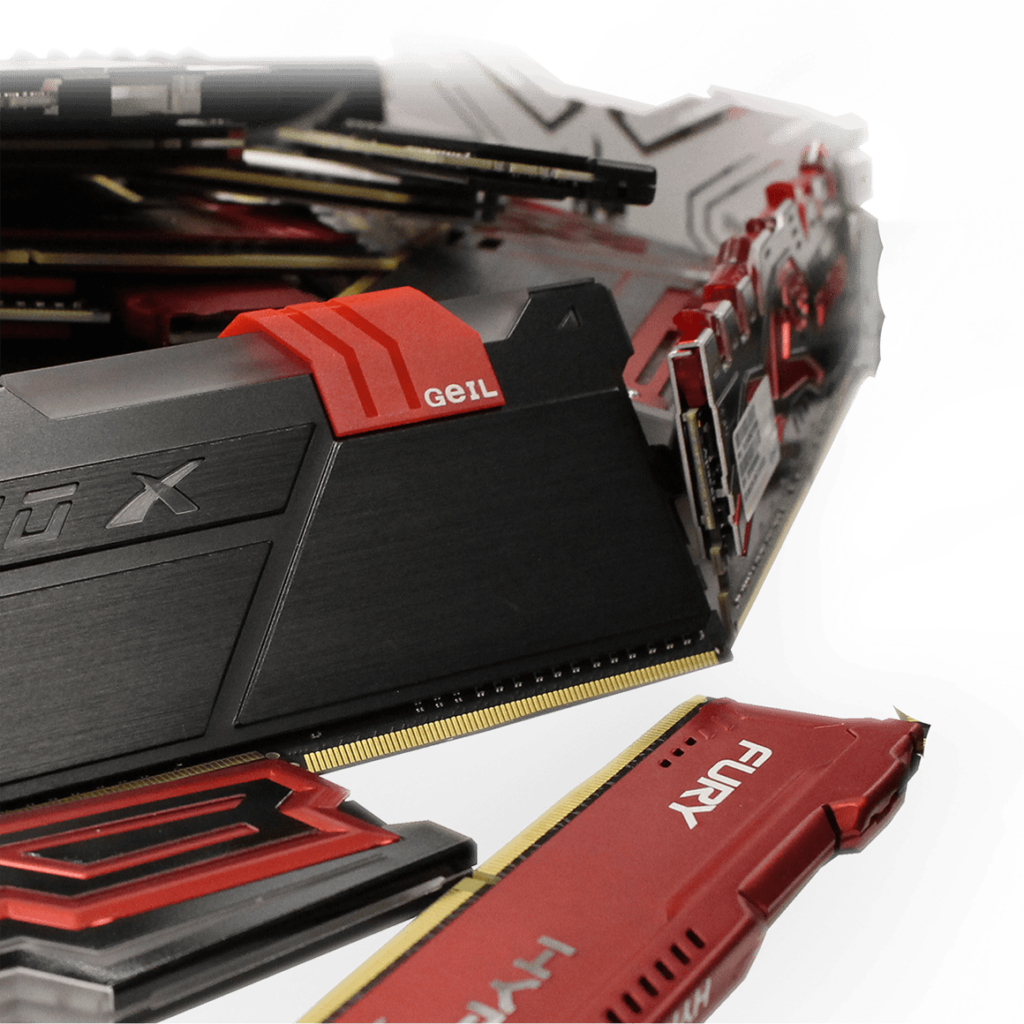

MEMORY BOOST

EXTREME STABILITY & COMPATIBILITY TESTING

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.

CORE BOOST

Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

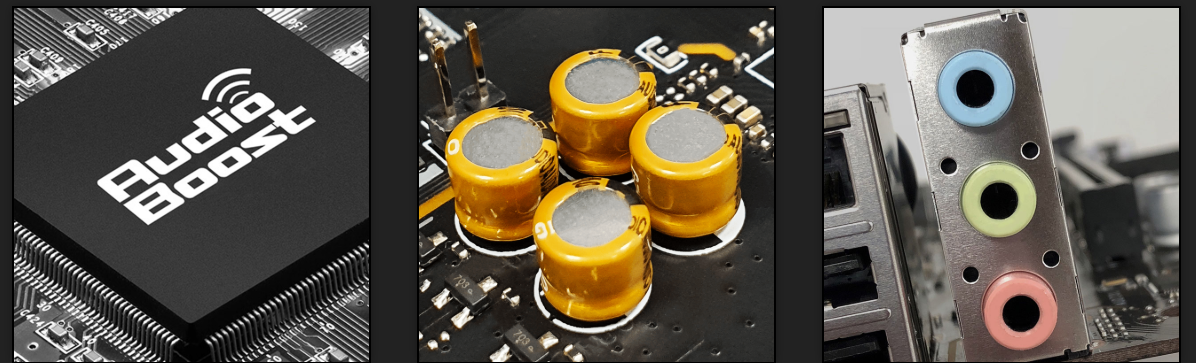

AUDIO

AUDIO BOOST

ISOLATED AUDIO SIGNALS

DEPOP PROTECTION

Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.

BIOS & SOFTWARE

MSI CENTER

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

True Color

Optimized monitor’s brightness and color in several modes for different situation, you can also customize by yourself.

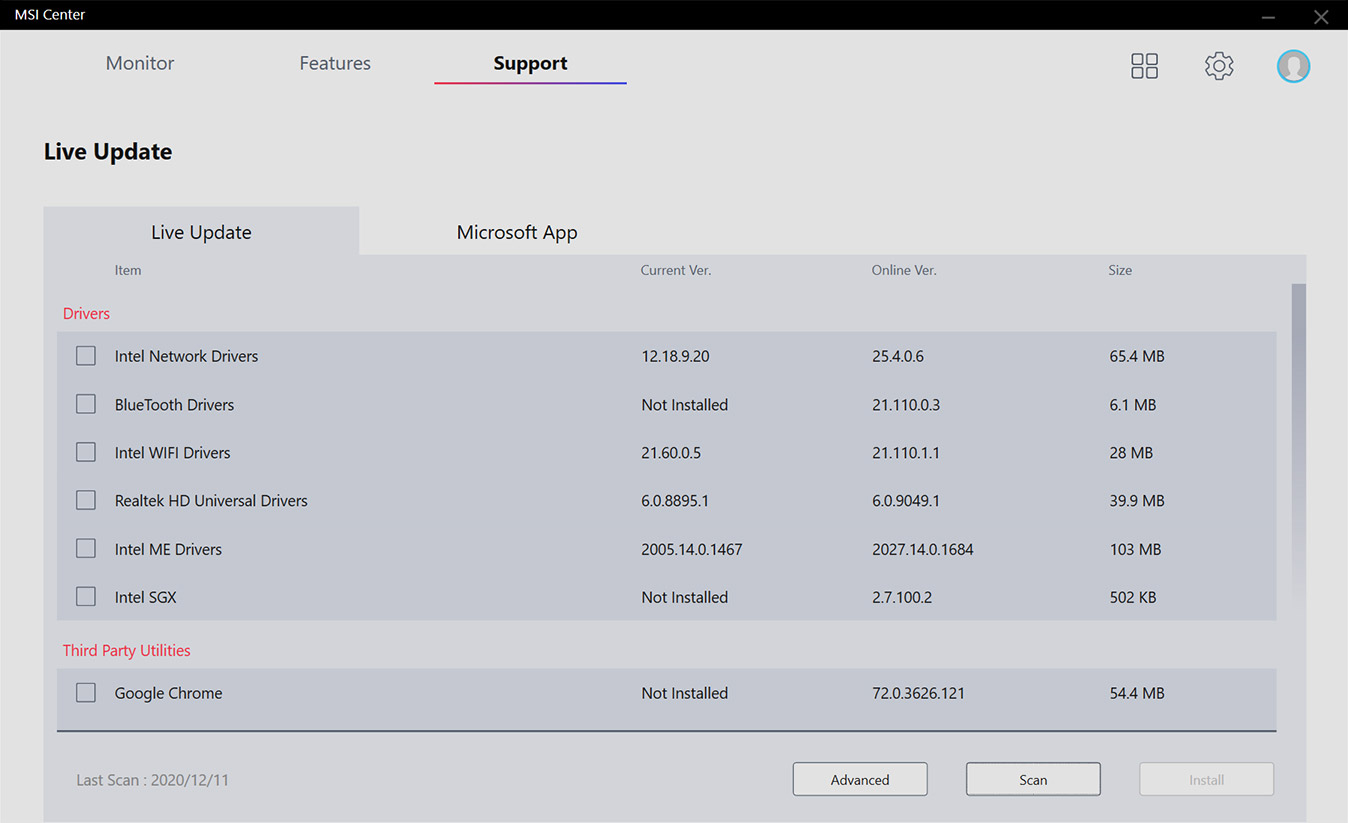

Live Update

Never miss out on important updates. MSI Live Update automatically downloads and installs the latest drivers, BIOS and software so you can focus on your work

User Scenario

One click for setting your computer, even customize own profile as your preference.

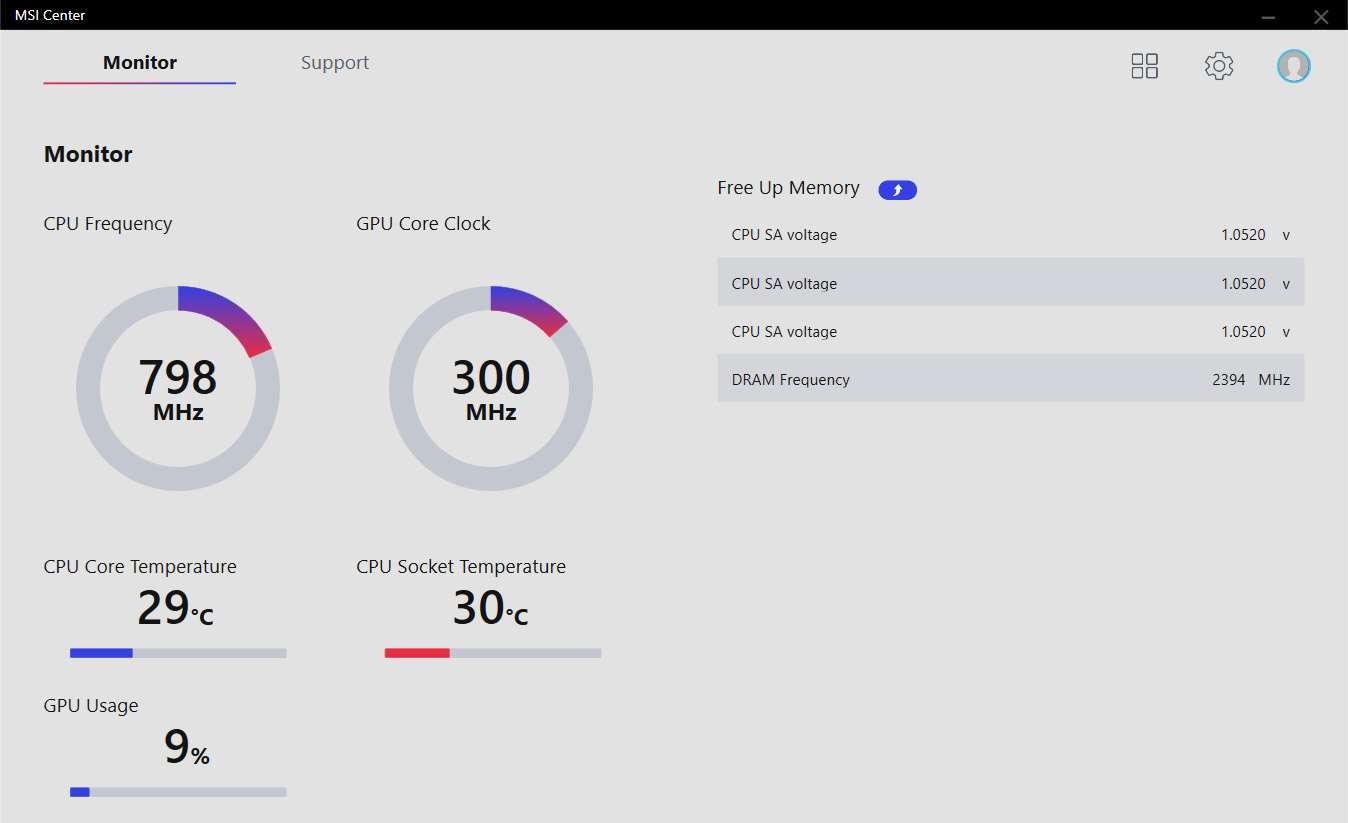

Hardware Monitoring

Get immediate access to your critical hardware information in real-time.

Fan Center

Assume complete control of your fans with Fan Center. Set up to four CPU temperature targets and the motherboard will adjust fan speeds automatically.

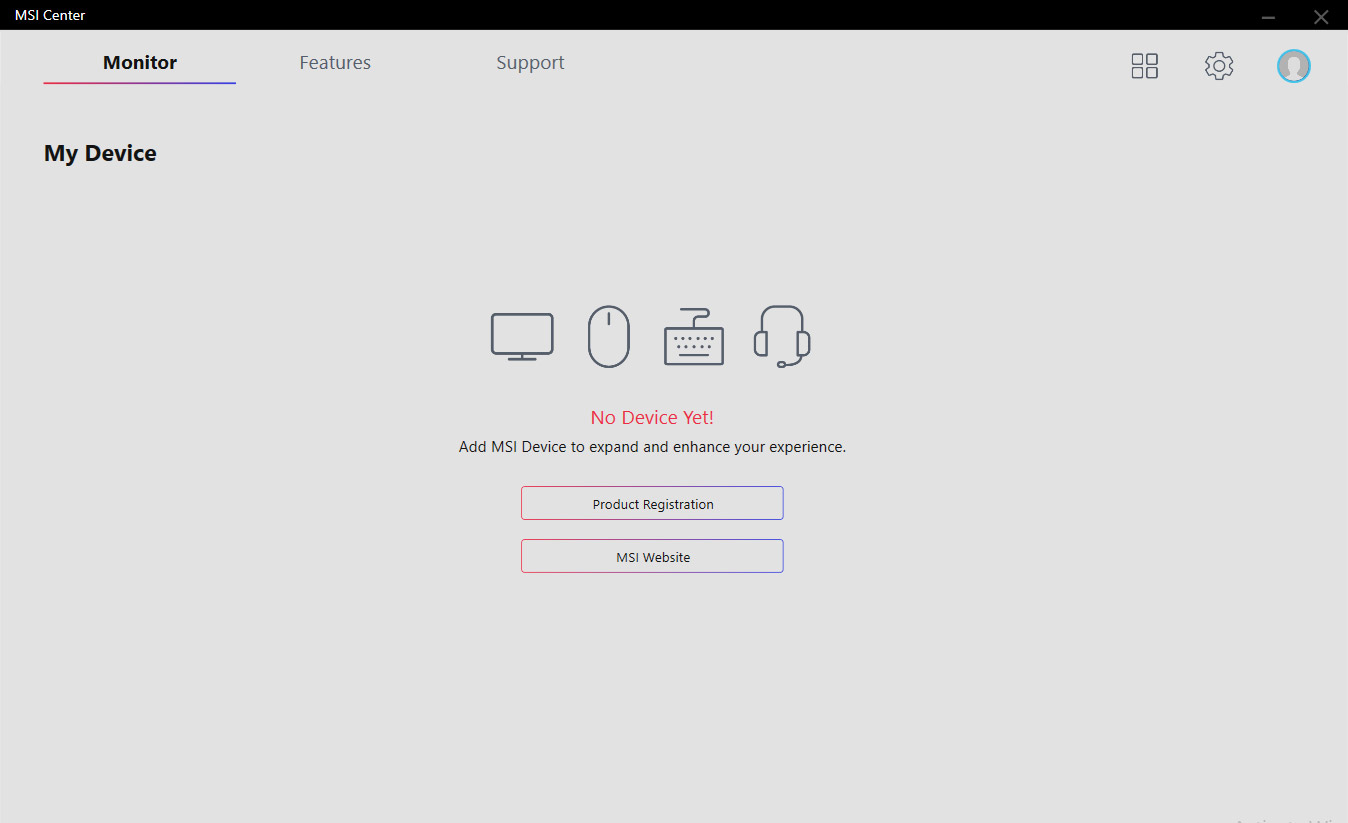

Product Registration

Register your MSI product to enjoy a host of benefits!

CLICK BIOS 5

Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!

CREATOR GENIE
Quickly overclock your CPU with a single button for more performance.

XMP
Choose from a preset XMP profile and automatically overclock compatible DDR memory.

M-FLASH
Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.

HARDWARE MONITOR
Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.

MEMORY TRY IT
Get extreme speed out of your system memory and get more performance.

SEARCH & FAVORITES
A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.

RESIZABLE BAR (RE-SIZE BAR)

Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.

*Function may differ due to version change. Please update the latest VBIOS/BIOS/Driver through MSI official website or consult service center.

SECURITY

System Safety

All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use.

Secure Boot

Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.

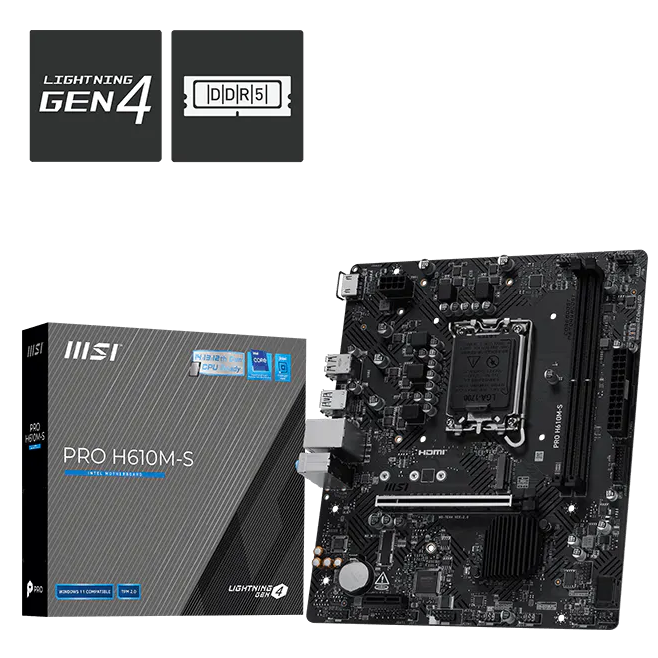

PRO H610M-S

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
• Supports DDR5 Memory, up to 5600(MAX) MHz
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Experience: PCIe 4.0
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

PRODUCT SPECIFICATIONS:

Chipset	INTEL H610
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory	2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics	1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage	1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 2x SATA 6G
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
LAN	Realtek® RTL8111H Gigabit LAN
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports
LED FEATURE	4x EZ Debug LED
BACK PANEL PORTS	HDMI™ USB 2.0 USB 5Gbps Type-A LAN port Audio Connectors USB 2.0
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
BOX CONTENT
PCB Info	mATX 200mmx236.16mm
