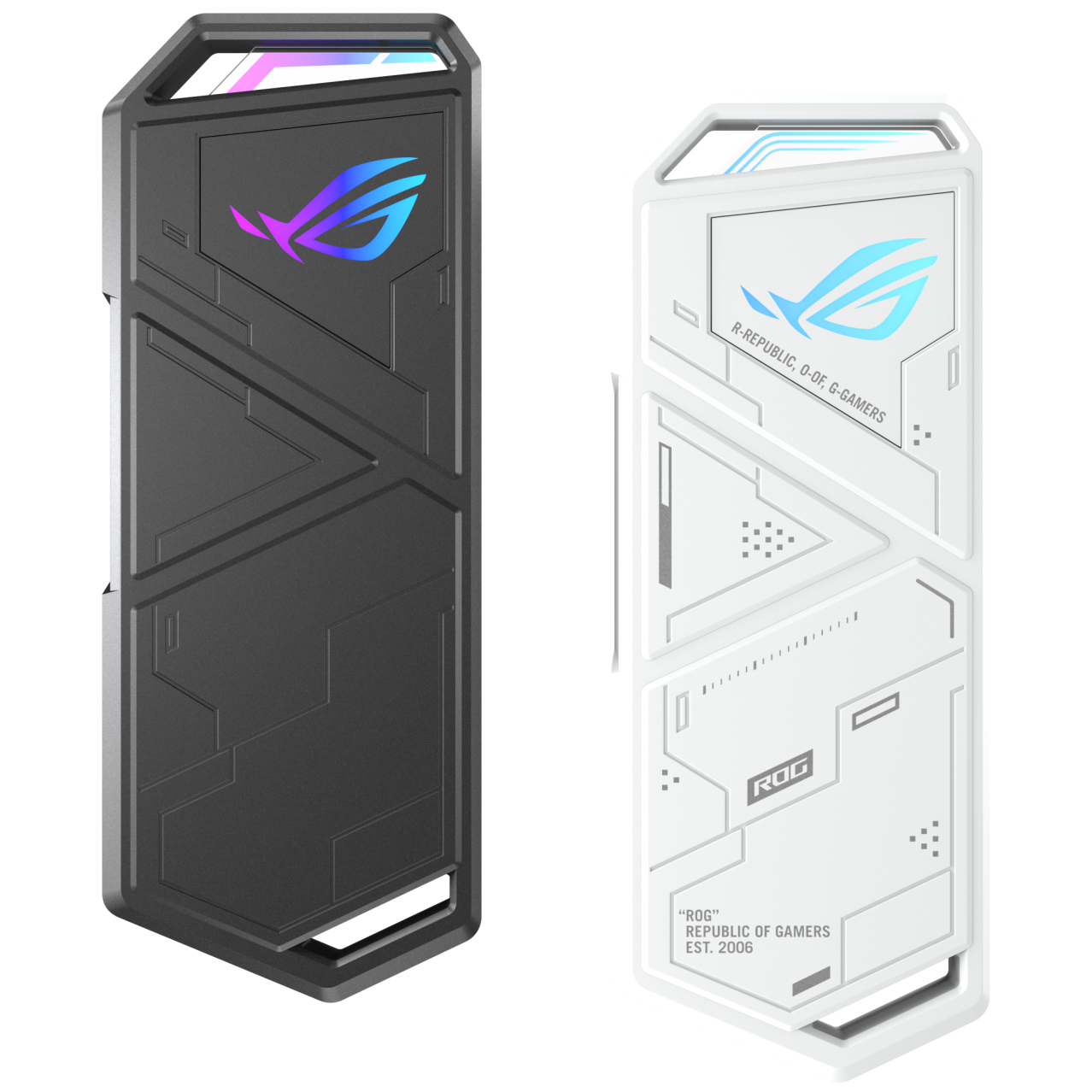

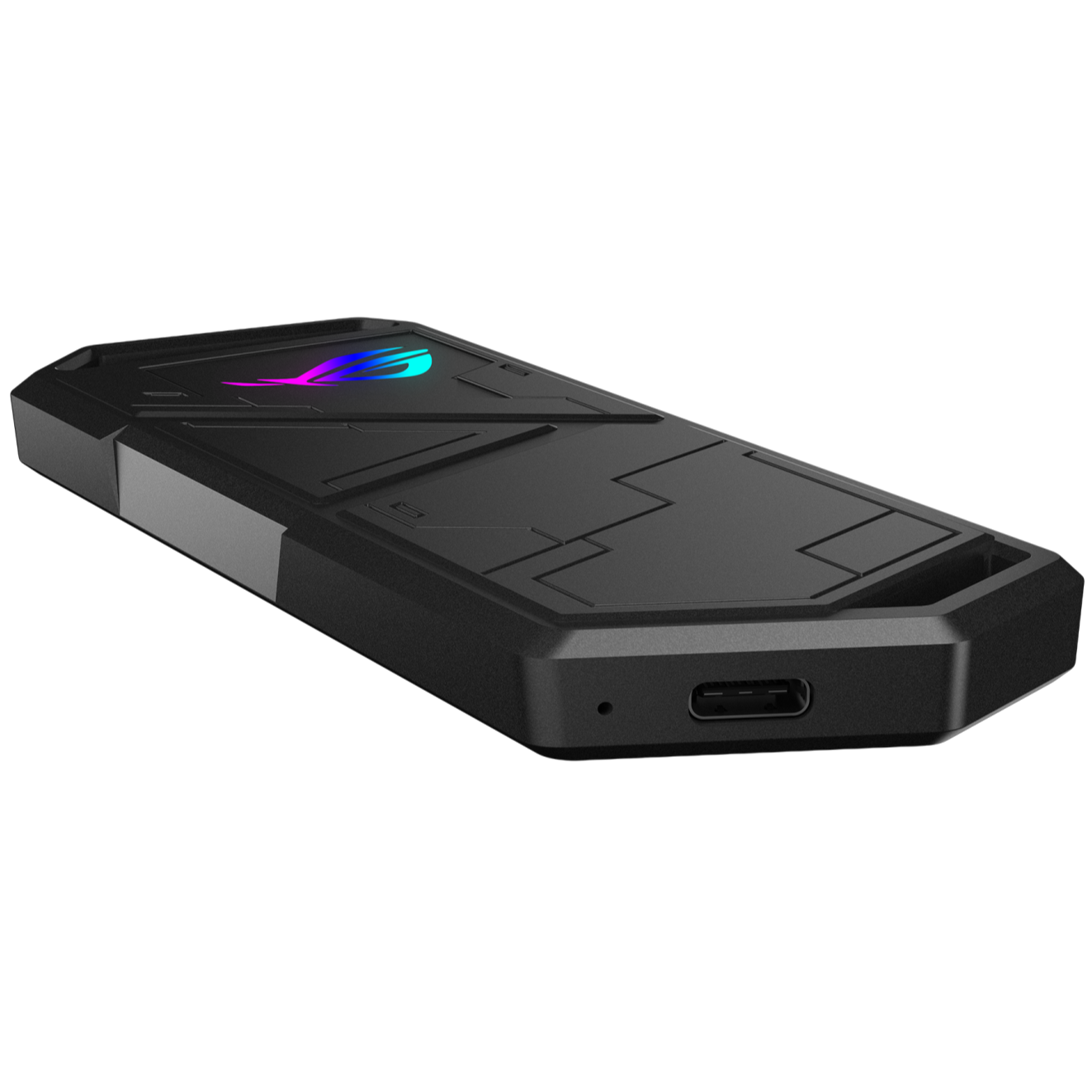

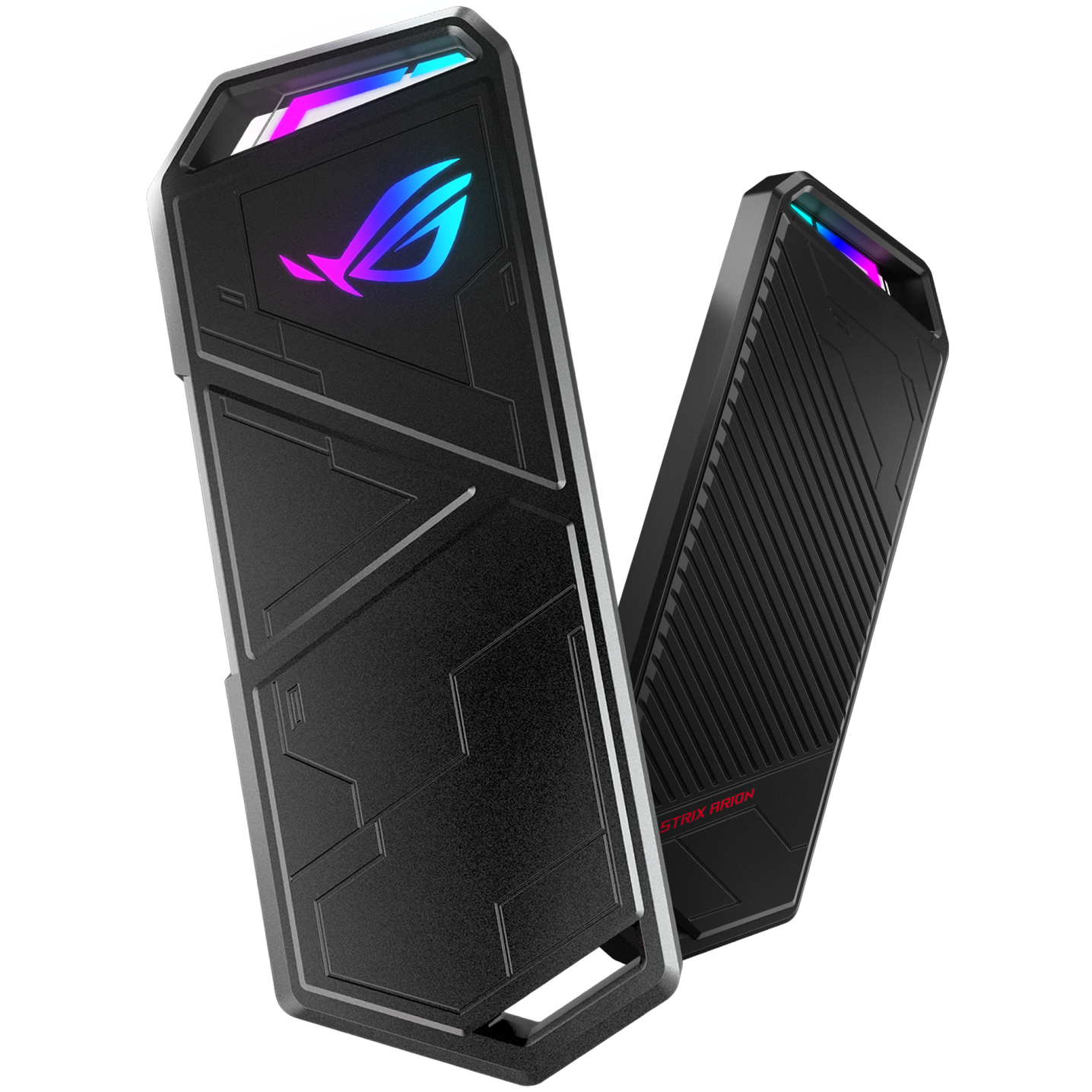

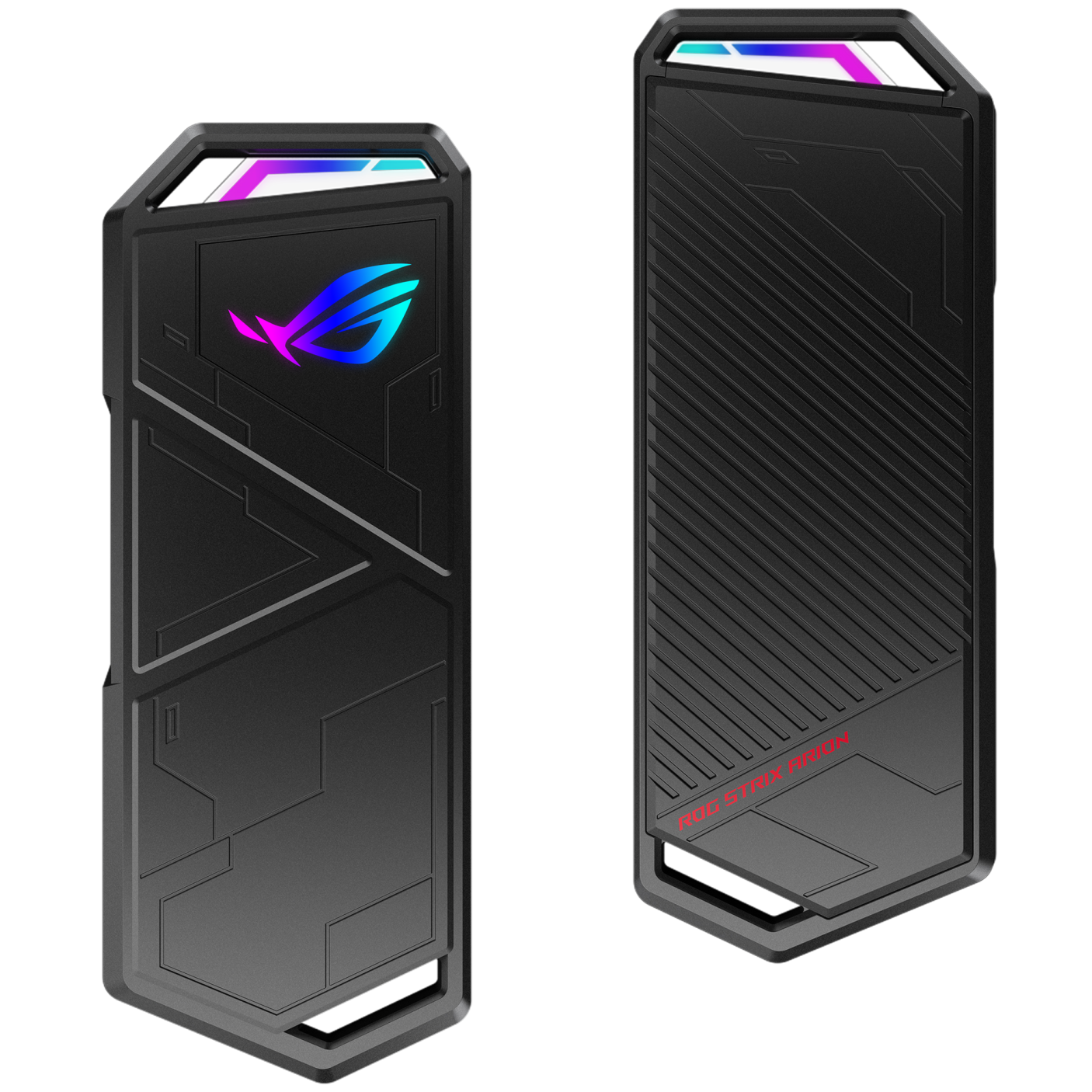

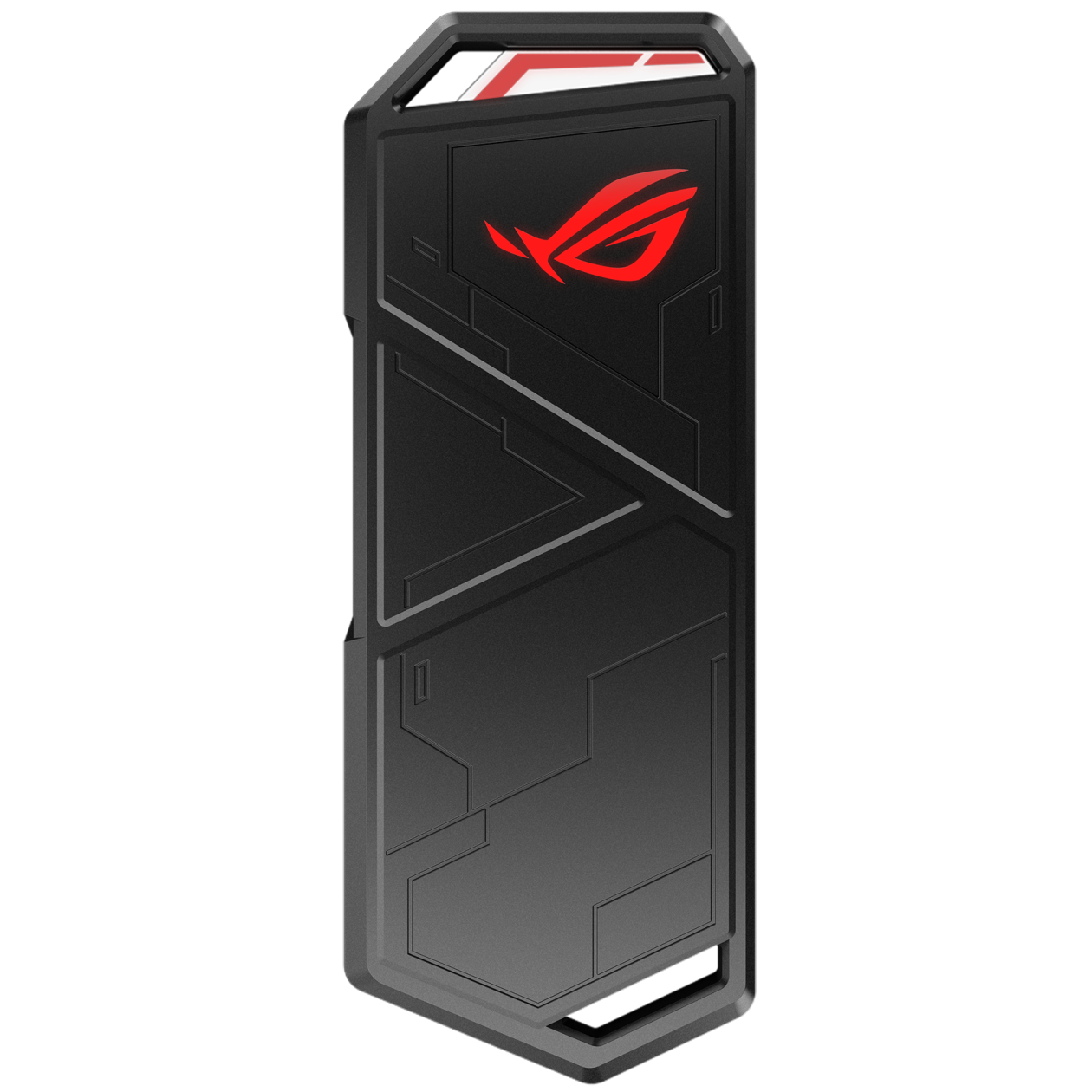

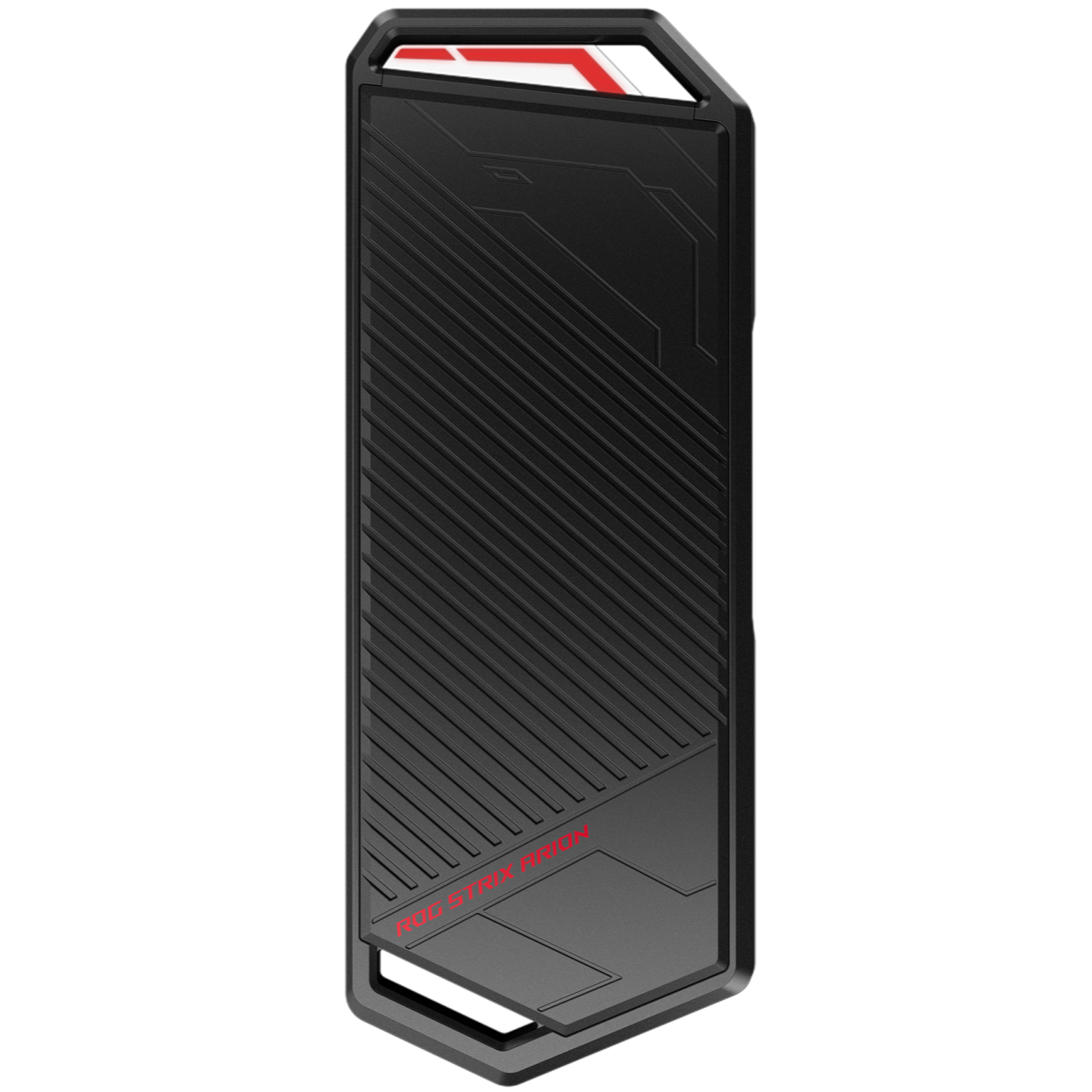

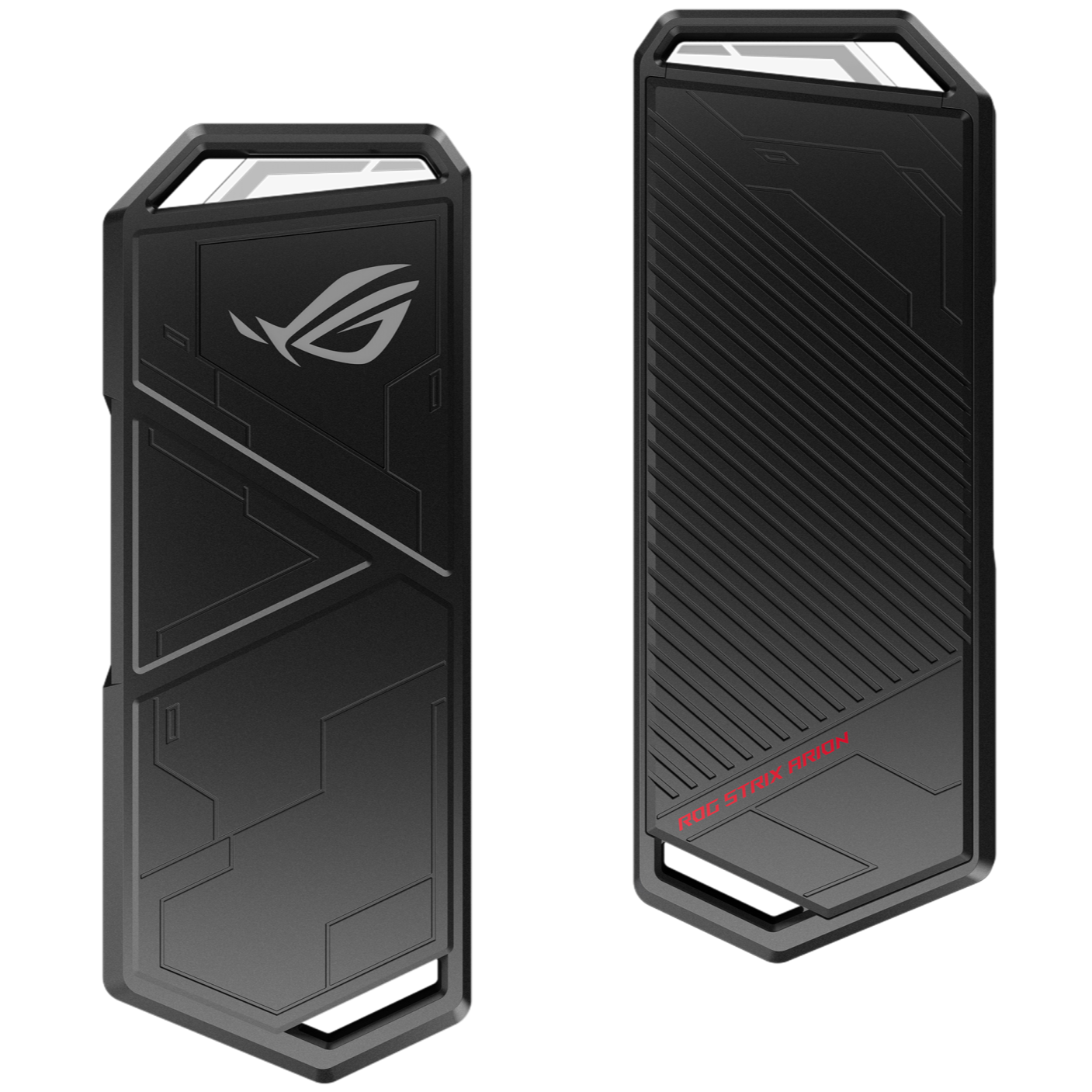

ASUS ESD-S1C ROG Strix Arion M.2 NVMe SSD Enclosure Black

ROG Strix Arion M.2 NVMe SSD Enclosure—USB3.2 Gen 2×1 Type-C (10 Gbps), Dual USB-C to C and USB-C to A Cables, Screwdriver-Free, Thermal Pads Included, Fits PCIe 2280/2260/2242/2230 M key/B+M Key

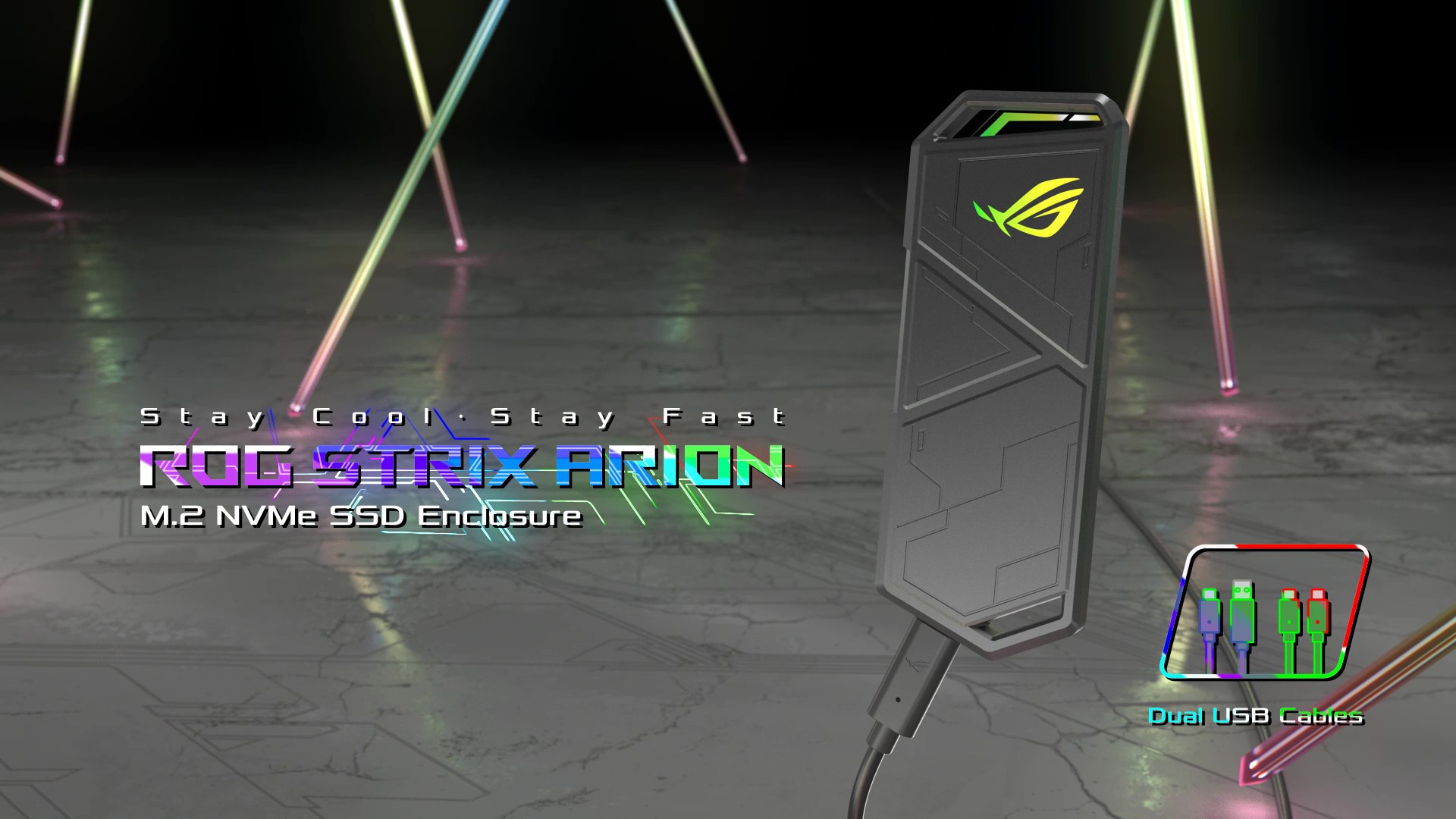

Stay Cool, Stay Fast.

ROG Strix Arion is an SSD enclosure that fits an M.2 PCIe NVM Express® SSD with a 2230/2242/2260/2280 form factor and features USB-C™ 3.2 Gen 2×1 connectivity to deliver data transfer speeds of up to 10 Gbps*. Its sleek aluminum alloy case features thermal pads for excellent heat dissipation, exclusive ASUS Aura Sync lighting effects, and a protective holder with an R-hook that altogether make ROG Strix Arion a high-performance, mobile storage solution.

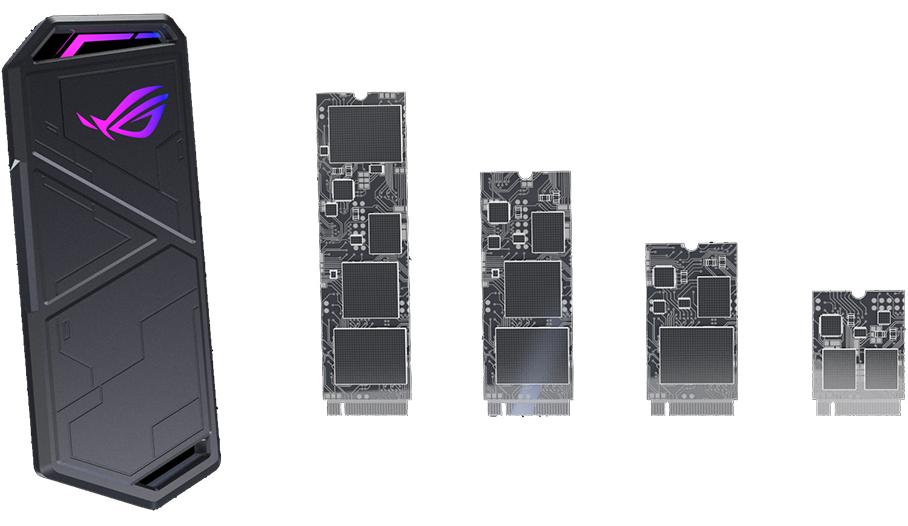

Support M.2 PCIe NVM Express® SSD

ROG Strix Arion fits* 2230/2242/2260/2280 M.2 PCIe NVM Express® SSD up to 2TB with M key/ B+M key. **

*ROG Strix Arion does not support SATA-based B key/ B+M Key and PCIe/ACHI-based M key.
**ROG Strix Arion currently does not support Micron P5 SSD and Realtek RTS5765DL/RTS5766DL controllers, such as but not limited to ADATA SWORDFISH and ADATA XPG SPECTRIX S20G.

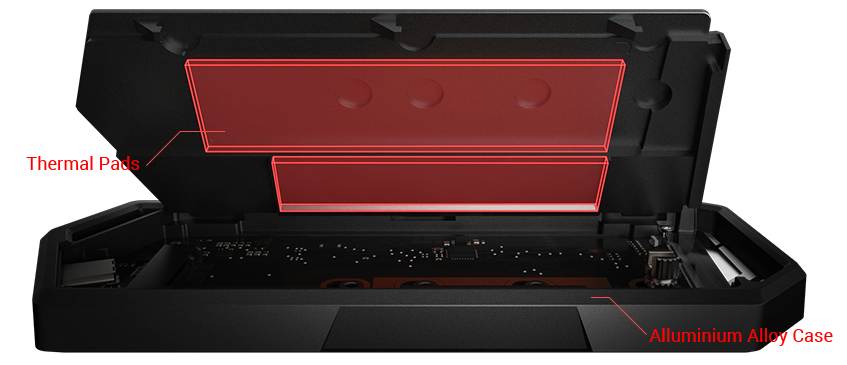

Aggressive heat dissipation

An aluminum alloy case with included thermal pads reduce operating temperatures drastically, enabling your SSD to maintain high transfer speeds and extending its longevity.

Innovative screwdriver-free installation

ROG Strix Arion features a pin-design and thumbscrew-installation system that makes it easy to mount your SSD into the enclosure. No screwdriver is required.

Dual USB-C to C and USB-C to A cables

ROG Strix Arion comes with both USB-C to USB-C and USB-C to USB-A cables for greater convenience and compatibility with a wide range of devices, including laptops, smartphones*, PC, and gaming consoles.

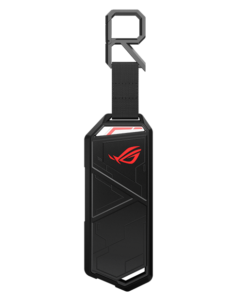

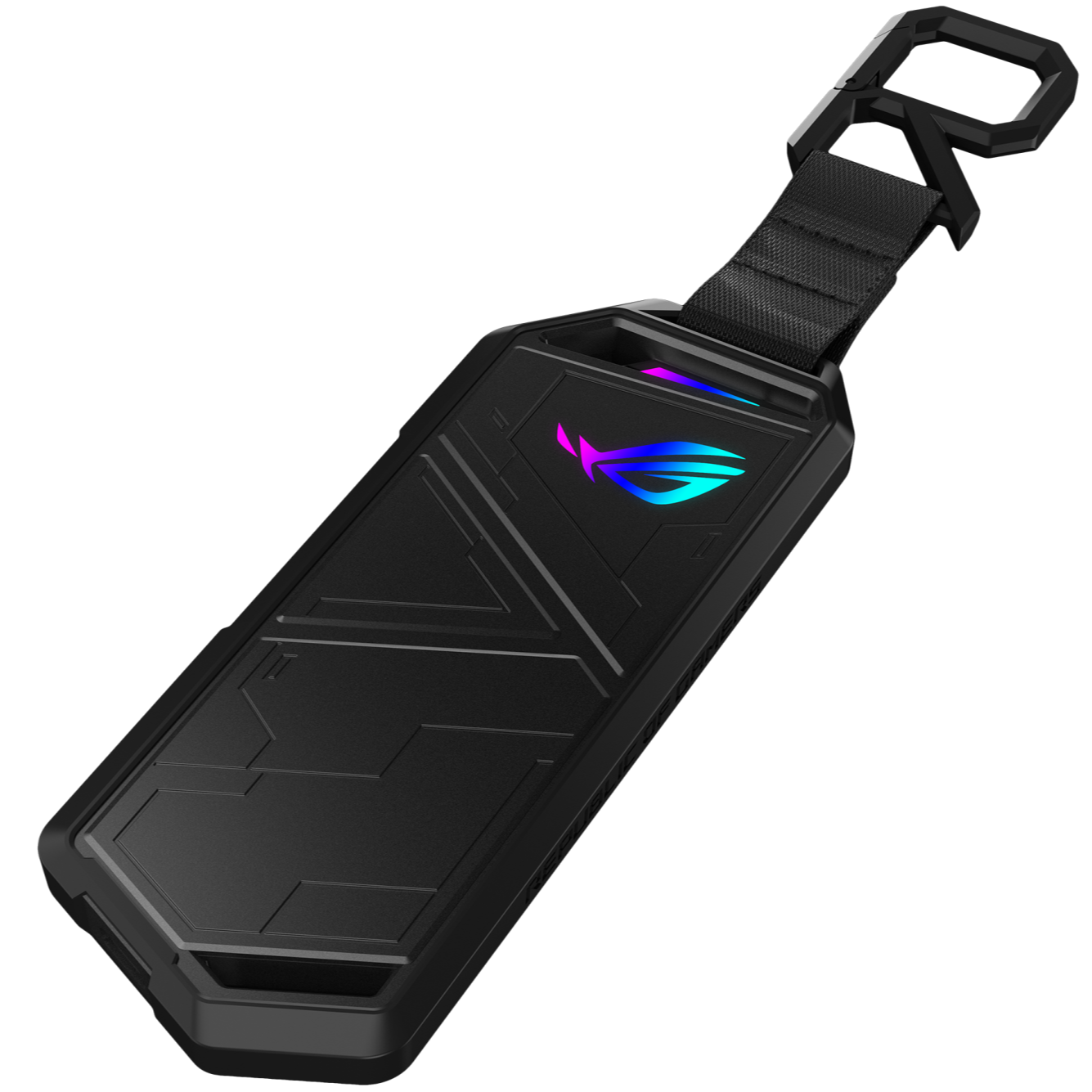

Exclusive hanging protective holder

A protective holder with a stylish, detachable R-hook offers protection from bumps and hard hits to keep your SSD operating properly.

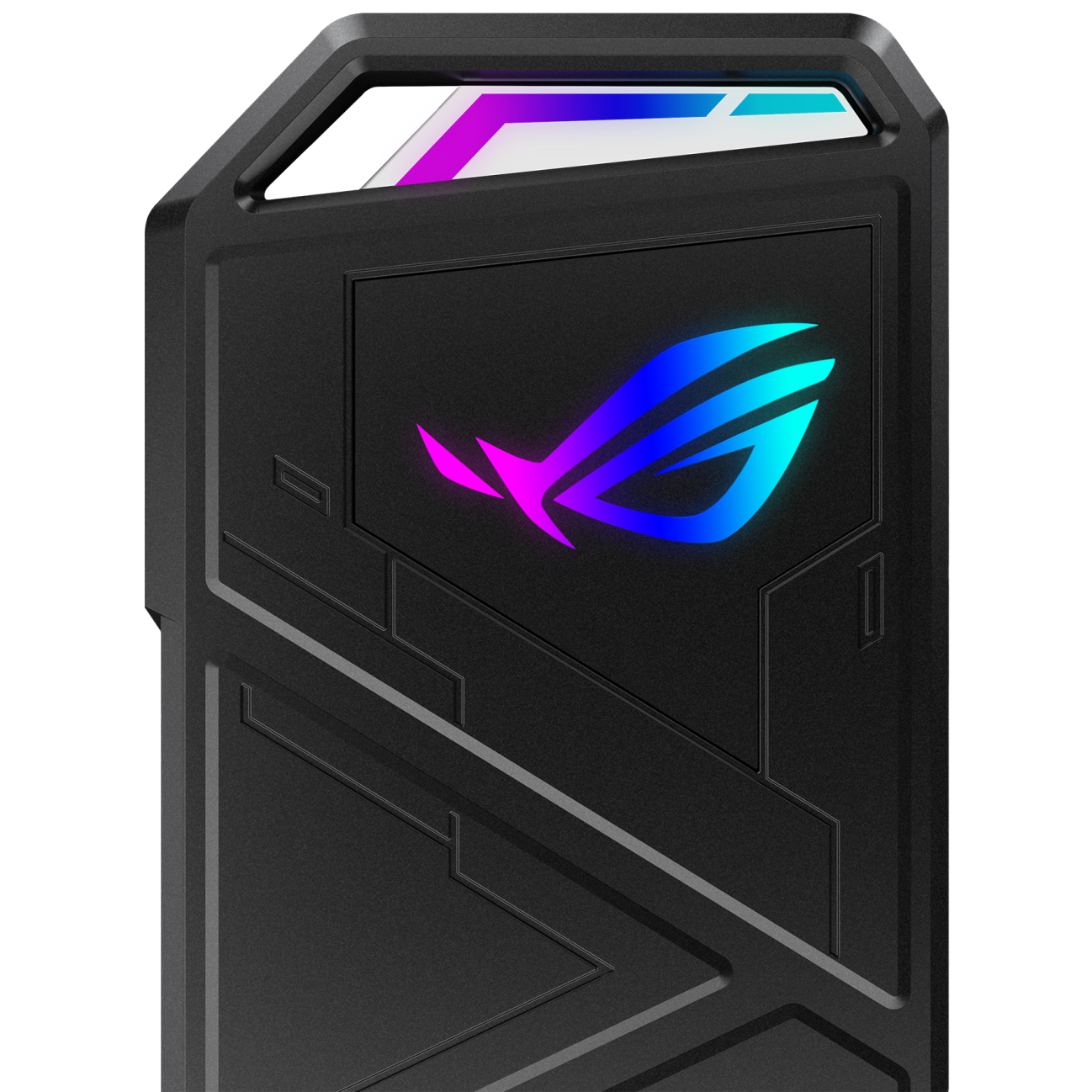

ASUS Aura Sync lighting effects

With exclusive ASUS Aura Sync lighting technology, ROG Strix Arion provides ambient lighting that perfectly complements your gaming rig for true expression of your individuality.

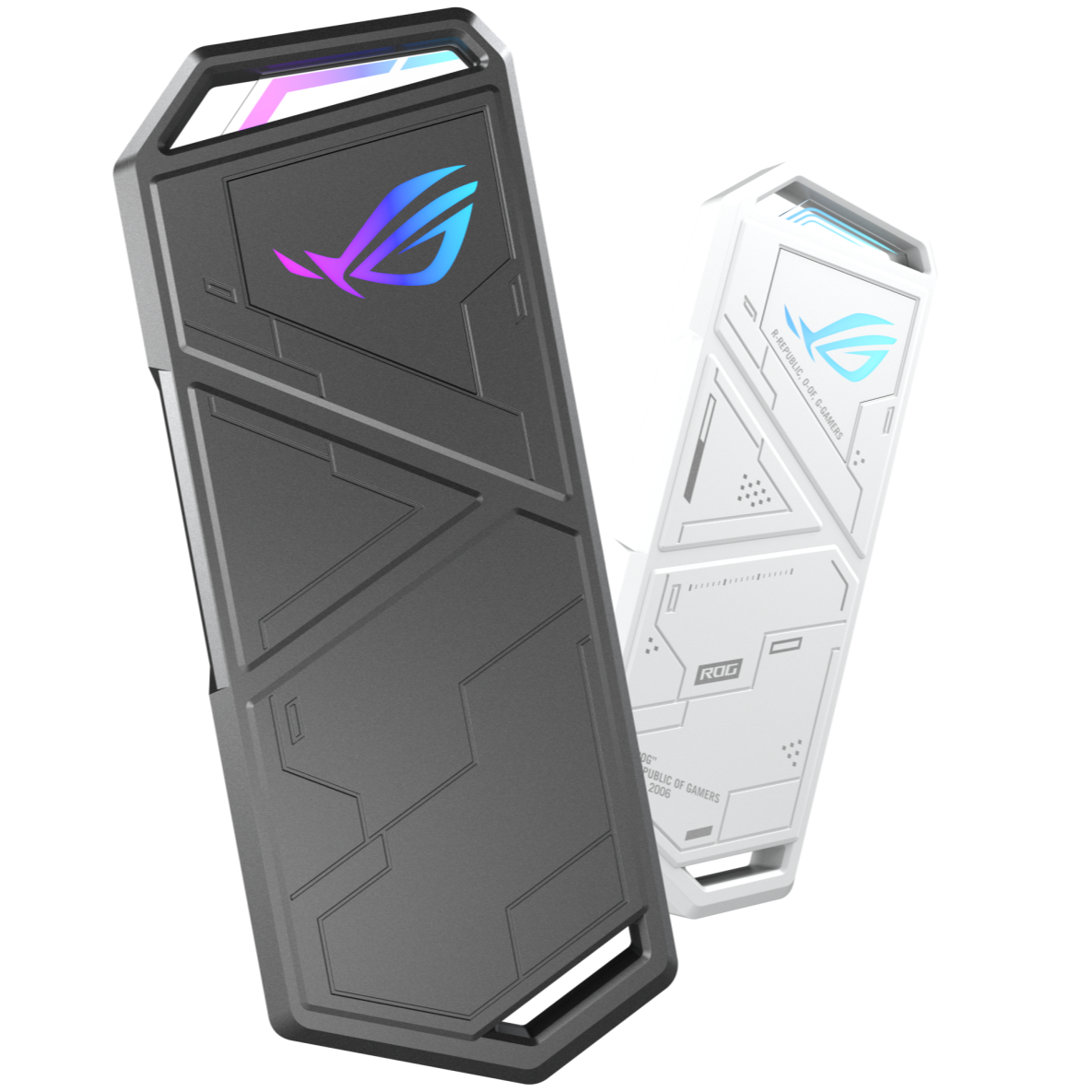

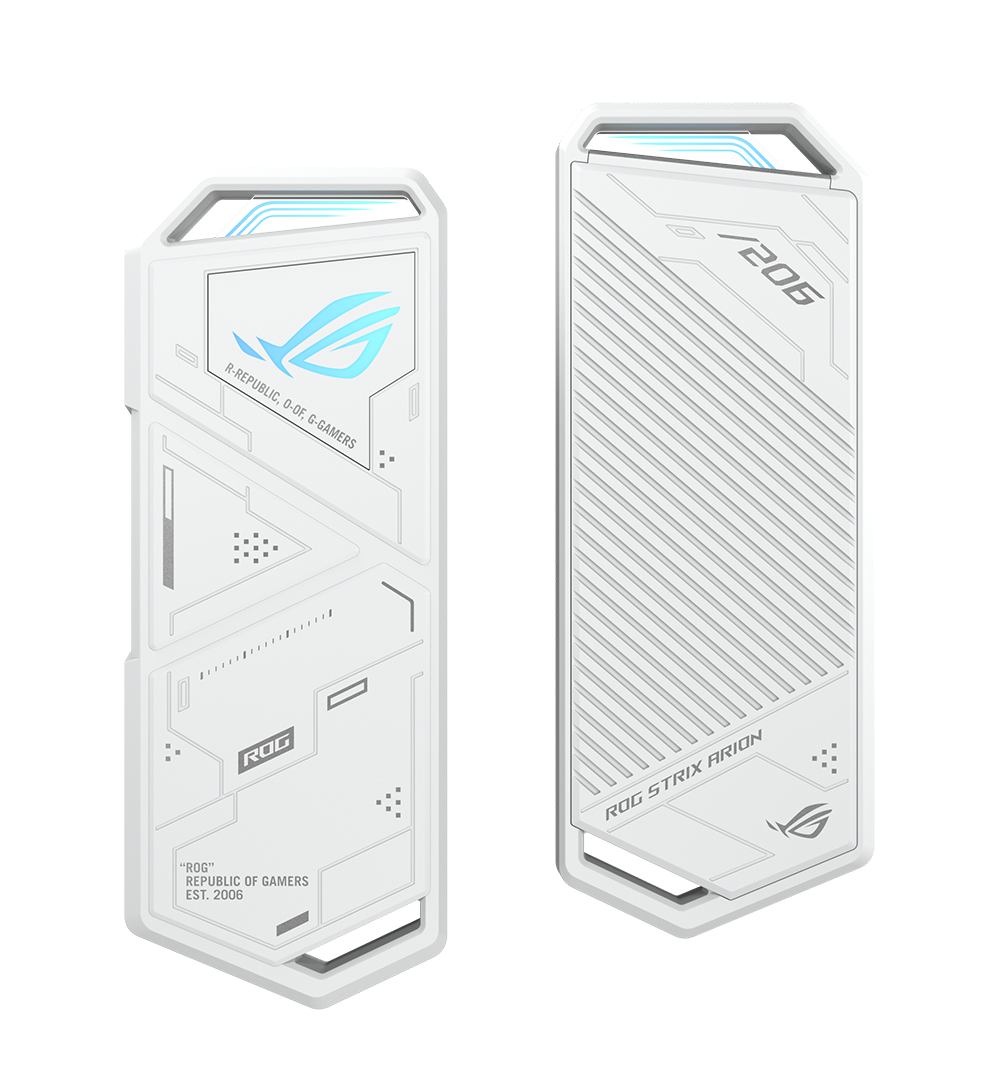

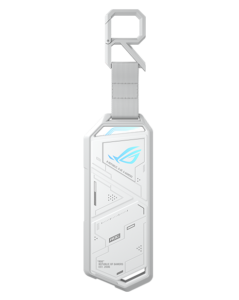

Embrace Minimalism, Elevate Style

Designed with meticulous attention to detail, this cutting-edge storage solution not only boasts exceptional performance but also elevates your setup with its all-new moon-white printing patterns. Perfect for those seeking a distinct style, ROG Strix Arion Moonlight White sets itself apart with its unique design elements.

Tech Specs

Model

• ROG STRIX ARION

Color

• Black
• Moonlight White

Interface

• USB3.2 Gen 2X1

Speed

• 10Gbps

Capacity

• 0TB

OS Compatibility

• Windows® 7
• Windows® 8 / 8.1
• Windows® 10
• Windows11
• Mac OS® X 10.6 and above

SSD Compatibility

• M.2 PCI Express 2280
• M.2 PCI Express 2260
• M.2 PCI Express 2242
• M.2 PCI Express 2230
  *Micron Crucial P5 SSD is currently not supported on ROG Strix Arion
  Compatable with SSDs up to 2TB

Aura System Requirement

• Windows 10 RS3 or above

Aura Sync

• ARGB

Dimension

• 124.5 x 47.7mm x 10.9 mm (L/W/H)

Weight

• 98g

Temperature

• Operating: 0 ℃(32 ℉)-40 ℃(104 ℉)
• Storage: -20 ℃(-4 ℉)-60 ℃(140 ℉)

Voltage

• 5V

Package Content

• Quick Installation Guide
• USB-C to USB-A cable
• USB-C to USB-C cable
• Pin Ejector
• User manual
