Transcend 16GB 2666MHZ DESKTOP DDR4

DDR4-2666 Unbuffered Long-DIMM

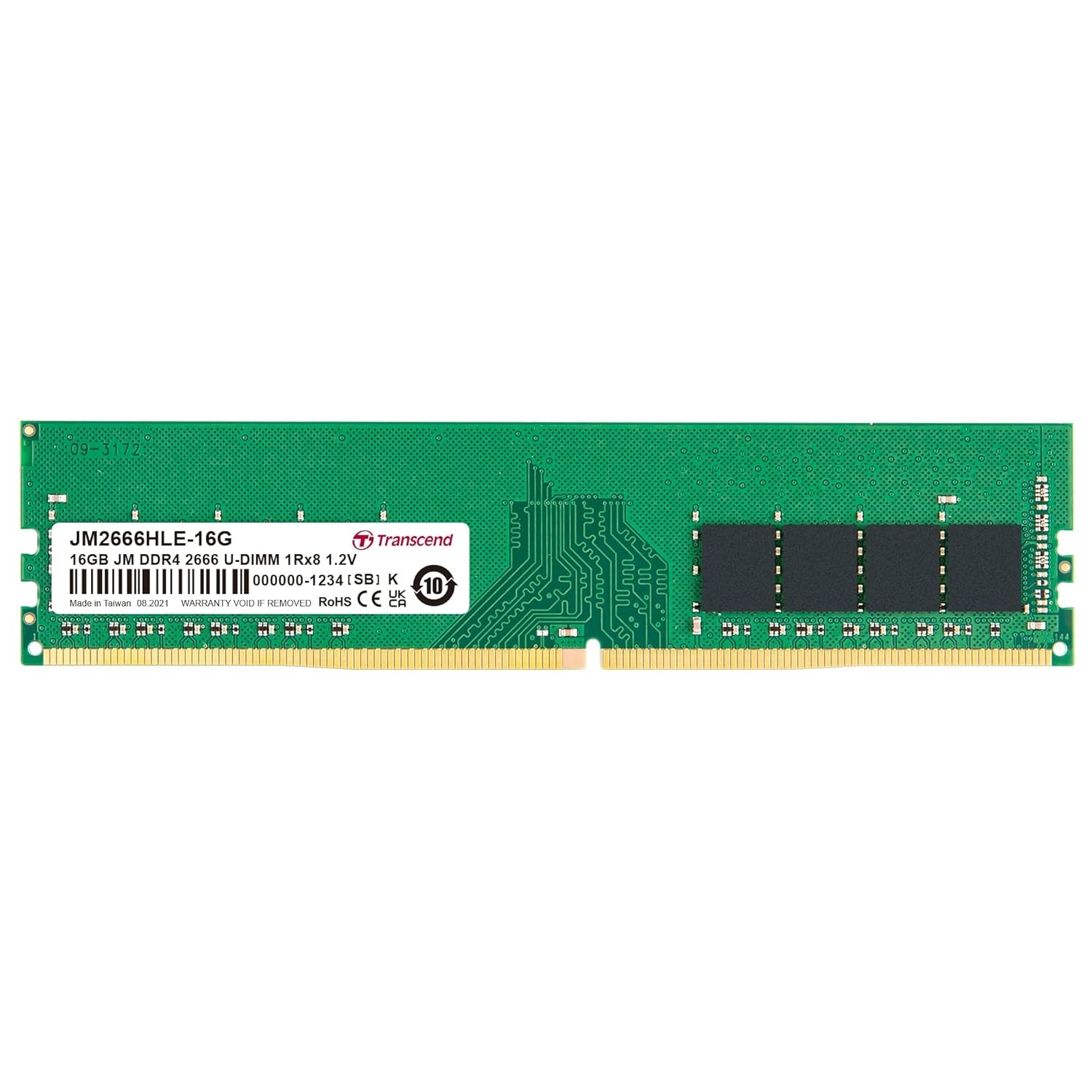

JM2666HLE-16G

Transcend’s JetRam memory modules are manufactured with true ETT grade, brand-name DRAM chips that have passed Transcend’s strict screening process and testing. The modules provide excellent compatibility and fully-tested reliability, which is ideal for PC upgrade at an attractive price. Each memory module is rated at 2666 MT/s to greatly increase data transmission efficiency by higher bandwidth of up to 21GB/s. Operated at a nominal voltage of just 1.2V, Transcend’s DDR4 U-DIMM JetRam memory ensures that both operating temperature and electrical load on the memory controller can be reduced in order to save up to 40% of energy compared to standard DDR3 modules offering 1.5V.

Specifications

DRAM Module

• RAM Type:   DDR4
• DIMM Type:   Unbuffered Long-DIMM
• Speed:   2666
• CAS Latency:   CL19
• Capacity:  16GB
• Rank x Org.:   1Rx8
• Component Composition:   2Gx8
• Voltage:   1.2V
• Pin Count:   288 pin
• PCB Height:   1.23 inches

Operating Environment

• Operating Temperature:   0°C (32°F) ~ 85°C (185°F)
