MSI MAG X870 E CARBON WIFI AMD CHIPSET

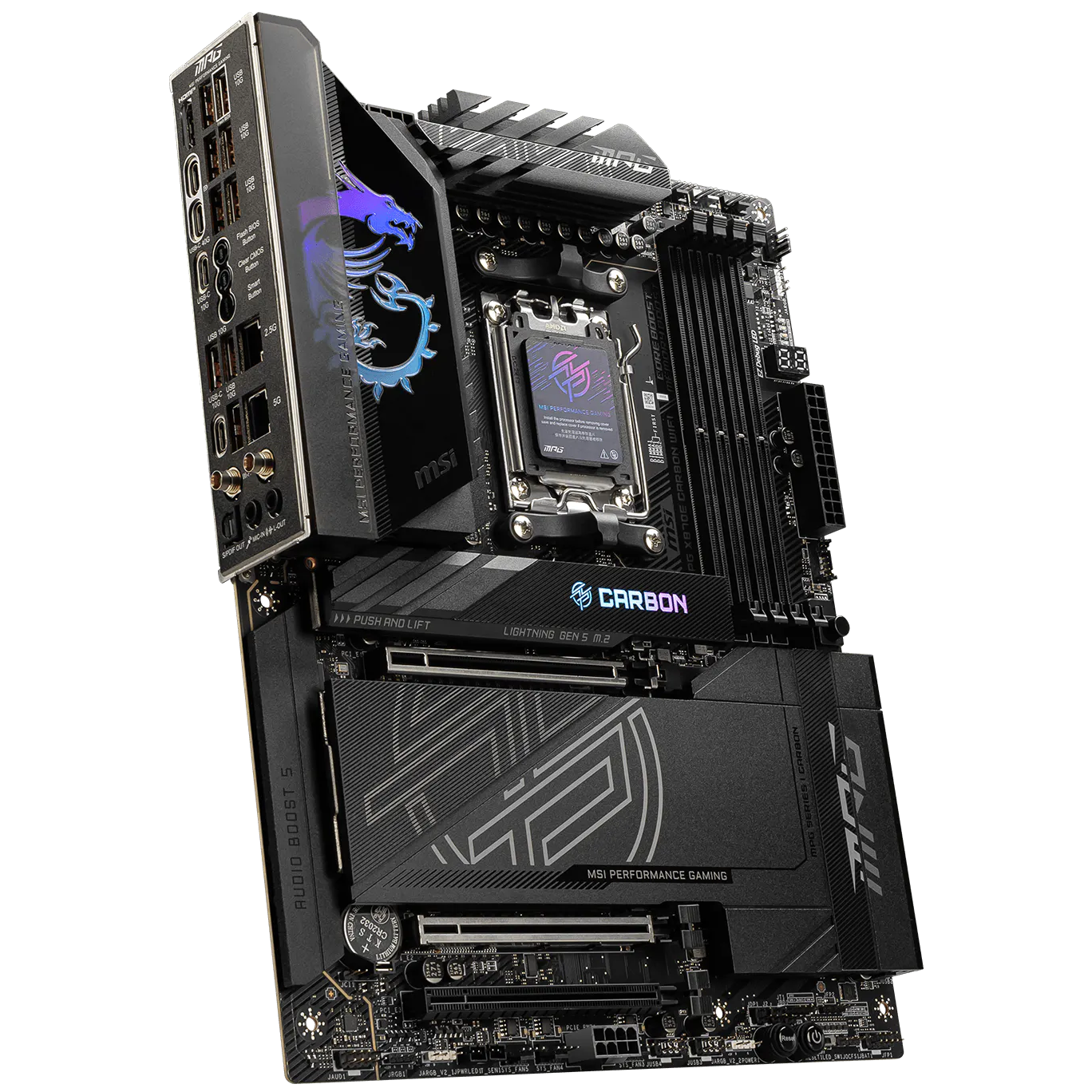

MPG X870E CARBON WIFI

MPG X870E CARBON WIFI employs a carbon black color scheme and stylish pattern over Mystic light RGB lighting to show a different identity. It is also powerful inside by featuring 5G LAN, true Wi-Fi 7 solution, USB 40Gbps, Supplemental PCIe Power, and the latest EZ DIY designs, making this motherboard one of the best X870E ATX motherboards for Ryzen 9000 series processors

MSI’s premium MPG (MSI PERFORMANCE GAMING) series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG’s commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.

READY FOR AI PC

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

AI Engine
provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.

AI LAN MANAGER
optimizes networking performance and minimizes latency, providing a seamless online experience.

Frozr AI Cooling
automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.

AI Boost
is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.

PERFORMANCE & THERMAL SOLUTION

CONNECTIVITY

EZ DIY

EZ DIY

ONE FINGER

EZ M.2 INSTALLATION

Carefully developed by MSI, allows SSD installation and removal without the need for screws, greatly enhancing convenience.

EZ M.2 Installation

MSI’s exclusive EZ M.2 Shield Frozr II and EZ M.2 CLIP II makes M.2 installation seamless. Insert the SSD card into the slot and press it down to lock it in place with the clip. As fasten the SSD, flick the clip outwards and then the SSD is removed. The process is smooth, and you don’t need to use your tools like before. One finger can give you perfect DIY experience.

EZ M.2 CLIP II REMOVER

Introducing MSI’s EZ M.2 CLIP II Remover, a handy tool designed to simply switching or repositioning the EZ M.2 CLIP II on your motherboard. The tool allows users to effortlessly detach the EZ M.2 CLIP II from the motherboard and reattach it to any desired M.2 slot. It is included in the accessory kit that comes with MSI motherboards.

EZ GPU Installation

The new EZ PCIe Clip II, located on the first slot, features the rebounding force mechanism that allows for easy removal of the graphics card by pressing the tail-like lock with one finger. Due to this exquisite design, users can uninstall the graphics cards effortlessly, even in the cramped case spaces.

EZ BUTTON

SMART BUTTON

FLASH BIOS BUTTON

Flash the BIOS with only a connected power supply by following a few steps. CPU and Memory not required.

CLEAR CMOS BUTTON

Restore the BIOS to the default settings – helpful in 99% of the cases to successfully boot again.

EZ SWITCH

EZ LED Switch
Tuning off all LEDs connected to motherboard by just one click.

ONE HAND

PRE-INSTALLED I/O SHIELD

The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.

EZ MOUNTING

MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.

ONE STEP

EZ ANTENNA

MSI EZ Antenna makes the process effortless by simply attaching fasteners to the motherboard without rotation.

EZ CONN-DESIGN

EZ Conn header (JAF_2)
MSI’s EZ Conn header(JAF_2) allows users to easily connect MSI EZ series fans (7 pin) or MSI liquid cooling (11 pin). If you don’t have the above products, we also provide a 1 to 3 EZ Conn-Cable, enabling you to connect ARGB light, system fan and USB device.

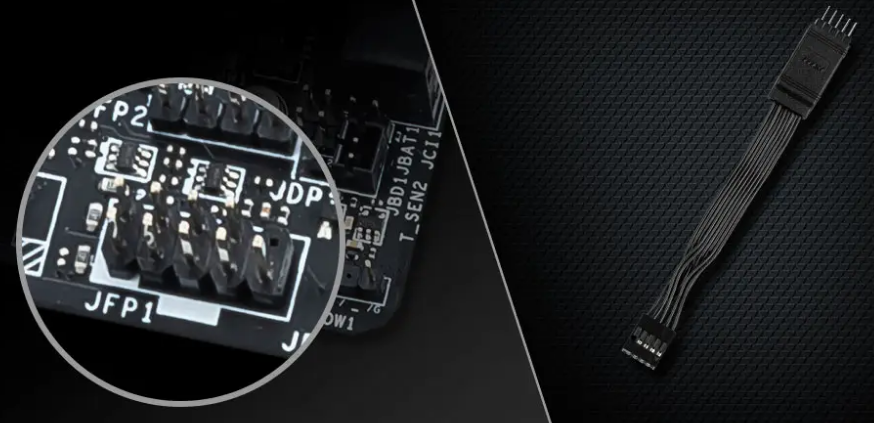

EZ FRONT PANEL CABLE

This cable takes care of the tedious part of the build process, makes motherboard front panel connections quickly and accurately.

MSI DRIVER UTILITY INSTALLER
Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.

*Please ensure to connect the internet, or the Driver Utility Installer won’t launch automatically.
*MSI Driver Utility Installer will be ready in Windows 11 build 22H2.

ONE GLANCE

EZ DEBUG

EZ DEBUG LED
Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.

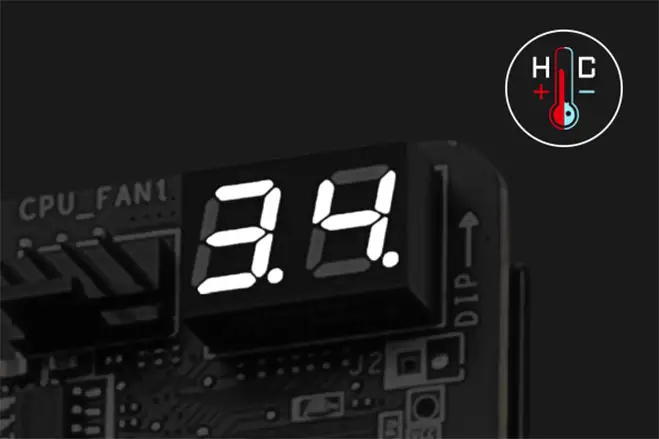

EZ DIGI-DEBUG LED
Displays the error code for troubleshooting. Also functions as temperature monitor!

EZ IDENTIFY

HEADER WITH DIFFERENT COLOR

To better differentiate between pin headers for different purposes, mark the pump sys header and ARGB headers in white, PCIe 8-pin header in gray, and designate the pin headers for JAF_2 in white (for users who need to use JAF_1), enabling users to manage cables more efficiently.

IDENTIFY M.2 SIGNAL SOURCE

The motherboard has a detailed M.2 signal source list printed on it, allowing you to easily identify them.

IDENTIFY USB SPEED

Change the way USB speeds are described to numbers (rather than the confusing names like USB 3.2 Gen 2×2) for better understanding

ONE CLICK

EZ OVERCLOCKING

While overclocking can be overly complex for some, MSI Click BIOS X made it more accessible with multiple one-click overclock features for both processor and memory, allowing users to easily enhance system performance without delving into intricate settings.

GAME BOOST
One-click CPU overclock automatically optimizes your CPU performance, instantly tuning it to the best possible level.

AI BOOST
An intelligent algorithm boosts NPU performance to get the best possible AI performance when you need additional horsepower.
*Enabled with compatible processors.

EXPO / A-XMP
Choose from preset EXPO and A-XMP profiles to automatically overclock compatible DDR memory for optimal performance.

EZ OPTIMIZATION

A host of features inject artificial intelligence into key aspects of your computing experience to make smarter, real-time optimizations. The MSI Center offers a clean, minimal interface to customize and manage your PC settings. The AI Engine, for example, automatically adjusts settings based on the applications you’re using, ensuring seamless performance.

ULTRA PERFORMANCE

POWER SOLUTION

POWER DESIGN

18+2+1 DUET RAIL POWER SYSTEM
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 18+2+1 Duet Rail Power System. Combining dual power connectors and 110A Smart Power Stage, MPG X870E CARBON WIFI is ready for the challenge of high-end processors.

PCB DESIGN

OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

• 8 PCB layers
• Server-grade PCB material
• 2oz Thickened Copper

EZ OC TUNING

PERFORMANCE PRESET

MSI exclusive Performance Preset is a more intuitive way to boost performance by setting the power limitation as your preference. There are two level-setting – PBO Auto & PBO Enable.

PERFORMANCE SWITCH

Performance Switch combines the benefits of AMD default PBO(Precision Boost Overdrive) and MSI’s own OC Settings, provides higher CPU performance in both status of single-core and multi-core. This is for users who dare for the maximum performance.

PBO THERMAL POINT

MSI PBO Thermal profiles are setting maximum CPU Temperature at 85 degrees C, 75 degrees C and 65 degrees C level. With the Thermal profiles, the CPU Operates at lower voltage and temperature but remaining the same performance.

CONFIG TDP

Config TDP is designed to provide ECO Mode (65W) or different TDP (PPT/ TDC / EDC) settings for advanced users. By offering several profiles for different TDP settings in Click BIOS 5, Config TDP makes setting TDP profiles easier and don’t need to modify settings manually for each TDP.

MORE FOR PERFORMANCE

1-SECOND OVERLOCKING

MSI Game Boost enables one-second overlocking, giving you the performance boost you need to get more FPS.

LOAD-LINE CALIBRATION

What you set, is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.

OVERVOLTAGE PROTECTION

Prevents potential short-circuit damage to the CPU and other critical components.

MEMORY

DDR5

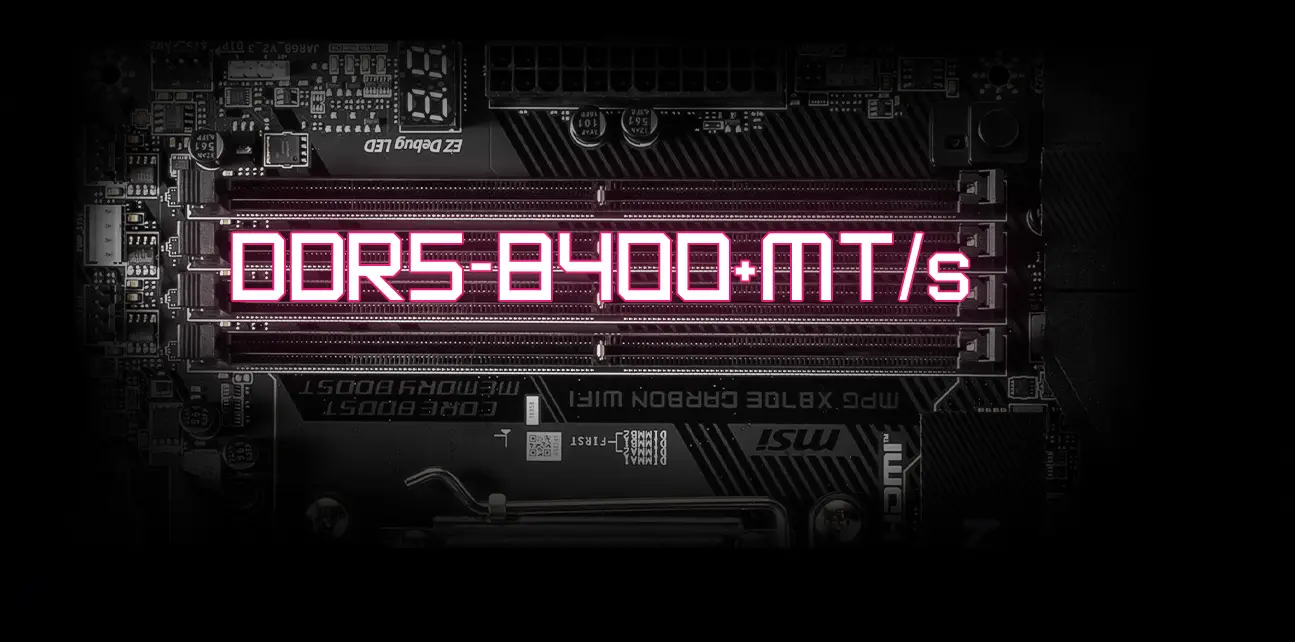

DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG X870E CARBON WIFI is ready to deliver the world-class memory performance.

• EXPO / A-XMP SUPPORT
• MEMORY BOOST
• SMT PROCESS

HIGH-EFFICIENCY MODE

The High-Efficiency Mode is designed to optimize memory performance by increasing memory bandwidth and reducing latency. With the four sets of RAM timing settings, it allows users to find out the optimal configuration based on the quality of their memory modules.

LATENCY KILLER

MSI BIOS has introduced the latest Latency Killer feature on all AM5 socket motherboards. Users can enable Latency Killer in the BIOS to reduce memory latency by up to 12% when running at high frequencies. Importantly, it is compatible with a wide range of memory overclocking features, including Memory Try It!!, EXPO, A-XMP, and High-Efficiency Mode, etc.

PROTECTION

TVS

Transient Voltage Suppressors (TVS)

Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.

SOLID PIN DESIGN

solid pin design
The 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads.

Advantages of Solid Pin Power connector

• Improved stability : Larger contact area enhances stability during power delivery.
• Low impedance : Solid pins offer low impedance, enabling efficient power flow.
• Strong durability : The solid pin design ensures strong durability, capable of withstanding demanding conditions.
• Suitable for high-current applications.

STAINLESS STEEL IO

An extra layer of sponge materials along with corrosive resistance IO Shield to help improve static electricity and reduce electromagnetic radiation noise from the system as well as much more durable compare to traditional IO Shields.

OCP PROTECTION

Over Current Protection
MSI motherboards prioritize safety with the embedded Overcurrent Protection (OCP), ensuring crucial components such as the USB ports, DDR memory, PWM IC, and CPU are shielded from excessive current. This proactive defense mechanism curtails the risk of damage or malfunction due to power surges, promoting long-term system stability. This commitment to safeguarding your hardware underscores MSI’s dedication to producing motherboards that prioritize durability and stability.

GROUNDING STRUCTURE

The Grounding Structure of Power Phases
The grounding structure of power phases is the MSI’s exclusive design. This patented design enables to suppress the electromagnetic interference (EMI) generated by the power phases and helps to efficiently conduct heat to the copper plane with grounding properties.

FROZR DESIGN

FROZR GUARD

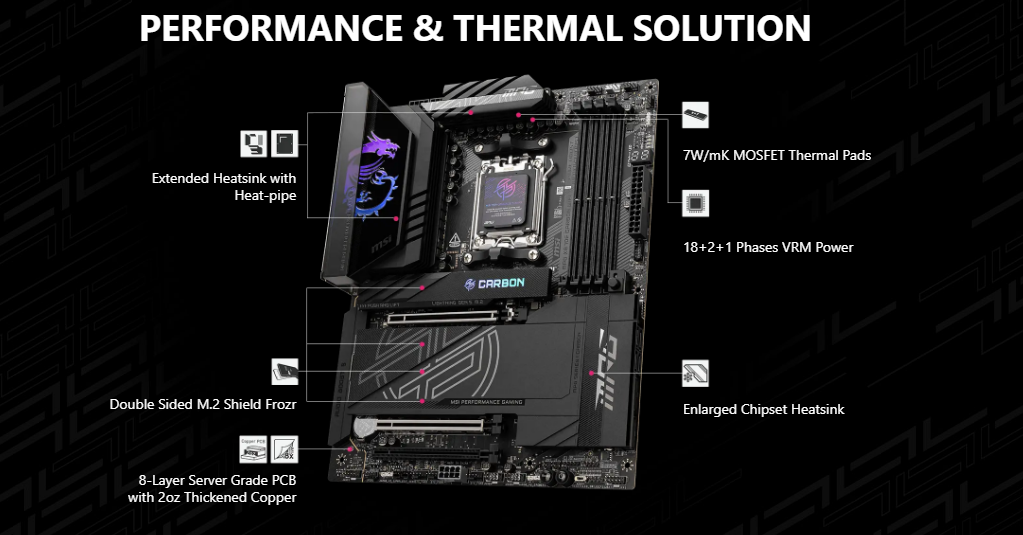

COOLING OVERVIEW

1. Extended Heatsink
   Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
2. Heat-pipe
   Connecting two MOS heatsinks to enlarge the surface of heat dissipation.
3. M.2 Shield Frozr
   Keeps M.2 SSDs safe while preventing throttling, making them run faster.
4. 7W/mK Thermal Pad
   High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.
5. Enhanced M.2 Thermal
   Double-sided M.2 Shield Frozr and Enlarged heatsink design keep M.2 SSDs safe while preventing throttling.
6. Enlarged PCH Heatsink
   The enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.





FROZR SYNC

SYSTEM COOLING

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

COMBO FAN

The MSI Combo Fan Header is a versatile component, functioning as both a pump and or fan header. The header will automatically detects whether it is either pump or PWM/DC fan, with it’s distinctive gray color ensuring easy identification

PUMP FAN                                                                                                        SYS FAN

FROZR CONTROL

COOLING WIZARD

Cooling Wizard serves as a comprehensive solution for managing fan settings across all MSI products. It ensures superior cooling performance and noise reduction for your gaming PC, offering compatibility with PWM/DC fans and pumps, customizable options, and intuitive temperature monitoring for optimal operation with one click.

Multiple profiles

SMART FAN & MANUAL FAN

Smart fan: Allow users to change the temperature curve with the 4 dots provides.

Manual fan: Allow user to manually change the temperature at a set percentage.

USER SCENARIO

Follow MSI Centre Mode:  Adjust fan settings According to the mode selected in User scenerio.

BIOS Mode:    Adjust fan setting in BIOS

Customize by user:  Customize fan settings by users.

FROZR AI COOLING

Frozr AI Cooling targets CPU and GPU temperatures. The AI system detects CPU and GPU temperatures and automatically adjusts the fan duty of system fans to ensure optimal performance.

AUTO DETECT FAN

MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

TRILINK

NETWORKING

FLAWLESS CONNECTION

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI’s premium network solution provides incredible data transfer speed for demanding users.

WIFI 7 SOLUTION

THE NEXT GEN WI-FI SOLUTION – WI-FI 7
Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.

*Windows 11 compatibility only

Upgrade to WiFi 7:  Wi-Fi 7 (802.11be) introduced higher speeds, wider channels, improved efficiency, and reduced latency over Wi-Fi 6 (802.11ax). It also improved battery life and provided better performance in crowded environments.

Data Transfer Rate:  The Wi-Fi 7 provides maximum speeds to a whopping 5.8 Gbps! 2.4 times faster than previous Wi-Fi 6/6E standards, Wi-Fi 7 is set to be the wireless standard of the future.

Channel Size: Previous Wi-Fi generations have had to make do with 160MHz channel widths. Wi-Fi 7 brings this width up to 320MHz (on 6GHz) – ensuring better reliability during simultaneous transmissions at max speeds.

Higher Order Modulation: The higher QAM(Quadrature Amplitude Modulation) value, the more data each packet can carry. Wi-Fi 7 improves the modulation scheme from 1024-QAM to 4096-QAM – boosting peak transmission rates and network capacity.

Multi-Link Operation: Wi-Fi 7 enables devices to simultaneously send and receive data across several frequency bands and channels to meet the traffic demand brought and the growing number of wireless devices.

AI-LAN MANAGER

AI LAN Manager
MSI AI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

MSI AI LAN MANAGER

• Automatically prioritizes games above other applications
• Allows to change applications’ traffic priority
• Allows to customize bandwidth for each application
• Analysis Wi-Fi signals to select the best source.

STORAGE

FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

EXPANSION

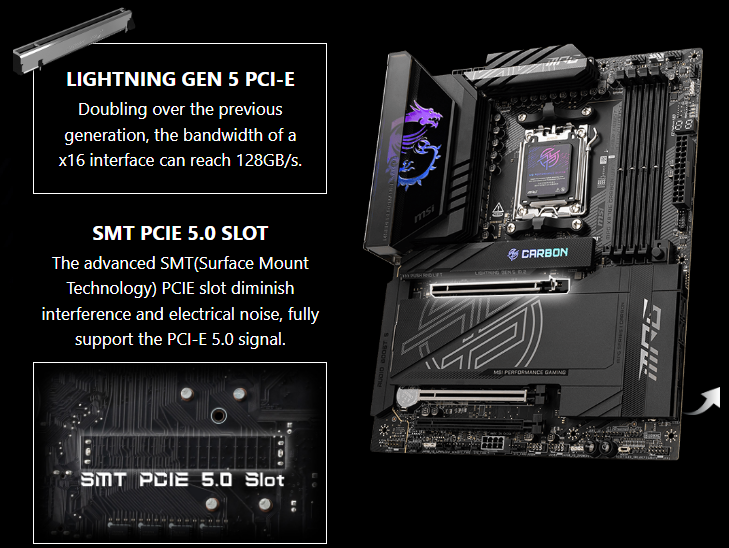

LIGHTNING GEN 5 PCI-E

LIGHTNING GEN 5 PCI-E WITH STEEL ARMOR II

PCIe supplemental power
The exclusive Supplemental PCIe Power connector provides dedicated power for the high-power demands of GPUs used in AI computing and gaming, ensuring stable, efficient, and sustained performance.

USB4

The MSI motherboards incorporate the latest USB4 technology, offering users the full range of benefits.

• Transfer rate of up to 40Gbps:  Transfers large files faster than before
• Multiple device connectivity:  Enables to connect multiple devices through a single port
• Dynamic bandwidth sharing:  Allows simultaneous transfer of data, images and videos and so on

SUPER CHARGER+

Super Charger + makes fast charging (PD 27W) available on the dedicated front USB port for your PD-compatible devices. Besides charging efficiency optimization, it monitors USB output power, voltage and current in real-time.

EXPERIENCE

AUDIO

AUDIO BOOST

• High performance ALC4080 Audio Processor
• High quality Audio capacitors
• High quality Audio Jacks with S/PDIF
• Dedicated headphone Amplifier
• Isolated Audio Signal
• DE-POP Protection

ISOLATED ANALOGY STRUCTURE

The Isolated Analogy Structure for Audio Connectors
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.

MYSTIC LIGHT

GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using Mystic Light utility of MSI Center, which has million colors and fancy LED effects. Enjoy the full control and creativity of your PC’s lighting with one software.

SYNCHRONIZED

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

• A-RAINBOW V2
• RGB
• AMBIENT LINK

BIOS

CLICK BIOS X

MSI’s newly designed CLICK BIOS X offers an aesthetically pleasing and user-friendly experience. The new design ensures that users of all experience levels can quickly access and adjust system configurations with ease.

EZ MODE

ADVANCE MODE

BIOS KEY FEATURES

Game Boost:  Easily Boost your CPU performance with the press of a single button for instant overclocking.

AI-BOOST: Easily Enhance your NPU performance with a click, unlocking the full potential of AI processing.

EXPO / A-XMP:  Easily apply optimized memory overclocking profiles through a simple one-click activation.

Hardware Monitor: Instantly access real-time critical hardware information, including temperature, memory capacity, clock speed, and voltage.

M-Flash: Easily Flash or update the BIOS in just a few minutes directly from the CMOS Setup Utility.

U-Key: Enables secure system access by requiring a specific USB drive for booting, adding an extra layer of security to your PC.

Profile: Save and switch between multiple custom system configurations, allowing for quick adjustments tailored to different tasks or performance needs.

Favorites: Bookmark frequently accessed settings, providing quick and easy access to essential configurations without the need to navigate through the entire menu.

Search: Quickly locate specific settings or options by typing keywords, streamlining navigation and making system adjustments more efficient.

SOFTWARE

MSI CENTER

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

AI ENGINE: MSI AI Engine eliminates the need to tweak settings manually and saving you time and effort.

MYSTIC LIGHT: Create your own colorful masterpiece with ease. Splash any color you want with just a few clicks.

True Color: Optimized monitor’s brightness and color in several modes for different situation, you can also customize by yourself.

USER SCENERIO: One Click for setting your computer, even customize own profile as your preference.

Hardware Monitoring: Get immediate access to your critical hardware information in real-time.

Cooling Wizard: Cooling Wizard is a comprehensive tool for managing fan settings across MSI products, offering one-click optimization.

System Diagnosis: Restore and backup your MSI storage devices in one click to provide stable system usage, you can even monitor the storage status to prevent system crash or data missing.



AIDA64

MSI motherboards provide 60 days free trial of AIDA64 Extreme – MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.

NORTON 360

Multiple layers of protection for your devices, online privacy features including our Secure VPN, plus Dark Web Monitoring – all in a single solution. With MSI motherboards, you can enjoy a 60-day free trial of Norton 360 Deluxe.

• Up to 50 GB PC cloud backup
• Real time Threat protection and Smart Firewall
• Password manager
• PC SafeCam

BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.

SPECIFICATIONS

Chipset	AMD X870E
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 9000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor) PCI_E3 slot • Supports up to PCIe 4.0 x4 * PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.
Audio	Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output
Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2* slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • The M2_2 slot will be unavailable when using Ryzen™ 8000 Series processors M.2_3 slot • Supports up to PCIe 4.0 x4 M.2_4 slot • Supports up to PCIe 4.0 x4 * PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, and PCIe version support varies depending on the CPU. Please refer to the PCIe configuration table in the manual for more details.
RAID	•Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices •Supports RAID 0, RAID 1, RAID 5 and RAID 10* for M.2 NVMe storage devices *RAID 5/ 10 configuration is only supported by Ryzen™ 9000/7000 series processors.
USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 9x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN	1x Realtek® 8126 5G LAN 1x Realtek® 8125 2.5G LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE	4x EZ Debug LED 1x EZ Digit Debug LED
BACK PANEL PORTS	USB 10Gbps Type-A Flash BIOS Button Clear CMOS Button Smart Button 2.5G LAN 5G LAN Audio Connectors HDMI™ USB 40Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A USB 10Gbps Type-C Wi-Fi / Bluetooth Optical S/PDIF Out
OPERATING SYSTEM	Support for Windows® 11 64-bit
BOX CONTENT
PCB Info	ATX 243.84mmx304.8mm
