MSI GeForce RTX 5050 2X 8G Gaming OC Graphic Card
₨ 139,000
- 8GB GDDR6 · GeForce RTX 5050
- 202 × 120 × 41mm
- 1 × HDMI 2.1b; 3 × DisplayPort 2.1b · up to 4 displays
- 550W recommended system PSU · 8-pin x 1
MSI GAMING · GeForce RTX 5050
8GB GDDR6.
GAMING Blackwell graphics.
The MSI GeForce RTX 5050 2X 8G Gaming OC Graphics Card combines 8GB GDDR6 with a two-fan cooling design. The exact manufacturer model is GeForce RTX 5050 8G GAMING OC.
The cooling layout, memory configuration and connection requirements below apply to this exact edition. Match them to the space, power supply and displays in your PC build.
- 8GB
- GDDR6
- 128-bit
- Memory interface
- 202mm
- Card length
Graphics platform
8GB GDDR6.
GeForce RTX 5050.

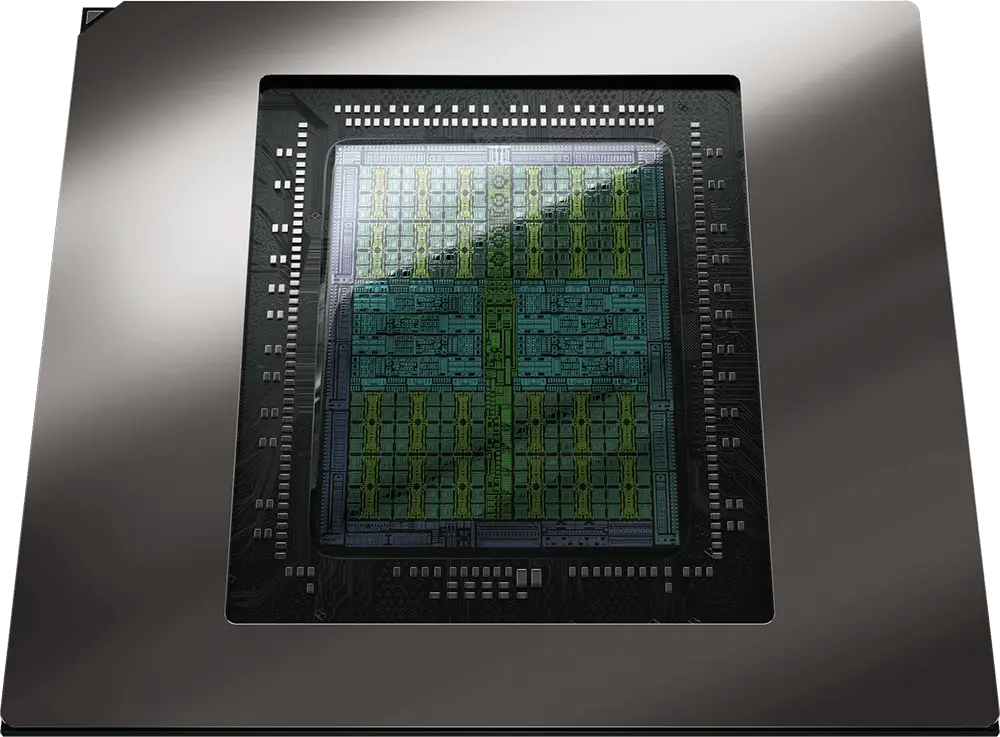

NVIDIA Blackwell is paired with 8GB GDDR6, 20 Gbps memory and a 128-bit interface. Capacity is useful when checking application and game requirements, but it does not independently establish frame rate or resolution performance.
Published clock modes
The published default boost is 2632MHz. MSI Center Extreme Performance is listed at 2647MHz. These are mode-specific values; sustained clocks depend on the workload and thermal conditions.
DLSS and ray-traced games
Supported games can use NVIDIA DLSS Super Resolution, Ray Reconstruction and Multi Frame Generation. These require game/software support and do not promise the same options or frame rate in every title.
Choose the exact edition
GeForce RTX 5050 8G GAMING OC identifies this board. The cooler, dimensions and power connection are board-specific details; do not substitute a reference-card specification.
Thermal and board design

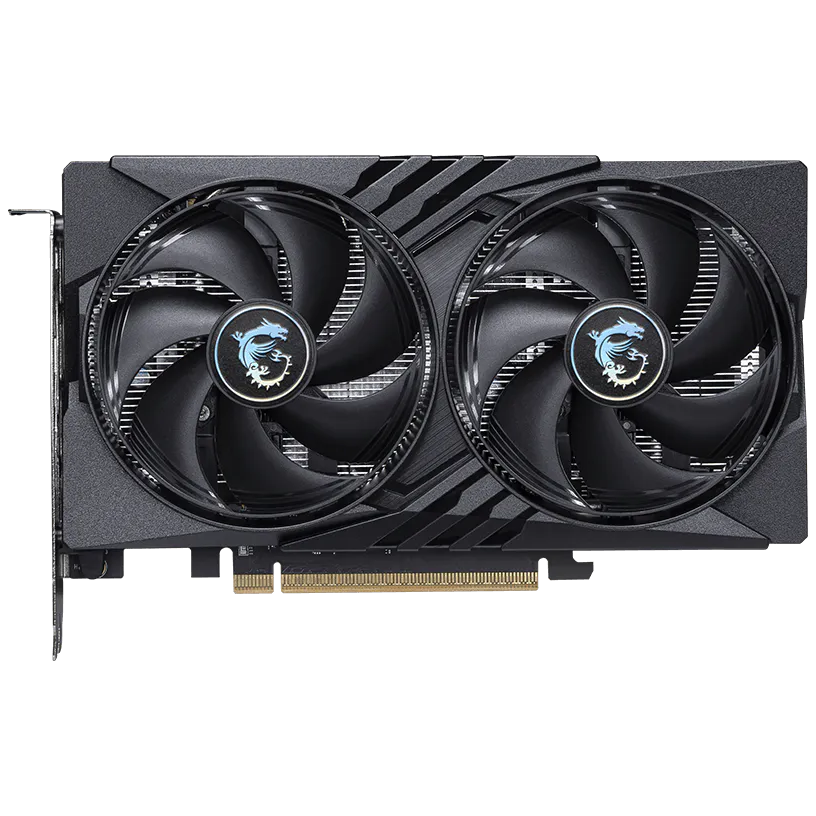

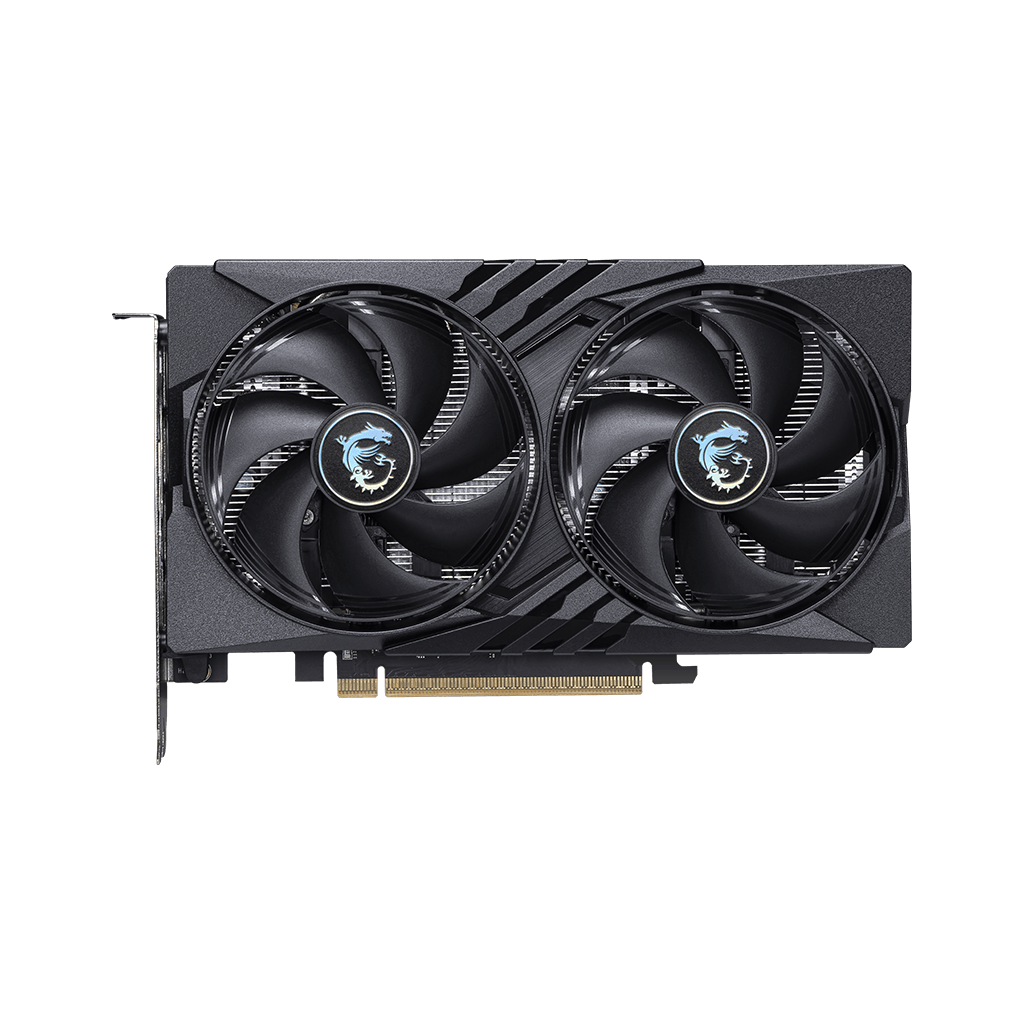

A two-fan assembly.
GAMING cooling and construction.
The exact MSI GeForce RTX 5050 8G GAMING OC edition uses a two-fan cooler. The verified features below explain how its fan assembly, heatsink and board construction work together. Keep the surrounding airflow path clear in the finished PC.

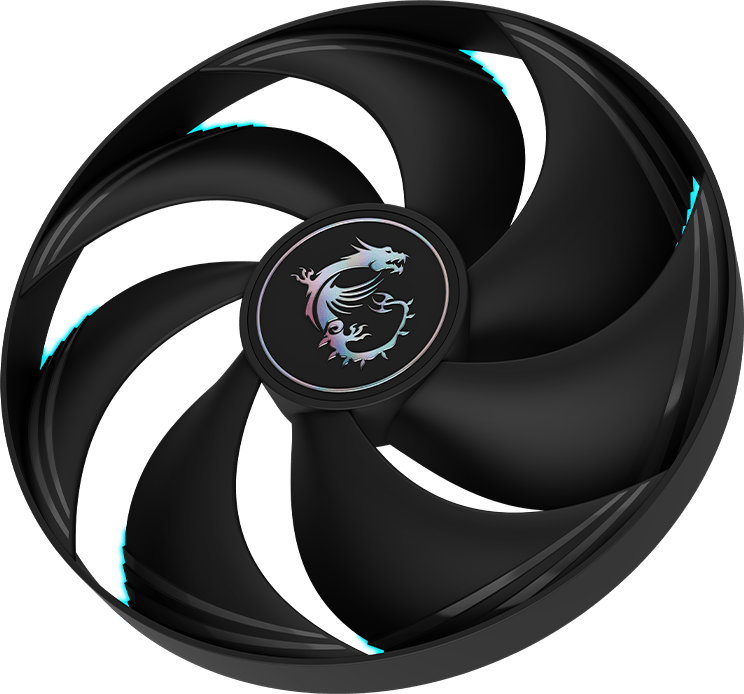

STORMFORCE fan geometry
Seven blades, claw texturing and a circular arc form the STORMFORCE design. These details shape airflow through the cooler; they do not establish a fixed noise level for every PC.

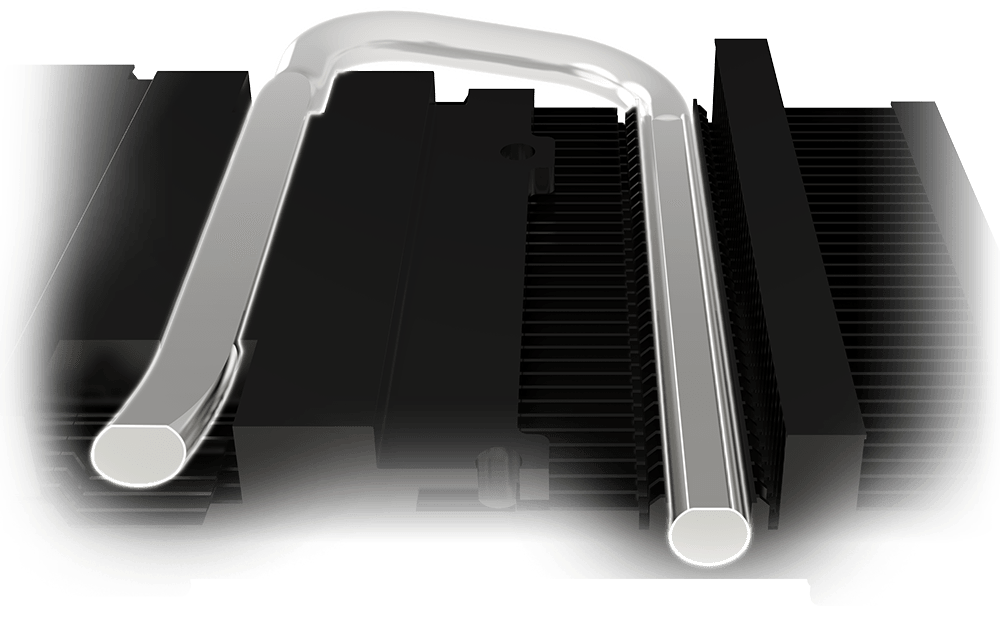

TWIN FROZR 10 thermal assembly
MSI pairs this GAMING edition with its TWIN FROZR 10 cooling design. The card combines the stated fan geometry with its heatsink assembly, rather than relying on a larger chassis to establish compatibility.

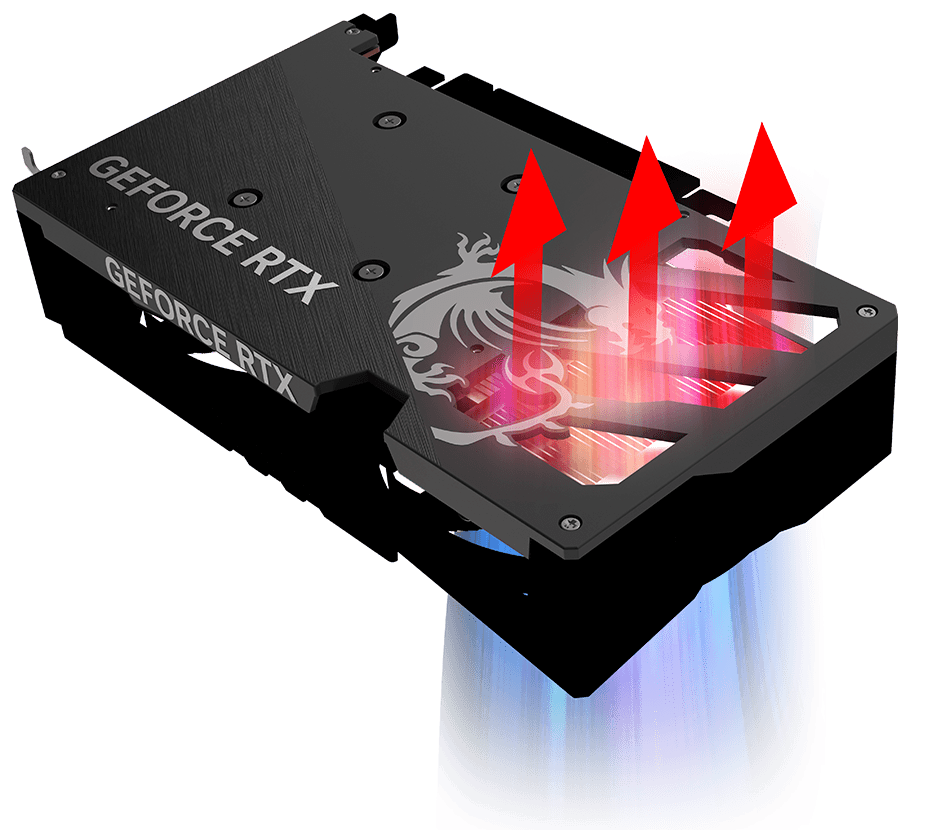

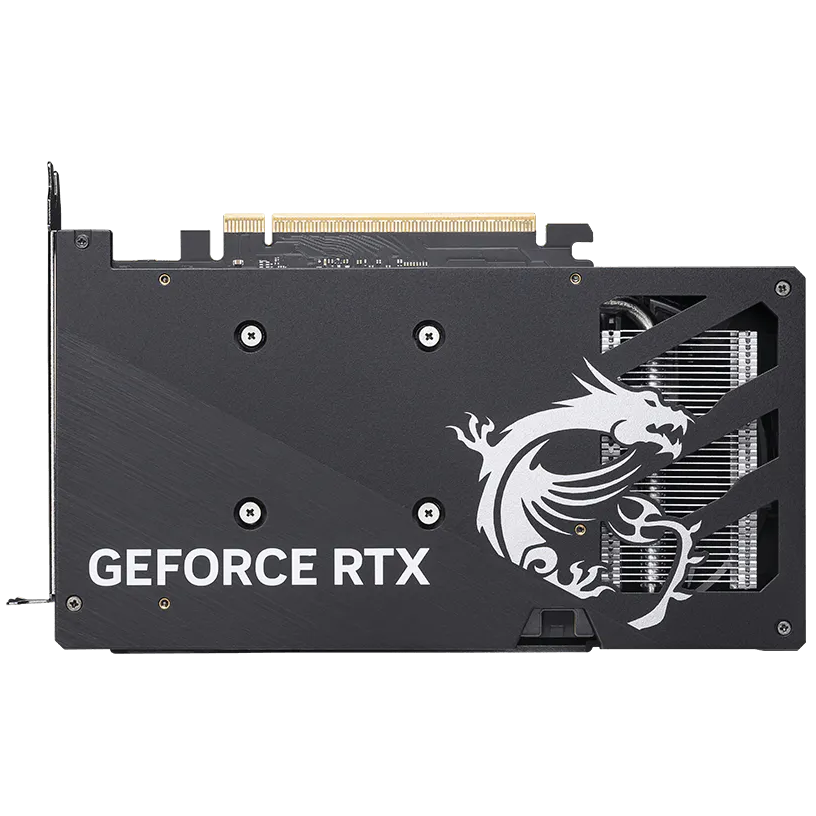

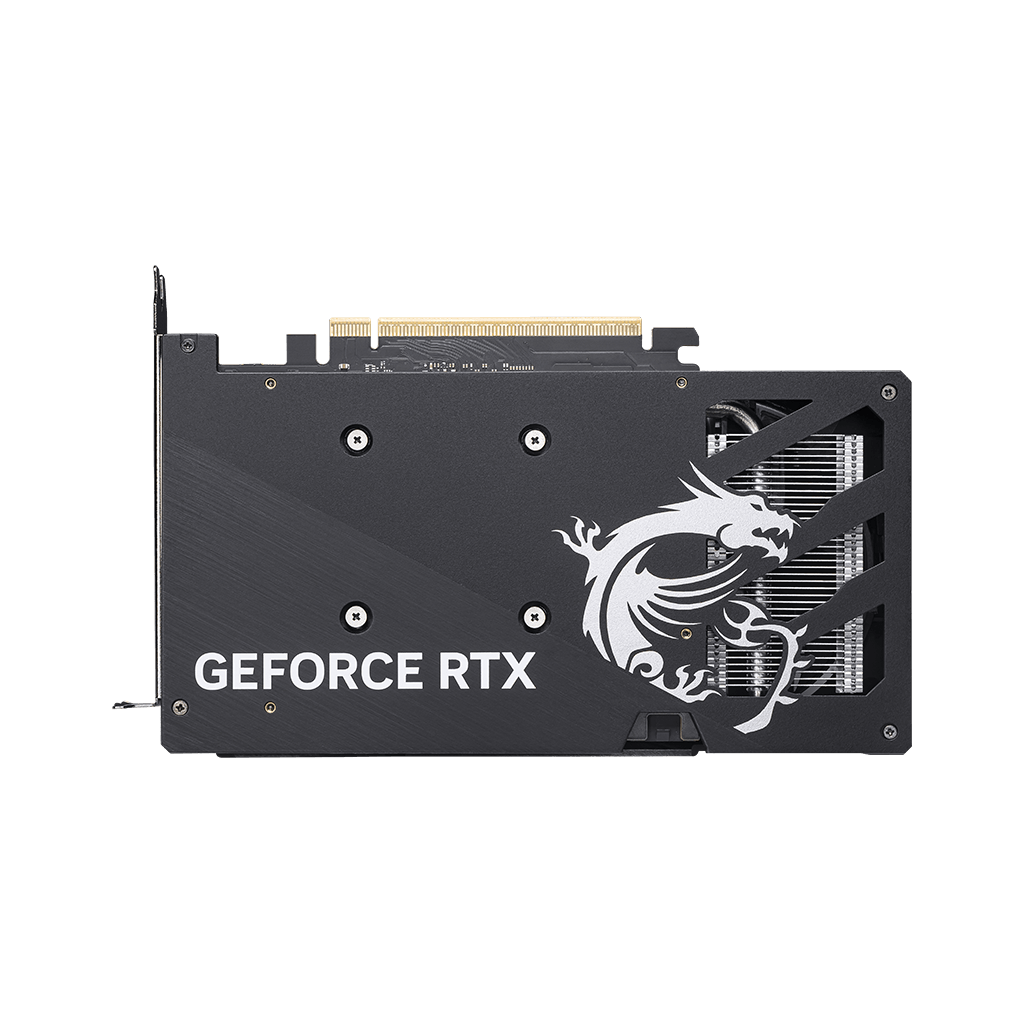

A reinforcing backplate
The reinforcing backplate includes a flow-through design for ventilation. Leave room around the card so the enclosure and airflow path are not obstructed.

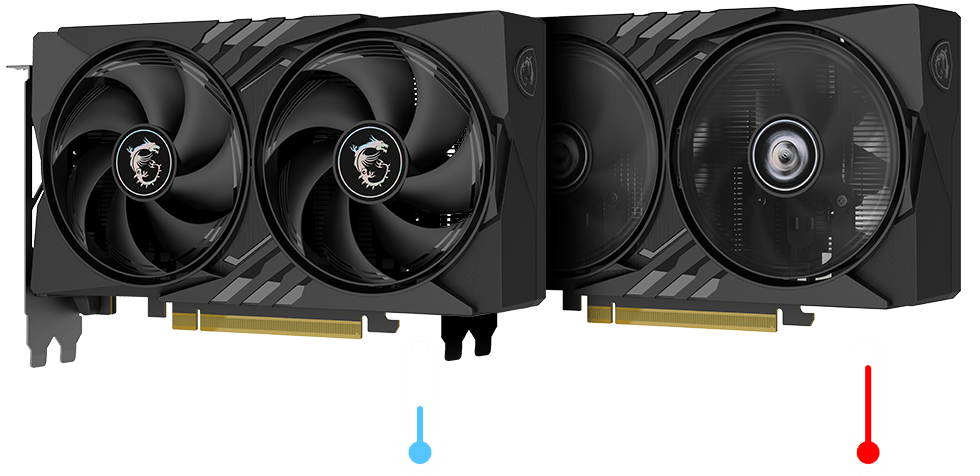

Fans can pause at lower temperatures
MSI Zero Frozr can stop the fans when temperatures are relatively low and restart active cooling when needed. It is a temperature-dependent behavior, not a guarantee of silent gaming.
DrMOS power stages
DrMOS power stages form part of the board’s power-delivery design, with voltage control and reduced power loss as their design goals.
Additional PCB safeguards
The custom PCB includes additional fuses intended to provide safeguards against electrical damage. This does not replace correct PSU selection and installation.
A model-specific PCB
MSI describes hardened circuits and optimized trace routing in the custom PCB. Choose components and cabling for this exact board rather than an assumed reference design.
Build compatibility
Space. Power.
The right display connections.
The GeForce RTX 5050 8G GAMING OC board has its own dimensions and connection layout. Check these before ordering; an RTX or Radeon family name alone is not a compatibility check.
Measure usable clearance
Use the manufacturer’s 202 × 120 × 41mm dimensions. Confirm available length with front fans/radiators installed, card thickness around adjacent slots and power-cable space at the side panel.
Match PSU and cabling

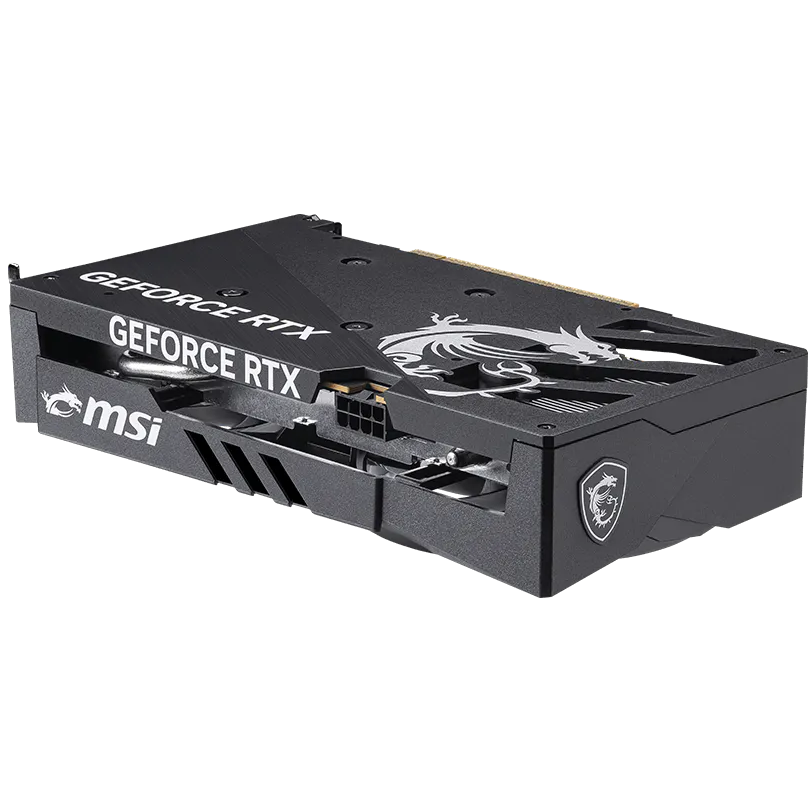

MSI recommends a 550W system PSU. The card’s listed power consumption is 130 W, a separate figure from PSU capacity. The card power connection is 8-pin x 1. Confirm the PSU and cable arrangement for your full configuration.

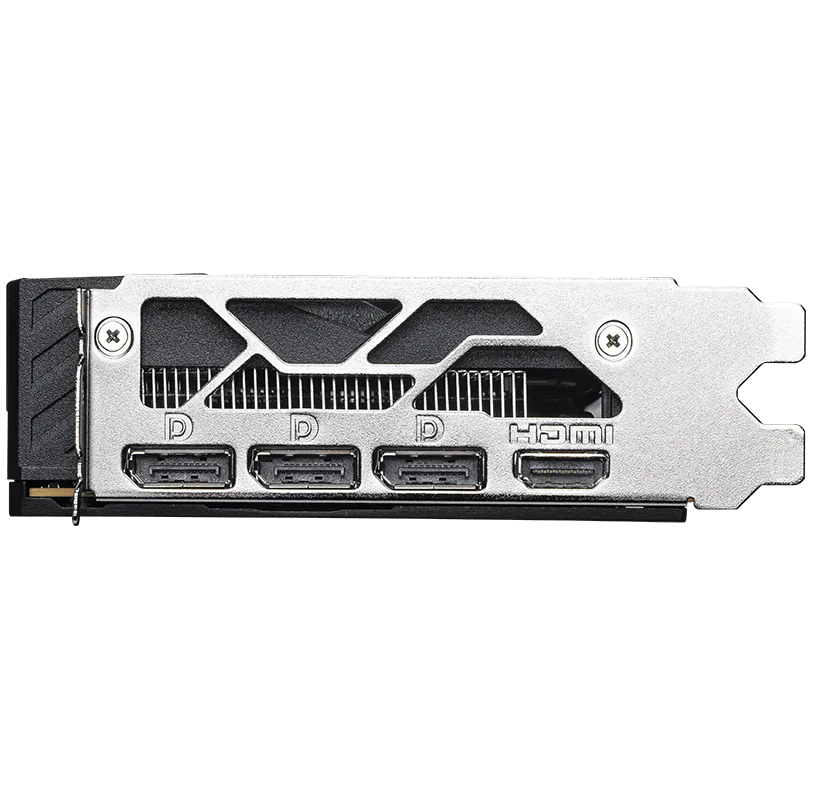

Up to 4 displays
1 × HDMI 2.1b; 3 × DisplayPort 2.1b. Monitor, cable, display mode and any DSC requirement determine available resolution and refresh rates. Maximum digital resolution is not a gaming-FPS promise.
Monitoring and customization.
MSI Afterburner provides graphics-card monitoring and supported tuning controls. MSI Center is also identified for this exact model.
Exact-model specifications.
- Exact edition
- GeForce RTX 5050 8G GAMING OC
- GPU
- GeForce RTX 5050
- Video memory
- 8GB GDDR6
- Memory speed / interface
- 20 Gbps / 128-bit
- CUDA cores
- 2560 Units
- Default boost clock
- 2632MHz
- MSI Center Extreme Performance
- 2647MHz
- PCI Express interface
- PCI Express Gen 5 x16 (uses x8)
- Display outputs
- 1 × HDMI 2.1b; 3 × DisplayPort 2.1b
- Maximum simultaneous displays
- 4
- Dimensions
- 202 × 120 × 41mm
- Recommended system PSU
- 550W
- Card power connector
- 8-pin x 1
- Manufacturer-listed card power
- 130 W
- Maximum digital resolution
- 7680 × 4320; display capability, not gaming FPS
- OpenGL support
- 4.6
- DirectX support
- 12 Ultimate
Questions about this edition.
Does this RTX 5050 use GDDR7 memory?
No. The exact edition uses 8GB GDDR6, with a 20 Gbps memory speed and 128-bit memory interface. Do not substitute the memory specifications of an RTX 5060.
What clearance does this GAMING card need?
The published dimensions are 202 × 120 × 41mm. Check usable space after front fans or radiators are installed, nearby expansion cards and cable routing. Card length alone is not a complete fit check.
What PSU connection should I prepare?
The official specification states 8-pin x 1. The recommended 550W figure is for the system PSU, not a claim that the GPU consumes that entire amount. Confirm PSU compatibility and the manufacturer’s cable-installation guidance.
Is Extreme Performance the default boost setting?
No. MSI lists 2632MHz boost and 2647MHz Extreme Performance through MSI Center. These are distinct settings, rather than a promise of a sustained clock in every workload.
How many displays does this edition support?
The exact specification lists a maximum of 4 displays. Its output mix is 1 × HDMI 2.1b; 3 × DisplayPort 2.1b. Resolution and refresh-rate choices depend on the monitor, cable and supported display mode.
Why might the fans stop during desktop use?
The manufacturer describes temperature-dependent fan-stop operation. Active cooling resumes when needed. This is expected behavior under suitable conditions, not a guarantee of silent operation during games.
