Lian Li VECTOR V100R MINI mATX Case with 4 ARGB PWM Fans – Black
₨ 19,000
- Dimensions (L × W × H): 436 × 221.5 × 443.9 mm.
- Motherboards: Micro-ATX / Mini-ITX; back-connect Micro-ATX supported.
- GPU length: Up to 415 mm.
- Materials: Steel, 4mm tempered glass and plastic.
Lian Li · VECTOR V100R MINI
A smaller glass showcase with four ARGB PWM fans
The VECTOR V100R MINI is the pre-equipped-fan version of Lian Li’s compact Micro-ATX chassis. Three side fans and one rear fan come installed, while the front and side tempered-glass panels provide a clear view of the build. Selected finish: Black.
The R version arrives with fans

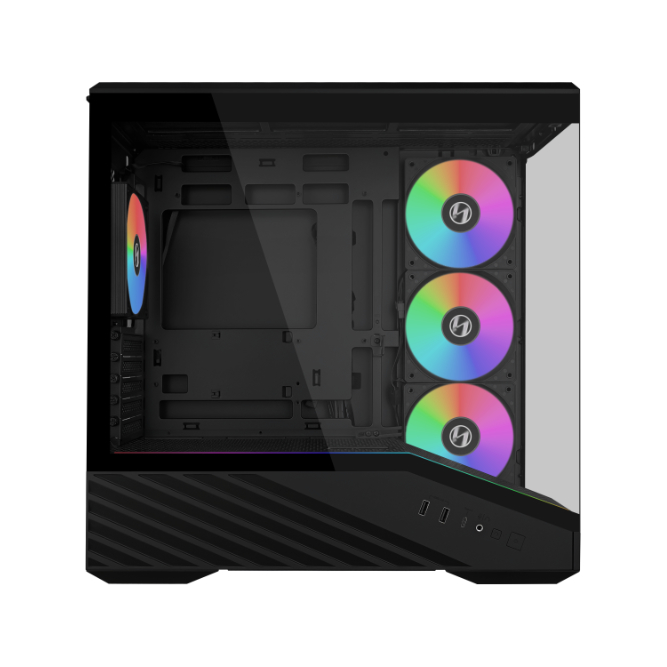

This is VECTOR V100R MINI, not the fanless VECTOR V100 MINI. Four 120mm ARGB PWM fans are pre-installed: three on the side and one at the rear. Additional fans or an AIO shown in a completed build are not established as included.
Plan the bottom of the case
The bottom can hold up to two 2.5-inch SSDs, or one 3.5-inch HDD plus one 2.5-inch SSD. With a PSU longer than 150mm, this falls to one 2.5-inch SSD or one 3.5-inch HDD. A four-slot GPU installed in the second PCIe slot obstructs bottom-fan installation.
Manufacturer feature illustration. Other build components shown are illustrative; the included configuration is stated in the specifications.
Glass, lighting and back-connect routing
The 4mm front and side glass creates a 270-degree hardware view. An integrated ARGB strip contains 26 LEDs. Back-connect Micro-ATX motherboard support gives compatible boards a rear cable-routing route; a standard Mini-ITX board is also supported.
VECTOR V100R MINI specifications
- Dimensions (L × W × H)
- 436 × 221.5 × 443.9 mm
- Motherboards
- Micro-ATX / Mini-ITX; back-connect Micro-ATX supported
- Materials
- Steel, 4mm tempered glass and plastic
- Expansion slots
- 5
- GPU length
- Up to 415 mm
- CPU air-cooler height
- Up to 163.5 mm
- Power supply
- ATX up to 200 mm long
- Top radiator
- 360mm or 240mm
- Included fans
- Three side 120mm ARGB PWM fans and one rear 120mm ARGB PWM fan
- Fan mounting
- Top: three 120mm or two 140mm; side: three 120mm; bottom: two 120mm; rear: one 120mm
- Front connections
- Two USB 3.0 Type-A, one USB Type-C, audio, reset and power
- Dust filter
- Bottom
- Colour
- Black
VECTOR V100R MINI build questions
Is this compatible with a full-size ATX motherboard?
No. The official motherboard support is Micro-ATX and Mini-ITX. Do not confuse the MINI chassis with the larger VECTOR V100R.
Will every 415mm GPU fit alongside bottom fans?
The maximum length is only one part of fit. GPU thickness, the occupied PCIe slot and the chosen bottom cooling/storage arrangement also need checking against the official diagrams.
Official Lian Li VECTOR V100R MINI product information and manuals
Specifications and box contents may vary by region or manufacturer revision. Please check the linked manufacturer information and confirm any essential feature or included accessory with GameOn.pk before ordering.
