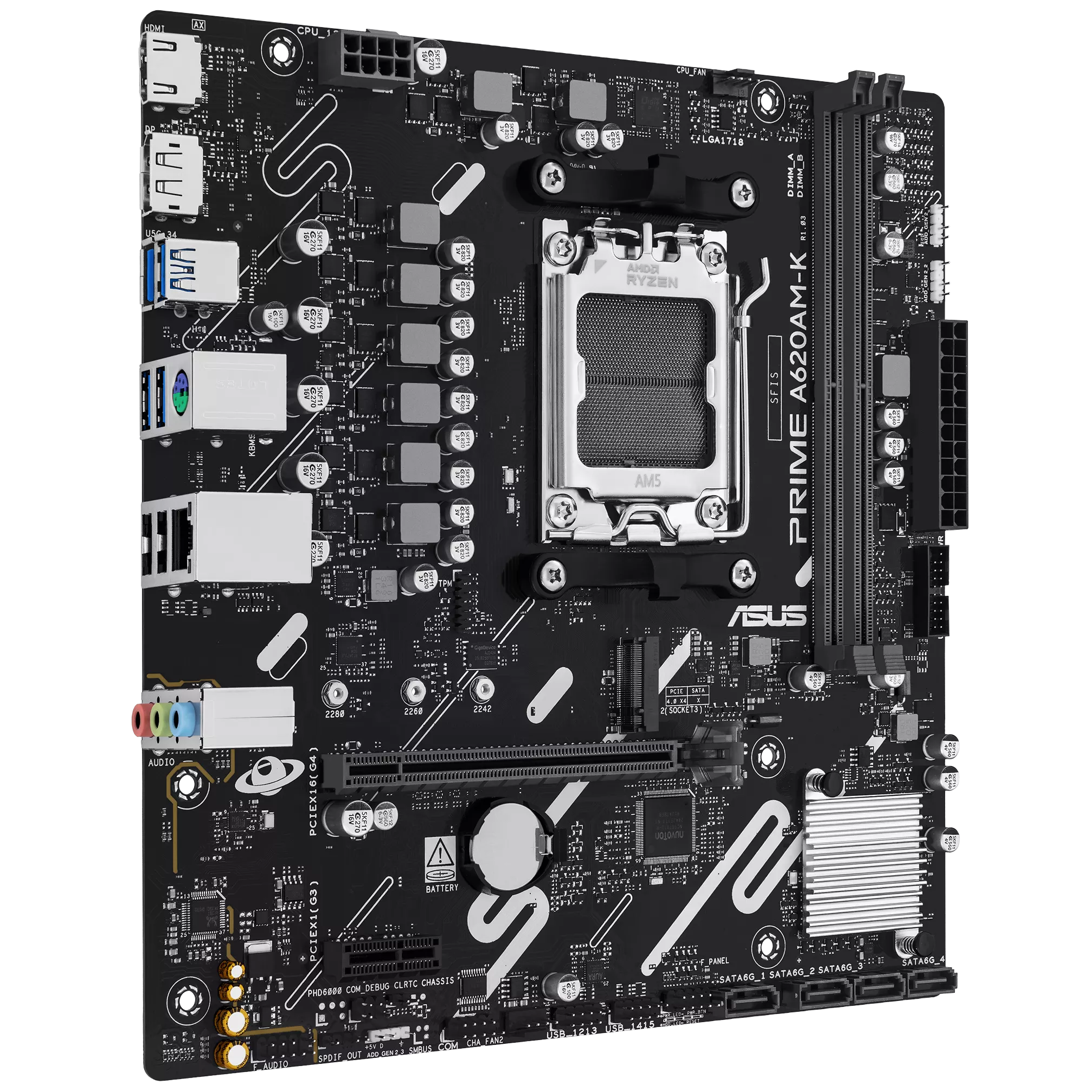

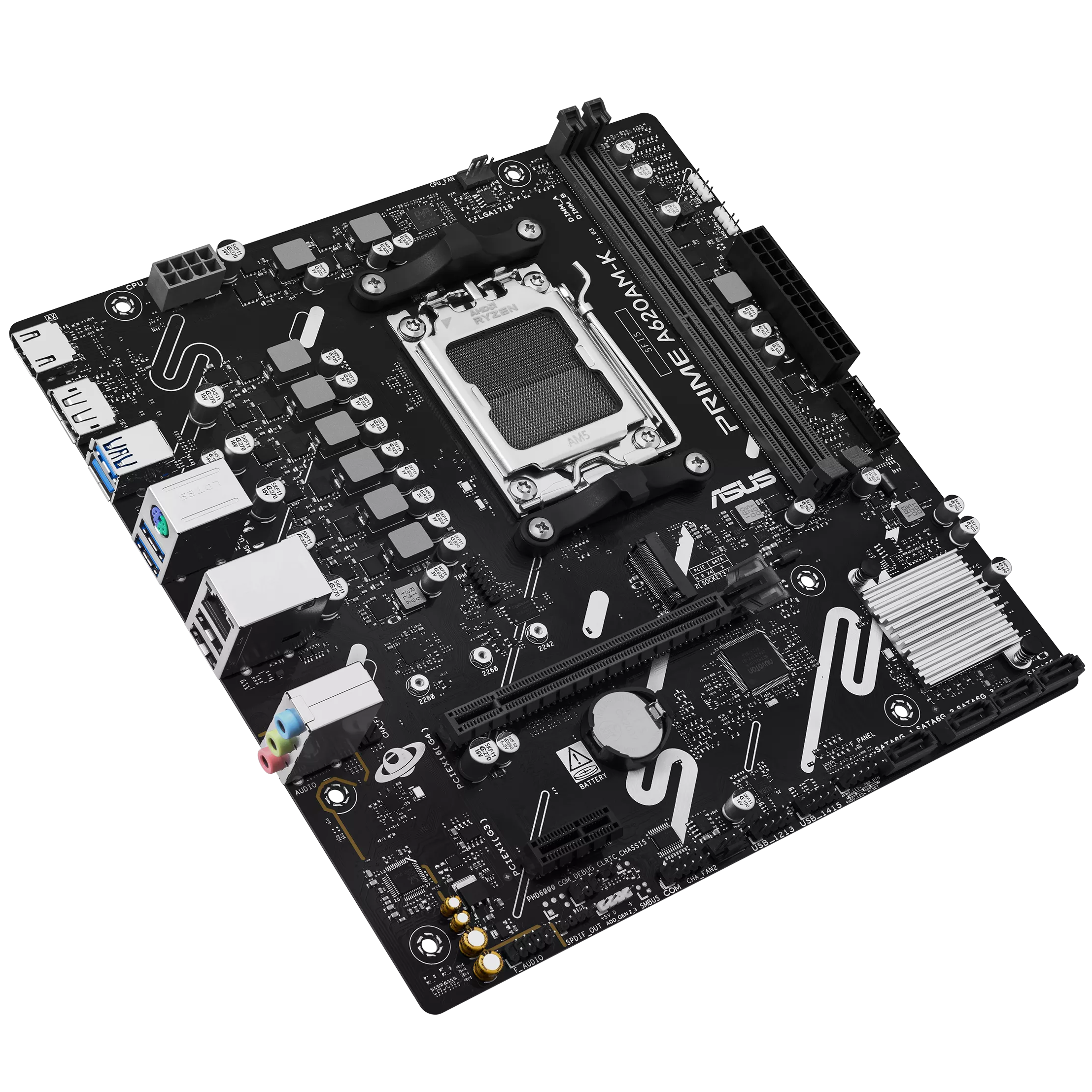

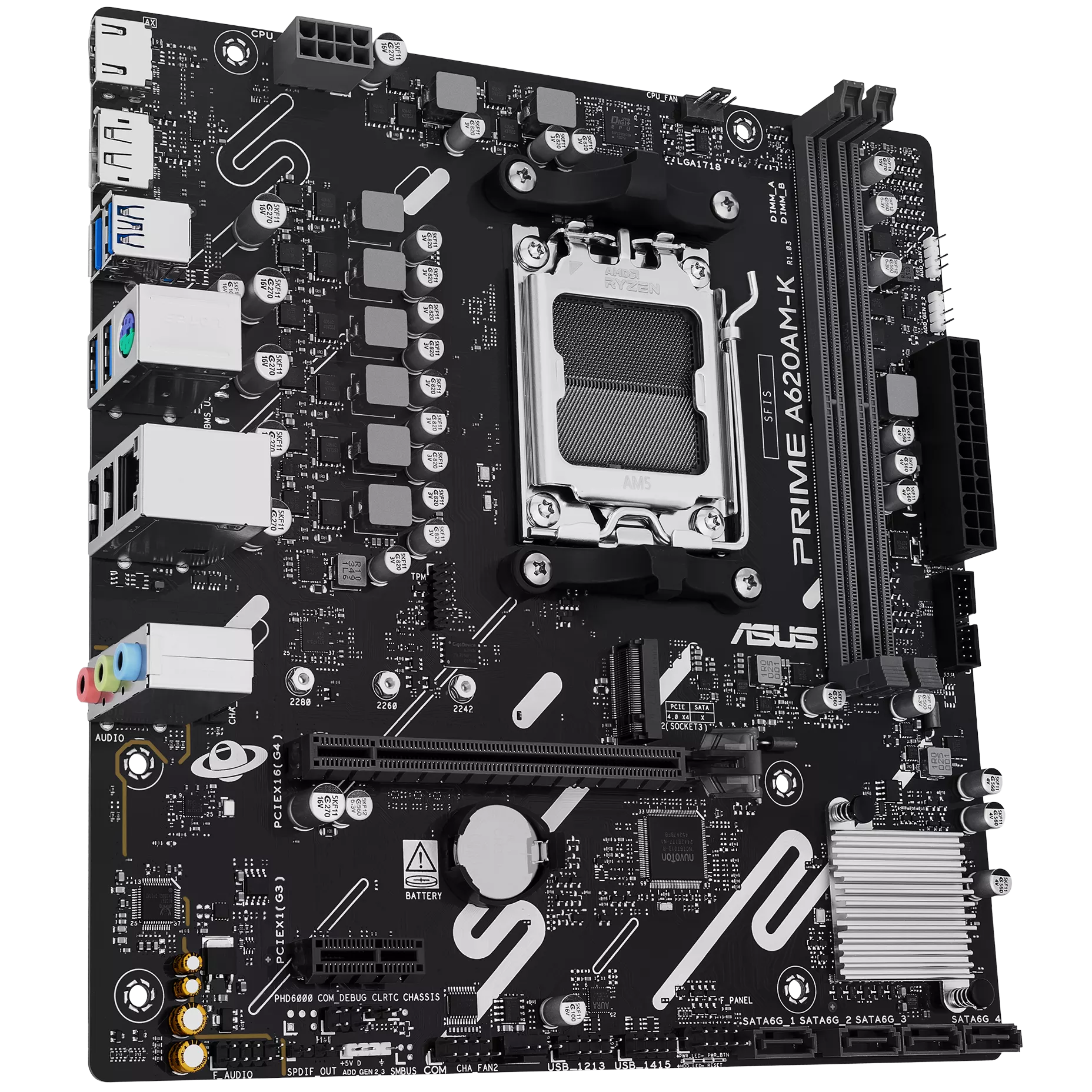

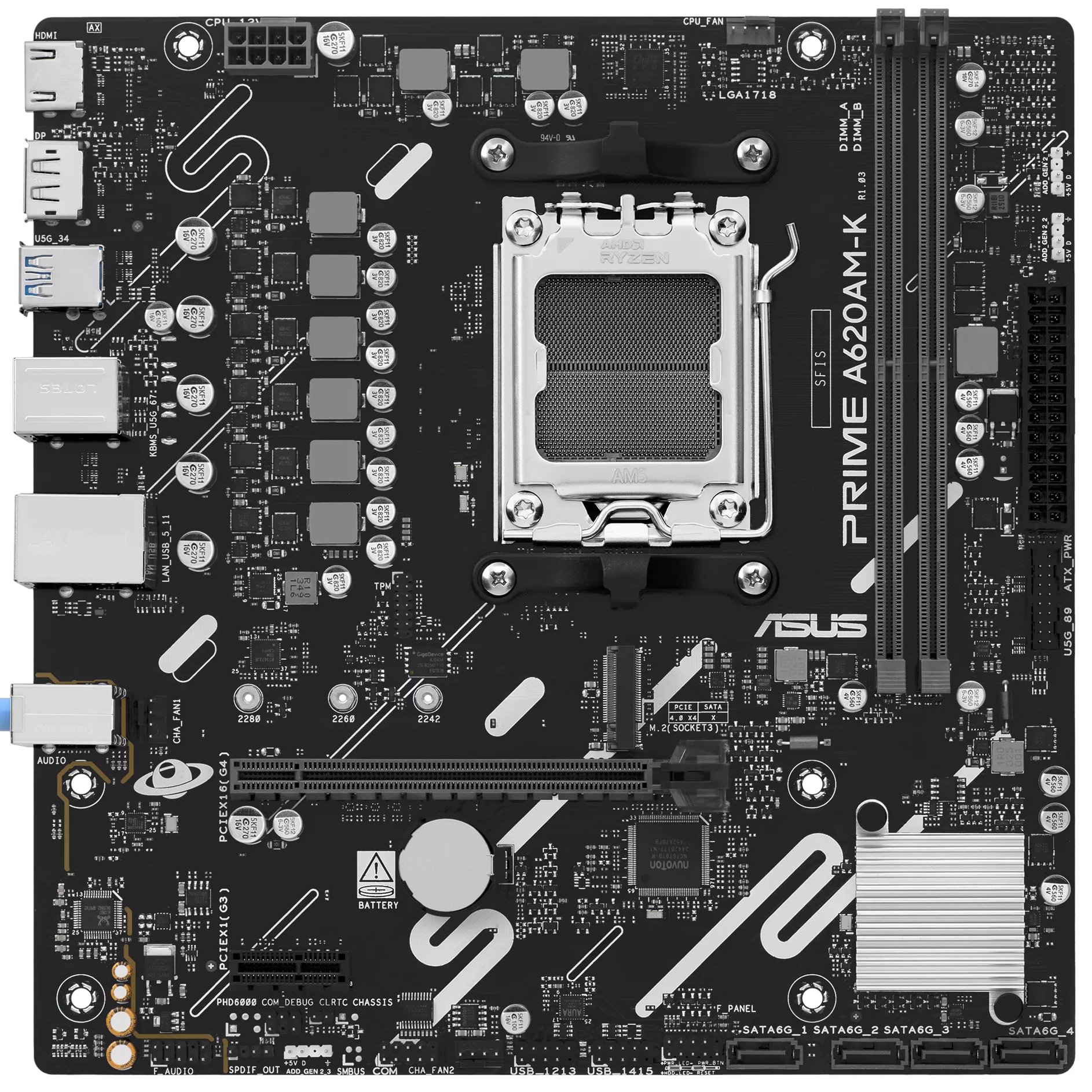

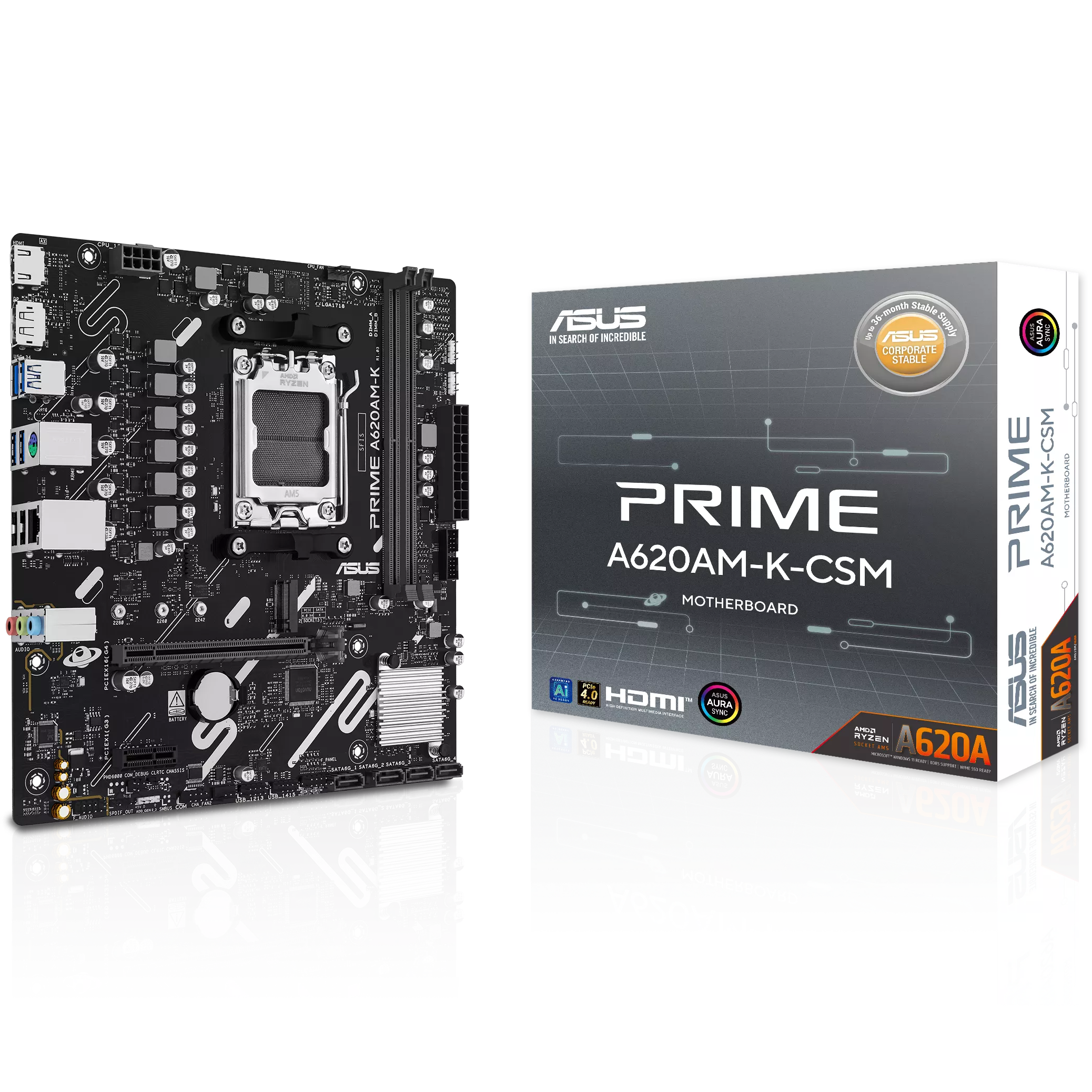

ASUS Prime A620AM – K / CSM Intel Chipset

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME A620AM-K-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Tech Specs

Model

• PRIME A620AM-K-CSM

News & Updates

• Socket AM5,

CPU

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
• Supports up to AMD 120W CPU

Chipset

• AMD A620A Chipset

Memory

• 2 x DIMM slots, max. 128GB, DDR5
• Supports up to
  7200+MT/s(OC) with Ryzen™ 9000 & 7000 Series Processors,
  7600+MT/s(OC) with Ryzen™ 8000 Series Processors,
• Non-ECC Un-buffered DIMM*
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)
  * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

• 1 x DisplayPort**
• 1 x HDMI™ port***
  * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
  ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
  *** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

• 1 x PCIe 4.0 x16 slot (supports x16 mode)

AMD Ryzen™ 8000 Series Desktop Processors

• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD A620A Chipset

• 1 x PCIe 3.0 x1 slot

Storage

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

• M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD A620A Chipset

• 4 x SATA 6Gb/s ports

RAID Support

AMD RAIDXpert2 Technology*

• Ryzen™ 9000 Series Processors: RAID 0/1/5/10
• Ryzen™ 8000 Series Processors: RAID 0/1
• Ryzen™ 7000 Series Processors: RAID 0/1/10
  * Specifications vary by CPU types.

Ethernet

• 1 x Realtek 1Gb Ethernet
• ASUS LANGuard

USB

Rear USB (Total 6 ports)

• 4 x USB 5Gbps ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 6 ports)

• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback

Audio Features

• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
  * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

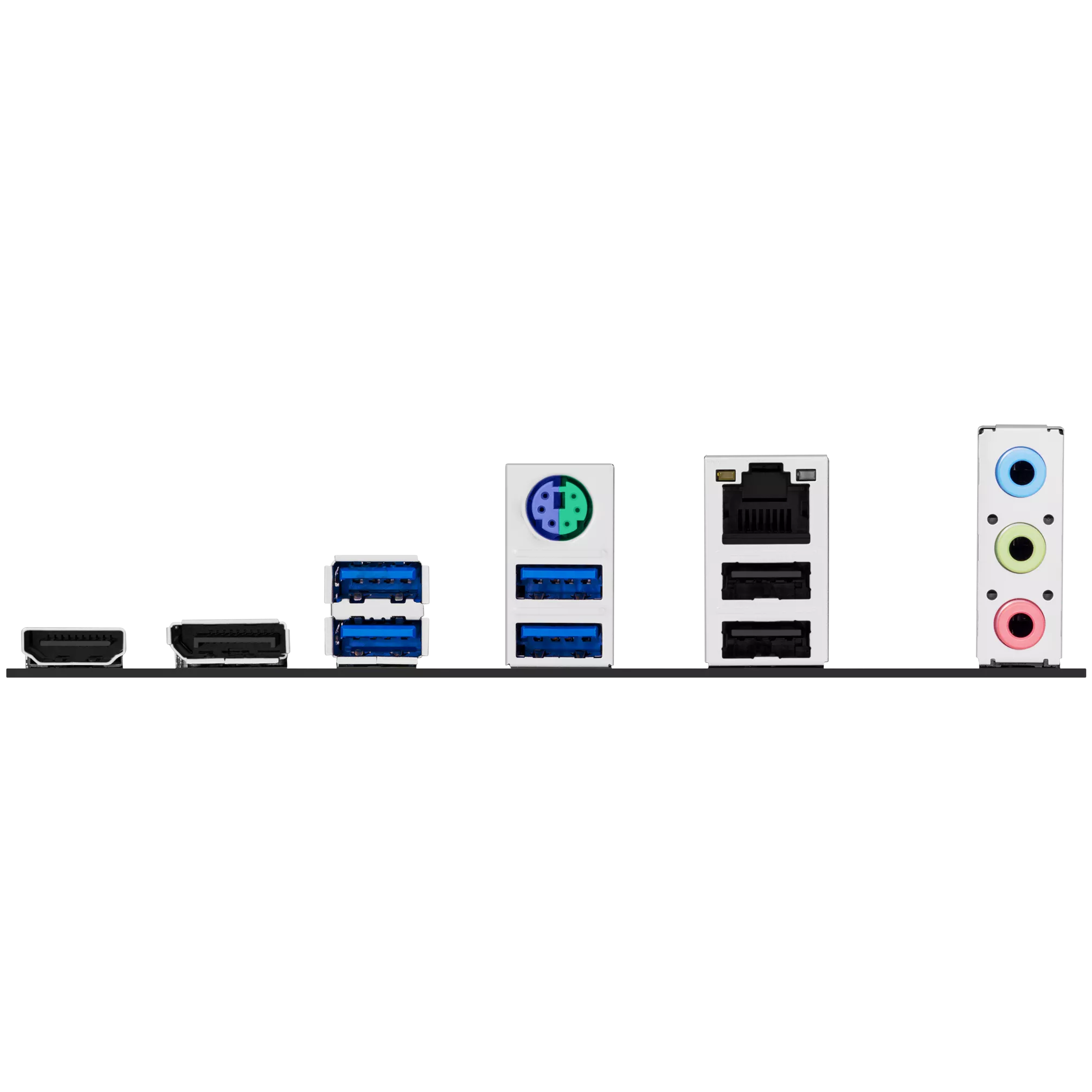

Back Panel I/O Ports

• 4 x USB 5Gbps ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 keyboard/mouse combo port

Internal I/O Connectors

Fan and Cooling Related

• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers

Power Related

• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V CPU Power connector

Storage Related

• 1 x M.2 slot (Key M)
• 4 x SATA 6Gb/s ports

USB

• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

• 3 x Addressable RGB Gen 2 headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1 pin)
• 1 x 10-1 pin Front Panel System header

Special Features

• ASUS 5X PROTECTION III
  DIGI+ VRM
  LANGuard
  Overvoltage protection
  SafeSlot Core
  Stainless-steel back I/O
• ASUS Q-Design
  Q-DIMM
  Q-LED Core
  Q-Slot
• ASUS Thermal Solution
  Aluminum heatsink design
• Aura Sync
  Addressable RGB Gen 2 headers

Software Features

• ASUS Exclusive Software
• Armoury Crate
  Aura Creator
  Aura Sync
  Fan Xpert 2+
• ASUS DriverHub
  ASUS CPU-Z
• Norton 360 Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• AI Cache Boost
• ASUS EZ DIY
  ASUS CrashFree BIOS 3
  ASUS EZ Flash 3
  ASUS UEFI BIOS EZ Mode

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

Cables

• 2 x SATA 6Gb/s cables

Miscellaneous

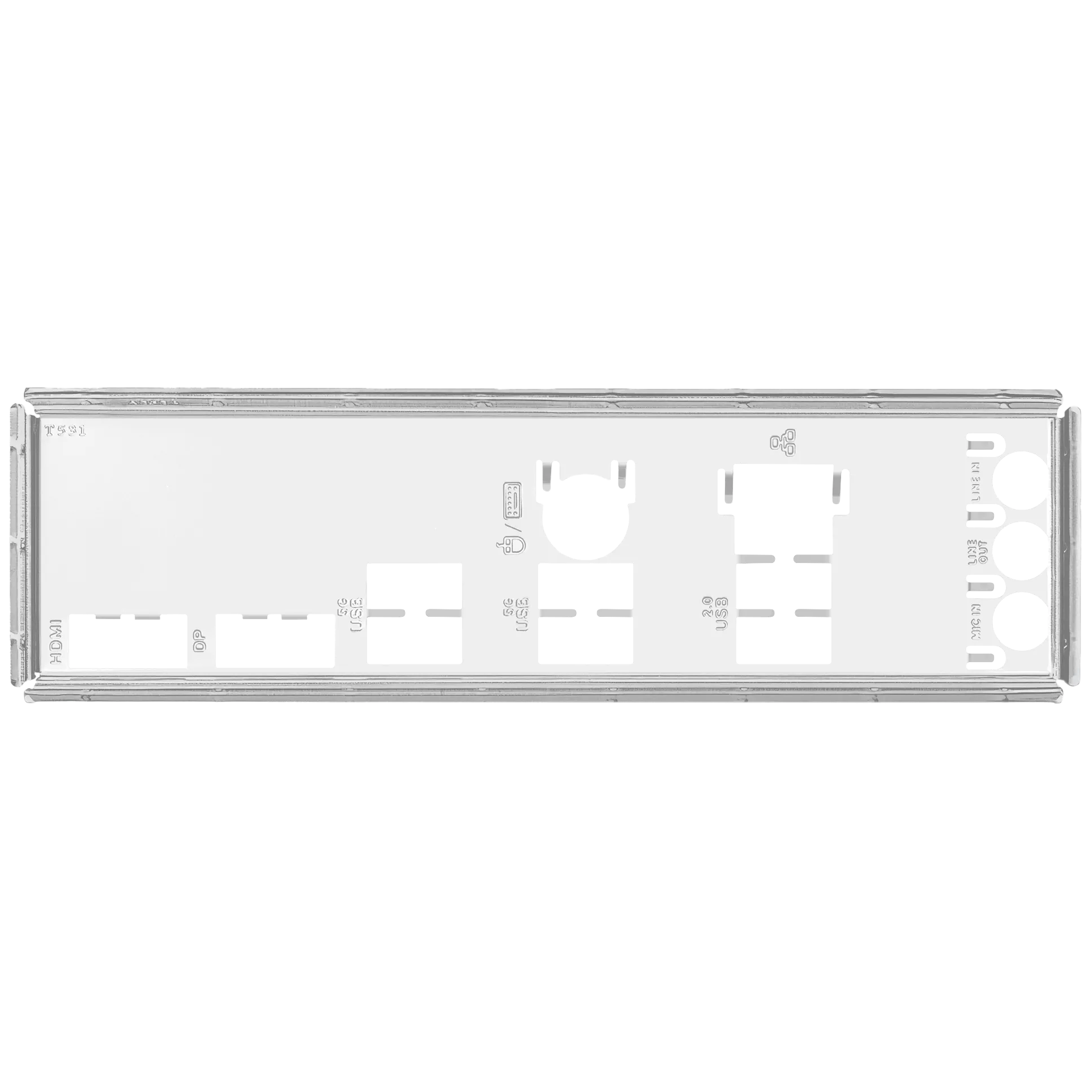

• 1 x I/O shield
• 1 x Screw package for M.2 SSD

Documentation

• 1 x ACC Express activation key card
• 1 x Quick start guide

Operating System

• Windows 11, Windows 10 64-bit

Form Factor

micro-ATX Form Factor

• 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)
