ASUS M703 ROG Falcata / HFXV2 / US / PBT Gaming Keyboard

ROG Falcata 75% split gaming keyboard with hot-swappable ROG HFX V2 Magnetic Switches and ROG Hall Sensor; featuring Rapid Trigger toggle, intuitive control and multi-function wheel, tri-mode connectivity with ROG SpeedNova 8K wireless technology, Zone Mode, four-layer dampening and detachable silicone wrist rests.

SWIFT. SLEEK. SPLIT.

ROG Falcata is a 75% split gaming keyboard designed for precision and flexibility. It features the hot-swappable ROG HFX V2 Magnetic Switch and ROG Hall Sensor for ultra-responsive keystrokes. It includes a Rapid Trigger toggle, intuitive multi-function wheel and button, ROG SpeedNova 8K wireless technology, and tri-mode connectivity. A unique Zone Mode optimizes hardware settings and primes the Falcata for top-tier performance in an instant. For user comfort, the Falcata includes four-layer dampening and detachable silicone wrist rests.

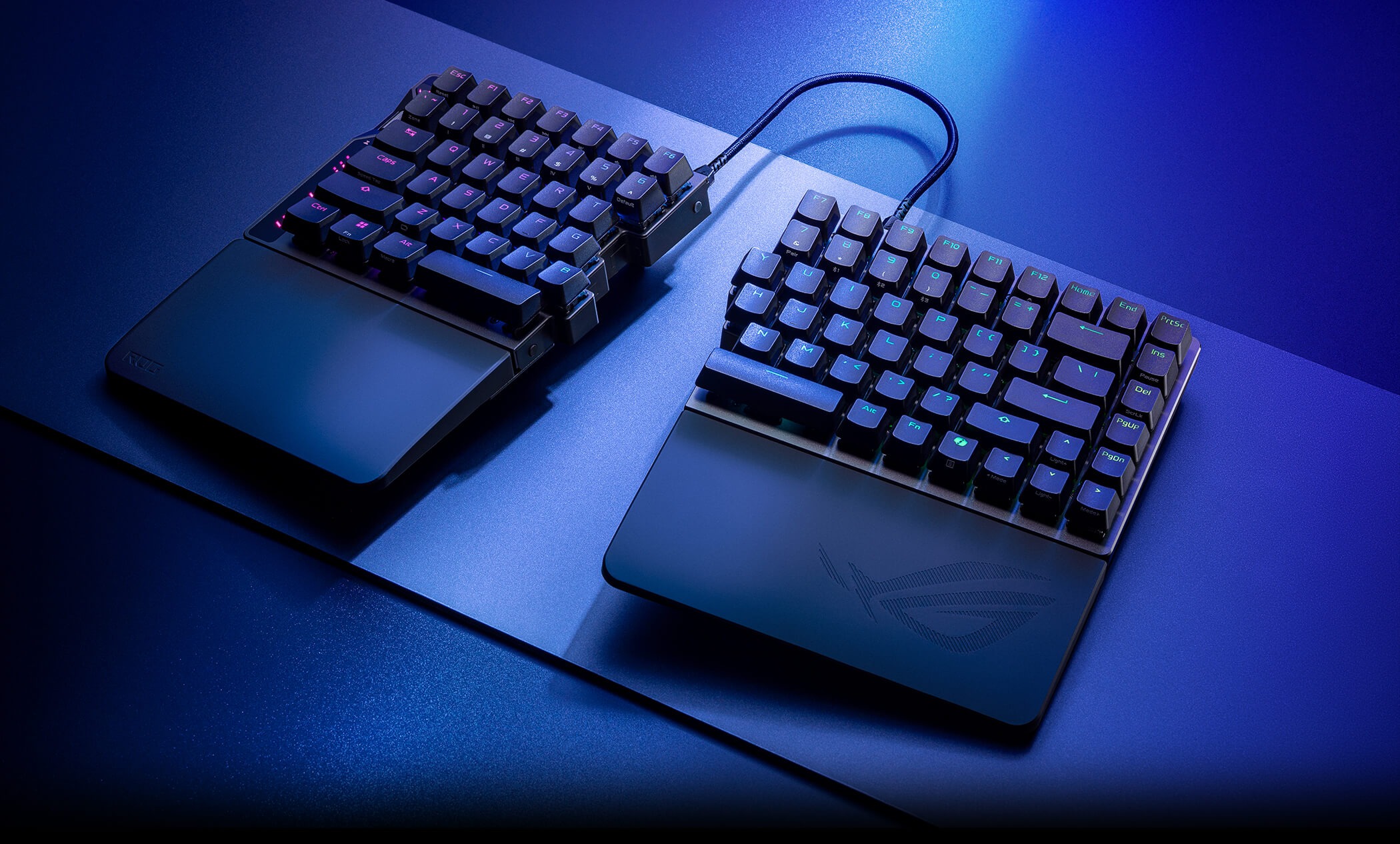

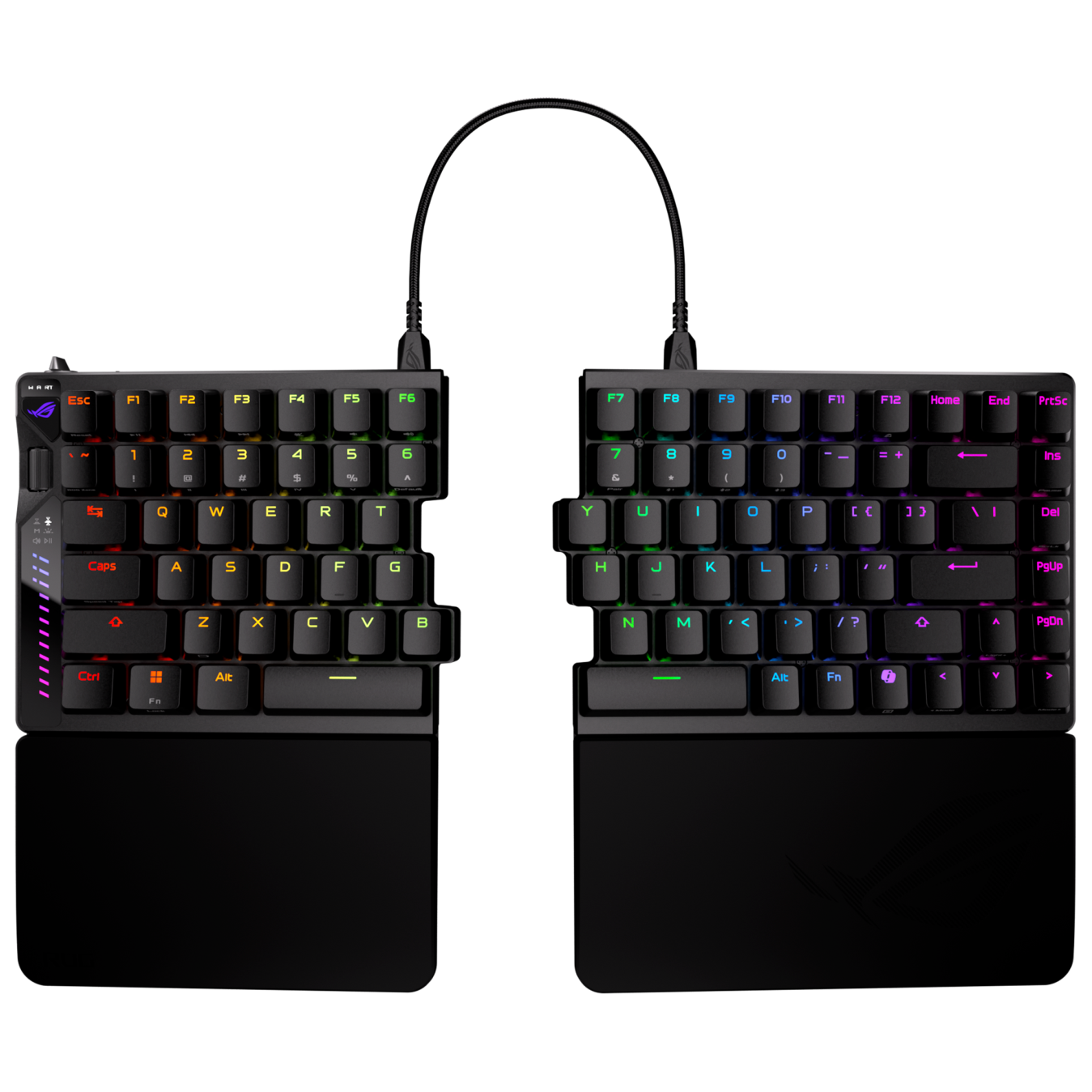

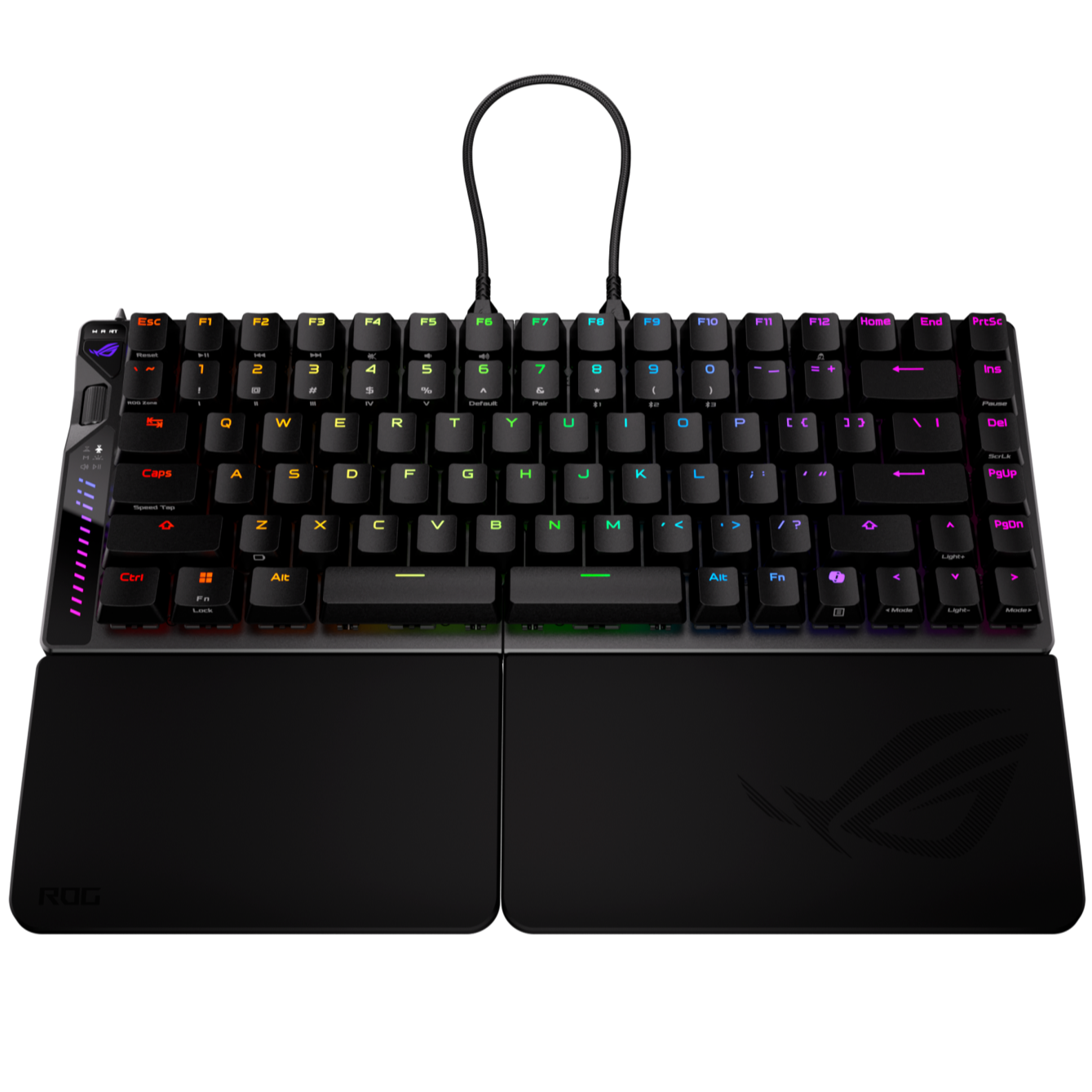

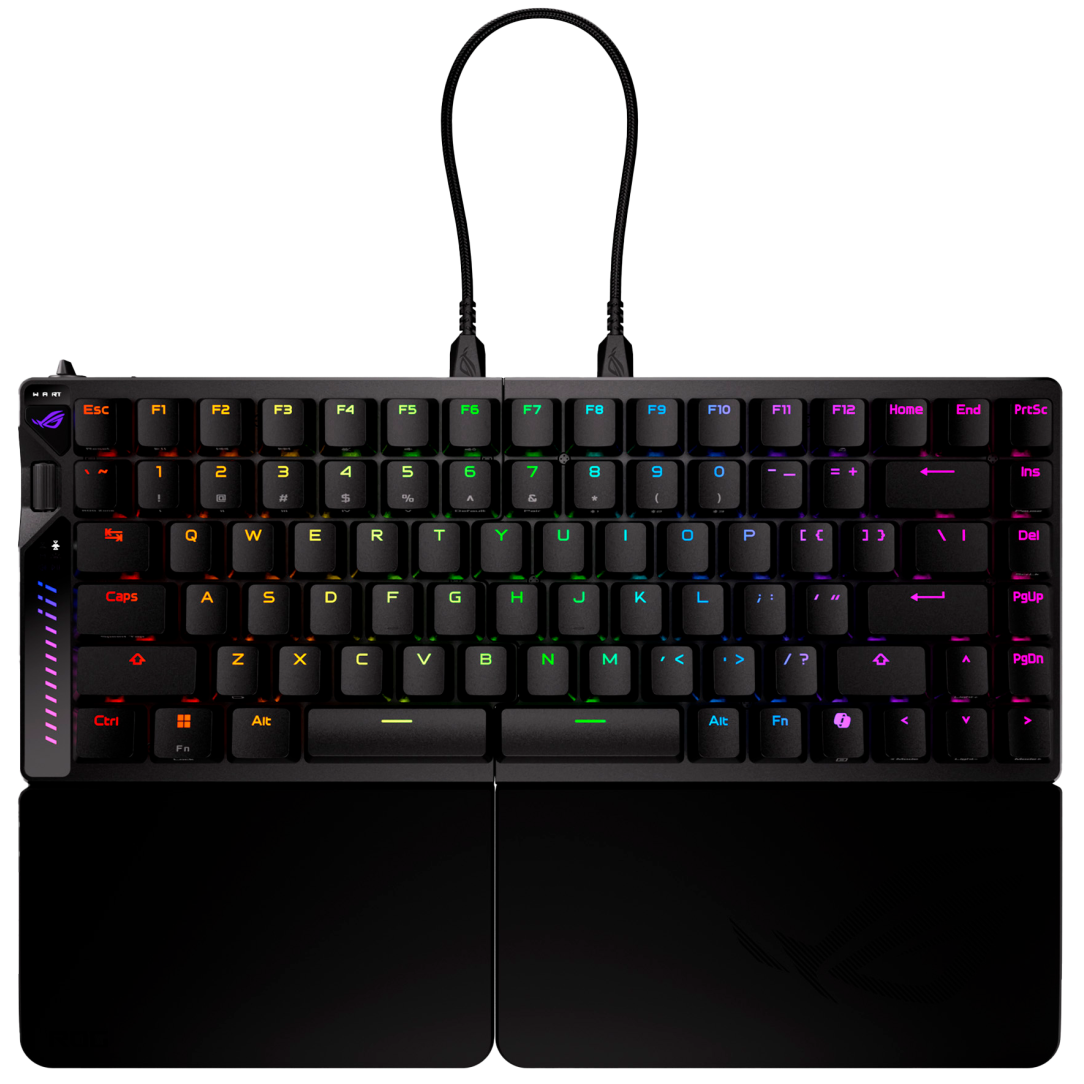

Compact 75% Split Design

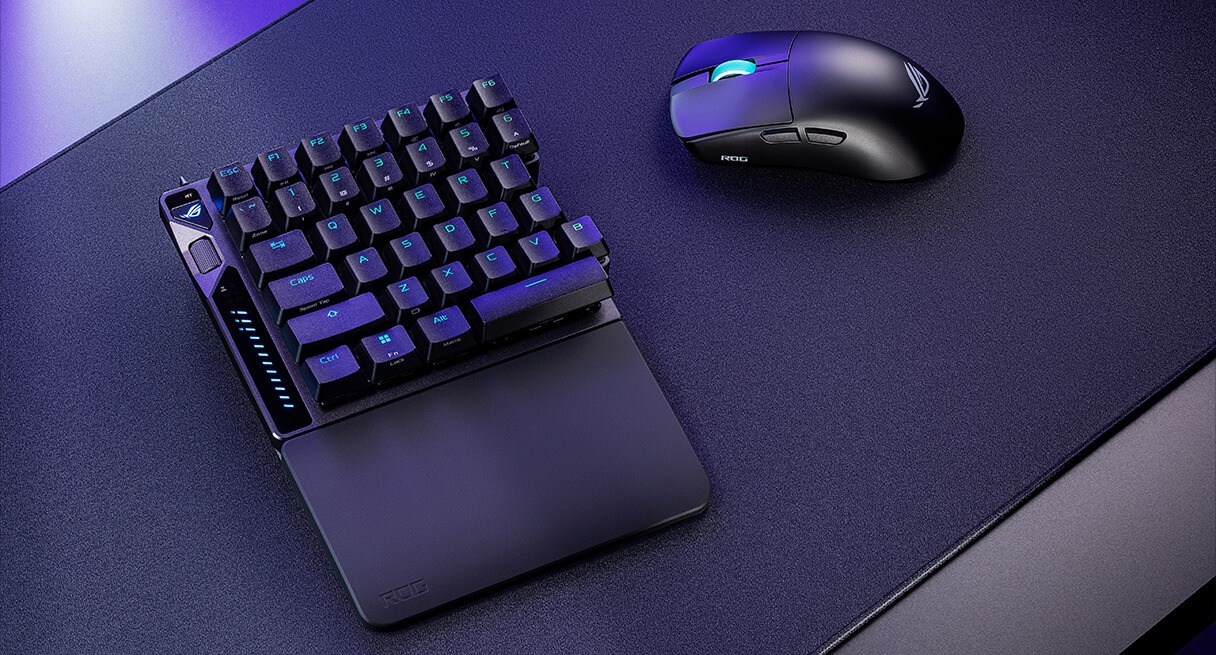

The 75% layout of the Falcata includes the essential arrow, function, and navigation keys while keeping overall dimensions compact. The unique split design allows users to detach the side of the right keyboard, retaining the left half when gaming. Compared to a 65% keyboard, the split design frees up even more space for mouse movement.

A bundled link cable is required to ensure stable connection and optimal performance. Using third-party cables may result in the keyboard not responding.

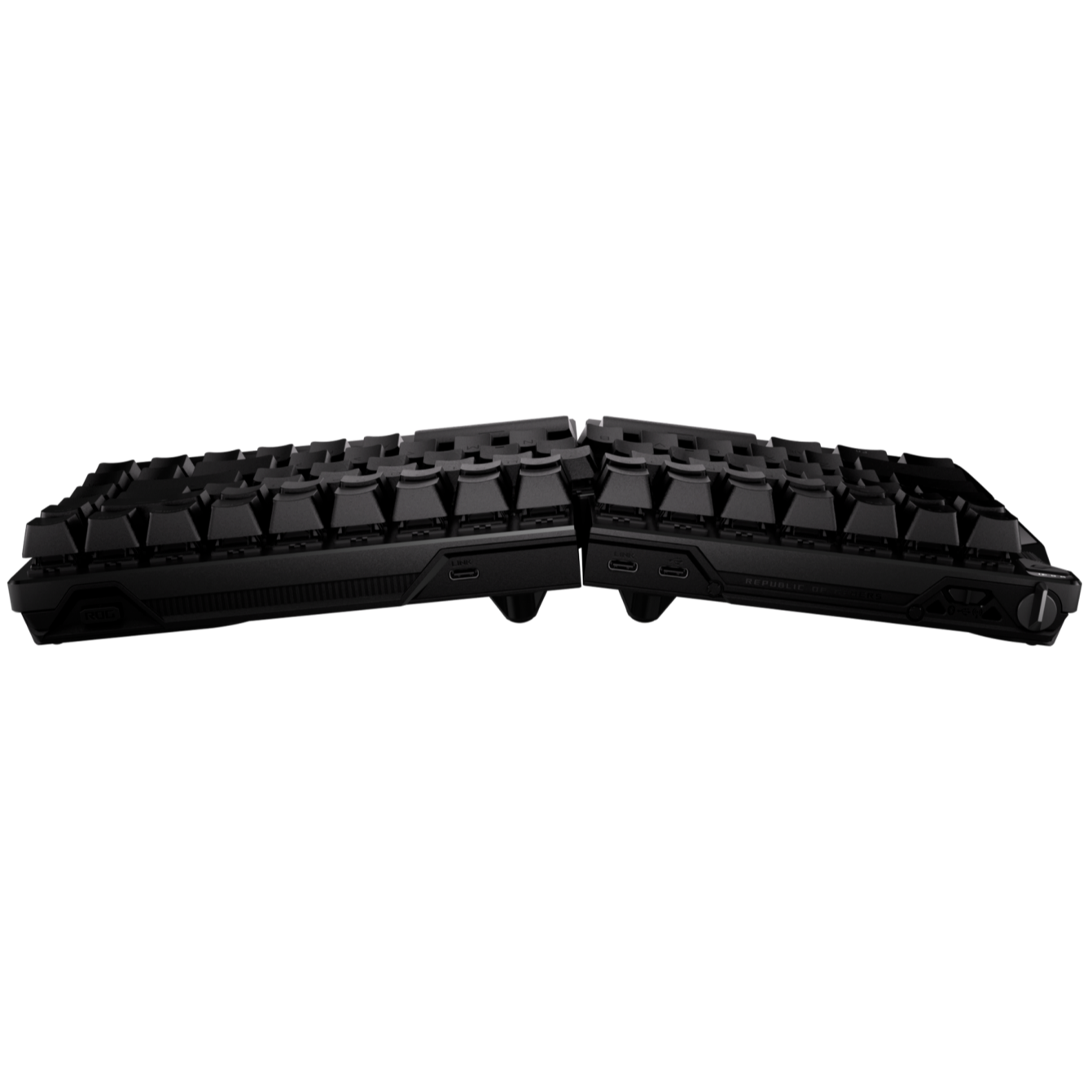

Angle Adjustment Tutorial
Below is a guide for adjusting the keyboard’s tilt configuration, covering both tenting and flat tilt to accommodate different ergonomic preferences and usage scenarios.

Wrist Rest Installation Tutorial
Use the included screws and allen wrench to securely attach the wrist rest to the keyboard. Below, the screw positions are highlighted in red for easy installation.

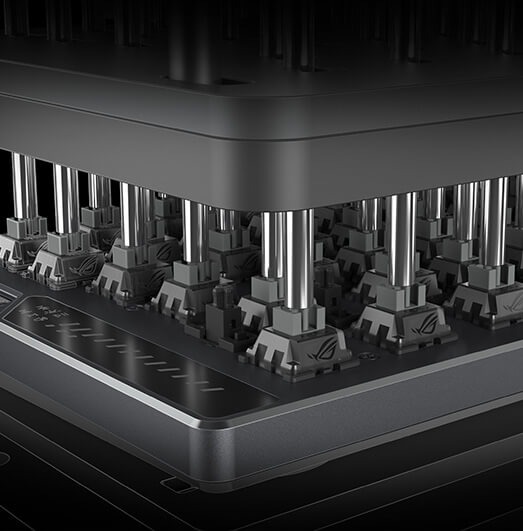

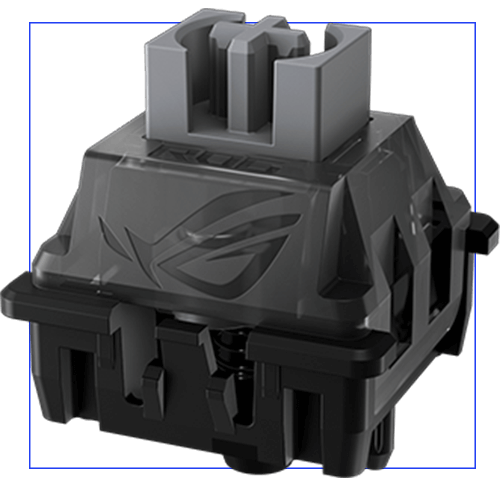

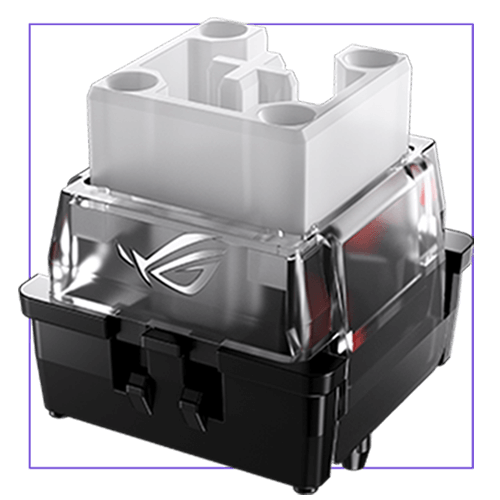

Hot-Swappable ROG HFX V2 & V2X Magnetic Switches

The upgraded ROG HFX V2 & V2X magnetic switches take precision and consistency to the extreme. With smoother travel, tighter magnetic control, and ultrafine adjustability, every keystroke feels unmistakably ROG.

Customizable Actuation Point

With the ROG Hall Sensor and HFX V2 Magnetic Switch, the 0.1–3.5 mm actuation range of the Falcata can be adjusted in precise 0.01 mm increments. The actuation point can be tweaked via the multi-function wheel or web-based Gear Link interface.

ROG Hall Effect Technology

Leveraging the increased magnetic flux tolerance of the HFX V2 Magnetic Switch, the IC is now directly mounted on the PCB, allowing it to be positioned closer to the magnet without being affected by board thickness. This further enhances magnetic sensing accuracy without affecting saturation.

Rapid Trigger

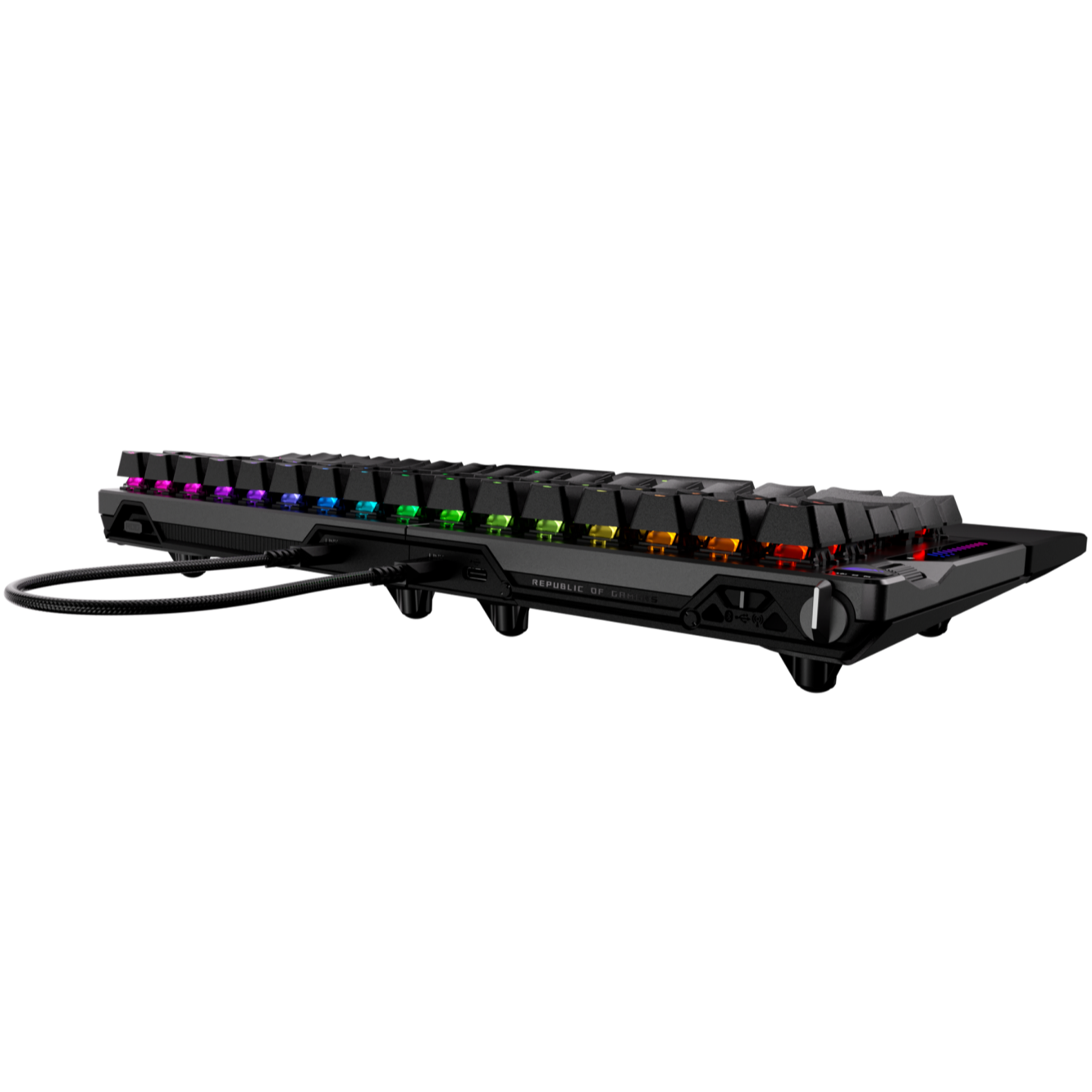

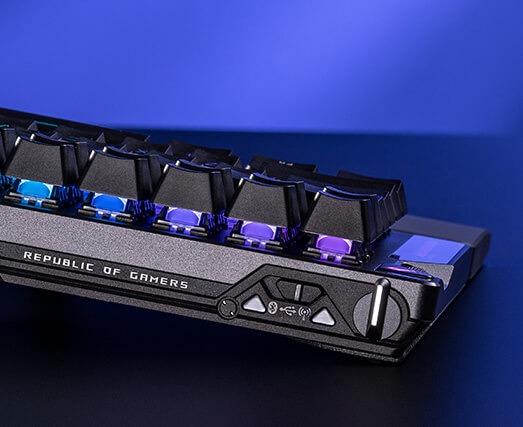

A dedicated toggle switch on the top-left rear panel of the Falcata activates the Rapid Trigger feature for the fastest typing response and key repeat rate. By default, only WASD keys are enabled when this feature is activated. Rapid Trigger for other keys can be enabled via Gear Link.

Traditional mechanical switches require a return to the reset point before the next click registers. With ROG HFX V2 Magnetic Switch and the Rapid Trigger feature, the switch resets instantly as it moves upward, delivering maximum counter-strafing potential with minimal effort.

Speed Tap Mode

In Speed Tap mode, as soon as the system detects the input of two keys (e.g., A + D) it will prioritize the last input and automatically release the previous one. This means that in FPS games, pressing two opposing directional keys will no longer cause the character to stop moving; instead, directional changes can now be done immediately without releasing the previous key, eliminating any time gap for counter-strafing and ensuring precise aim every time.

*Speed Tap feature is turned off by default. Simultaneously press Fn + Caps keys for 1 second to activate.

Intuitive Controls

The innovative multi-function button and wheel allow for easy adjustments to various settings, including Rapid Trigger sensitivity, keyboard actuation point, volume, media playback, lighting, and custom commands. Additionally, the LED sidebar showcases dynamic light effects that reflect these adjustments in real-time.

Superb Connectivity

Tri-mode connectivity allows the Falcata to connect to five devices simultaneously via ROG SpeedNova 8K wireless technology, Bluetooth®, or wired USB. Experience ultra-responsive performance with up to an 8000Hz polling rate in SpeedNova wireless or wired modes, resulting in input refresh rates that are up to 8X faster than most gaming keyboards and reducing delay from 1ms to 0.125ms for precise, real-time actions. Plus, SpeedNova wireless mode enables up to 200 hours of battery life*.

*Normal mode with RGB off.

Zone Mode

Zone Mode instantly activates the ultimate battle-ready keyboard setup. This mode unlocks peak competitive performance while disabling features like RGB lighting. Once enabled, gaming-critical keys are automatically set to an 8000 Hz polling rate by default, while lesser-used keys are reduced to 250Hz. The polling rate for each key can be further customized to user preferences.

*Simultaneously press Fn + ` keys to activate.

ROG PBT Doubleshot Keycaps

ROG PBT doubleshot keycaps provide a premium feel and offer long-lasting durability. Key design has been optimized with mid-height keycaps and a shorter stem to reduce key wobble, providing a more comfortable user experience.

* Keycap material may vary by region.

ROG UV-Coated ABS Keycaps

ROG UV-coated ABS keycaps utilize a layer of hard UV coating to provide superb abrasion resistance protection against keycap shining.

* Keycap material may vary by region.

ROG Keyboard Stabilizer

The pre-lubed keyboard stabilizer has been specially tuned with gamers in mind; it produces less friction, allowing long keys such as Spacebar, Shift and Enter to deliver keystrokes that stay true to the original switch feel.

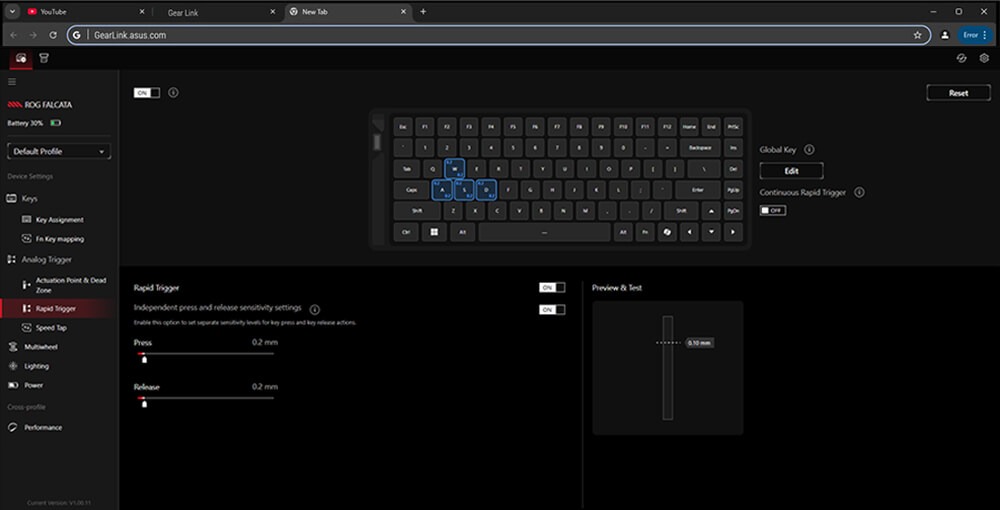

Settings Anywhere, anytime with Gear Link

Gear Link is a new web-based app that lets gamers customize keyboard settings without the need for additional file downloads or installation. Simply visit the Gear Link webpage, connect the device, and fine-tune settings – all from a browser.

Features

• Versatile split-keyboard design: Suits different gaming setups, allowing players to use the left keyboard module, freeing up space for their mousing hand
• Hot-swappable ROG HFX V2 Magnetic Switch: Refined keystrokes with customizable 0.1–3.5mm actuation and 0.01mm-step precise tuning
• New ROG Hall Sensor: Exceptional precision, accurate input detection, reduces electrical noise and interference, and increases magnetic flux limits for superior performance
• Intuitive control: Instantly adjust actuation point, Rapid Trigger sensitivity, volume, media, and keyboard lighting with the multi-function wheel and button
• Superb connectivity: ROG SpeedNova 8K wireless technology, wired USB, and Bluetooth connectivity supports up to five devices simultaneously; wired and wireless modes offer up to 8K polling rate
• Enhanced typing experiences: Integrated four-layer dampening absorbs pinging noises and offers a more cushioned typing feel
• Rapid Trigger toggle: Convenient switch for the fastest typing response and key repeat

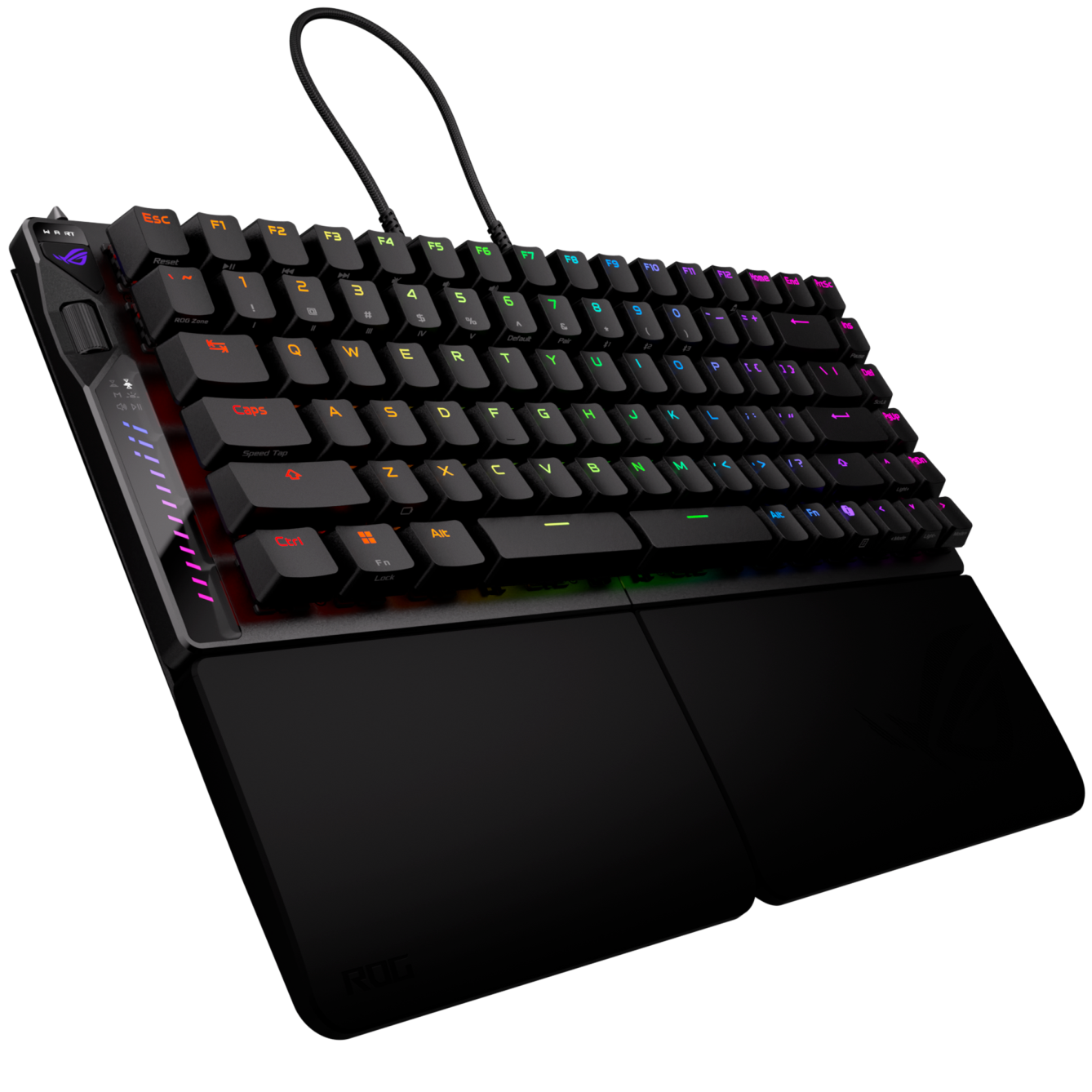

• Detachable silicone wrist rests: Two pads perfectly complement the keyboard’s unique tilt-incline angles for unparalleled comfort

Tech Specs

Model

• ROG Falcata Gaming Keyboard

Key Switch

• ROG HFX V2 Magnetic Switch

Connectivity

• USB 2.0 (TypeC to TypeA)
• RF 2.4GHz
• Bluetooth 5

Lighting

• RGB Per keys

AURA Sync

• Yes

Anti-Ghosting

• N Key Rollover

Macro Keys

• All Keys Programmable

USB Report rate

• (USB Report rate)
  8000 Hz

RF 2.4G Report rate

• 8000 Hz

Profile Hot Keys

• Fn + 1, 2, 3, 4, 5, 6 (Default)

Lighting Effects Hot Keys

• Fn + Arrow Key (Left, Right)

Brightness Setting Hot Keys

• Fn + Arrow Key (Up, Down)

Clear On-Board Memory Hot Keys

• Fn + Esc

Macro Hot Keys

• Fn + L-Alt

Media Hot Keys

• Fn + F5 – F11

Cable

• 1 x USB type C to C braided cable,2 x Type C to C link cable. *For optimal signal transmission and safety, please make sure to use the bundled link cable to connect both sides of the keyboard. The keyboard will not function as intended if a third-party Type-C® cable is used to connect both sides of the keyboard.

OS

• Windows® 11

Software

• Armoury Crate

Dimensions

• 327mm x 127mm x 38mm (without wrist rests)

Weight

• 968g (without cable and wrist rests)

Color

• Black

Contents

• 1 x ROG Falcata,2 x Wrist rest
• 8 x Keyboard feet
• 1 x Keycap puller
• 1 x USB cable
• 2 x Link cable
• 6 x Screw
• 1 x Extender
• 1 x USB-C to A adapter
• 1 x Allen Wrench
• 1 x ROG sticker
• 1 x Ctrl keycap
• 1 x Quick start guide
• 1 x Warranty booklet.
