ASUS M605 ROG Falchion Ace HFX / US / PBT Gaming Keyboard

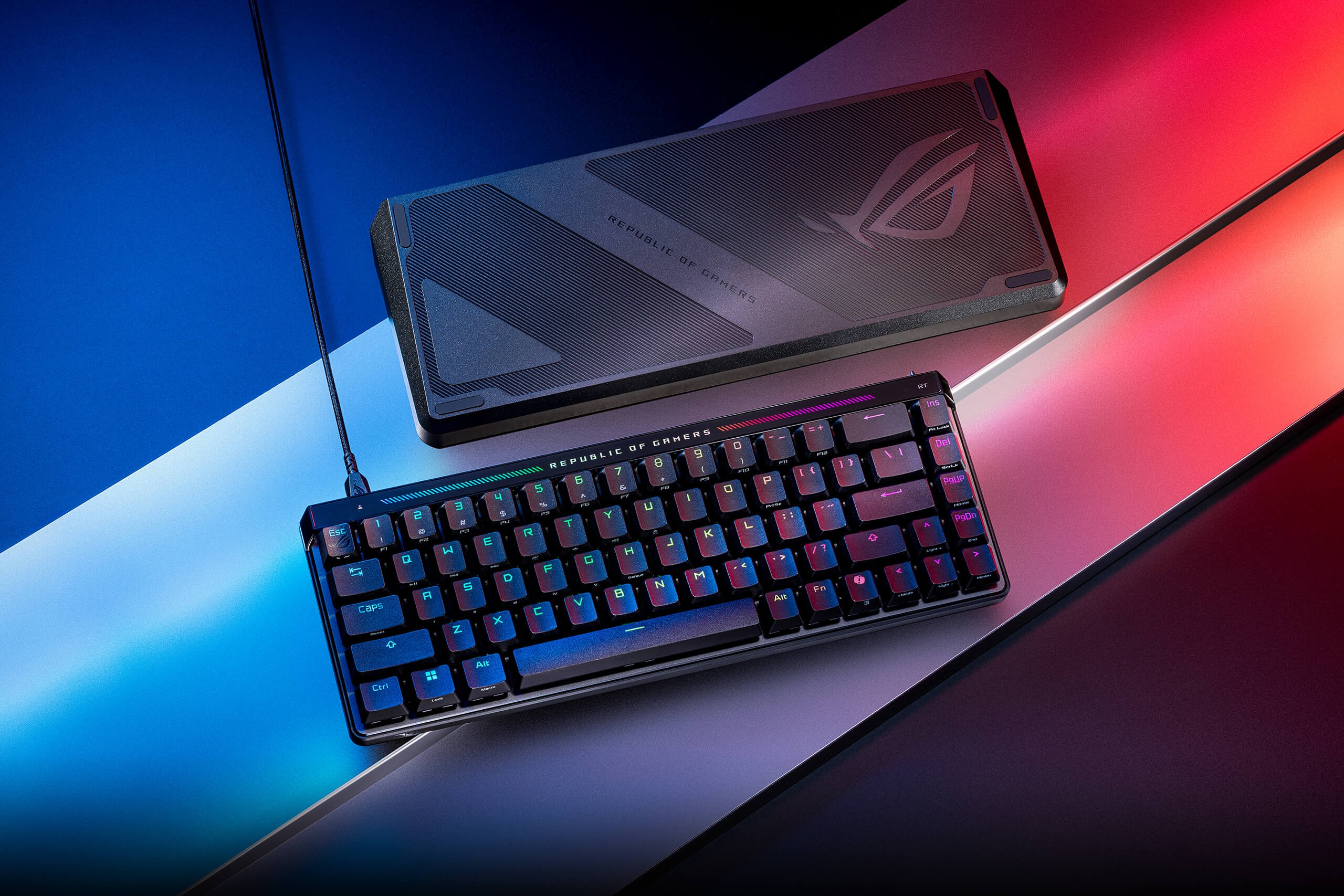

ROG Falchion Ace HFX 65% analog gaming keyboard with pre-lubed ROG HFX Magnetic Switches, Rapid Trigger toggle, Speed Tap Mode, interactive touch panel, 8000 Hz polling rate, five-layer dampening and silicone gasket mount, dual Type-C ports, three tilt angles, and cover case

Compact & Swift

The ROG Falchion Ace HFX is a compact 65% analog gaming keyboard that features the ROG HFX Magnetic Switches with a customizable actuation range of 0.1 – 4.0 mm, along with a dedicated Rapid Trigger toggle for the fastest typing response. An 8000 Hz polling rate ensures ultra-responsive performance, making the Falchion Ace HFX considerably faster than competitor keyboards. Five-layer dampening and a silicone gasket mount absorb pinging noises and vibrations, delivering a superior typing experience. A multifunction button and interactive touch panel enable intuitive adjustments to actuation points, along with effortless control over media playback, volume, and keyboard lighting. Dual USB-C® ports on the left and right rear of the keyboard offer flexible connectivity, with a quick-toggle to seamlessly switch between two PCs.

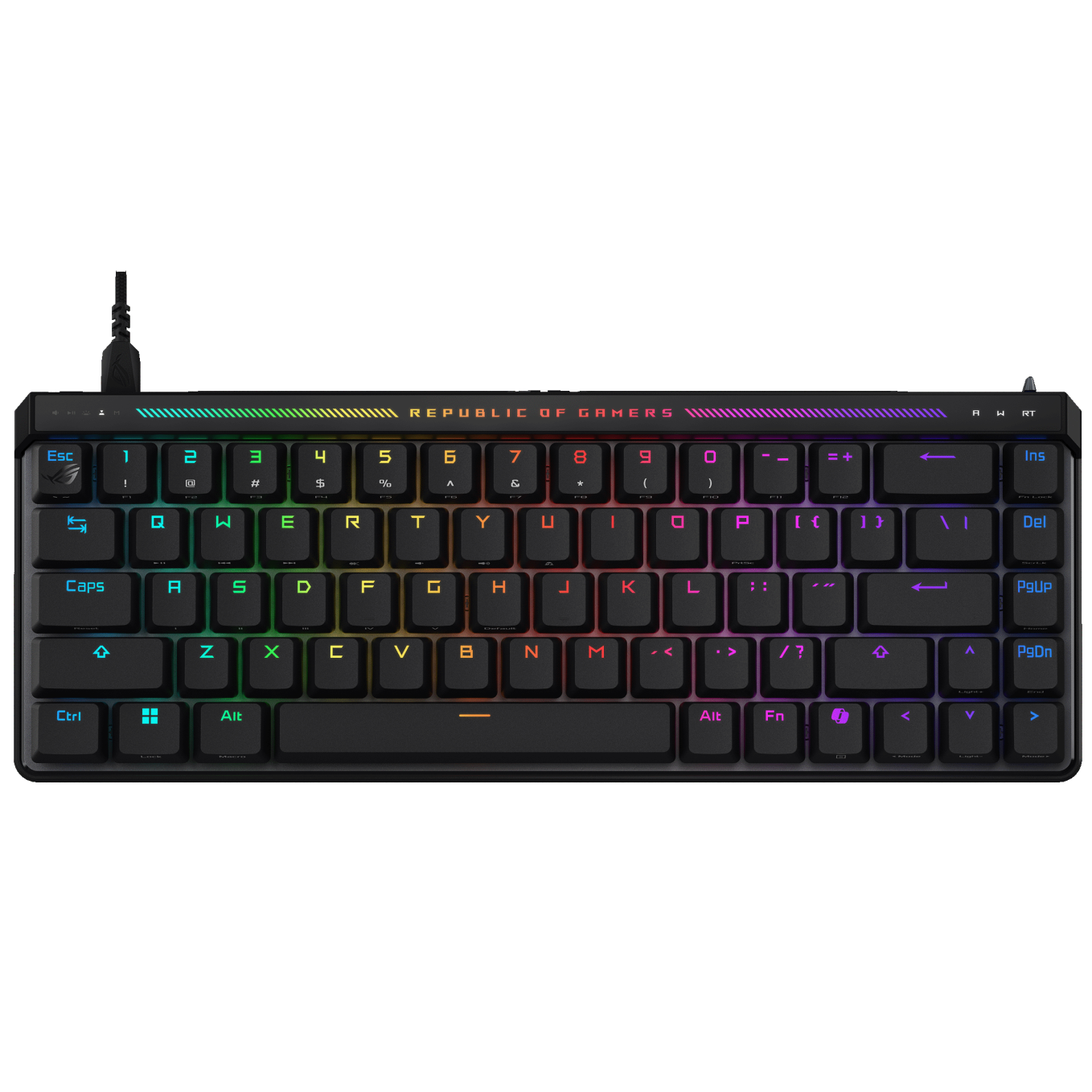

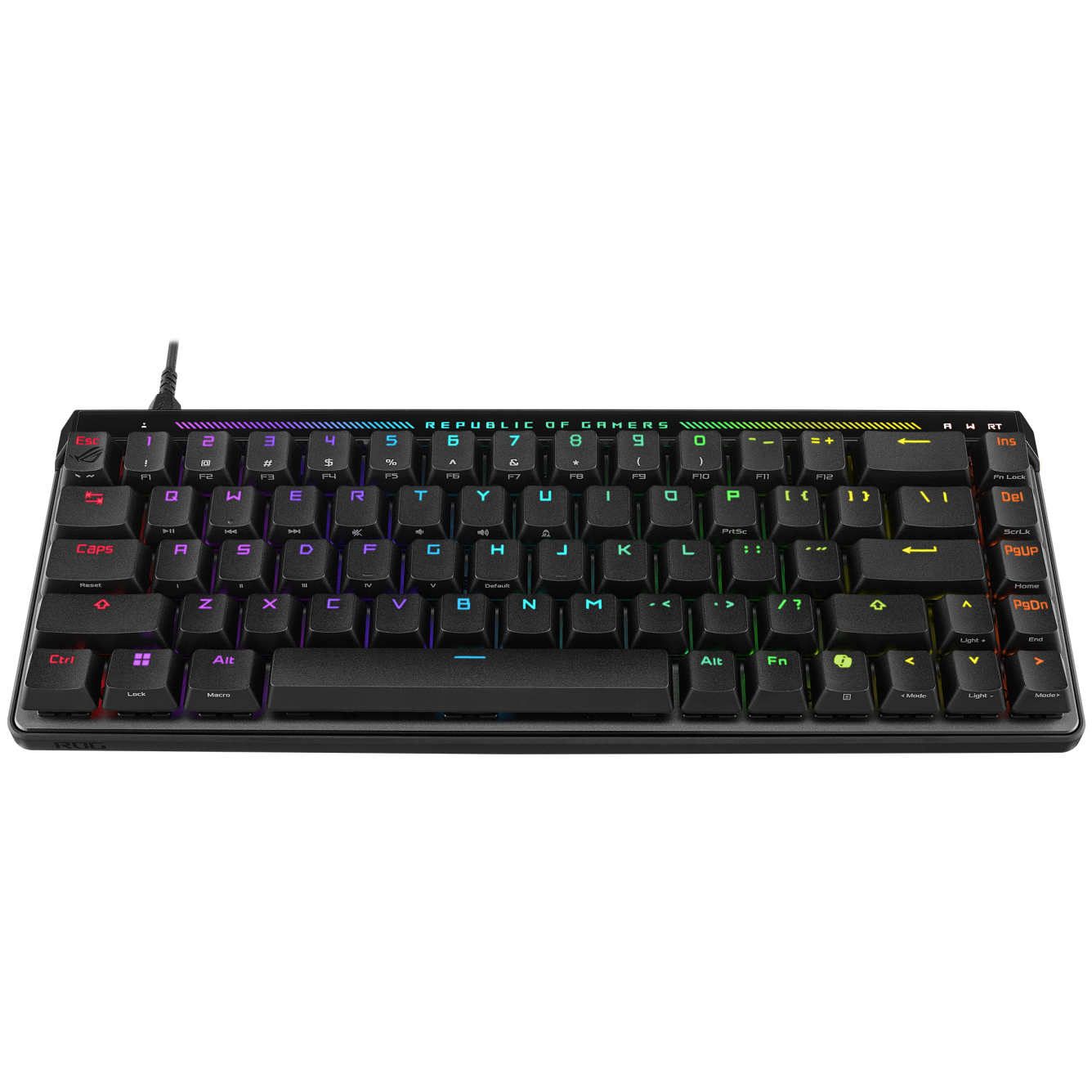

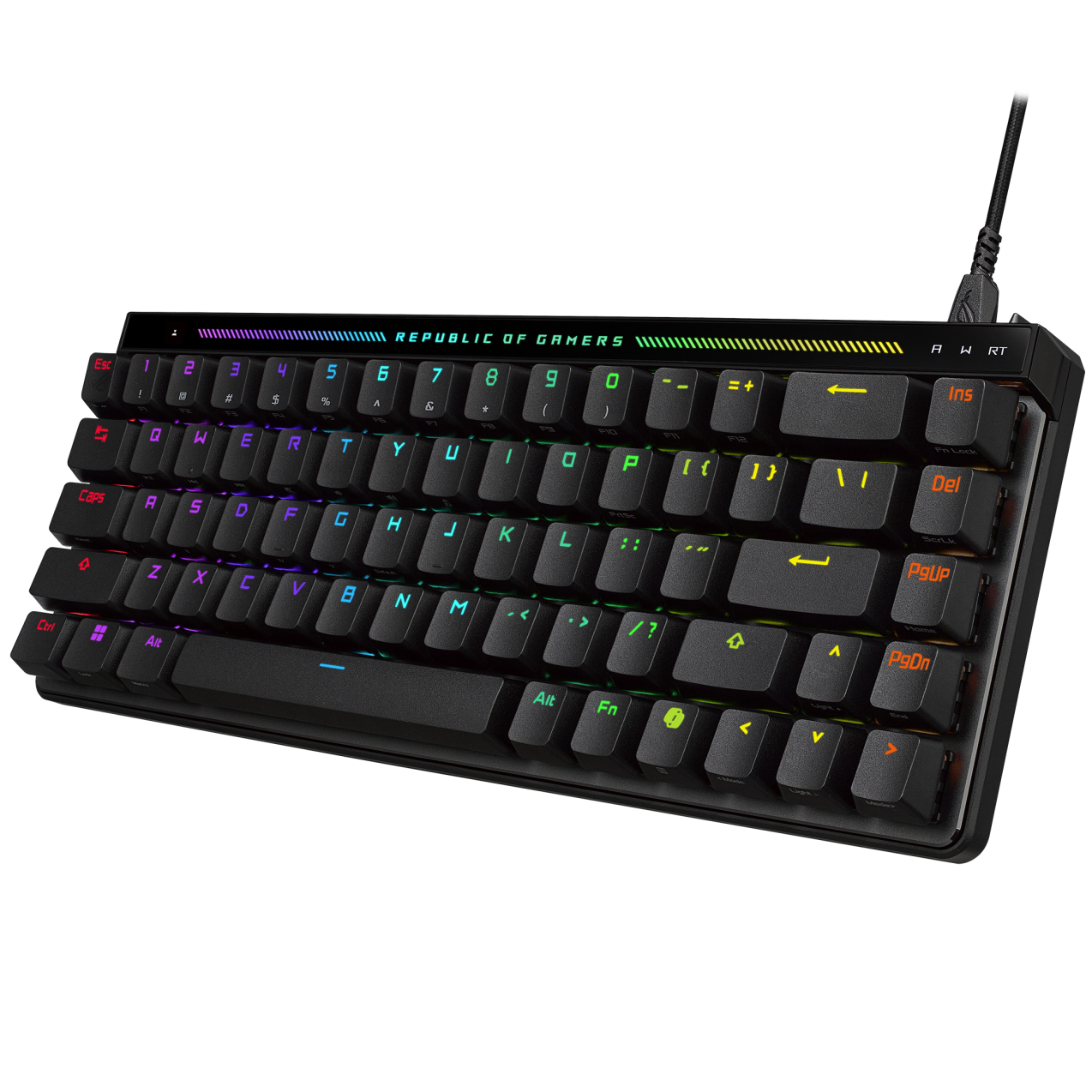

Compact 65% Form Factor

The ROG Falchion Ace HFX masterfully incorporates arrow and navigation keys into a 65% keyboard layout. In fact, at just 315 mm in length, it’s almost the same size as a 60% keyboard. Enjoy all of the functions of a normal keyboard while saving desktop space.

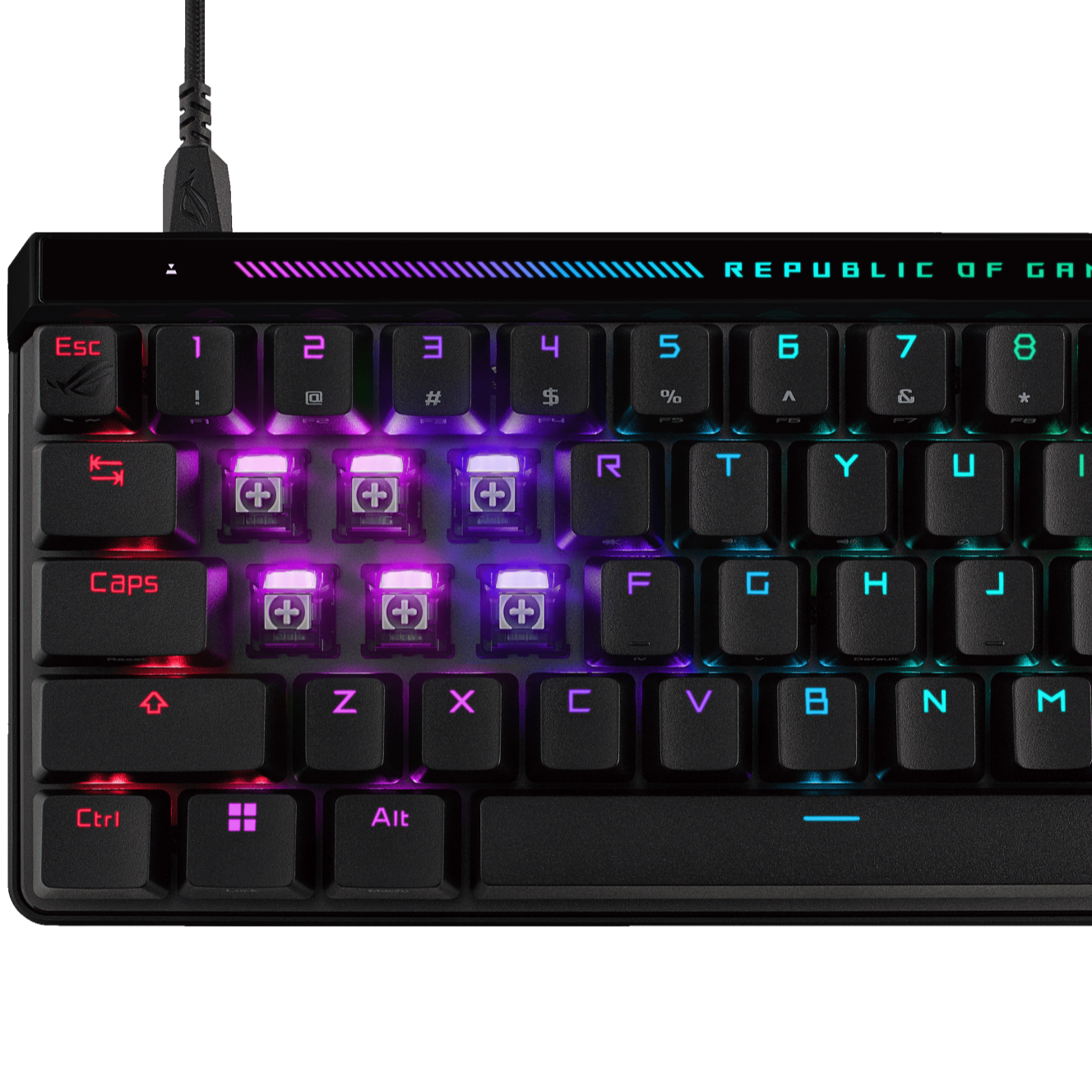

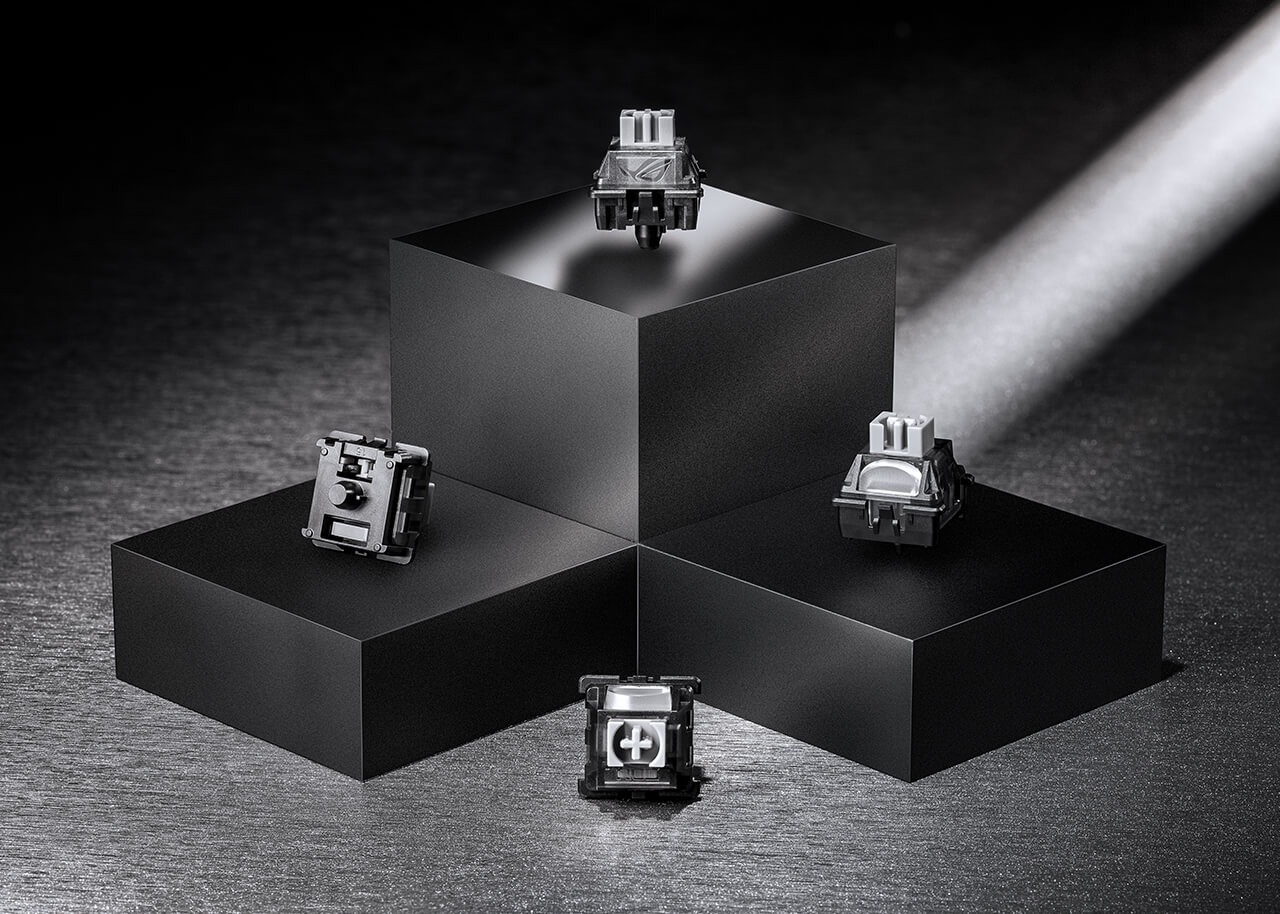

ROG HFX Magnetic Switches

ROG’s latest pre-lubed magnetic switches are engineered for a solid feel with lightning-fast, ultraprecise performance and a lifespan of 100 million keypresses.

*Please keep ROG Falchion Ace HFX away from magnetic objects when in use. If any issues arise, remove the magnetic items and reconnect the keyboard.

4.0 mm
Travel Distance
40 gf
Initial Force
55 gf
Total Force

Customizable Actuation Point

The ROG HFX Magnetic Switches offer an adjustable actuation range from 0.1 to 4.0 mm to cater to all typing preferences. Tweaking the actuation point can be done via the multi-function button and touch panel, or through Armoury Crate software.

Rapid Trigger

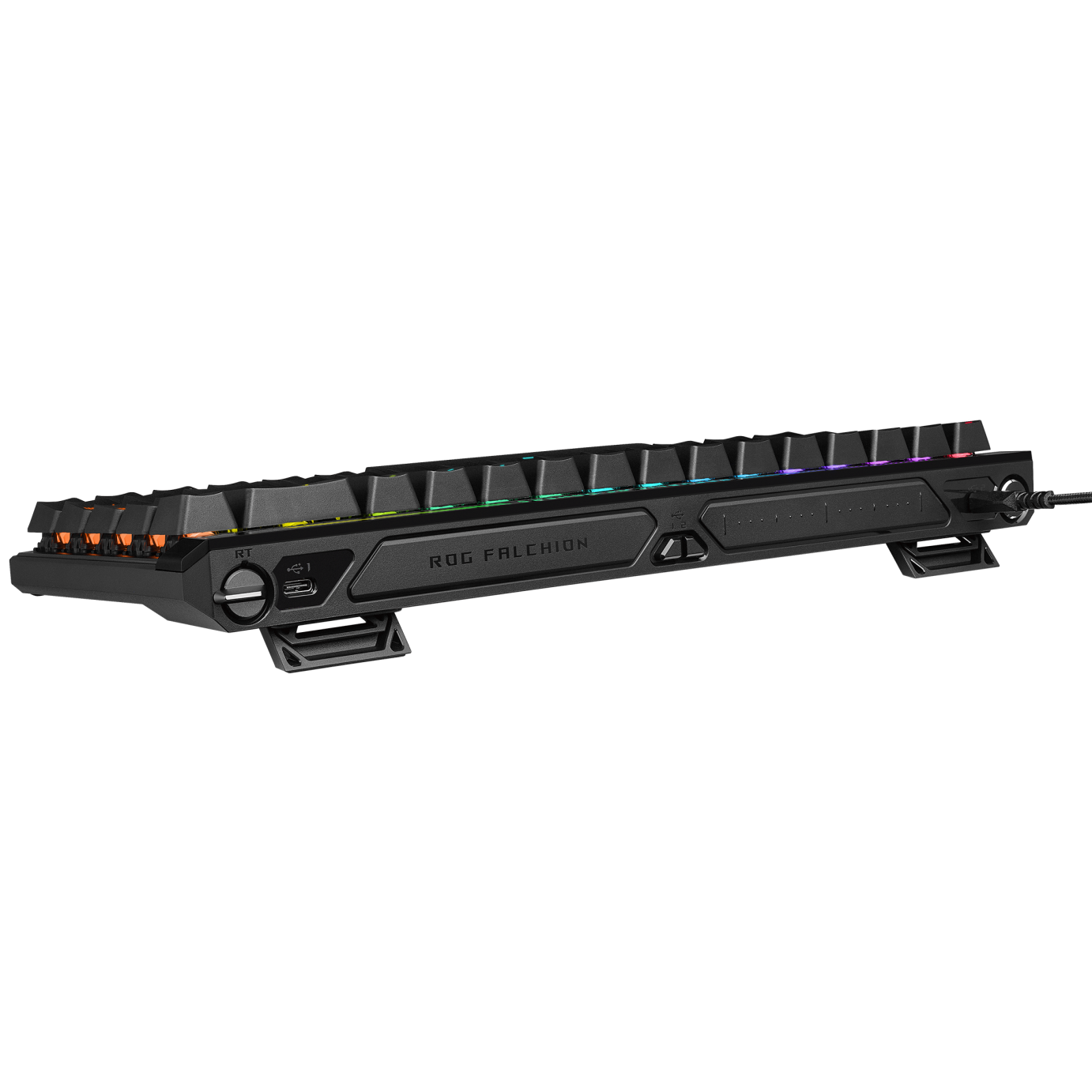

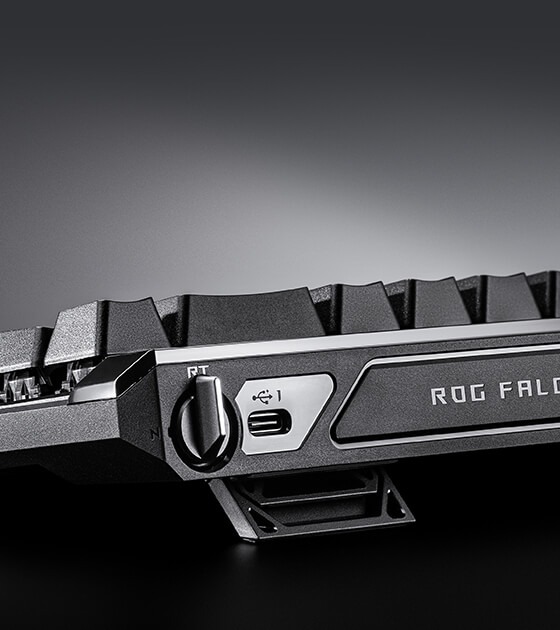

A dedicated toggle switch on the top-right rear panel of the ROG Falchion Ace HFX activates the Rapid Trigger feature for the fastest typing response and key repeat rate. By default, only WASD keys are enabled when this feature is activated. Rapid Trigger for other keys can be enabled via Armoury Crate.

Traditional mechanical switches require a return to the reset point before the next click registers. With ROG HFX Magnetic Switches and the Rapid Trigger feature, the switch resets instantly as it moves upward, delivering maximum counter-strafing potential with minimal effort.

Speed Tap Mode

In Speed Tap (SOCD*) mode, as soon as the system detects the input of two keys (e.g. A and D), it will prioritize the last input and automatically release the previous one. This means that in FPS games, pressing two opposing directional keys will no longer cause the character to stop moving. Instead, directional changes can now be done immediately without releasing the previous key, eliminating any time gap for counter-strafing and ensuring precise aim every time.

*Speed Tap feature is turned off by default. Simultaneously press Fn + Tab keys to activate.
*SOCD – Simultaneous Opposing Cardinal Directions

8000 Hz Polling Rate

A high-speed USB microcontroller delivers an 8000 Hz polling rate that refreshes input up to 8X faster than most gaming keyboards, reducing delay from 1 millisecond to a mere 0.125 ms.

*Polling rate is how often the keyboard reports to your computer. The faster the polling rate, the quicker the response time of each keypress. Gaming keyboards typically have a top polling rate of 1000 Hz. An 8000 Hz polling rate means the keyboard reports 8000 times per second, which eliminates input lag.

Intuitive Controls

A multi-function button and an interactive touch panel lets you tweak a variety of settings, including volume, media playback, keyboard lighting, and actuation point, as well as customizing commands. Additionally, the LED lighting bar on top of the keyboard displays dynamic lighting effects to reflect adjustments in real-time.

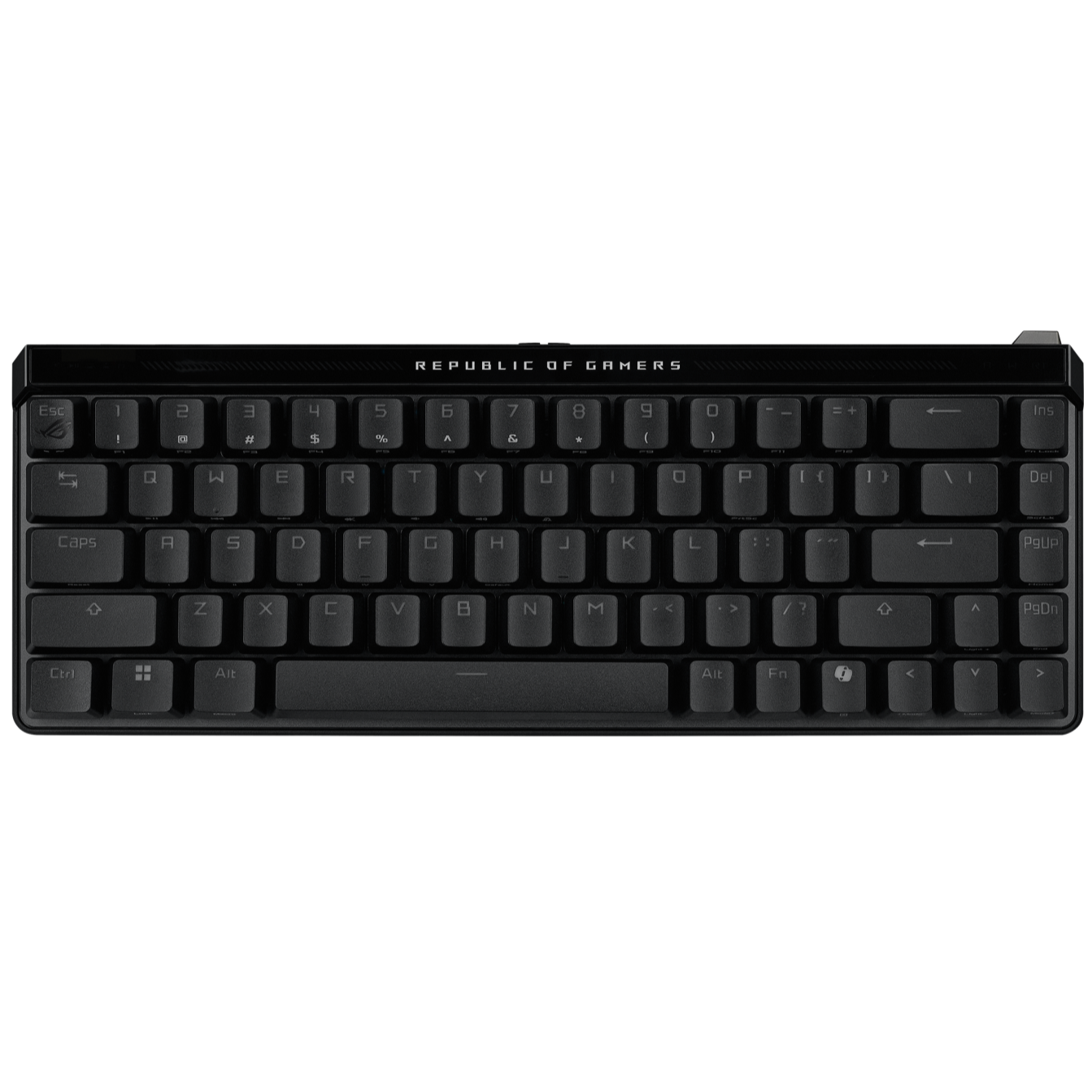

ROG PBT Doubleshot Keycaps

ROG PBT doubleshot keycaps provide a premium feel and offer long-lasting durability. Key design has been optimized with mid-height keycaps and a shorter stem to reduce key wobble, providing a more comfortable user experience.

ROG UV-Coated ABS Keycaps

ROG UV-coated ABS keycaps utilize a layer of hard UV coating to provide superb abrasion resistance protection against keycap shining.

*Keycap material may vary by region.

ROG Keyboard Stabilizer

The pre-lubed keyboard stabilizer has been specially tuned with gamers in mind; it produces less friction, allowing long keys such as Spacebar, Shift and Enter to deliver keystrokes that stay true to the original switch feel.

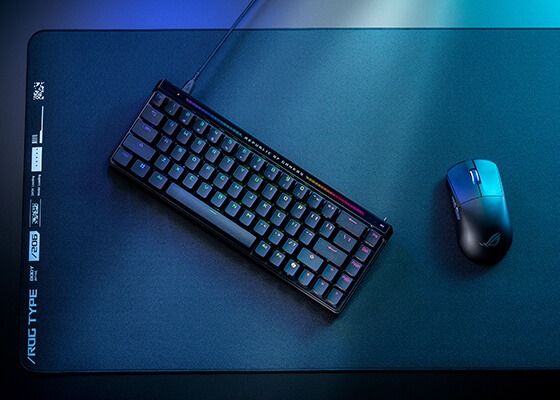

Aura Sync

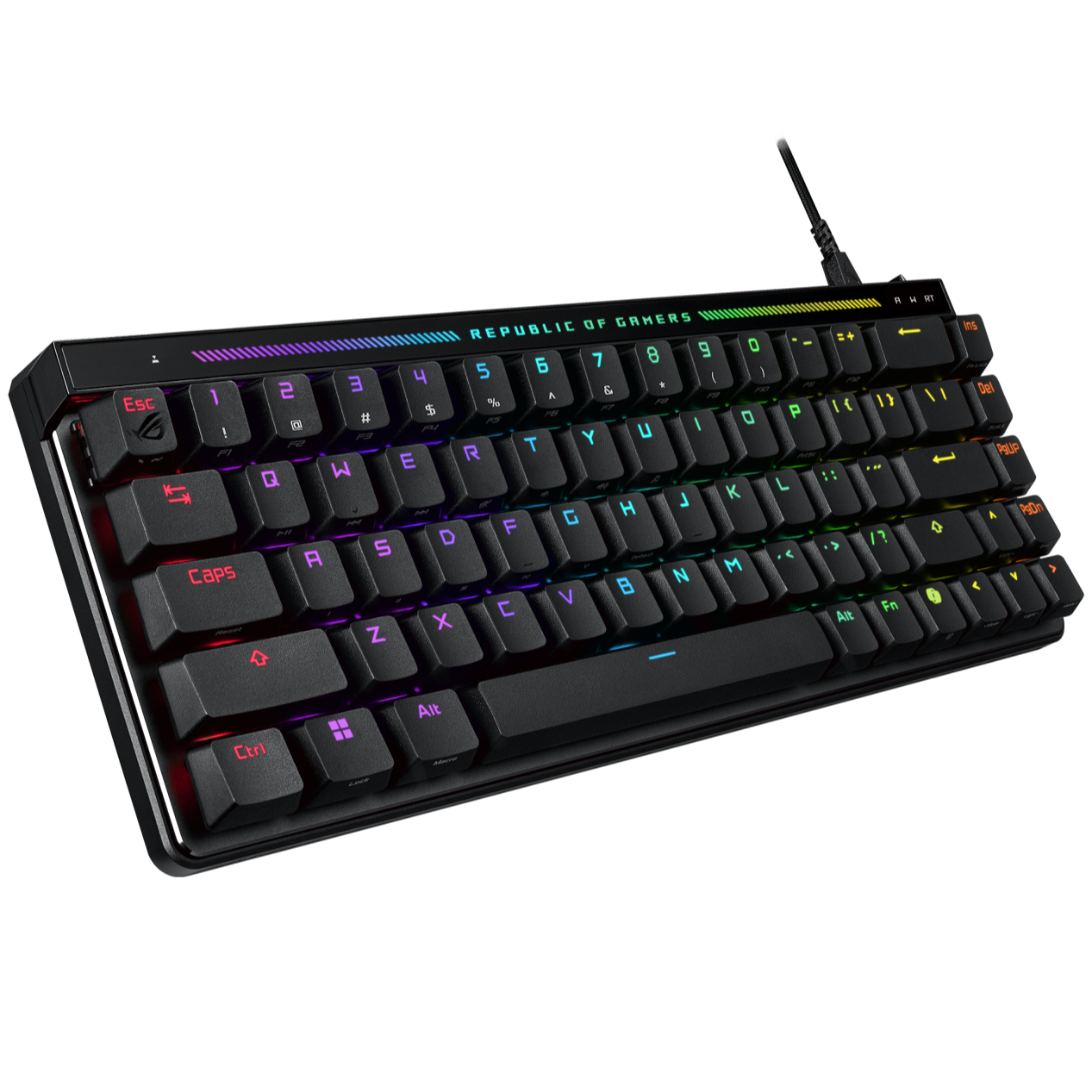

With Aura Sync RGB, the entire color spectrum and a range of dynamic lighting effects are at your command. Individually lit keys allow you to create a keyboard that’s uniquely yours.

Armoury Crate

Armoury Crate unifies system and lighting controls. Easily create, define and customize scenario profiles, map keys, and record macros. You can also enjoy analog customization features, such as Dynamic Keystroke (DKS), Mod Tap (MT), and analog lighting effects.

Features

• ROG HFX Magnetic Switches: Deliver a solid feel and customizable 0.1 – 4.0 mm actuation for instant keystrokes
• Rapid Trigger toggle: Convenient switch for fastest typing response and key repeat
• Speed Tap Mode: Achieve instant directional changes and eliminate time gaps by prioritizing the latest input without releasing the previous key
• 8000 Hz polling rate: Provides a 0.125 ms response time — up to 8X faster than competitor keyboards
• Enhanced typing experiences: Integrated five-layer dampening and silicone gasket mount absorb pinging noises and offer a more cushioned typing feel
• Intuitive control: Set actuation point, play/pause media, adjust volume and keyboard lighting with the multi-function button and interactive touch panel

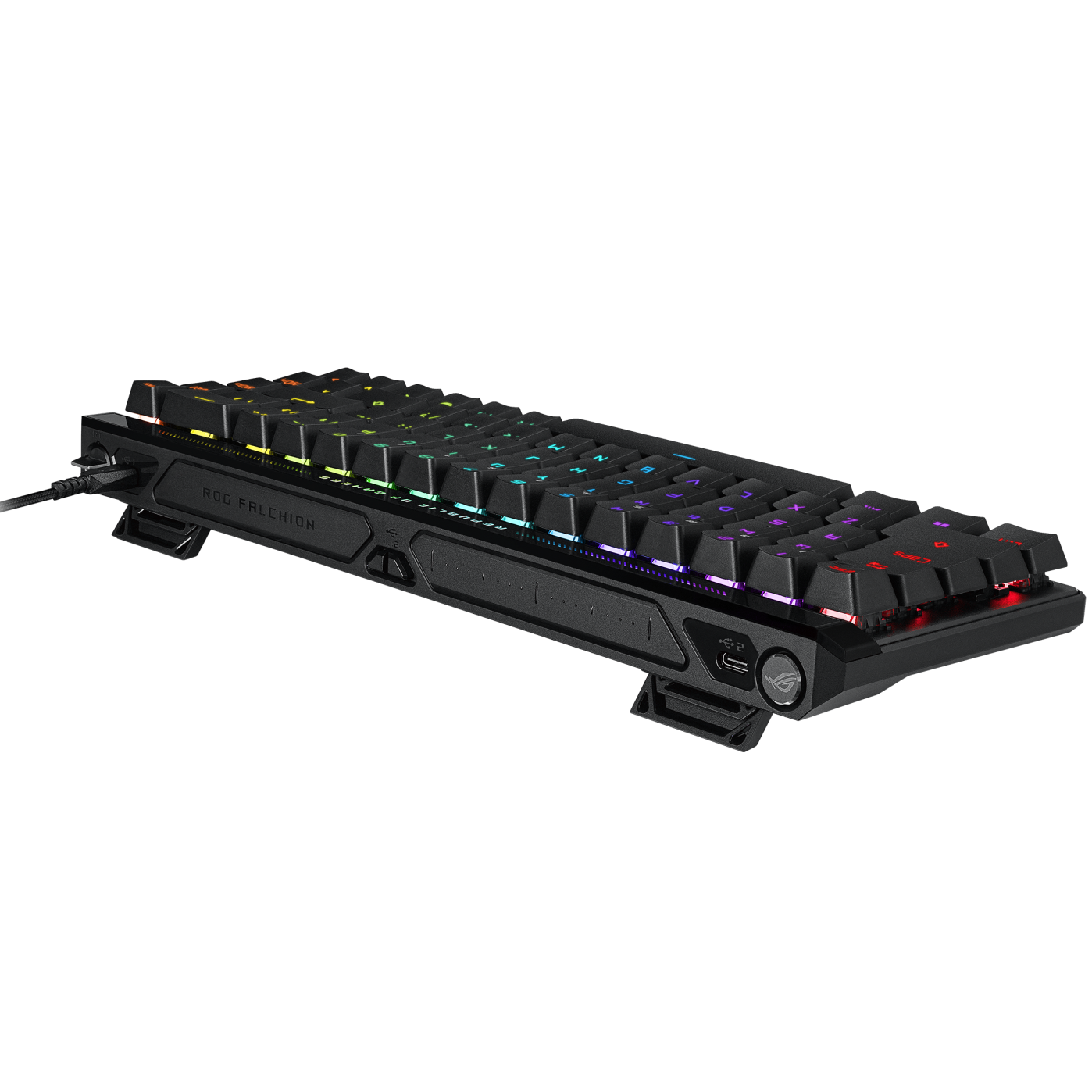

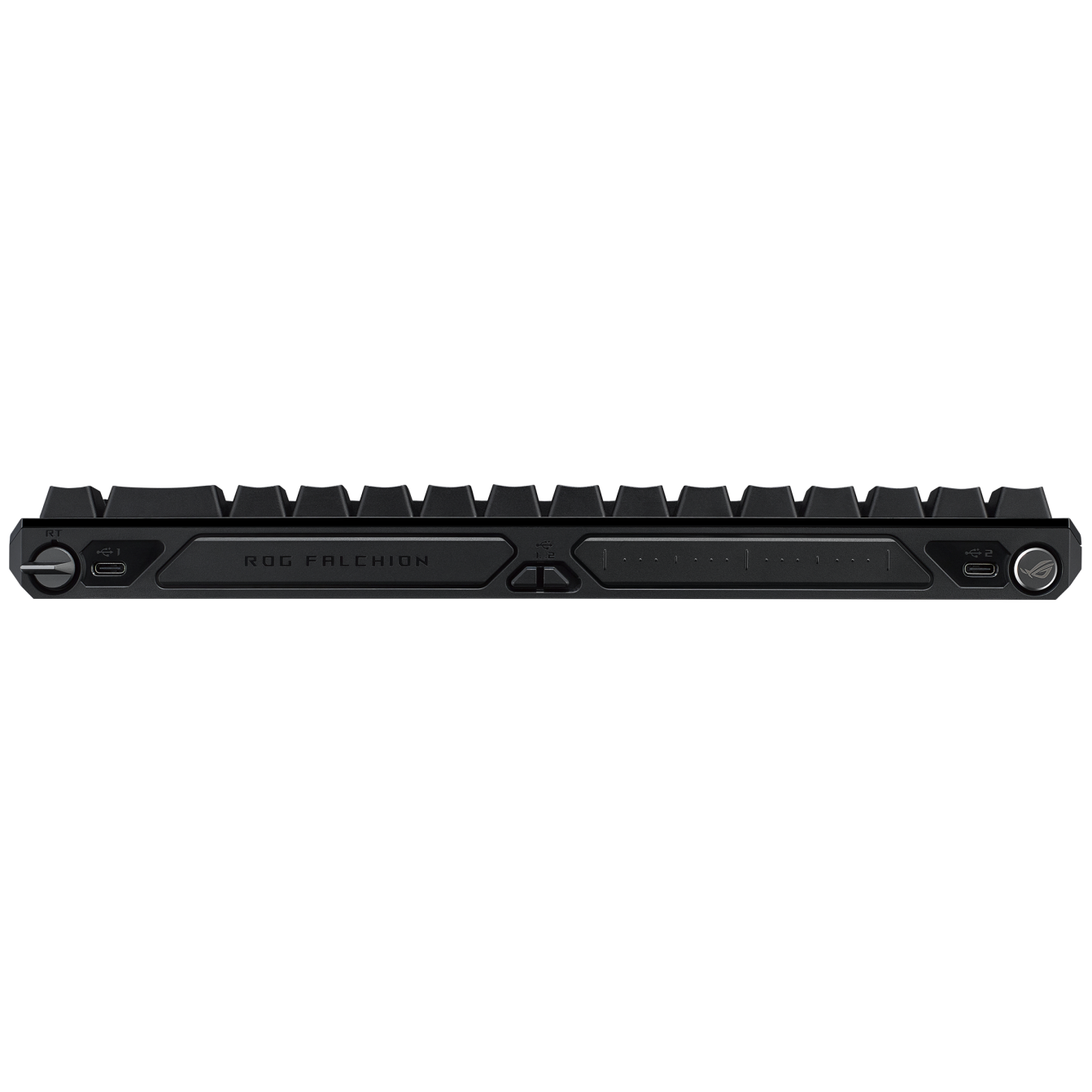

• Dual USB-C®: Flexible port placement for a neater setup, and enable users to quick-toggle switch between two PCs

Tech Specs

Model

• ROG Falchion Ace HFX Gaming Keyboard

Key Switch

• ROG HFX Magnetic Switch

Connectivity

• USB 2.0 (TypeC to TypeA)

Lighting

• RGB Per keys

AURA Sync

• Yes

Anti-Ghosting

• N Key Rollover

Macro Keys

• All Keys Programmable

USB Report rate

• 8000 Hz

Profile Hot Keys

• Fn + A, S, D, F, G, H (Default)

Lighting Effects Hot Keys

• Fn + Arrow Key (Left, Right)

Brightness Setting Hot Keys

• Fn + Arrow Key (Up, Down)

Macro Hot Keys

• Fn + L-Alt

Cable

• USB type A to C braided cable

OS

• Windows® 11

Software

• Armoury Crate

Dimensions

• 315 x 115 x 35 mm

Weight

• 643g without cable

Color

• Black

Contents

• 1 x ROG Falchion Ace HFX

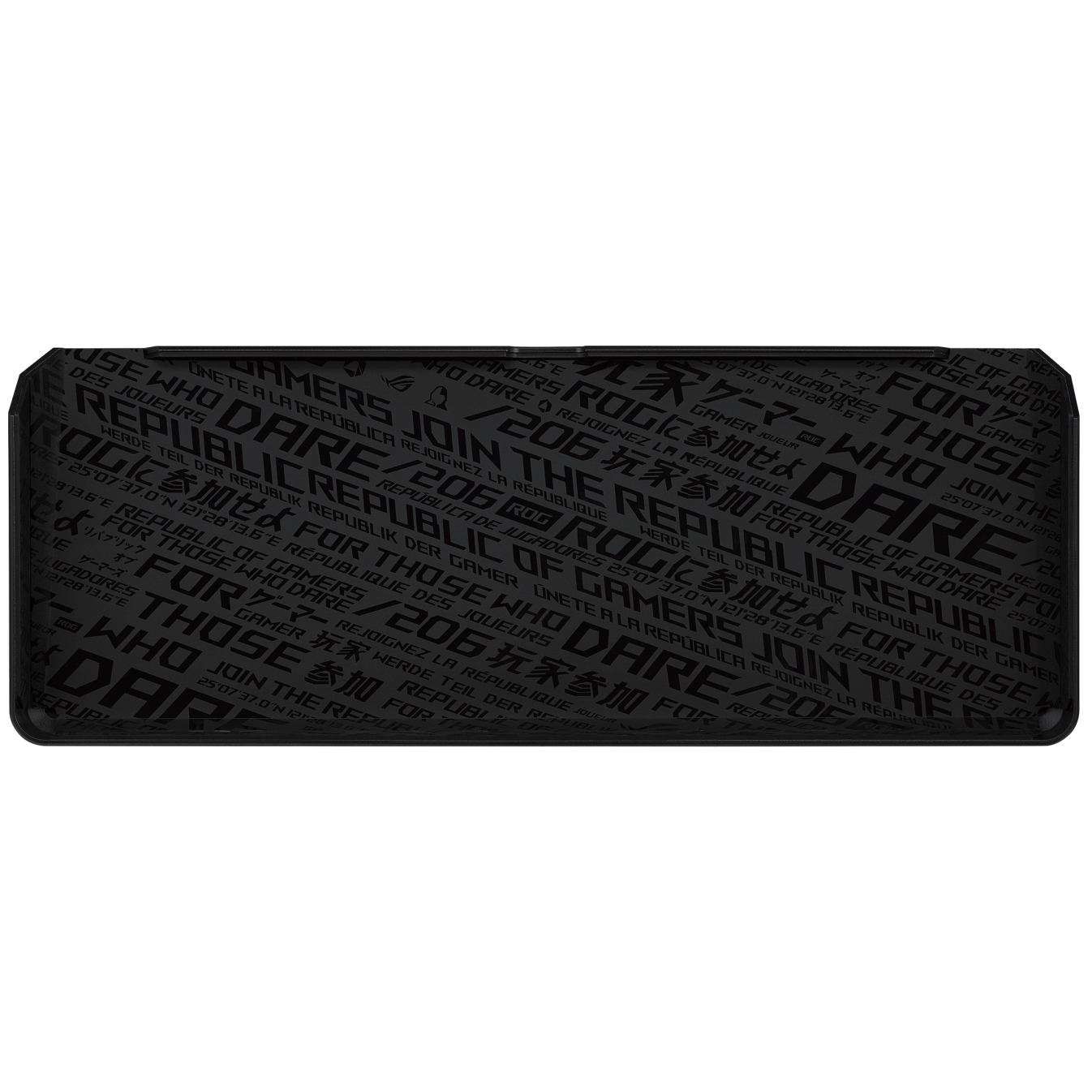

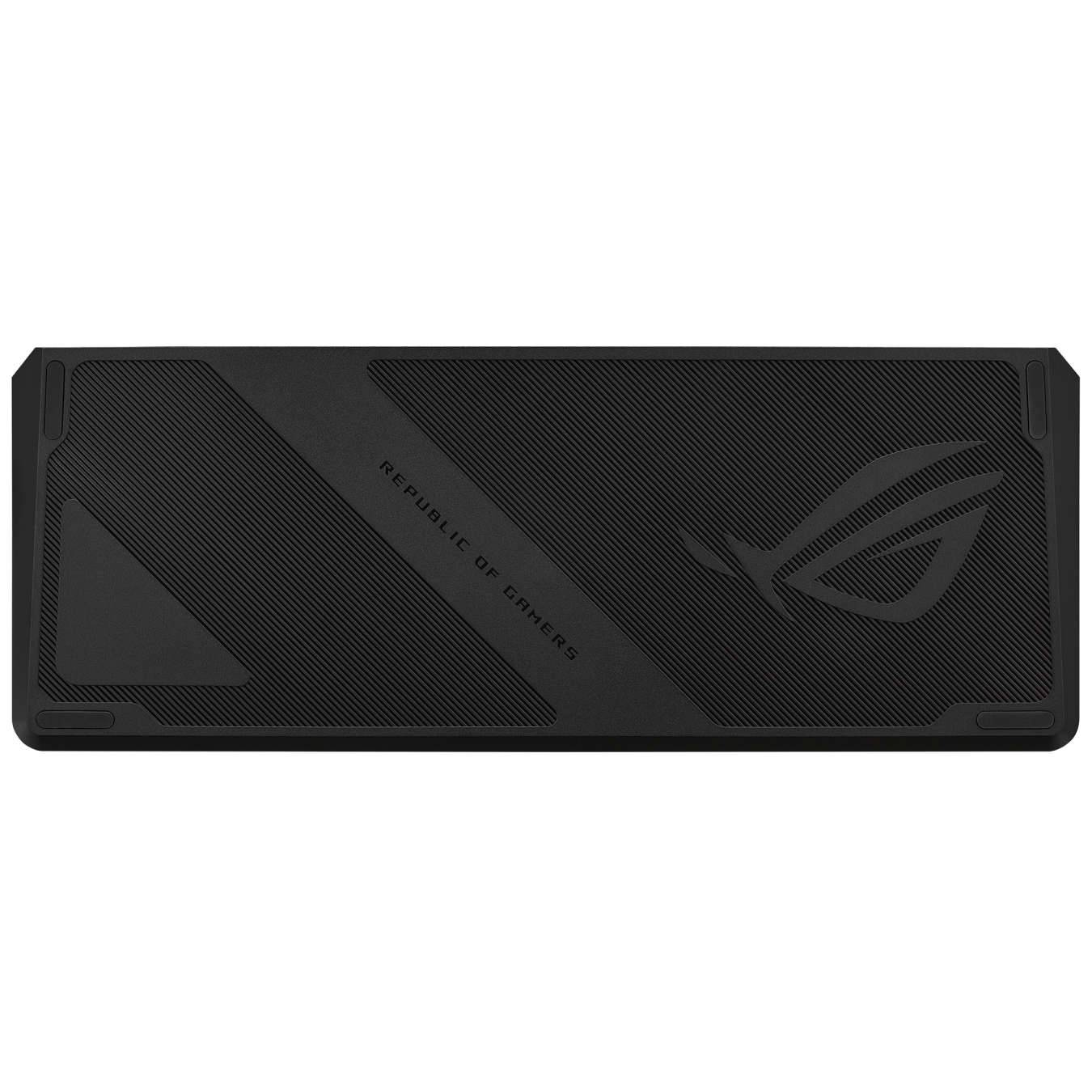

• 1 x Keyboard cover
• 1 x ROG keycap puller
• 1 x USB cable
• 1 x ROG sticker
• 1 x Ctrl keycap
• 1 x Quick start guide
• 1 x Warranty booklet
