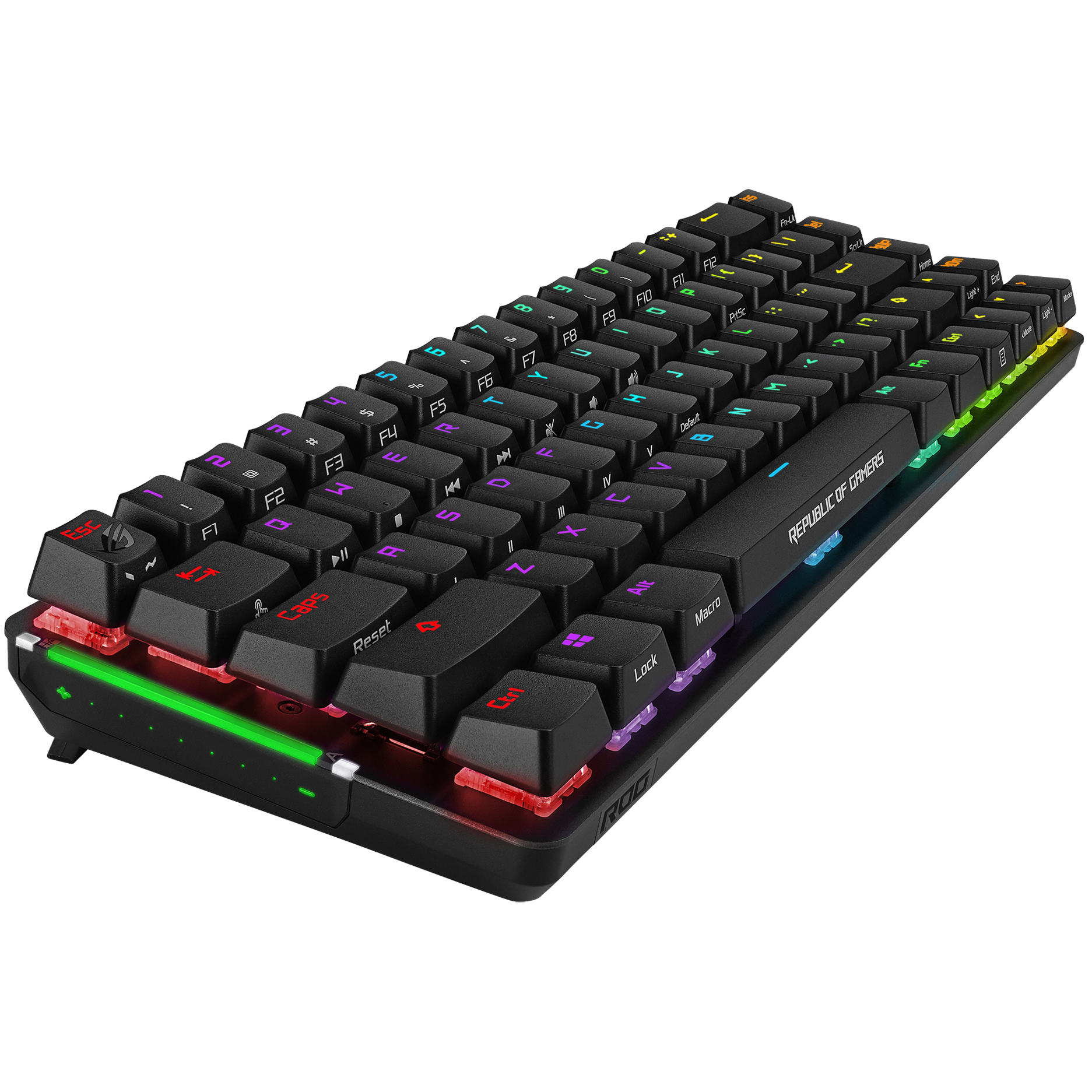

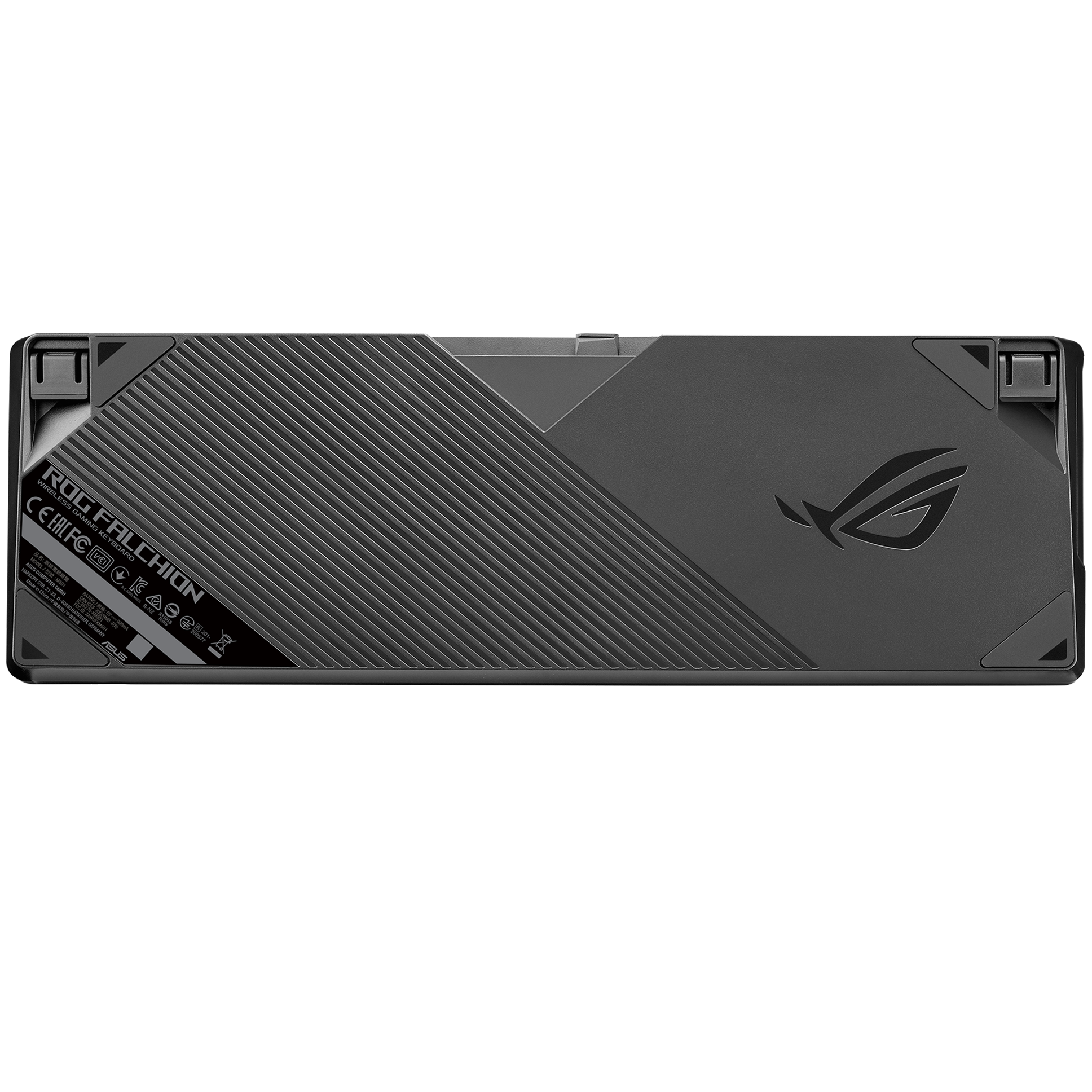

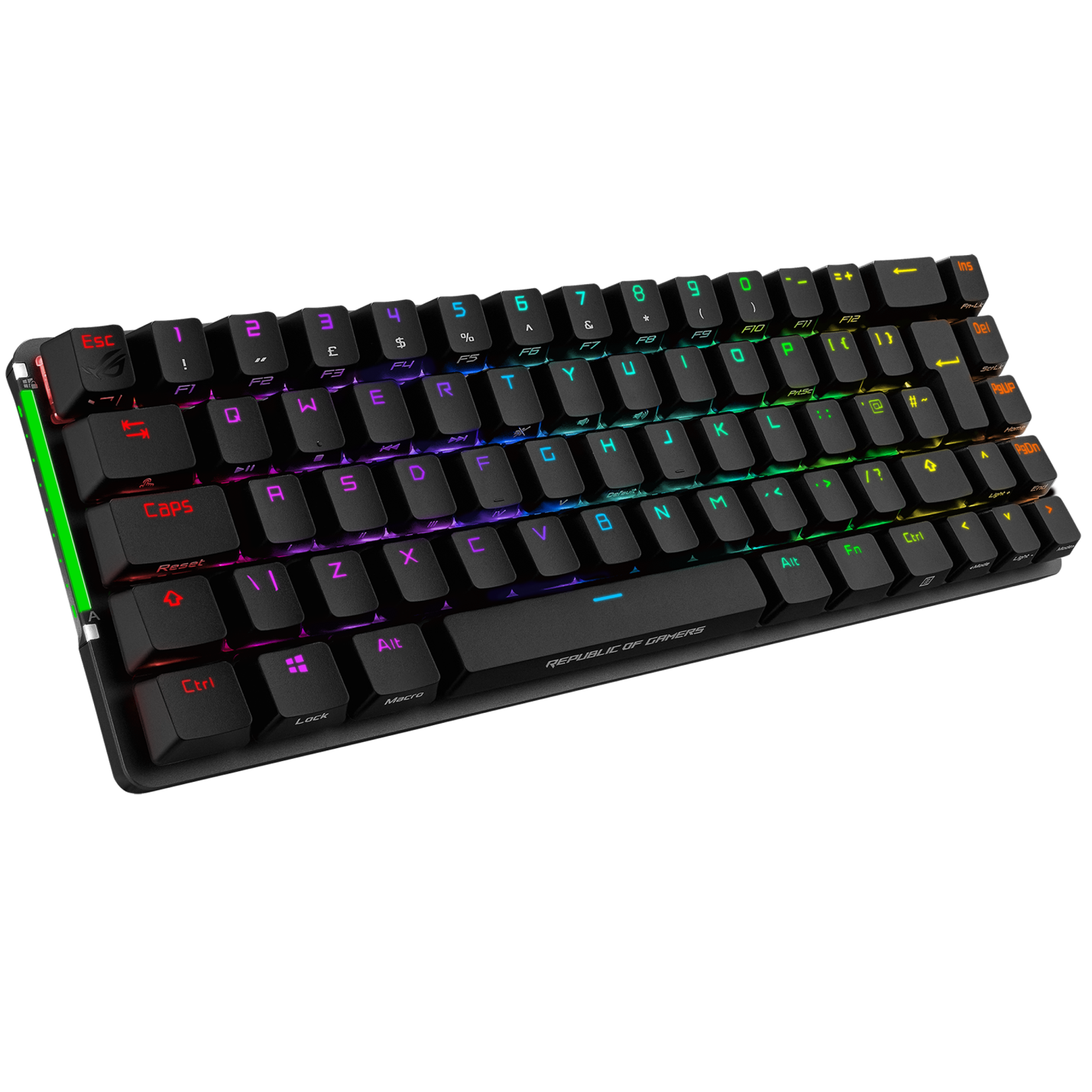

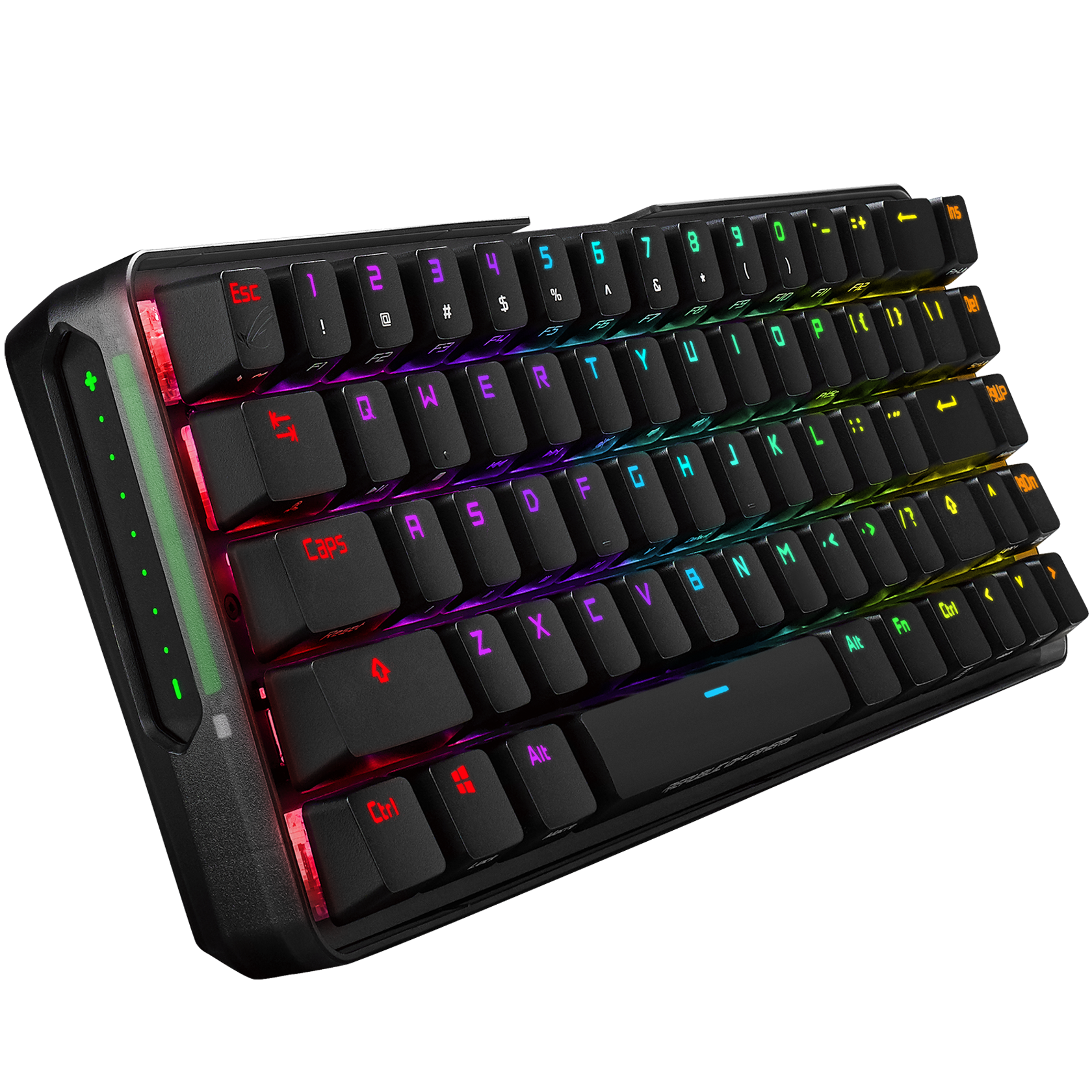

ASUS M601 ROG Falchion NX / NXRD / US Gaming Keyboard

ROG Falchion NX 65% wireless mechanical gaming keyboard with 68 keys, wireless Aura Sync lighting, interactive touch panel, keyboard cover case, ROG NX switches, and up to 450-hour battery life.

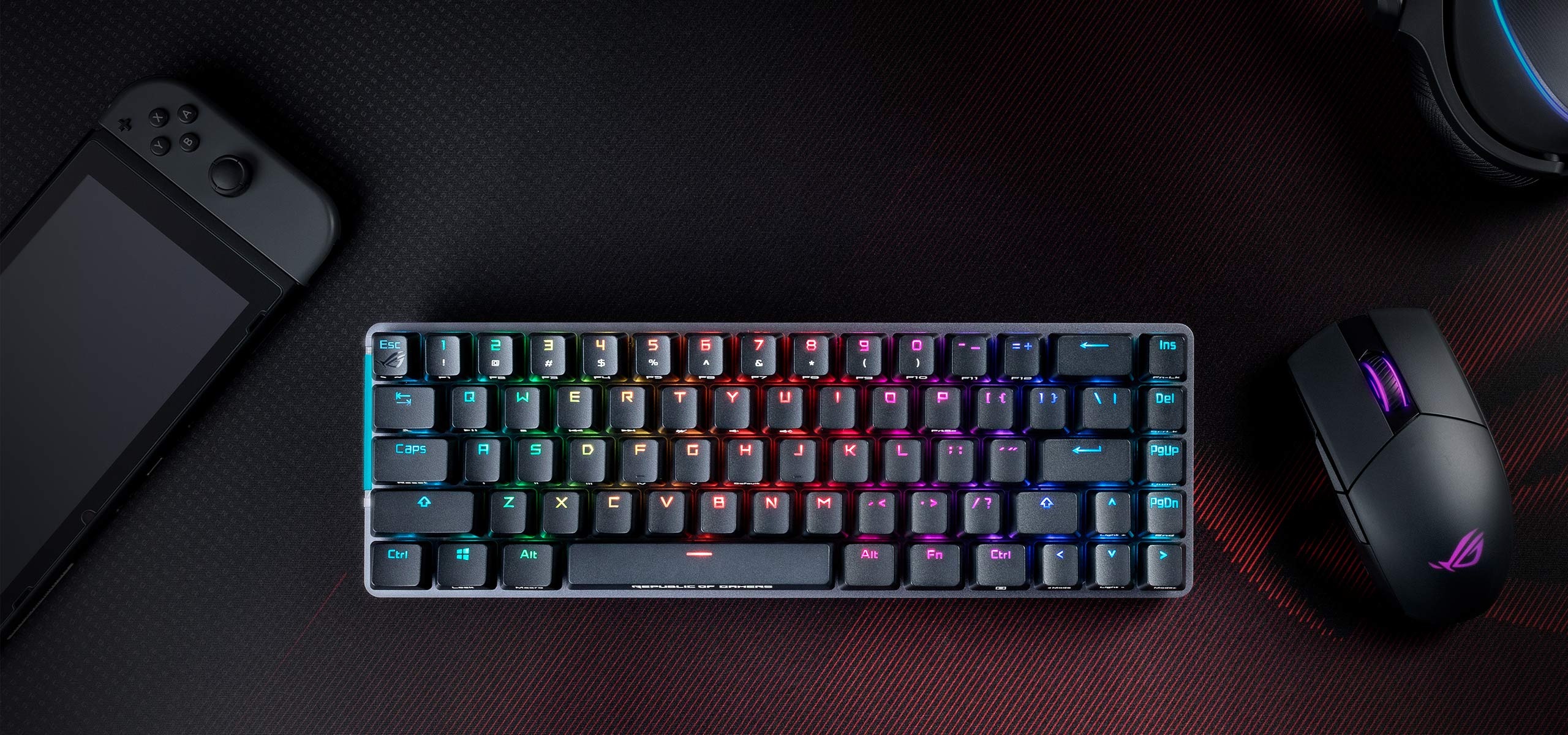

Compact, without compromise

ROG Falchion NX is a 65% form-factor wireless mechanical keyboard designed to change the way you play. It has an interactive touch panel and innovative two-way cover case, and it’s the first ROG keyboard with wireless Aura Sync RGB lighting. The keys feature durable ROG polybutylene terephthalate (PBT) doubleshot keycaps and ROG-tuned ROG NX mechanical switches for precise, tactile keystrokes. ROG Falchion NX utilizes a gaming-grade 2.4 GHz RF connection for 1 ms report rate and offers up to 450 hours of battery life on a single charge.

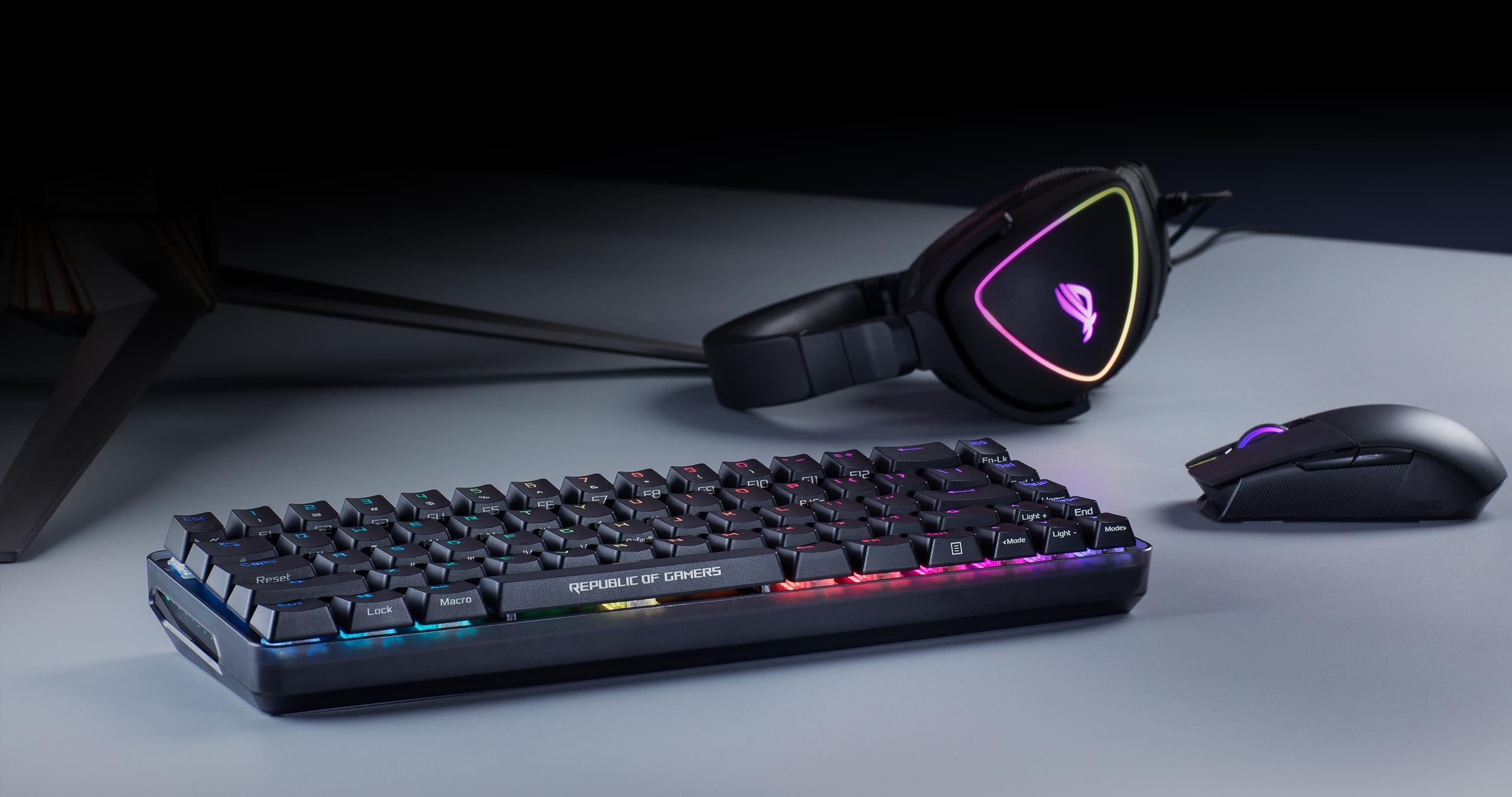

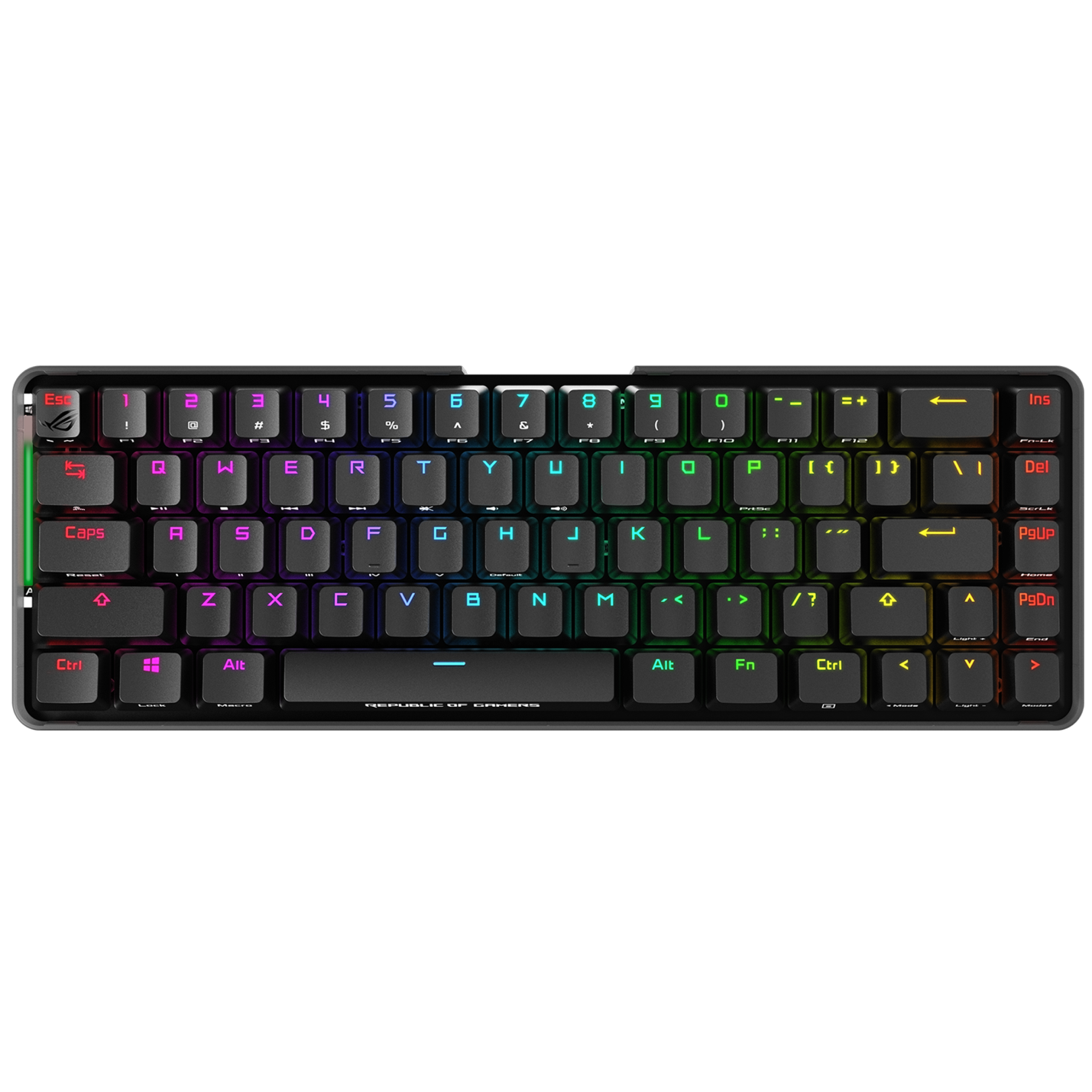

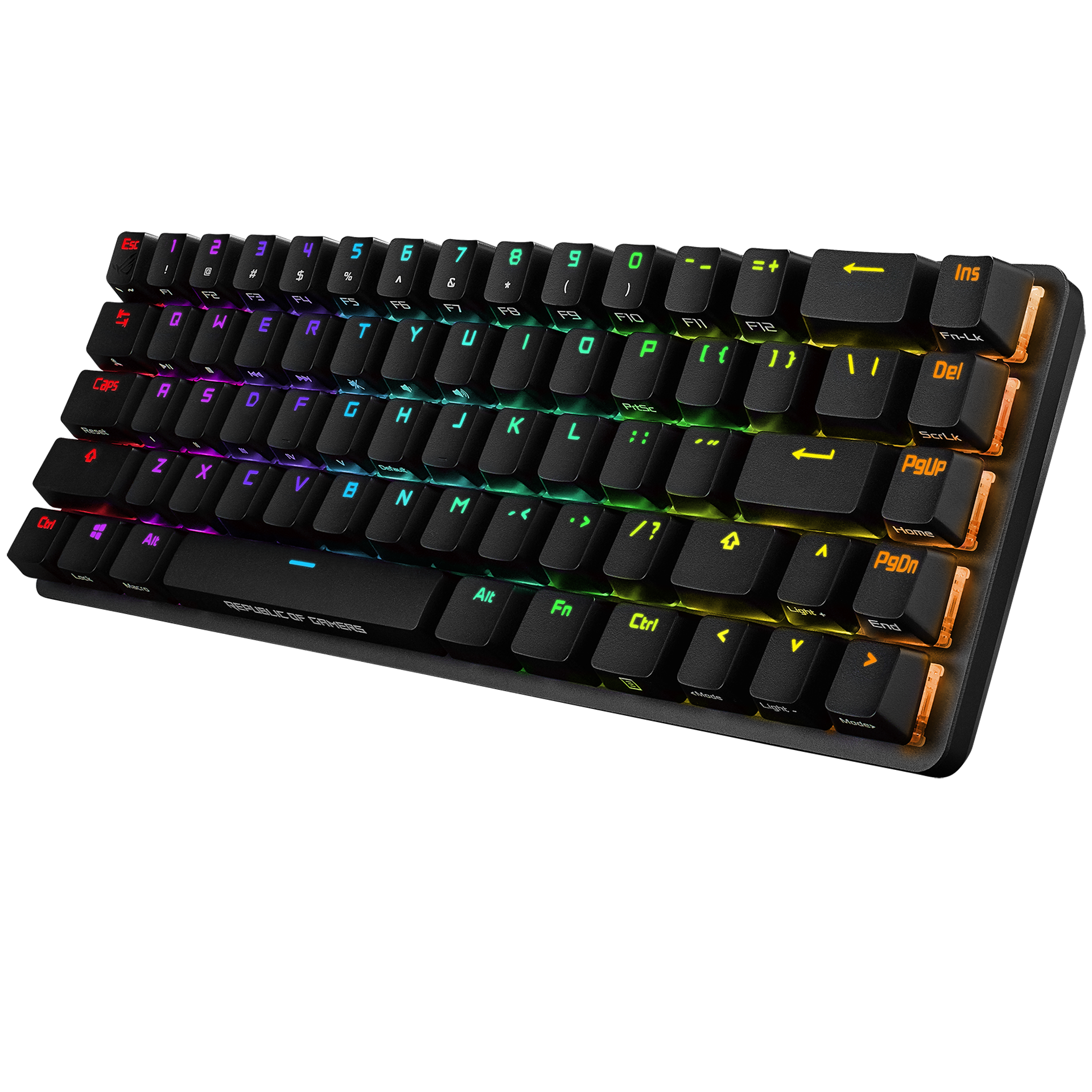

65% Form Factor for a Minimalist Setup

The ROG team aimed to provide a compact keyboard without compromise, masterfully incorporating arrow and navigation keys into a 65% keyboard layout. And at just 306 mm in length, ROG Falchion NX is almost the same size as a 60% keyboard. It gives you all the functions of a normal keyboard without taking up much desktop space.

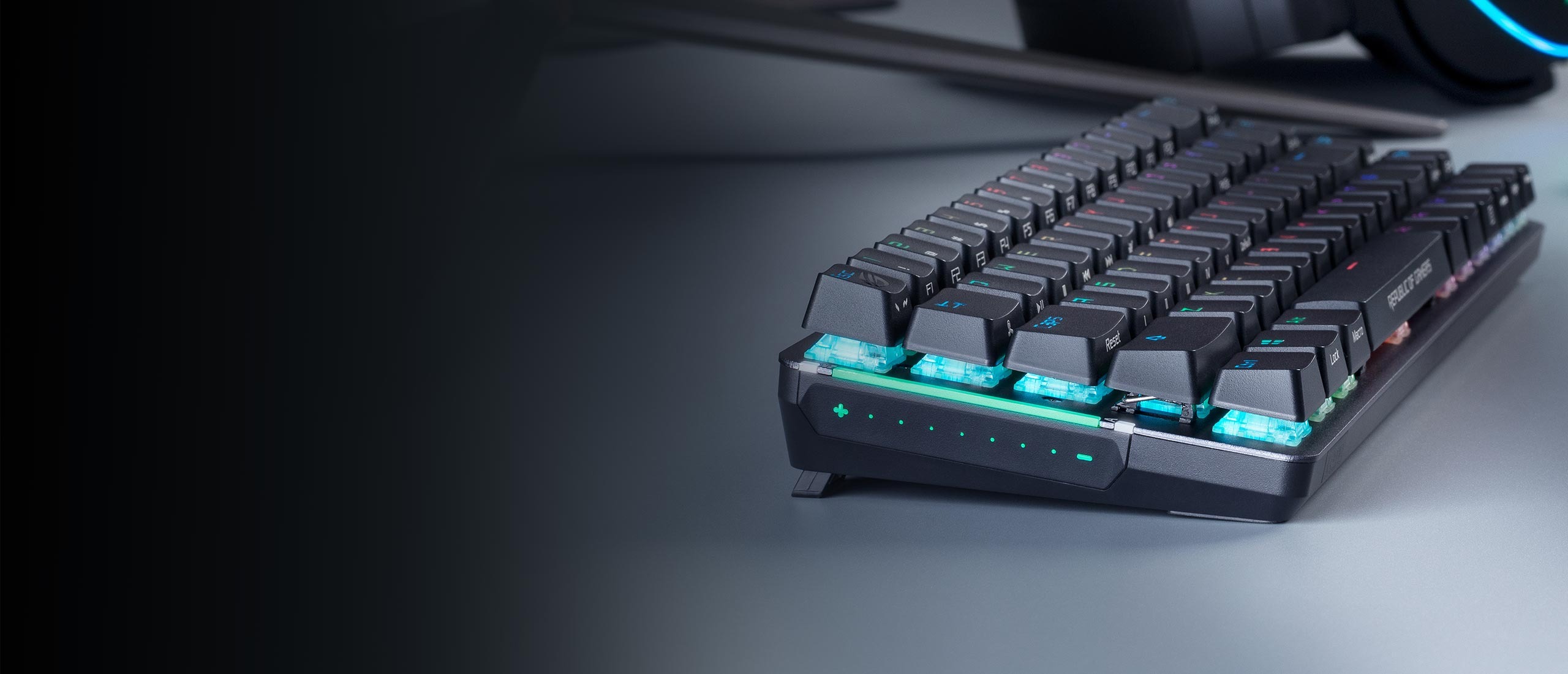

Interactive Touch Panel

An innovative touch panel on the left flank of ROG Falchion NX lets you conveniently adjust volume, or create shortcuts for switching apps, or copying and pasting. It can also be programmed for use as a macro key for more intuitive controls for gaming.

Dual-mode Connectivity and Up to 450-hour Battery Life

A near-zero latency 2.4 GHz RF connection and up to 450 hours of battery life* deliver the stability and longevity gamers need for the ultimate gaming experiences. It can also be used in wired USB mode.

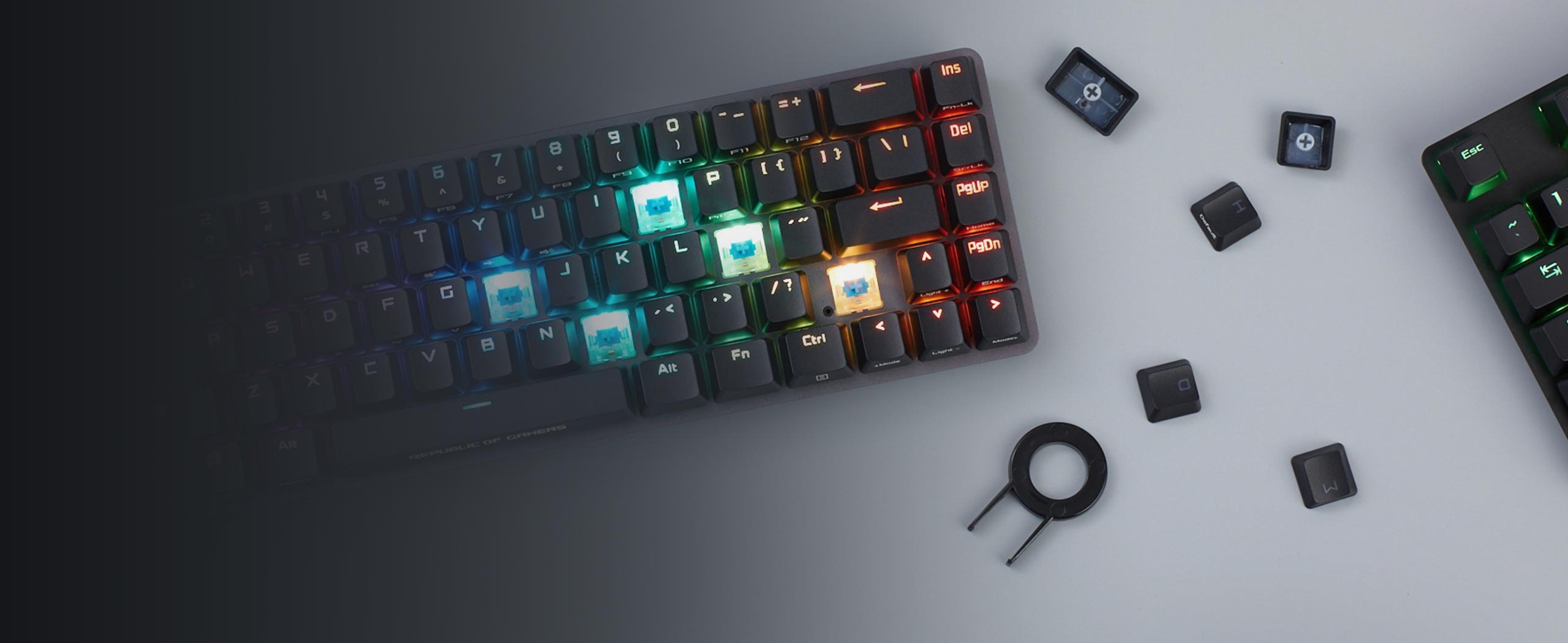

Durable PBT Doubleshot Keycaps

ROG PBT Doubleshot Keycaps provide a unique and premium feel, as well as offer long-lasting durability. Key design has been optimized with mid-height keycaps and a shorter stem to reduce key wobble and provide a more comfortable user experience. The precise double-shot molding process results in translucent keycaps* that feature seamless ROG script for a unique look, giving ROG Falchion NX consistent lighting and a look that’s unmistakably ROG.

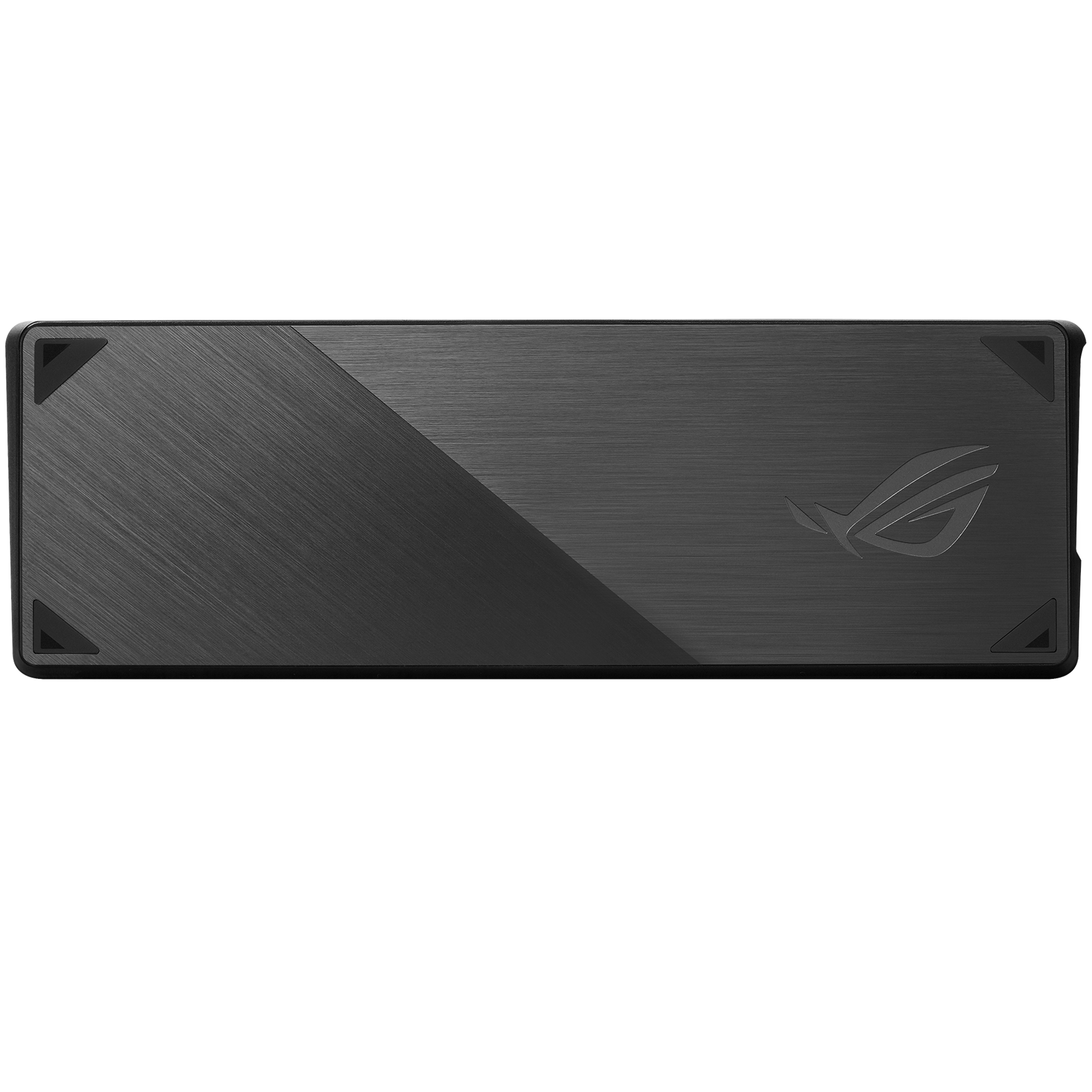

Polycarbonate Keyboard Cover

The transparent polycarbonate keyboard cover provides superb protection when you’re storing or taking ROG Falchion NX to LAN parties. The cover can also be placed under the keyboard when in use, to give the underside RGB lighting a diffused look.

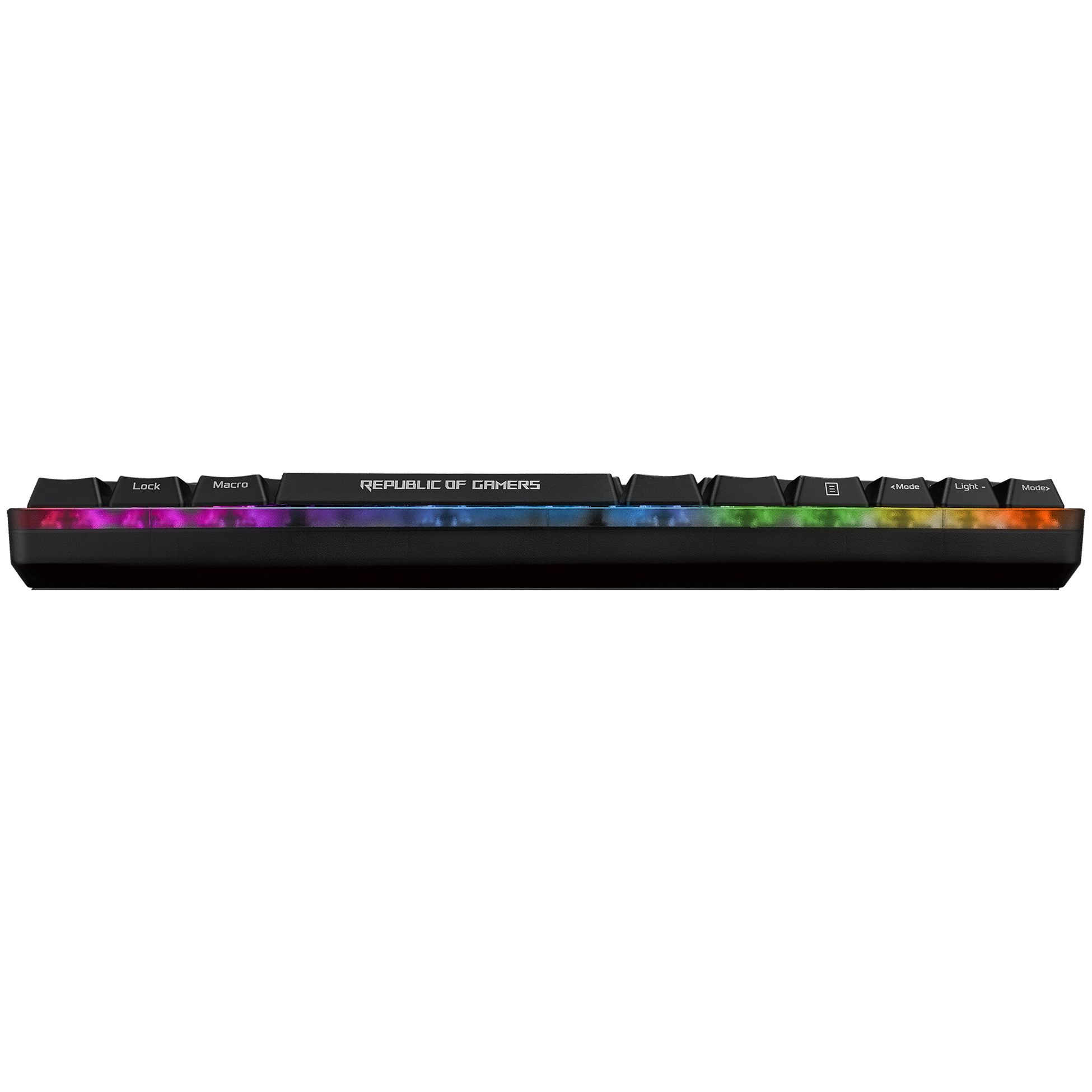

Wireless Aura Sync Per-key RGB Lighting

ROG Falchion NX is the first keyboard to feature wireless Aura Sync RGB lighting. With Aura Sync RGB, the entire color spectrum and a range of dynamic lighting effects are at your command, so you can create a keyboard that’s uniquely yours. Customize and shine in your own way, wirelessly.

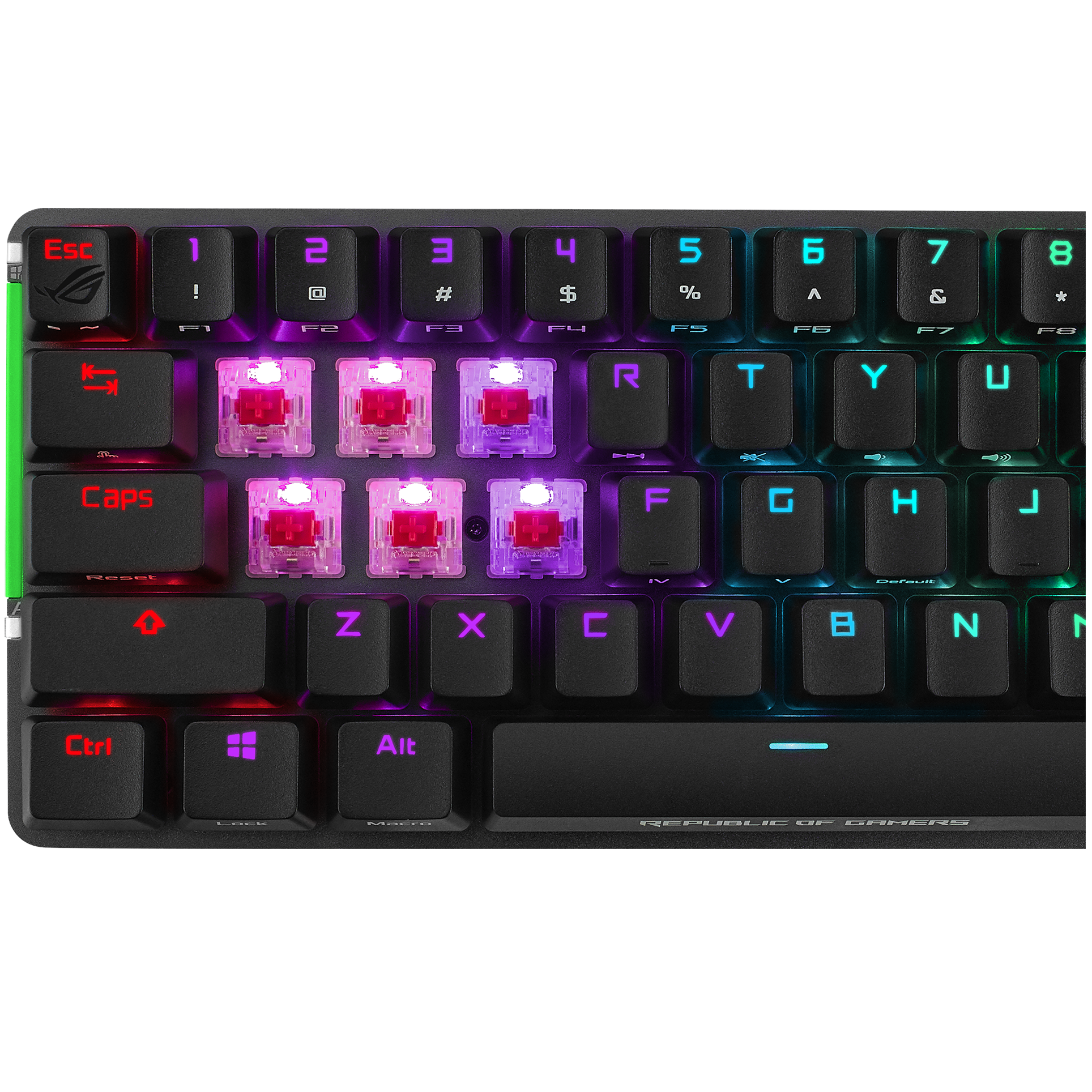

ROG NX MECHANICAL SWITCH

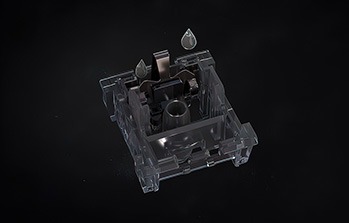

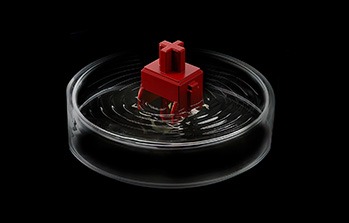

ROG NX mechanical switches with lubricated stem for a smooth click feel, lubricated base housing to eliminate spring bouncing noises, fast actuation and ROG-tuned force curves for great keystroke feel with great keystroke consistency.

The switches have lubricated stems and base housings that offer a smoother click feel and eliminate spring bouncing noises respectively.

RED

LINEAR & SWIFT

ROG NX Red Mechanical Switches provide a 1.8mm actuation point for fast input. Initial force of 40gf helps prevent accidental keystrokes, and it extends to 55gf for perfect rebound feedback. As a result, keystrokes are instantaneous and have a smooth and linear feel.

1.8mm Actuation Point  |  40gf  Initial Force  |  55gf  Total Force

BROWN

ULTRA-TACTILE

ROG NX Brown Mechanical Switches have a 2mm actuation point, as preferred by traditional brown switch users. The tactile force of 58gf combined with a click ratio of 33% gives every keystroke an obvious, more pronounced tactile response.

2.0mm  Actuation Point  |  58gf Tactile Force  |  33%  Click Ratio

BLUE

CLIKCY & TACTILE

ROG NX Blue Mechanical Switches feature a 2.3mm actuation point, standard 16% click ratio, and an enthusiast-preferred 65gf tactile force — all to provide firm and superb feedback with each keystroke.

2.3mm Actuation Point  |   65gf  Tactile Force  |  16%  Click Ratio

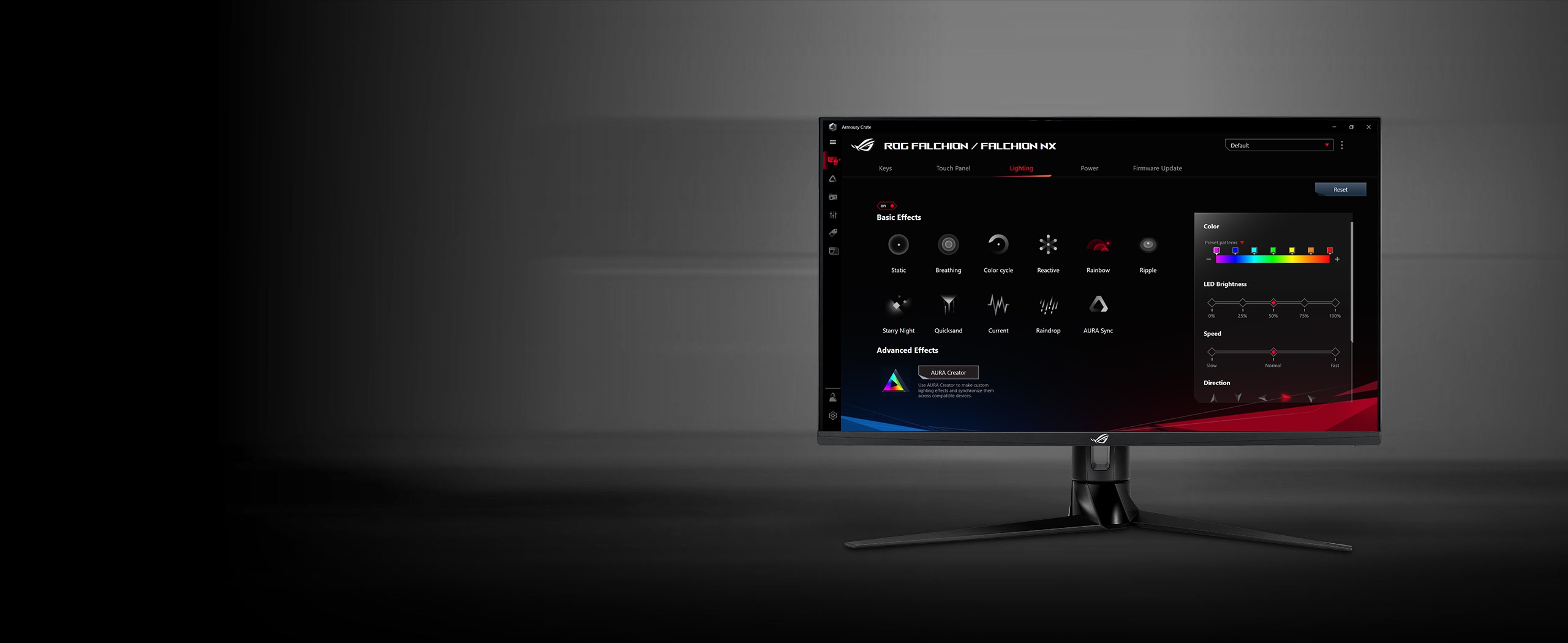

Armoury Crate

Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. Armoury Crate also allows you to customize user profiles, map keys, record macros, and even track hardware stats during gameplay.

Features

• Compact 65% layout masterfully incorporates arrow and navigation keys, in a 60% keyboard frame
• ROG NX mechanical switches with lubricated stem for smooth clicks, lubricated housing to eliminate bouncing noises, fast actuation and ROG-tuned force curves for great keystroke feel with great keystroke consistency.
• Interactive touch panel makes it easy to adjust and customize controls
• Dual-mode connectivity via wired USB and 1 ms at 2.4 GHz RF, and up to 450 hours of battery life* offer stable, long-lasting performance (*with RGB lighting off)
• Durable and long-lasting ROG PBT doubleshot keycaps
• Innovative keyboard cover case provides on-the-go protection
• Wireless Aura Sync with per-key RGB lighting

Tech Specs

Model

• ROG Falchion NX Gaming Keyboard

Key Switch

• ROG NX Mechanical: Red
• ROG NX Mechanical: Brown
• ROG NX Mechanical: Blue

Connectivity

• USB 2.0 (TypeC to TypeA)
• RF 2.4GHz

Size (Full/TKL)

• 65%

Actuation Force

• 45g

Lighting

• Per-Key RGB LEDs

AURA Sync

• Yes

Anti-Ghosting

• N-Key Rollover

Macro Keys

• All keys programmable (except Fn, Shift)

USB Report rate

• (USB Report rate) 1000 Hz

Profile Hot Keys

• Fn + A / S / D / F / G / H: Profile 1 – 6 (6 is the Default Profile)

Lighting Effects Hot Keys

• Fn + Right or Fn + Left

Brightness Setting Hot Keys

• Fn + Up: Brightness up (5 levels)
• Fn + Down: Brightness down (5 levels)

Clear On-Board Memory Hot Keys

• Hold Fn + Caps for 15 seconds

Macro Hot Keys

• Step 1: Fn + Left-ALT to start recording
• Step 2: Fn + Left-ALT to end recording
• Step 3: Assign Macro Key

Media Hot Keys

• Play/Pause (Q), Stop (W), Previous (E), Next (R), Mute (T),
• Volume Down (Y), Volume Up (U)

Cable

• Detachable braided USB cable

OS

• Windows® 10

Software

• Armoury Crate

Dimensions

• 305 X 101 X 38.5 mm (keyboard)

Weight

• 520g (without cable)

Contents

• 1 x ROG Falchion keyboard
• 1 x Keyboard cover case
• 1 x USB dongle (wireless receiver)
• 1 x USB extender
• 1 x Detachable braided cable.
• 2 x ROG logo stickers
• 1 x Warranty booklet
• 1 x Quick start guide
