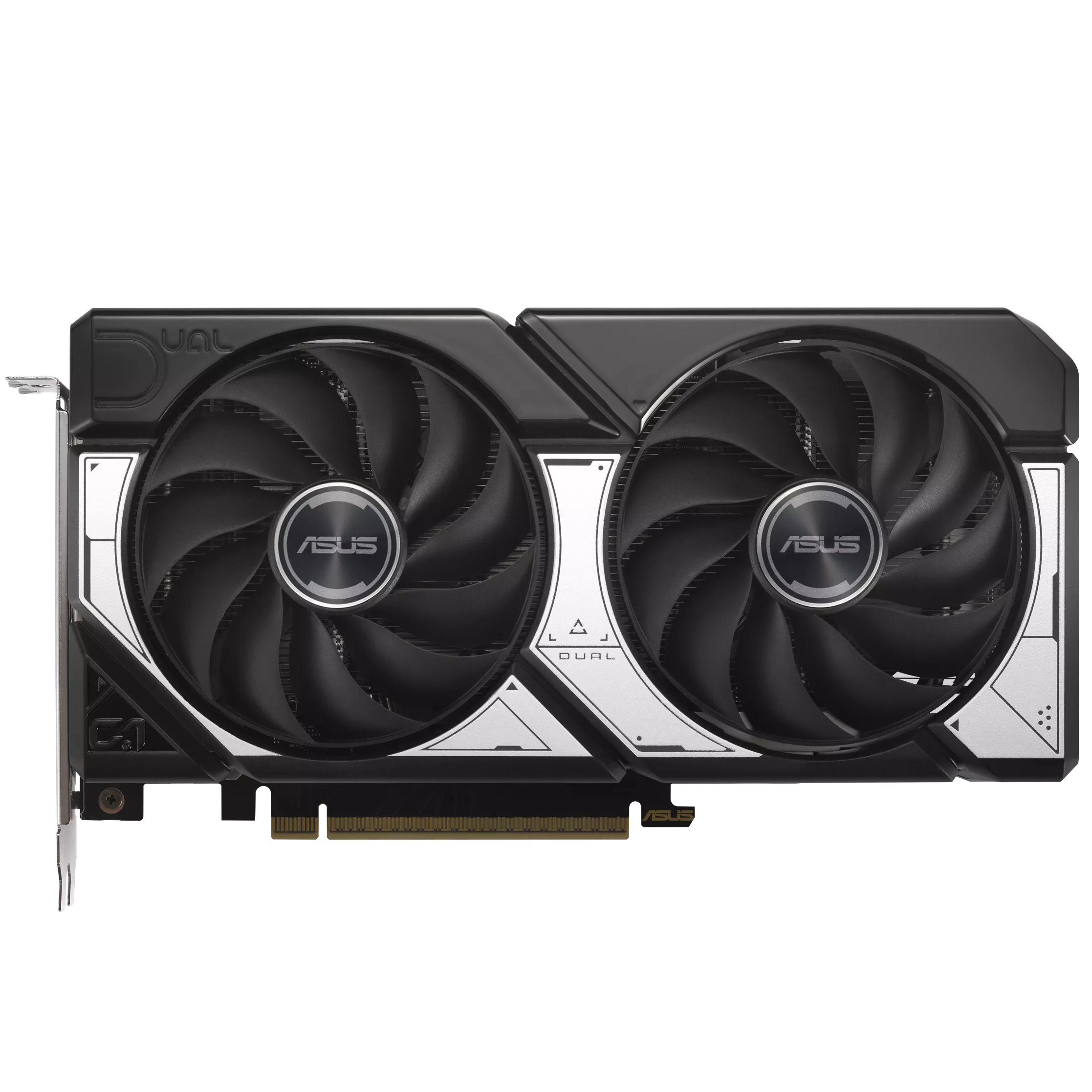

ASUS Dual GeForce RTX™ 5060 Ti 16GB GDDR7 OC Edition Graphic Card
₨ 293,500
- 16GB GDDR7 · GeForce RTX 5060 Ti
- 229 × 120 × 50mm · 2.5-slot
- 1 × HDMI 2.1b; 3 × DisplayPort 2.1b · up to 4 displays
- 550W recommended system PSU · 1 x 8-pin
ASUS Dual · GeForce RTX 5060 Ti
16GB GDDR7.
RTX 5060 Ti Dual.
The ASUS Dual GeForce RTX 5060 Ti 16GB GDDR7 OC Edition Graphics Card combines 16GB GDDR7 with a two-fan cooling design. The exact manufacturer model is DUAL-RTX5060TI-O16G.
The cooling layout, memory configuration and connection requirements below apply to this exact edition. Match them to the space, power supply and displays in your PC build.
- 16GB
- GDDR7
- 128-bit
- Memory interface
- 2.5-slot
- Slot design
Graphics platform
16GB GDDR7.
GeForce RTX 5060 Ti.
NVIDIA Blackwell is paired with 16GB GDDR7, 28 Gbps memory and a 128-bit interface. Capacity is useful when checking application and game requirements, but it does not independently establish frame rate or resolution performance.
Published clock modes
The published default boost is 2602MHz. GPU Tweak III OC mode is listed at 2632MHz. These are mode-specific values; sustained clocks depend on the workload and thermal conditions.
DLSS and ray-traced games
Supported games can use NVIDIA DLSS Super Resolution, Ray Reconstruction and Multi Frame Generation. These require game/software support and do not promise the same options or frame rate in every title.
Choose the exact edition
DUAL-RTX5060TI-O16G identifies this board. The cooler, dimensions and power connection are board-specific details; do not substitute a reference-card specification.

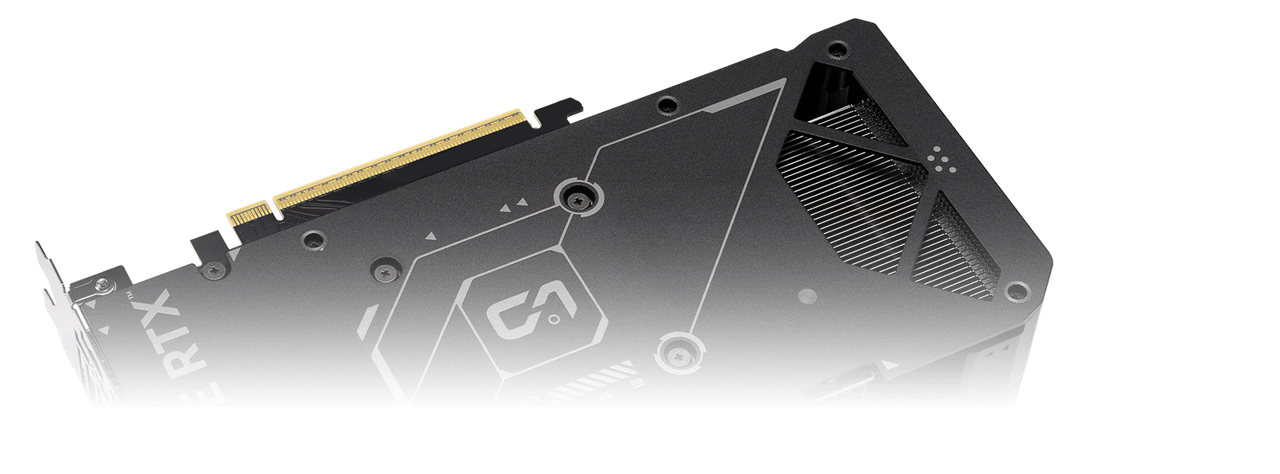

Thermal and board design

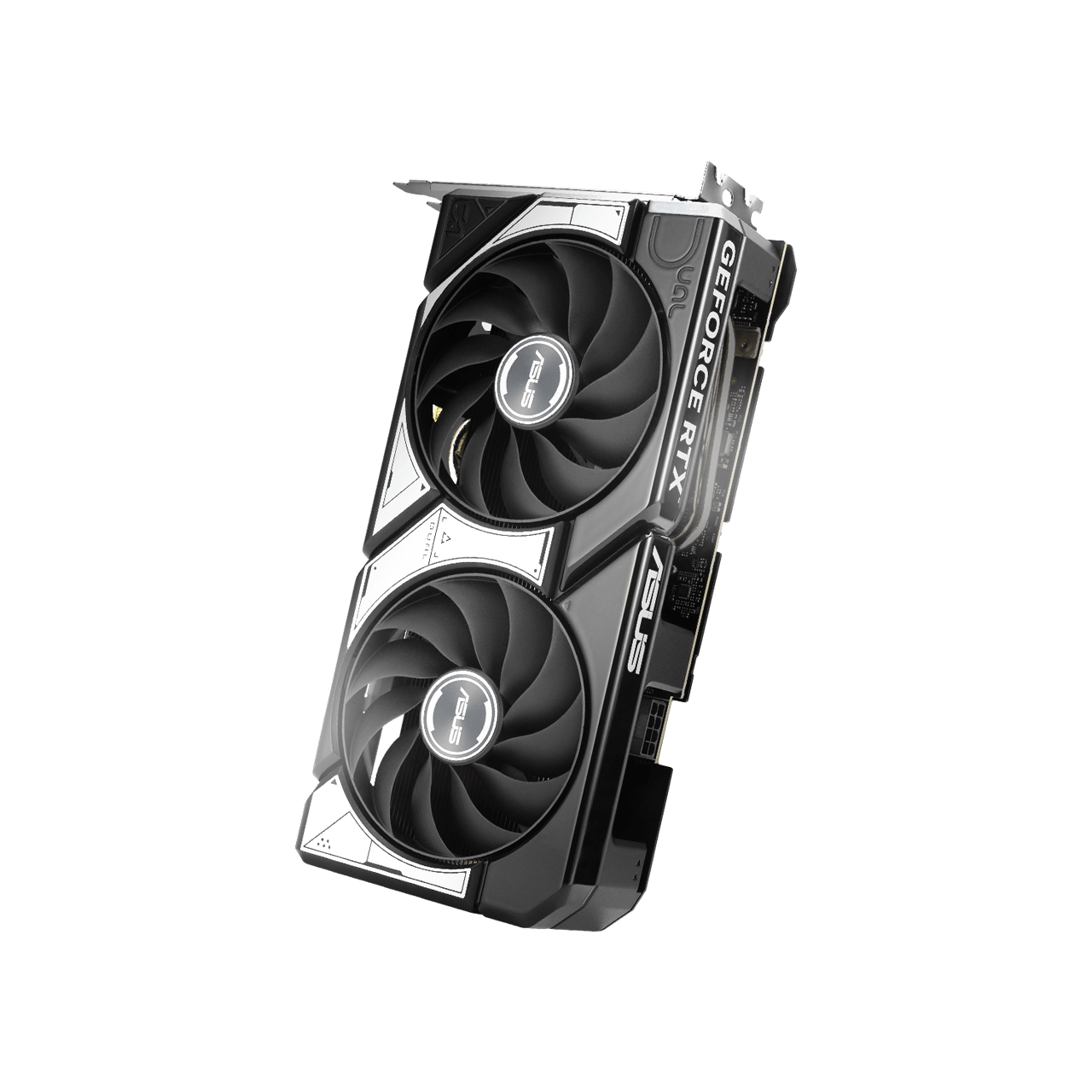

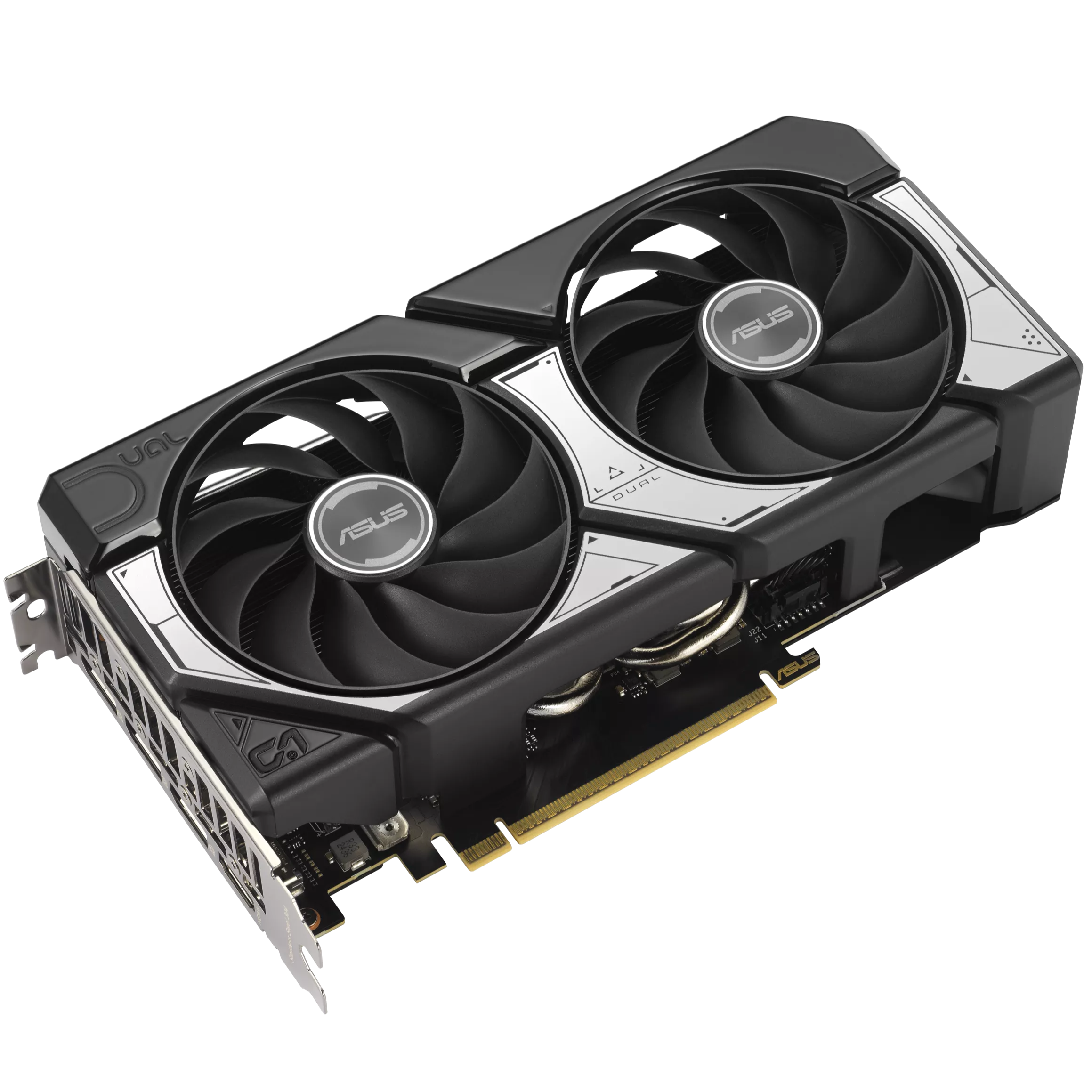

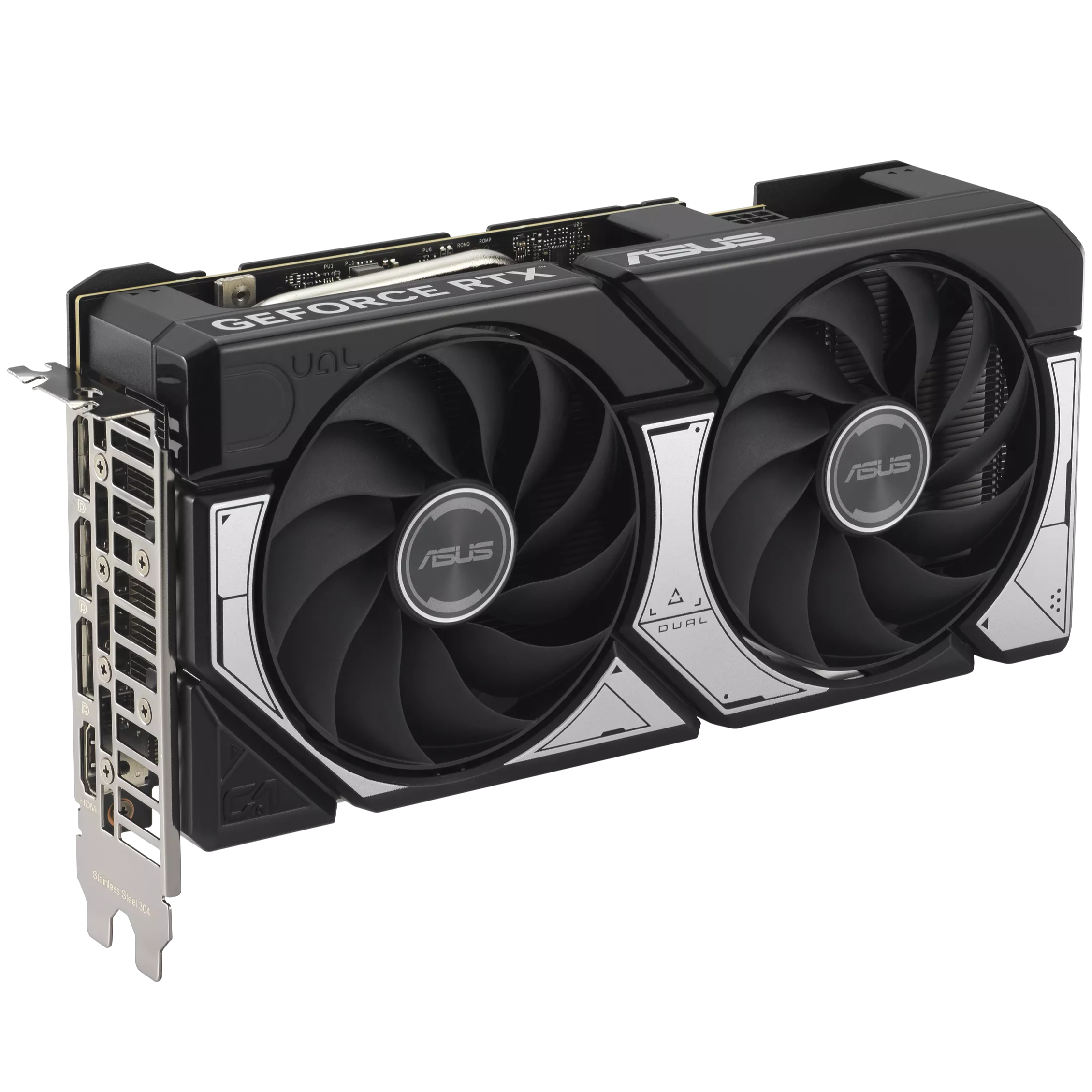

A two-fan assembly.
Dual cooling and construction.
The exact ASUS DUAL-RTX5060TI-O16G edition uses a two-fan cooler. The verified features below explain how its fan assembly, heatsink and board construction work together. Keep the surrounding airflow path clear in the finished PC.
Axial-tech cooling fans
ASUS uses Axial-tech fans to direct airflow through the cooler. Fan geometry and the heatsink work together; case airflow remains part of the thermal system.

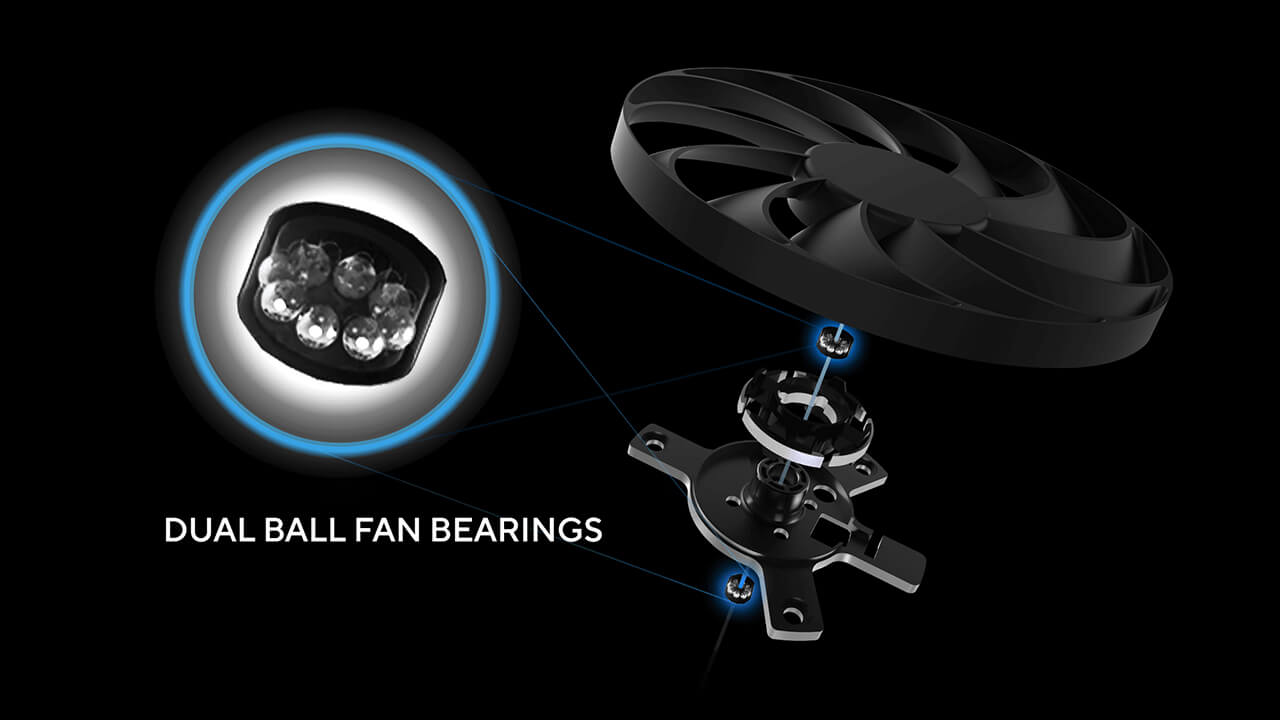

Dual-ball fan bearings
The manufacturer specifies dual-ball bearings in the fan assembly. Bearing design is a hardware feature, not a local warranty duration or a lifetime guarantee.
Temperature-controlled fan stop
ASUS 0dB technology can stop the fans during suitable low-temperature operation. The fans restart as cooling demand increases; gaming workloads and ambient conditions affect this behavior.
Automated assembly
ASUS Auto-Extreme manufacturing completes soldering in a single pass. The process is intended to reduce thermal strain during assembly.
Build compatibility
Space. Power.
The right display connections.
The DUAL-RTX5060TI-O16G board has its own dimensions and connection layout. Check these before ordering; an RTX or Radeon family name alone is not a compatibility check.
Measure usable clearance
Use the manufacturer’s 229 × 120 × 50mm dimensions and 2.5-slot design. Confirm available length with front fans/radiators installed, card thickness around adjacent slots and power-cable space at the side panel.
Match PSU and cabling

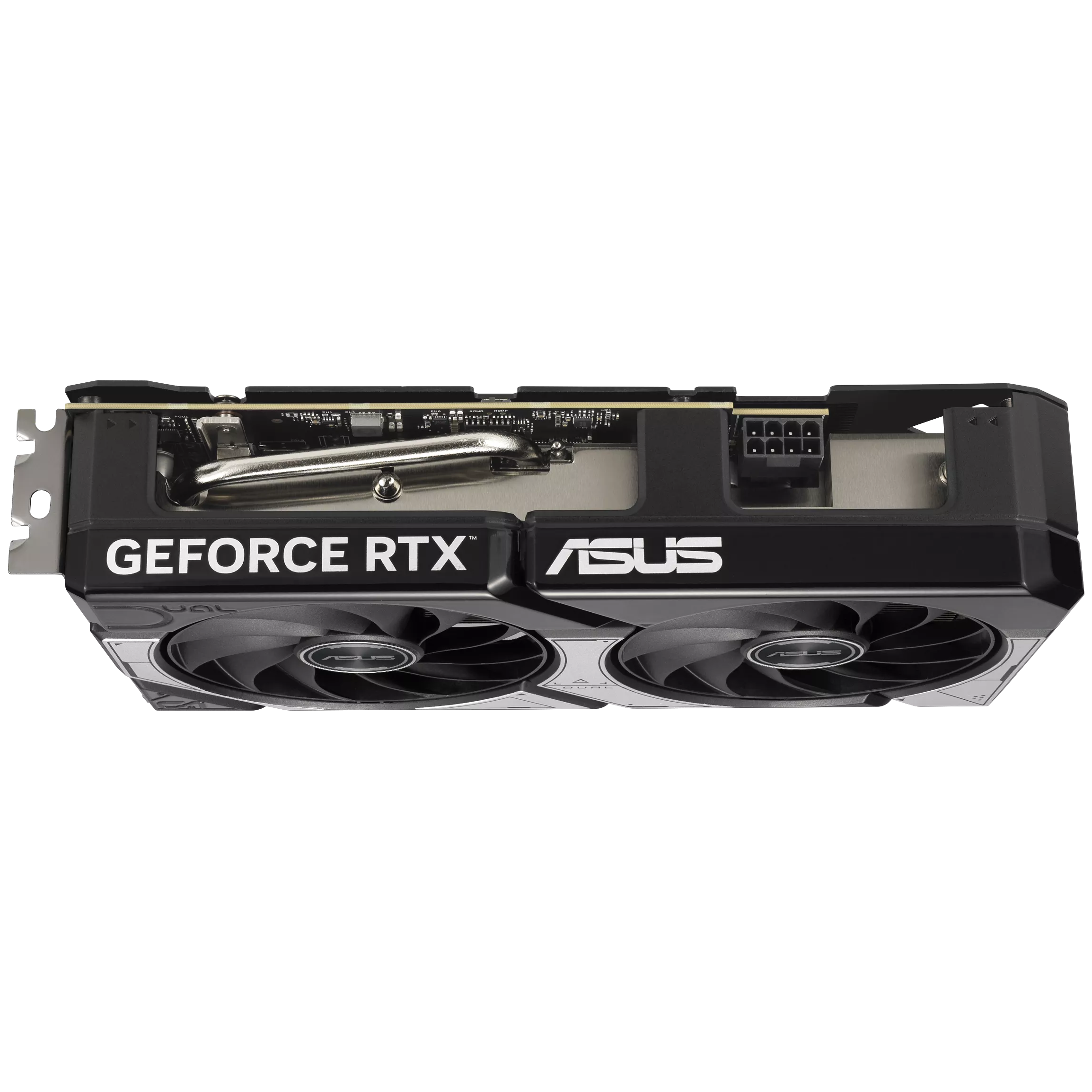

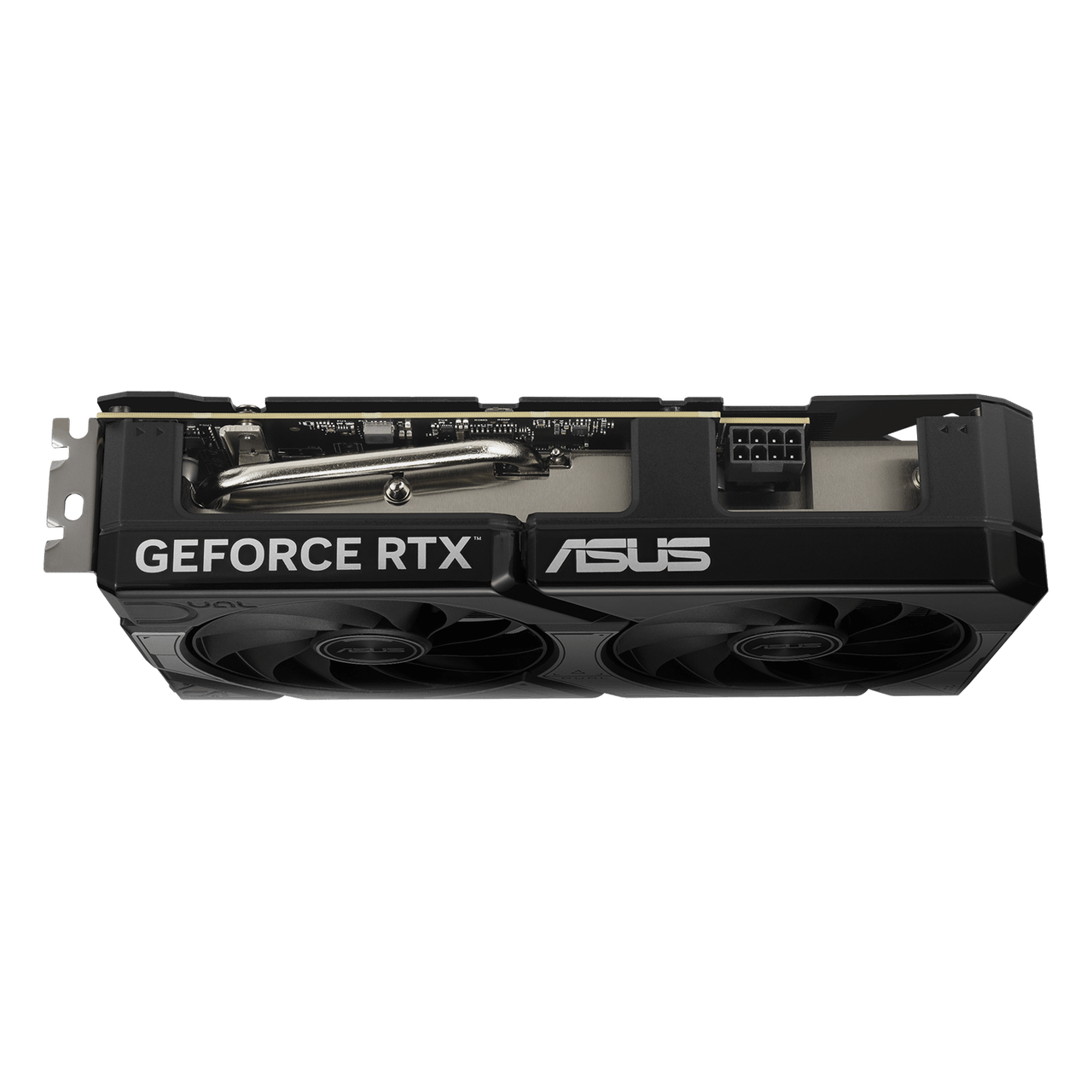

ASUS recommends a 550W system PSU. The ASUS recommendation is based on an overclocked GPU/CPU system configuration, rather than GPU consumption alone. The card power connection is 1 x 8-pin. Confirm the PSU and cable arrangement for your full configuration.

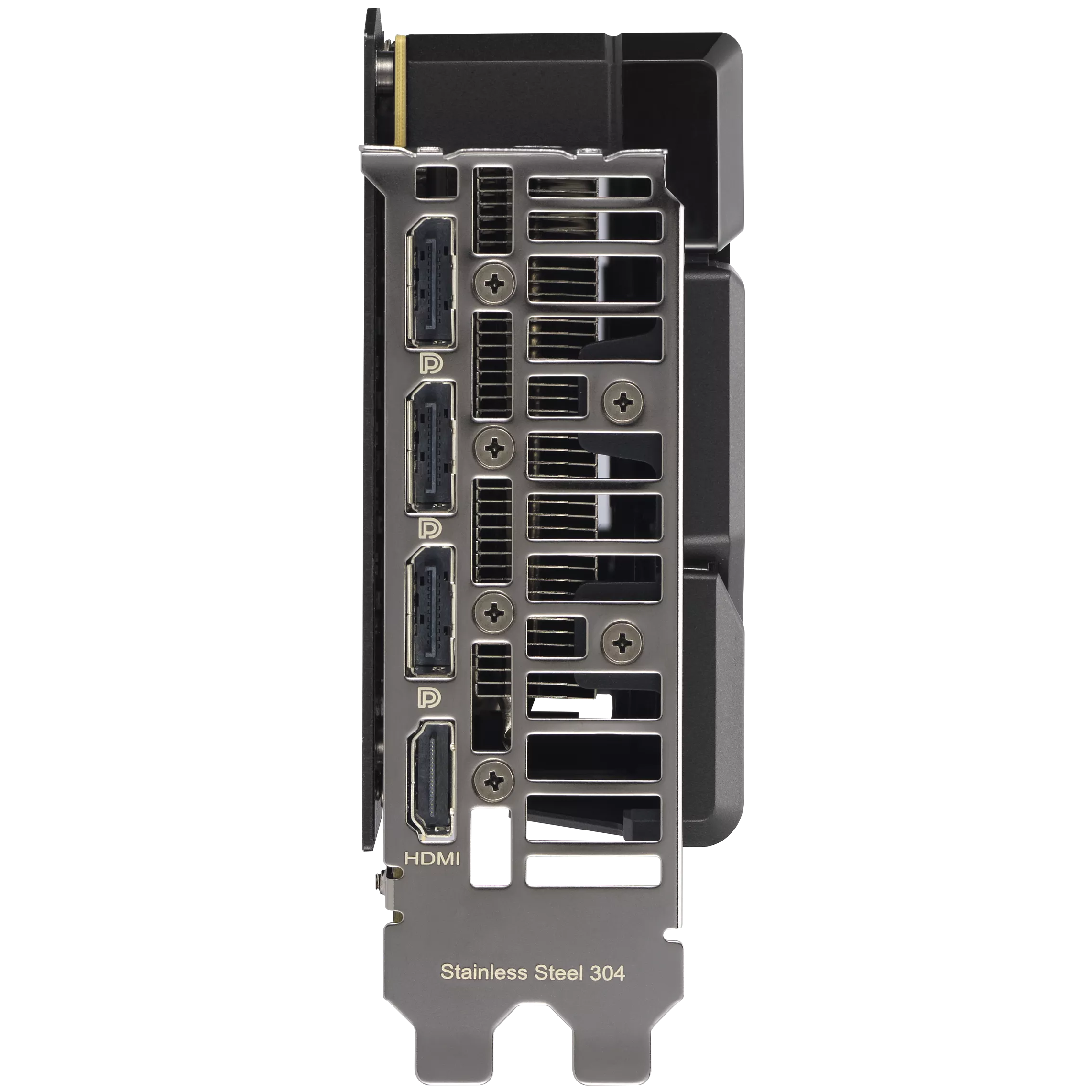

Up to 4 displays
1 × HDMI 2.1b; 3 × DisplayPort 2.1b. Monitor, cable, display mode and any DSC requirement determine available resolution and refresh rates. Maximum digital resolution is not a gaming-FPS promise.

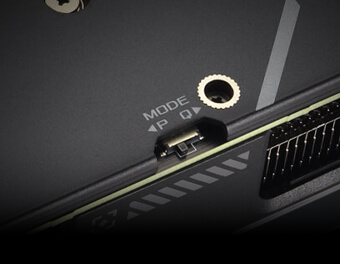

Hardware control
Performance or Quiet.
A physical BIOS choice.

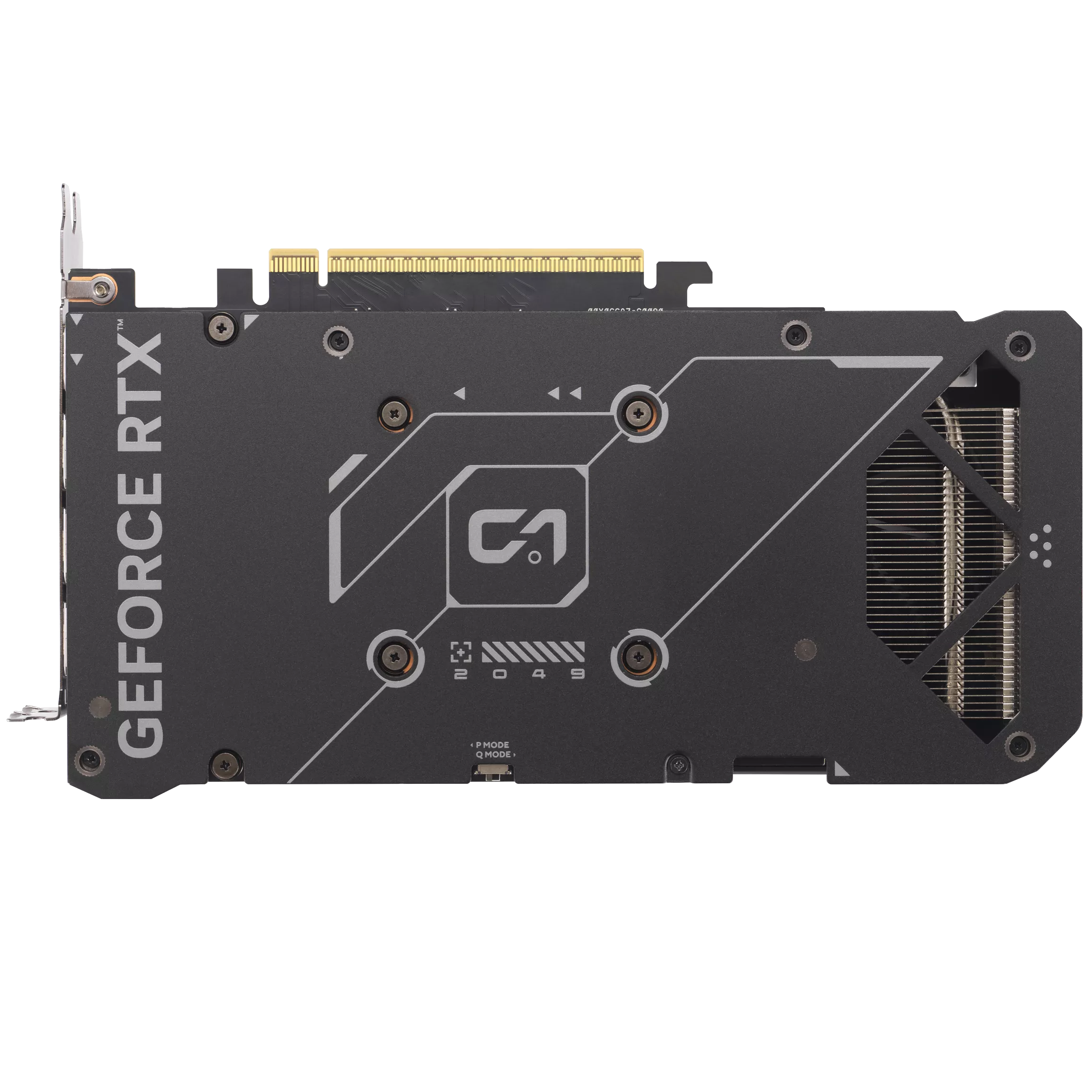

ASUS Dual BIOS provides Performance and Quiet modes. The physical switch and GPU Tweak III’s OC setting are separate controls. Follow the official model instructions when choosing a mode; neither guarantees a fixed noise level in every build.

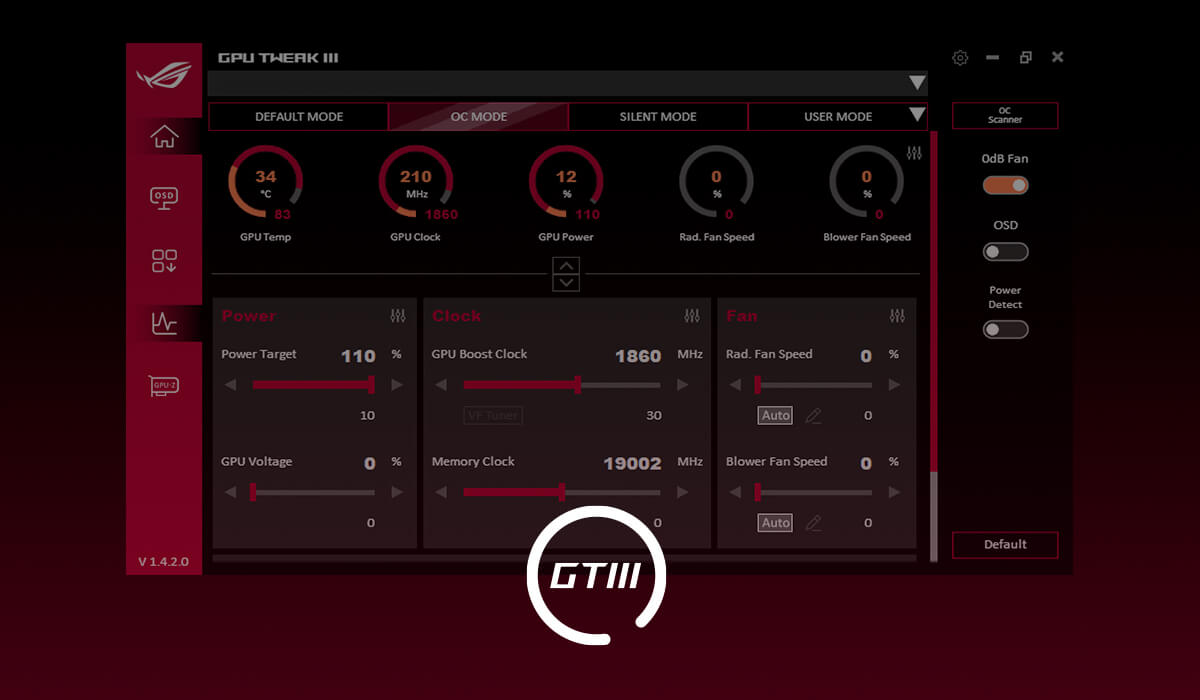

Monitoring and customization.
ASUS GPU Tweak III provides monitoring and supported tuning controls. Use the exact model’s support resources for the current software and graphics drivers.
Exact-model specifications.
- Exact edition
- DUAL-RTX5060TI-O16G
- GPU
- GeForce RTX 5060 Ti
- Video memory
- 16GB GDDR7
- Memory speed / interface
- 28 Gbps / 128-bit
- CUDA cores
- 4608
- Default boost clock
- 2602MHz
- Software OC mode
- 2632MHz
- PCI Express interface
- PCI Express 5.0
- Display outputs
- 1 × HDMI 2.1b; 3 × DisplayPort 2.1b
- Maximum simultaneous displays
- 4
- Dimensions
- 229 × 120 × 50mm
- Slot design
- 2.5-slot
- Recommended system PSU
- 550W
- Card power connector
- 1 x 8-pin
- Maximum digital resolution
- 7680 × 4320; display capability, not gaming FPS
Questions about this edition.
Which memory edition is this RTX 5060 Ti?
This listing is the 16GB GDDR7 edition. Memory capacity identifies this version; it does not by itself promise a particular frame rate or that every workload will use all available memory.
What clearance does this Dual card need?
The published dimensions are 229 × 120 × 50mm, with a 2.5-slot design. Check usable space after front fans or radiators are installed, nearby expansion cards and cable routing. Card length alone is not a complete fit check.
What PSU connection should I prepare?
The official specification states 1 x 8-pin. The recommended 550W figure is for the system PSU, not a claim that the GPU consumes that entire amount. Confirm PSU compatibility and the manufacturer’s cable-installation guidance.
Is software OC mode the same as switching the BIOS?
No. ASUS lists 2602MHz default boost and 2632MHz OC mode. Software OC settings and a physical Performance/Quiet BIOS switch are separate controls; sustained clocks depend on the workload and operating conditions.
How many displays does this edition support?
The exact specification lists a maximum of 4 displays. Its output mix is 1 × HDMI 2.1b; 3 × DisplayPort 2.1b. Resolution and refresh-rate choices depend on the monitor, cable and supported display mode.
Why might the fans stop during desktop use?
The manufacturer describes temperature-dependent fan-stop operation. Active cooling resumes when needed. This is expected behavior under suitable conditions, not a guarantee of silent operation during games.
Manufacturer resources: ASUS model overview · Exact specifications.
Explore graphics cards at GameOn.pk.
Comparing editions? See ASUS Dual GeForce RTX 5060 Ti 8GB GDDR7 OC Edition Graphic Card for its own finish and specifications.
Specifications and box contents may vary by region or manufacturer revision. Please check the linked manufacturer information and confirm any essential feature or included accessory with GameOn.pk before ordering.
